3. FRONT PANEL

Reminder: The image shown here is indicative only. If
there is inconsistency between the image and the actual
product, the actual product shall govern.
� , ... s · • • > = s·
� ■ ■
s f.
Cl
■ kMO
07

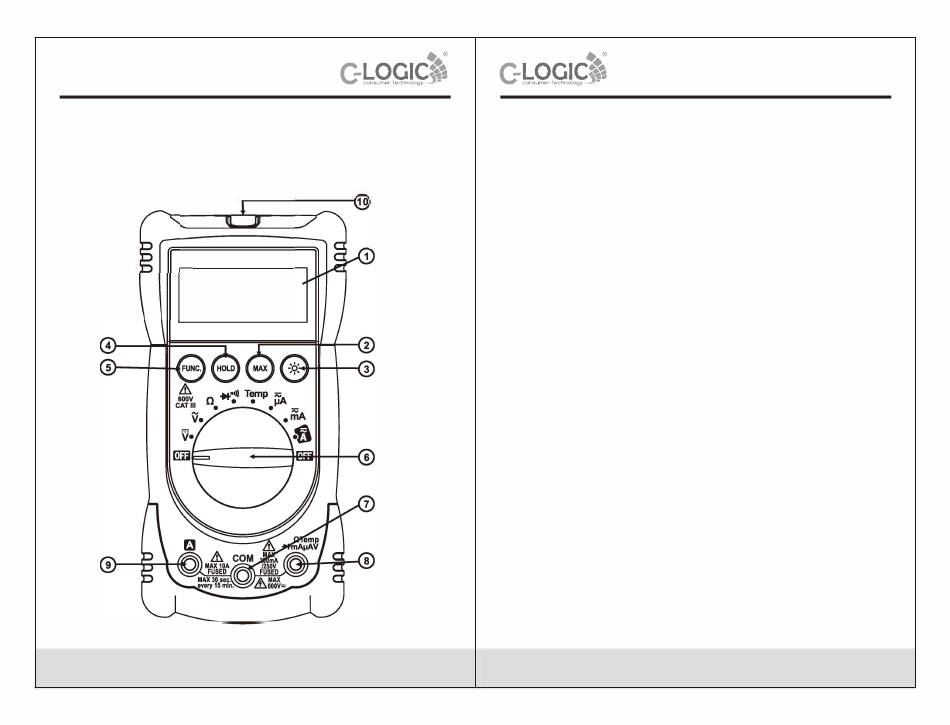

3.1 FRONT PANEL DESCRIPTION

0 Display
3 1 /2 digit,(2000 count)LCD.
@"MAX"push button
This key is act with trigger.Press this key once,the
maximum value is holding (Will displays "MAX"
symbol in the LCD).After pressing the key,A/D will
keep working.and display value are always up dated
and kept the maximum value.
NOTE:The actual gained value is not the peak value.
(D "BACK LIGHT" push button
This key is used control Backlight.When press and hold
the key over 2 sec.will enable Backlight.Press the key
again.the backlight will disable.
© "HOLD"push button
When this button is pushed.the display will keep the
last reading and" [::J"symbol will appear on the LCD
until pushing it again.
© "FUNC" push button
This key is the function select key that acts with trigger.
Use the key as switch of DC/AC current,Diode/
0
Continuity and °C/ F.
© Rotary switch
This switch is used to select functions and desired
ranges as well as to turn on/off the meter.
OB
