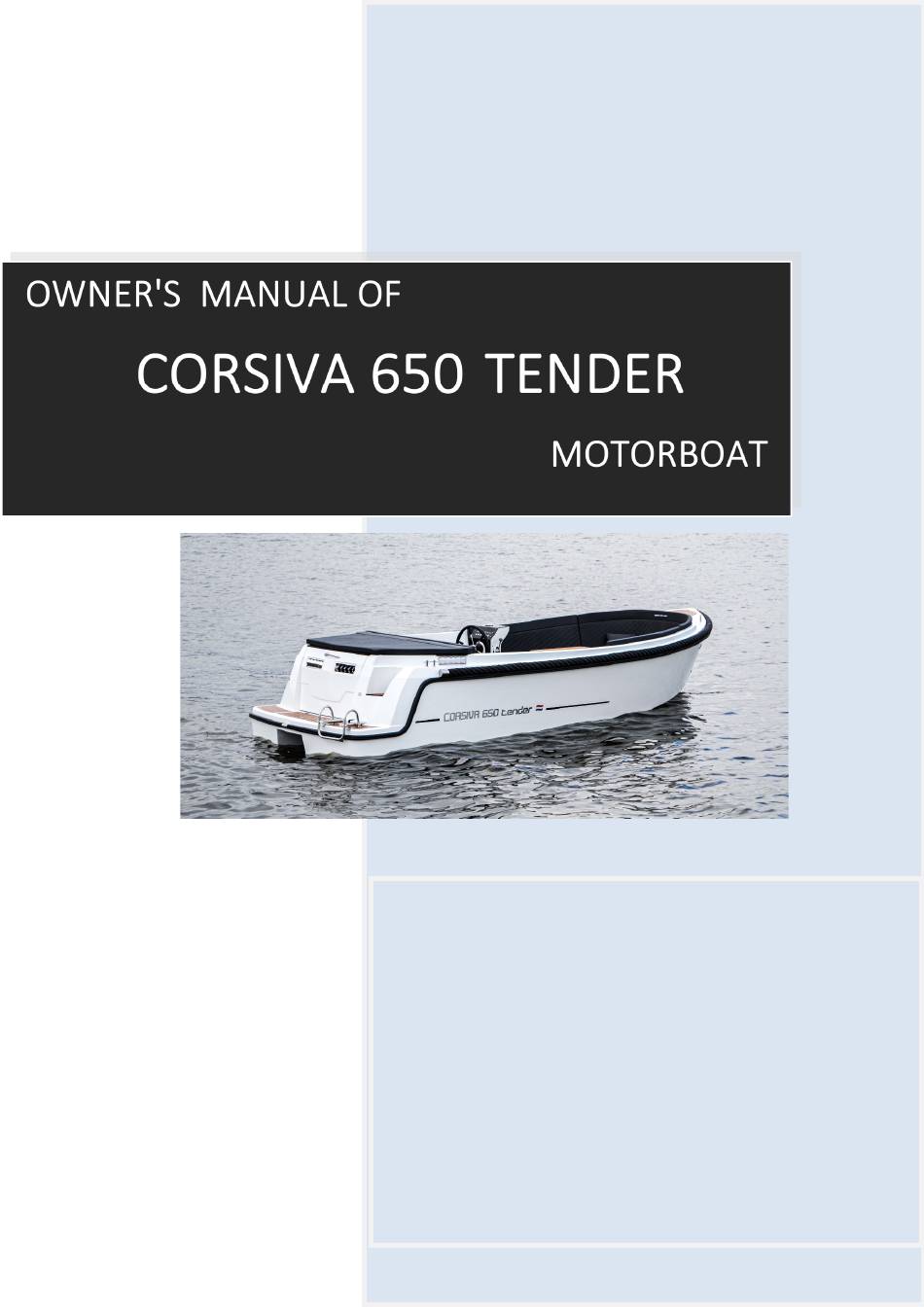

- Page 1 Manufacturer: Corsiva Yachting http://corsiva.pl/...
-
Page 2: Table Of Contents
CORSIVA YACHTING INDEX 1. INTRODUCTION........................3 2. RISK ASSESSMENT ........................4 3. GENERAL SAFTY RULES......................5 3.1. Safety..........................5 3.2. Passengers on board......................5 3.3. Life-saving equipment ...................... 6 4. IDENTIFICATION OF BOAT.......................7 4.1. Craft identification number (CIN)..................7 4.2. Builder's plate........................8 4.3. - Page 3 CORSIVA YACHTING 13. BOTTOM, SIDE AND DECK OPENINGS.................23 14. FIRE PROTECTION........................24 15. UPHOLSTERY........................25 15.1. Sundeck........................26 16. MAINTENANCE, PAINTING, CLEANING................27 16.1. Stainless steel.......................28 17. TRAILERING AND LAUNCHING.................... 29 18. ANCHORING, MOORING AND TOWING................30 19. ENVIRONMENTAL PROTECTION ..................31 19.1. Oil derivatives......................31 19.2.
-
Page 4: Introduction

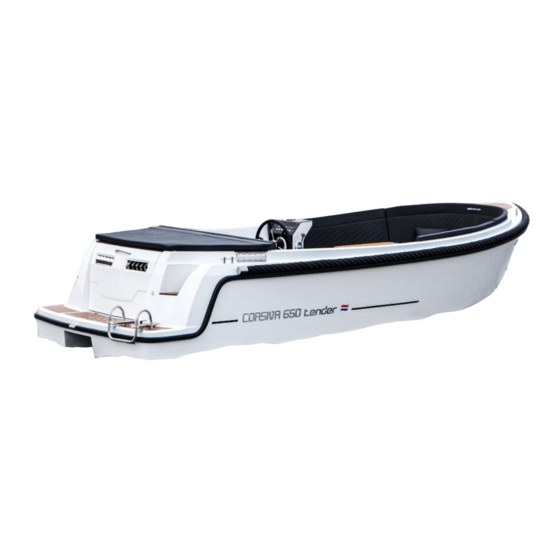

The Owner’s manual, which you received together with a boat, will help you operate your CORSIVA 650 TENDER motorboat safely and appropriately so you may use it with pleasure. Manual contains the description of the boat, its equipment and installation systems as well as practical information about its use and maintenance. -
Page 5: Risk Assessment
CORSIVA YACHTING 2. RISK ASSESSMENT The manual contains three kinds of sign, which are supposed to turn your attention to the actions and situations which may cause danger for health or life if they are not fulfilled. Make sure you are familiar with the following signs:... -
Page 6: General Safty Rules
CORSIVA YACHTING 3. GENERAL SAFTY RULES 3.1. Safety Even if all was planned the safety of the sailing remains heavily dependent on the weather, sea conditions, the experience and knowledge of the crew. Always check the weather forecast before leaving and see that the circumstances should be expected to the boat’s construction category. -
Page 7: Life-Saving Equipment
CORSIVA YACHTING WARNING Always turn off the engine when the boat is located near people in the water. Even at low engine power, the screw can cause serious injuries. 3.3. Life-saving equipment There should be a boat type and weather conditions’ appropriate safety equipment on the boat (life jackets, safety harnesses, etc.) In some countries equipment is indicated and... -
Page 8: Identification Of Boat
Annex I to Directive 2013/53/UE of European Parliament and the European Council, Recreational craft and personal watercraft. The CORSIVA 650 TENDER boat was tested by Polish Register of Shipping according with applicable requirements of Annex I to Recreational Craft Directive 2013/53/UE for design category C. -
Page 9: Builder's Plate
CORSIVA YACHTING 4.2. Builder's plate In the cockpit of CORSIVA 650 TENDER the builder’s plate is placed. The builder’s plate includes: Yacht design category – „INSHORE”. Max. load which cannot be exceeded by the boat’s capacity max. x 8 +... -
Page 10: Stability And Buoyancy
CORSIVA YACHTING 5. STABILITY AND BUOYANCY... - Page 11 CORSIVA YACHTING DANGER Information about stability and freeboard, floatation and buoyancy is fulfilled only when: The weight of empty boat (with engine) does not exceed 1140 kg, ✔ The maximum power of engine does not exceed 66,2 kW ✔ Remember: any change in arrangement of the masses on the side (eg.
-
Page 12: Description Of Boat
Never exceed the safety limit defined by the constructor in reference to the maximum load of boat. Corsiva 650 Tender boat can be maximally loaded with 940 kg of weight. WARNING While loading the boat, never exceed the maximal recommended load. -
Page 13: Engine
CORSIVA YACHTING 7. ENGINE The manufacturer leaves the derived hoses in engine compartment so its dealer or customer could attache the engine in the future. (see the photo). To drive the boat, you should apply the motor with the maximum power recommended by manufacturer of the boat –... -
Page 14: Engine Compartment
CORSIVA YACHTING 7.1. Engine compartment Hiding the engine in compartment makes boarding or leaving from the deck easy while the boat is stern moored. Additionally, hidden engine reduces the noise, which a running engine produces, improving for crew comfort during cruises. -
Page 15: Mechanical Ventilation
CORSIVA YACHTING 7.1.2. Mechanical ventilation The exhaust gases from the engine exhaust are discharged through a hose, which on the one side is connected to the engine, and on the other to the end of exhaust, which exhausts them out of the boat. -
Page 16: Steering System
CORSIVA YACHTING 8. STEERING SYSTEM 8.1. Boat steering system Steering the boat is done by by the steering-wheel. Throttle installed on the right side of control console is used to: change the direction of driving screw rotation, ✔ increase or decrease the engine rotations, ✔... -
Page 17: Navigation Lights
CORSIVA YACHTING steering buttons The panel contains starting devices buttons: 1. bilge pump - manual function (the pump turns on only when the button is switched and held on), 2. bilge pump - automatic function (after pressing the pump is still active), 3. -
Page 18: Steering System
CORSIVA YACHTING CAUTION Check proper working of navigation lights before sailing and make sure that the boat always has a spare bulb of the same power. 8.3. Steering system On the boats are mounted two types of control system: ENGINE < 90 HP ENGINE >... -
Page 19: Fuel System
CORSIVA YACHTING 9. FUEL SYSTEM The boat can be equipped with an integral system of fuel. Every fuel tank is made according to PN EN ISO 10088 and is CE certificated. The fuel system consists of: 1. fuel inlet, 2. fuel tank under the cockpit, 3. -
Page 20: Electrical Installation
CORSIVA YACHTING 10. ELECTRICAL INSTALLATION The boat is equipped with electrical installation of 12V DC. The main boat energy is the battery with the installation adequate voltage. The battery is located in compartments. Before cruise, check the battery level. CAUTON... - Page 21 CORSIVA YACHTING Scheme of electrical installation* *) Scheme of electrical installation depends on the equipment ordered by the customer.
-
Page 22: Sanitary System
CORSIVA YACHTING 11. SANITARY SYSTEM On the boat, there is a chemical toilet in bow compartment provided. The rules of its use and maintenance are described in the manual book of toilet manufacturer. CAUTION Before using the toilet make sure it is not clogged up. -
Page 23: Bilge Instalation
CORSIVA YACHTING 12. BILGE INSTALATION The bilge system is installed in the galley under the floor. Automatic bilge pumps Hand bilge pump Bilge instalation consists of: 1. two automatic bilge pumps, 2. one manual bilge pump, 3. outlets and side passages, 4. -
Page 24: Bottom, Side And Deck Openings
CORSIVA YACHTING 13. BOTTOM, SIDE AND DECK OPENINGS The openings in deck, bottom and side may pose danger as water can get into the boat. Sea valves are served manually, therefore they should be controlled. 1 The drain from anchor locker. -
Page 25: Fire Protection
CORSIVA YACHTING 6 The bilge drain to the engine compartment outlet with manual bilge pump. DANGER Never: leave the unattended yacht with open valves, ✔ change the construction of valves connection. ✔ 14. FIRE PROTECTION The main source of fire on the boat is open fire such as a lighter, candle or matches. -
Page 26: Upholstery
CORSIVA YACHTING 15. UPHOLSTERY The upholstery should be installed according to the scheme as pictured. Each cushion has its own marking, which can be found on the label - this will make the eventual replacement of individual damaged cushions easier... -
Page 27: Sundeck
CORSIVA YACHTING Maintenance Upholstered elements will be protected well enough through regular cleaning with a solution of tepid water and gentle detergents or car vinyl cleaners. After they have been cleaned, they should be flushed and dried so as to avoid molding. -
Page 28: Maintenance, Painting, Cleaning
CORSIVA YACHTING DANGER Stern sundeck is adapted toThe stern sun deck is designed for only 2 people. It is forbidden for small children and non-swimmers to stay on the stern sun deck without life jackets and proper supervision. Never enter the stern sundeck, when boat is moving, ✔... -
Page 29: Stainless Steel
CORSIVA YACHTING CAUTION Get acquainted with safety code of environment protection before painting the boat. Get acquainted with suggestions and instructions of using the products before you start using them. Follow the instructions of the paints’ and varnishes’ manufacturer. Consult the local authorities to learn the current regulations concerning environmental protection. -
Page 30: Trailering And Launching
CORSIVA YACHTING 17. TRAILERING AND LAUNCHING During the boat transportation it is very important to keep the boat in the horizontal position. Boat transport should be carried out only by a qualified person. To control hull movements during lifting the operating lines should be fastened to bow and stern cleats, which makes possible to direct the boat, when it is in the air. -
Page 31: Anchoring, Mooring And Towing
CORSIVA YACHTING 18. ANCHORING, MOORING AND TOWING The boat’s owner / helmsman is responsible for equipping the boat with an anchor, anchor chain / anchor rope, mooring and towing lines ready to use. Anchorage equipment Place the anchor in the anchor compartment. Anchor rope is secured to the cleat. -
Page 32: Environmental Protection
CORSIVA YACHTING 19. ENVIRONMENTAL PROTECTION The chapter contains the indispensable information how the crew should protect the natural environment during sailing. Remember that protecting natural environment is strictly regulated not only in many parts of Europe but also all over the world. -
Page 33: Sewage And Waste Removal
CORSIVA YACHTING 19.2. Sewage and waste removal Removing sewage into navigation waters is strictly prohibited among many water areas. The user of the boat is required to know all the valid local rights concerning the disposal of liquid sewage into navigation waters.
