JK Smart BMS JK-B1A8S20P/JK-B2A8S20P User Manual
4 Installation method and precautions
4.1 Open box inspection and precautions are as follows.
a) The boxes and BMS should be handled lightly and not inverted as much as possible.
b) Before opening the box, pay attention to whether the packaging is intact, such as whether
there are signs of impact, whether there is damage, etc.；
4.2 Wiring Diagram
The wiring of 4S and 8S is shown in Figure 4 and Figure 5.

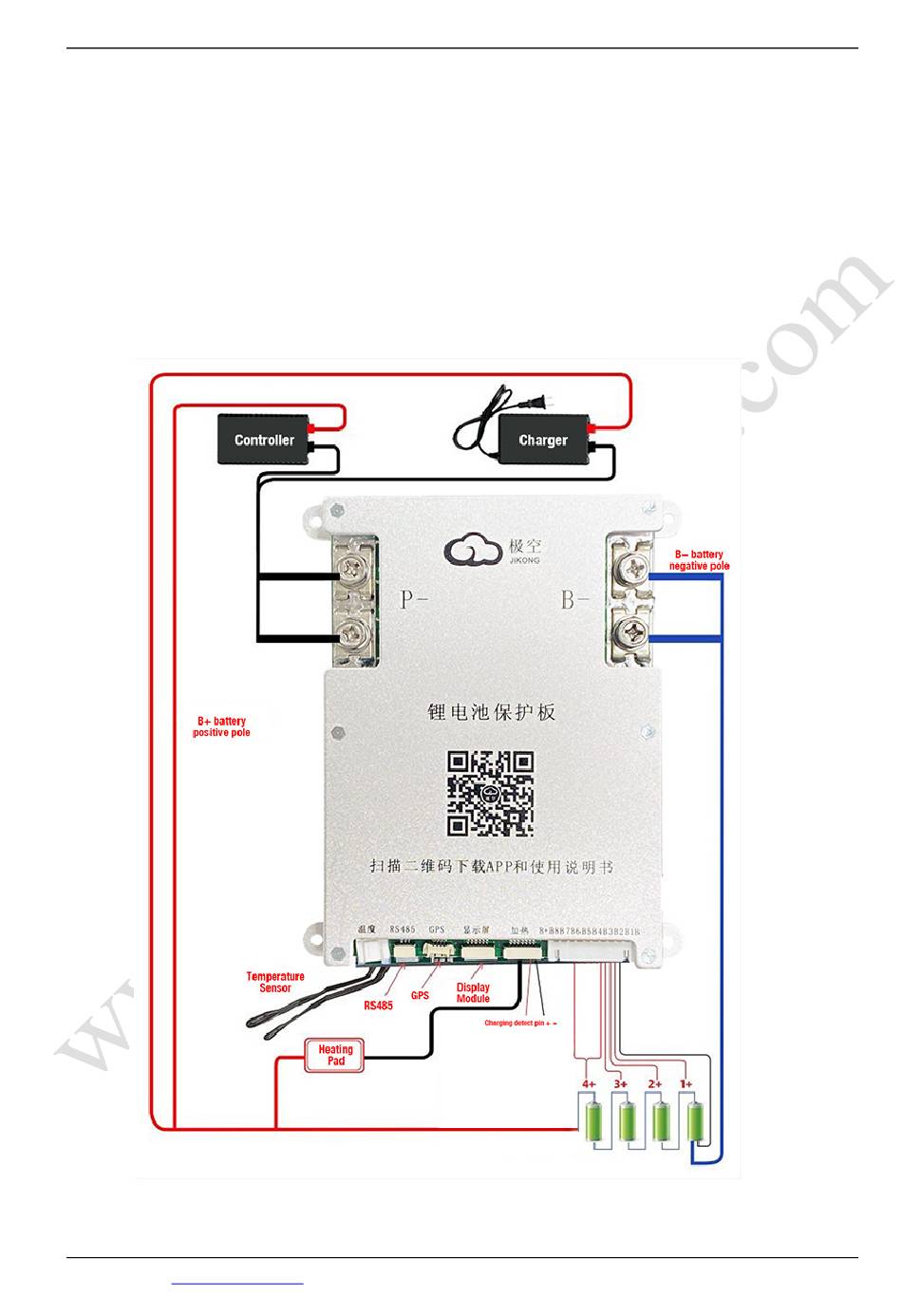

4 4S battery wiring diagram
Figure
8 /22
