Summary of Contents for Furniture of America Denton CM6149

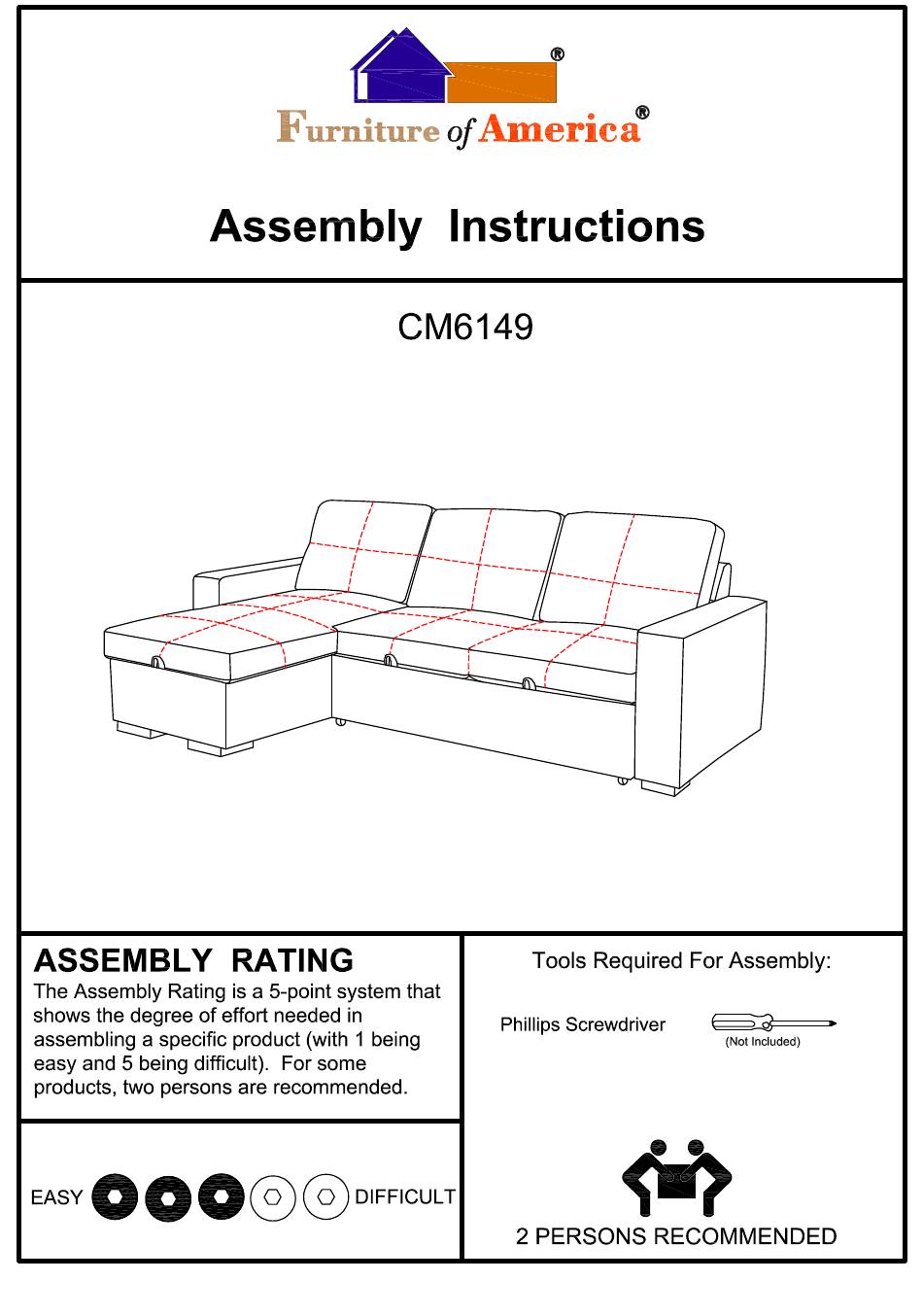

- Page 1 For more information contact our team: service.ec@foagroup.com Rev: 18-12-04 Page 1 of 10...
- Page 2 No dragging of products/parts. Page 2 of 10...
- Page 3 Black Front Roller White Rear Roller Page 3 of 10...
- Page 4 Cut the strap that holds the loveseat frame and extension together. Align the white rear rollers (#G) to the bottom of There will be no pre-drilled holes in the step. the loveseat frame (#1), then secure by using screws (#B). White Rear Roller Page 4 of 10...
- Page 5 There will be no pre-drilled holes in this step. Black Front Roller Align legs (#D) to the bottom corners of the loveseat frame (#1), then secure by using screws (#C). Align black front rollers (#A) to the frame of the extension, then secure by using screws (#B).
- Page 6 There will be no pre-drilled holes in this step. Align legs (#F) to the left and right arms (#3,6), then secure by using screws (#C) with washers (#E). Right arm Left arm You have two options on how you want your product to be oriented. Page 6 of 10...
- Page 7 There will be no pre-drilled holes in this step. Align legs (#D,F) to the chaise seat frame (#4), then secure by using screws (#C) and washers (#E). Align and attach the metal brackets of the back frame (#5) to the metal brackets of the chaise frame (#4). Page 7 of 10...
- Page 8 This option is based off of what you have chosen for the orientation of the product on step 6. This option is based off of what you have chosen for the orientation of the product on step 6. Page 8 of 10...
- Page 9 Storage Page 9 of 10...
- Page 10 This option is based off of what you have chosen for the orientation of the product on step 6. ASSEMBLY IS COMPLETED Page 10 of 10...
