- Page 1 Powerlink Installation and Operation Manual Utilities and Residential Commercial Industrial Telecom Powerlink Installation and Operation Manual 05/12/2022 Page V 3.3 +61 3 8797 5557 | info@powerplus-energy.com.au | powerplus-energy.com.au...
- Page 2 Product Information Specifications Dimensions and Ports Supplied with Powerlink Powerlink module Setup and monitoring procedure Powerlink set up Web interface setup Battery scanning procedure Cabling Request login details for the portal Powerlink Installation and Operation Manual 05/12/2022 Page V 3.3...
- Page 3 Product Information The PowerPlus Energy PowerLink module retrieves the battery performance data from LiFe and Eco PS Series batteries which have the Australian made Digital Battery Management System (BMS). The information provided by the PowerLink module is accessible on most computers, tablets and phones via web browser.

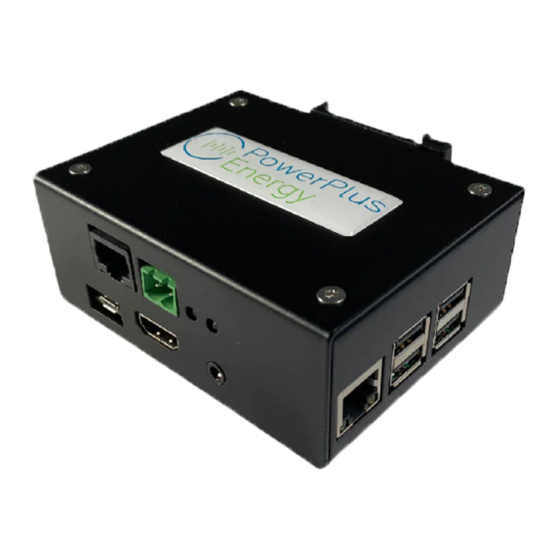

- Page 4 40 mm 110 mm 110 mm Port name Port description LED indicators RJ45 monitoring port Micro USB Power USB ports LAN port LED HDMI port indicators (unused) Audio port LAN port (unused) Powerlink Installation and Operation Manual 05/12/2022 Page V 3.3...
- Page 5 Supplied with Powerlink 2m RJ45 cable 30cm RJ45 cable 5V power supply to micro USB RJ45 termination plug Powerlink Installation and Operation Manual 05/12/2022 Page V 3.3...
- Page 6 Take the longest RJ45 cable and connect the cable black colour RJ45 port. Note: please make sure, the cable is connected to the correct port in the Powerlink Connect the other RJ45 cable end to the battery needing to be scanned.
- Page 7 Verify that all the batteries are responding. If you are not able to see the battery status in MultiStat window, press Restart polling button in configuration page and repeat step 19 & 20. Powerlink Installation and Operation Manual 05/12/2022 Page V 3.3...
- Page 8 Customer to email Support@powerplus-energy.com.au and request login and password detailed for PowerPlus Energy Portal http://performance.powerplus-energy.com.au:3000/ login Customer needs to supply all PowerLink Serial Numbers and Site Name Support will create login and will email details to the customer once complete. +61 3 8797 5557...
