Summary of Contents for PowerPlus Energy Powerlink

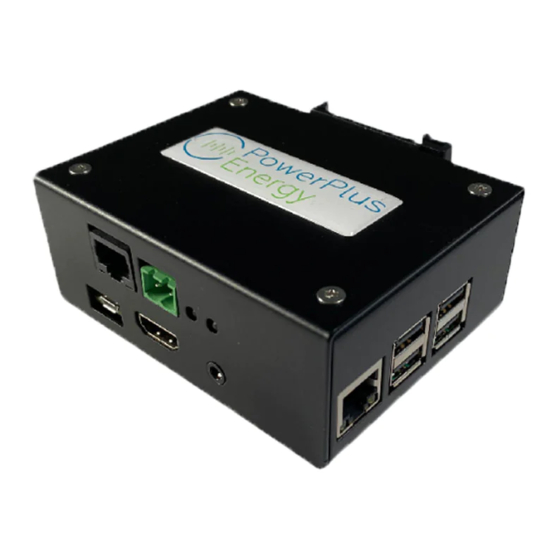

- Page 1 Powerlink Installation and Operation Guide Powerlink Setup and Registration Procedure Author: Edwin Cotter Date: 30/09/2021 Ver: 3.1 Page 1 of 7...
- Page 2 Connect the micro USB port from the 5V Connect the cable from the LAN modem main AC power outlet and Switch it ON. power adaptor to the Powerlink port (for the internet) to the Powerlink port Wait 10 seconds. shown in the picture. shown in the picture.
- Page 3 Powerlink Installation and Operation Guide Open the web browser. Type the Open WiFi network menu in mobile or Type the password 12345678 address 192.168.0.10:8822 computer (Interface layout might be It will open the home page as shown in different from the picture). Select PPE- the picture.
- Page 4 Take the longest RJ45 cable and Connect the other RJ45cable end to the Press Scan in the Battery management connect the cable into the Powerlink battery need to be scanned. screen and after couple of seconds, you module side having two RJ45 port.
- Page 5 Powerlink Installation and Operation Guide Replace the long RJ45 cable with Connect the other end to top battery in suitable length RJ45 cable to connect in the rack. the top battery. Repeat the daisy chain connection till last battery. Connect the other end into next battery Connect another small RJ45 cable to the (Daisy chain).
- Page 6 Powerlink Installation and Operation Guide Verify that all the batteries are responding. After 1-2 minutes, go to MultiStat Connect the RJ45 termination connector (available on the home page). in the remaining slot on the last battery. Congratulations! The battery monitoring configuration procedure is completed...
- Page 7 Powerlink Installation and Operation Guide Request Login Details for the Portal The portal URL is: https://performance.powerplus-energy.com.au:3000/login To gain your login information for the portal, email “support@powerplus-energy.com.au" and provide the following information: • Subject line: Portal access request • PowerLink Serial Number •...
