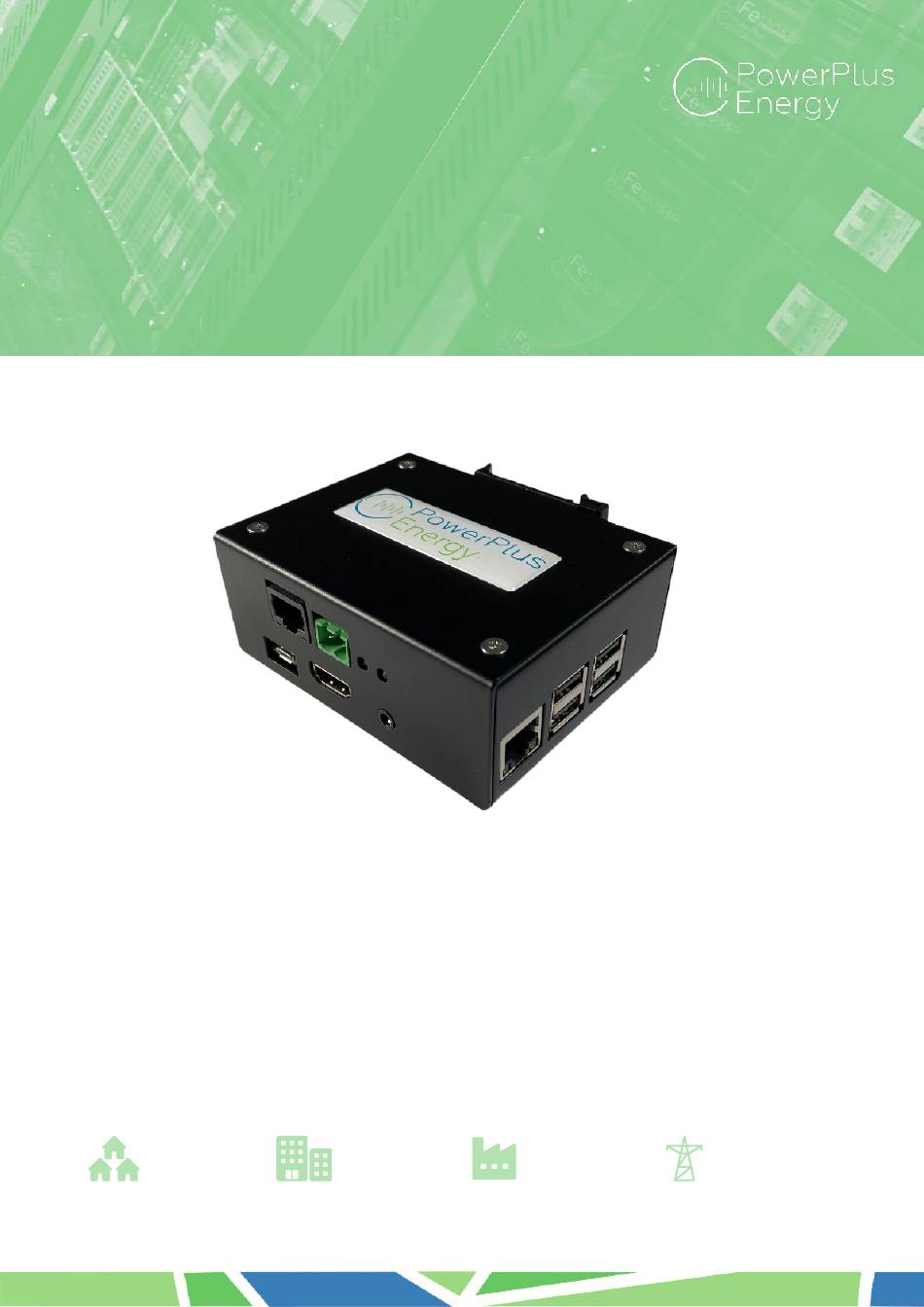

- Page 1 PowerLink module Installation and Operation Manual Utilities and Residential Commercial Industrial Telecom PowerLink Installation and Operation Manual Page V 3.2 +61 3 8797 5557 | info@powerplus-energy.com.au | Building 21-25, 885 Mountain Hwy, Bayswater Vic 3153 | powerplus-energy.com.au...
- Page 2 Product Information Specifications Dimensions and Ports Contents PowerLink module Setup and monitoring procedure PowerLink set up Web interface setup Battery scanning procedure Cabling Verifying configuration Request login details for the portal PowerLink Installation and Operation Manual Page V 3.2...
- Page 3 The PowerPlus Energy batteries have been designed as a stand alone self managed solution, however the PowerLink module also provides information via MODBUS with future releases including CANBUS and SNMP options. The information provided by the PowerLink module will assist in providing the optimum performance and longevity from your energy storage. Specifications...
- Page 4 Alarm port (not used) Power LED indicators RJ45 port - battery monitoring USB ports USB-micro - power port (not used) HDMI port (not used) Audio port (not used) RJ45 port - internet PowerLink Installation and Operation Manual Page V 3.2...
- Page 5 Contents PowerLink module 5V power supply 30cm RJ45 cable per battery, plus a longer RJ45 termination connector RJ45 cable as required PowerLink Installation and Operation Manual Page V 3.2...
- Page 6 PowerLink module Setup and monitoring procedure PowerLink set up Connect the power adapter to the PowerLink module’s USB-Micro power port (2) and power on. Connect an ethernet cable from an internet connected source (modem/router) to the internet RJ45 port (5) on the right hand side of the PowerLink module.
- Page 7 “Scan’ button again - continue until all batteries have been scanned Cabling Once all batteries have been scanned, the PowerLink module must be connected via the battery monitoring RJ45 port (1), to the upper port on the first battery.
- Page 8 To gain your login information for the portal, email “support@powerplus-energy.com.au" and provide the following information: • Subject line: Portal access request • PowerLink Serial Number • Site Name Our support team will then create a login and email it to you the details once complete.
