BRIGHTWELL
400 P

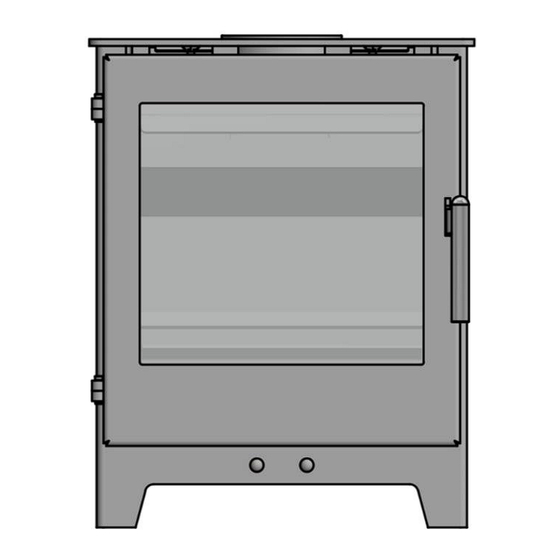

5.0kW Portrait Multi-Fuel Stove
INSTALLATION & OPERATING INSTRUCTIONS
This appliance is hot while in operation and retains its heat for a long period of time after use. Children,
aged or infirm persons should be supervised at all times and should not be allowed to touch the hot
working surfaces while in use or until the appliance has thoroughly cooled.
This stove has an Efficiency Rating of "A+" and has passed the Eco-design 2022 Standard and
has the met the Standards as defined by DEFRA for Burning Wood in Smoke Free Areas
(Can only be used in a Smoke Free Zone when the DEFRA kit is fitted – please refer to page 8)
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for Pevex BRIGHTWELL 400 P
Summary of Contents for Pevex BRIGHTWELL 400 P
- Page 1 BRIGHTWELL 400 P 5.0kW Portrait Multi-Fuel Stove INSTALLATION & OPERATING INSTRUCTIONS This appliance is hot while in operation and retains its heat for a long period of time after use. Children, aged or infirm persons should be supervised at all times and should not be allowed to touch the hot working surfaces while in use or until the appliance has thoroughly cooled.
-
Page 2: Table Of Contents
Pevex Stoves - Brightwell 400P – Installation & Operating Manual CONTENTS Installation Information & Technical Data..2. Installation Checklist ............. - Page 3 Pevex Stoves - Brightwell 400P – Installation & Operating Manual Important Key Safety Points: Please read before using your stove HOT - HOT - HOT This appliance and the flue will become HOT while in WARNING operation and retains its heat for a long period of time after use.
- Page 4 Pevex Stoves - Brightwell 400P – Installation & Operating Manual Installation Information Please complete the following form for reference when required: Ref. Description Please Complete Name & Address of Retailer: Which retailer did you purchase the stove from? What date did you purchase your new...
- Page 5 Pevex Stoves - Brightwell 400P – Installation & Operating Manual KEY STOVE TECHNICAL DATA ALSO ADDRESSING ECO-DESIGN 2022 AND DEFRA SMOKE EXCEMPTION Brightwell 400 P – Multi-Fuel Stove Model Reference: Energy Efficiency Class of Model: Net Efficiencies: Wood: - 84.8% & Ancit (Smokeless Fuel): 81.5% Yes –...
- Page 6 Pevex Stoves - Brightwell 400P – Installation & Operating Manual STOVE EFFICIENCY & PERFORMANCE: SPACE HEATING PERFORMANCE AT NOMINAL OUTPUT (mg/m³) Seasonal Primary Fuel(s) Efficiency Fuel Wood Logs 74.8 1375 Maxibrite (MSF*) Smokeless Fuel 71.5 21.0 PERFORMANCE WHEN OPERATED ON PRIMARY FUEL...
- Page 7 Pevex Stoves - Brightwell 400P – Installation & Operating Manual OVERALL STOVE DIMENSIONS – please refer to dimensional drawings below Height: 568mm - (Excluding Top Flue Collar) Width: 445mm - (Including the Overhang of the Top Lid) Depth: 323mm - (Excluding the Overhang of the Handle to the front & Rear Air Kit)
- Page 8 Pevex Stoves - Brightwell 400P – Installation & Operating Manual THE CLEAN AIR ACT 1993 AND SMOKE CONTROL AREAS – DEFRA LISTING This Brightwell Multi-fuel stove is able to be used smoke controlled areas but only under the following conditions ...
- Page 9 Pevex Stoves - Brightwell 400P – Installation & Operating Manual AIR MANAGEMENT DAMPERS LEFT OPEN Operation with the air control or appliance dampers open can cause excess smoke. The appliance must not be operated with air controls, appliance dampers or door left open except as directed in the instructions.
- Page 10 Note: Adequate clearance must be maintained around the appliance to ensure the ease of part removal in the possible event of their damage/failure. PEVEX are not responsible for any costs incurred in the removal of items installed in the vicinity of the appliance that have to be moved to facilitate a part replacement.
-
Page 11: Installation Checklist
Pevex Stoves - Brightwell 400P – Installation & Operating Manual INSTALLATION CHECK LIST Flue System Tick 1. Minimum Flue Height of 4.6 metres (15 feet). 2. Appliance should be connected to a 125mm (5”) diameter flue pipe throughout The horizontal flue run should not exceed 150mm (6”) 4. -
Page 12: Important Operation/ Maintenance Notes
Pevex Stoves - Brightwell 400P – Installation & Operating Manual IMPORTANT OPERATION / MAINTENANCE NOTES Now that your Brightwell Solid Fuel Stove is installed and no doubt you are looking forward to the many comforts it will provide, we would like to give you some tips on how to get the best results from your stove. -
Page 13: Installation & Operating Instructions
Pevex Stoves - Brightwell 400P – Installation & Operating Manual INSTALLATION & OPERATING INSTRUCTIONS GENERAL Please refer to the current standards, BS EN 15287- 1:2007 Design, Installation and Commissioning of When installing, operating and maintaining your chimneys. BS EN 14336:2004: Heating Systems in Brightwell Stove respect basic standards of fire Buildings. -
Page 14: Flue Exit (Top And Rear)
Pevex Stoves - Brightwell 400P – Installation & Operating Manual If connecting to an existing chimney with a flue The stove comes partially configured for top outlet and diameter of more than 200mm (8”) it is recommend requires the flue spigot (supplied in the firebox) to be... -
Page 15: Down Draughts
Pevex Stoves - Brightwell 400P – Installation & Operating Manual VENTILATION & COMBUSTION AIR REQUIREMENTS Rear Exit It is imperative that there is sufficient air supply to Flue the stove in order to support correct combustion. Position The air supply to this appliance must comply with current Building Regulations Part J, Heat Providing Appliances. -
Page 16: External Ducted Air
Pevex Stoves - Brightwell 400P – Installation & Operating Manual EXTERNAL DUCTED AIR If there is an extraction fan fitted in adjacent rooms where this appliance is fitted, additional air vents An optional outside air kit which will allow for the air... -
Page 17: Heat Recovery Ventilation (Hrv)
Pevex Stoves - Brightwell 400P – Installation & Operating Manual Fig 7 HEAT RECOVERY VENTILATION Top/Rear Flue Where a stove is to be installed in a dwelling with Collar Heat Recovery Ventilation (HRV) a number of precautionary measures must be undertaken:... -
Page 18: Commissioning And Handover
Pevex Stoves - Brightwell 400P – Installation & Operating Manual CLEARANCES TO NON COMBUSTIBLES If you are fitting the stove into a brick built fireplace and it’s deemed as Non-combustible you would still fit the Non-combustible hearth but you could then reduce the distance around the back and the sides of the stove to... -
Page 19: Recommended Fuels
Pevex Stoves - Brightwell 400P – Installation & Operating Manual RECOMMENDED FUELS This stove has obtained approval for burning natural and manufactured smokeless fuels only as All fuels should be stored under cover and kept detailed in WARRANTY on page 26 This approval as dry as possible prior to use. -
Page 20: Lighting The Stove
Pevex Stoves - Brightwell 400P – Installation & Operating Manual SLOW BURNING LIGHTING THE STOVE When operating stove, Slow burning will cause the window glass to blacken recommended to use the Heatproof Glove and can craze the glass this should not be used for a provided to open the fire door as the door long period. -
Page 21: Monthly Maintenance
Pevex Stoves - Brightwell 400P – Installation & Operating Manual PERIODIC MAINTENANCE MONTHLY MAINTENANCE Adjusting the Door Catch (if required) Cleaning Stove Flue Pathways Over time, the fire door latch can loosen due to the It is recommended that the flue pathways in the... - Page 22 Pevex Stoves - Brightwell 400P – Installation & Operating Manual FIREBOARD REMOVAL & REPLACEMENT FIRE BRICK REMOVAL PROCEDURE: Firstly open the door and remove the log retainer from the front of the firebox 1 & 2 Lift up the front of the (1) bottom baffle (30mm thick fireboard) to allow the two side firebricks (2) to drop into the firebox &...
-
Page 23: Fire Safety
Pevex Stoves - Brightwell 400P – Installation & Operating Manual WARNING NOTE: CARBON MONOXIDE CO ALARM Properly installed, operated and maintained this stove will not emit fumes into the dwelling. This is not supplied with your Occasional fumes from the de-ashing and re- stove you would purchase this fuelling may occur. -
Page 24: Exploded View & Parts List
Pevex Stoves - Brightwell 400P – Installation & Operating Manual EXPLODED VIEW & PARTS LIST PARTS LISTING & PART NUMBERS BACK REFRACTORY BRICK – BW/400/001 DOOR GLASS - BW/400/018 RH BACK REFRACTORY BRICK - BW/400/002 FLUE BLANKING PLATE - BW/400/019... -
Page 25: Appendix 1 - Annual Servicing Records
Pevex Stoves - Brightwell 400P – Installation & Operating Manual APPENDIX 1 - ANNUAL SERVICING RECORDS For your warranty to be valid you must have this stove serviced once a year by a Competent Engineer who is qualitied to service Multi-fuel stoves, please record the details here and attach your invoice as proof of service Annual Service Record –... - Page 26 Consumable items such as glass, paint, grate parts, log retainers, ceramic fire boards (internal linings), and rope seals which are either subject to normal wear and tear or parts that require replacement in connection with normal maintenance are not covered, either by the Warranty. The Flue system is not covered by any warranty from Pevex Stoves.
- Page 27 If the product fault or defect is notified after 14 days from the date on which the fault or defect became apparent, Pevex Stoves cannot accept any liability for events or issues which arise after the 14 day period or which are caused or increased by the lack of notification which therefore prevented action being taken to restrict or eliminate any consequences arising from the fault or defect at an earlier date.
- Page 28 Pevex Stoves - Brightwell 400P – Installation & Operating Manual ENERGY EFFICIENCY LABEL – UNITED KINGDOM Brightwell 400P Multi-Fuel Stove Page 27 of 28 Brightwell 400P – July 2022 v1...
- Page 29 Pevex Stoves - Brightwell 400P – Installation & Operating Manual This Stove has passed the Efficiency Category A+ Official Efficiency Rating: Manufactured Smokeless Fuel is 81.5 % Wood is 84.8% Brightwell 400P Multi-Fuel Stove Unit MP7 Kirrawah Business Park Newbourne Road...
