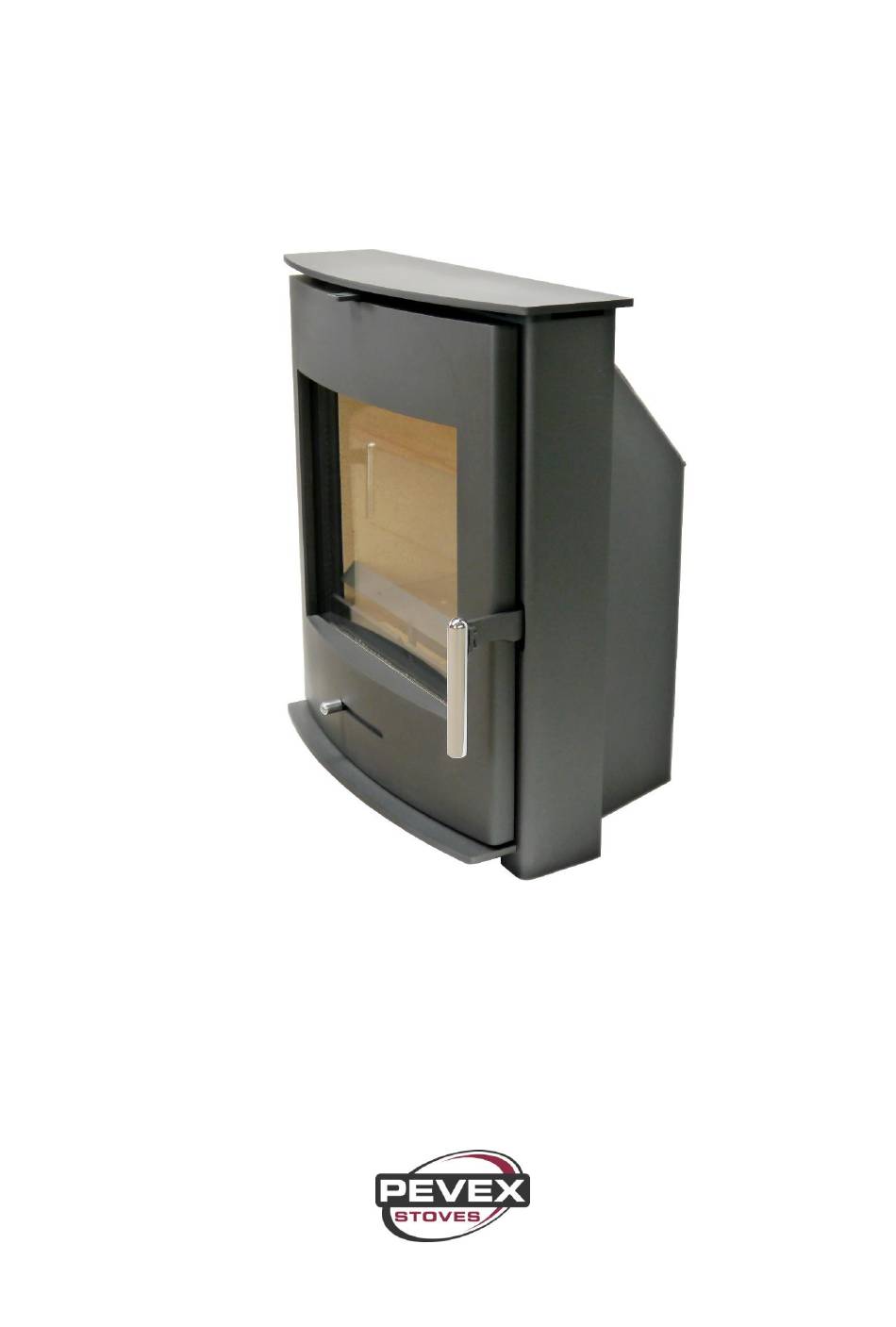

- Page 1 PEVEX NEWBOURNE 40i INSET ECODESIGN WOOD AND MULTI FUEL INSET STOVE CE and EN13229 Approved SUITABLE FOR INSTALLATION INTO A 16” X 22” HIGH FIREPLACE OPENING Pevex Enterprises Ltd Unit MP7 Kirrawah Business Park, Waldringfield, Ipswich, IP12 4PR Tel: 01473 736399...
-
Page 2: Declaration Of Performance
3. Intended use or uses of the construction products in according to Room heater burning wood without water heating the technical specification Pevex Enterprises Ltd, Unit MP7 Kirrawah Bus Park, 4. Manufactured and Distributed by Newbourne Rd, Nr Woodbridge, IP12 4PR www.pevexstoves.co.uk sales@pevexstoves.co.uk... -
Page 3: Warning Note
The Newbourne 40i Inset Ecodesign stove operates at an efficiency of approx 70% Gross CV basis (+76% Net) and is very much more efficient than an open fire avoiding the wasteful draughts normally associated with that type of appliance Burning wood is the natural way to store the sun’s energy to then be released in a carbon neutral process to... - Page 4 It is possible to sweep through the Newbourne 40i Inset stove by removing the lower vermiculite baffle and upper steel baffle to gain access to the flue pipe. The method of removal is described later in the manual on page 8. The connecting flue pipe and stove baffle should be checked monthly to clear any fly ash or soot deposits.
- Page 5 400°C which equates to approximately 250 °C at the flue pipe The Newbourne 40i Inset Ecodesign stove is designed and fully tested to burn extremely cleanly with very little smoke discharge and exempt for use in smoke control areas throughout the UK when burning dry wood logs. To comply, a built-in permanent stop is fitted to the secondary air slider so that it cannot be closed completely and will always allow a preset amount of air to enter.
-
Page 6: Lighting The Stove
LIGHTING THE STOVE 3a. Fully open top air slider 2. Neatly stack dry kindling on top of the logs 3b. And lower air slider and leave 1. Put 2 small logs on a bed of ash spaced into approx 3 layers and light the bottom fire the door slightly ajar to allow air to about 6-7cm apart. - Page 7 SAFETY PRECAUTIONS A risk of blowback and/or explosion can arise if too much dry wood is placed in the stove and burnt with insufficient combustion air. This may result in the production of gaseous compounds which can ignite if the intake of primary and secondary air is insufficient and the firebox temperature too low.
- Page 8 http://www.planningportal.gov.uk/uploads/br/BR_PDF_ADJ_2010.pdf Recommended Reading: Fireplaces Chimneys and Stoves by Michael Waumsley. Published by the Crowood Press. ISBN1 86126 746 0 Health and Safety Precautions Special care must be taken when installing the stove such that the requirements of the Health and Safety at Work Act are met.
- Page 9 Baffle plate removal The Newbourne 40i Inset Ecodesign stove is fitted with a twin baffle system to improve efficiency and lower CO emissions with the lower one made from vermiculite and the upper one made from steel. Removal of the steel baffle allows immediate access into the flue system for sweeping.
- Page 10 SWEEPING THROUGH NEWBOURNE 40I INSET. It is possible to sweep through the Newbourne 40i Inset Ecodesign Stove. Remove the baffles as described above, and access can be gained to the flue pipe.
-
Page 11: Terms And Conditions
In the event of any warranty claim then in the first instance a claim must be made with the stockist or stove dealer who supplied the stove and must follow our Terms and Conditions as set out below. It is entirely at Pevex decision whether to repair or replace any part that it considers are defective. - Page 12 Order made and signed by the Secretary of State or Minister in the devolved administrations. The Newbourne 40i Inset Ecodesign has not been recommended as suitable for use in smoke control areas when burning wood logs. *APPLICATION PENDING* More information on the requirements of the Clean Air Act can be found here: http://smokecontrol.defra.gov.uk/...
- Page 13 APPENDIX B TECHNICAL SPECIFICATIONS NEWBOURNE 40i INSET ECODESIGN STOVE Newbourne 40i Inset Ecodesign Width x max depth x height 545 x 371 x 606 Weight kg Log length mm 128 or 150 Flue dia (top only) mm Nominal Output kW...
- Page 14 Appendix C Illustrative guide to installing in standard fireplace showing Inset with flue pipe connection Weak mix vermiculite infill Allow an expansion joint here Skamolex Blue (calcium silicate board cut and shaped to form heat insulator) or rockwool insulation. Soft sealing rope (not supplied) Fix firmly to chair brick with fixing Chair brick bolts (not supplied).
- Page 15 A World of Stoves, A World of Choice Pevex Enterprises Ltd Unit MP7 Kirrawah Business Park, Waldringfield, Nr Woodbridge, IP12 4PR. Tel: 01473 736399 Fax: 01473 736406 sales@pevexstoves.co.uk www.pevexstoves.co.uk...
