NEWBOURNE 35/40/50/60FS & PANORAMA RANGE
WOOD AND MULTI FUEL FREE STANDING STOVES
CE and EN13240 Approved
APPROVED FOR USE IN SMOKE CONTROL AREAS WHEN
BURNING DRY WOOD LOGS OR AUTHORISED FUELS
Manufactured and Distributed by Pevex Enterprises Ltd
Unit MP7 Kirrawah Business Park, Waldringfield, Ipswich, IP12 4PR.
Tel: 01473 736399
Fax: 01473 736406
Congratulations on the purchase of your new Newbourne stove. Your new purchase will provide you with a
level of pleasure and comfort not previously experienced in your home.

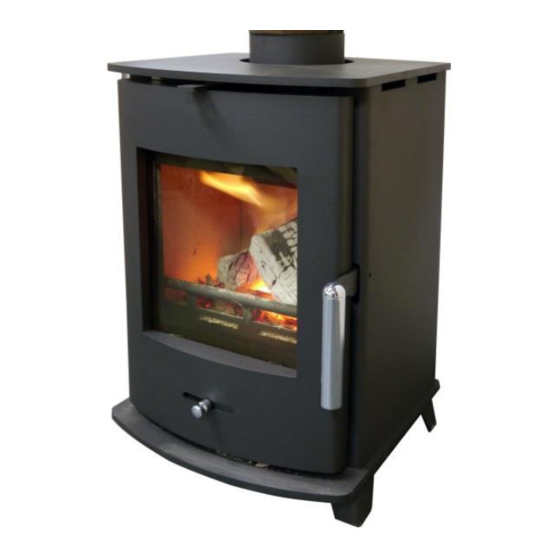

The Newbourne is a heavy duty British designed multifuel stove. It has been designed for easy installation and
ease of use giving a lovely flame pattern when burning wood and a wonderful warm radiant and convection
heat. The stoves are highly efficient with a clean burn firebox and efficiencies above 80% (Net) when burning
wood and features a curved door, large glass window, vermiculite insulated firebox, convector top plate, bolt
on adjustable feet, ergonomic handle and heavy weight steel construction.
Please read and follow the advice and instructions on the safe and efficient operation of your stove to
ensure it has a long trouble free life and also read and follow the installation instructions before
installing the stove.
PART 1 OPERATING INSTRUCTIONS
A stove compared with an open fire is a very efficient heating appliance and must be installed and used safely
and wisely, it is important to understand the working of such an appliance and to understand the process of
converting the fuel into heat and its efficient transfer from the firebox to the room in order to gain the most from
the stove.
A stove creates an almost perfect environment to burn wood in. The firebox will run at a very high temperature
ideal to burn the volatiles given off in the burning process and the precise air controls allow minimal heat loss
into the flue. Newbourne stoveS operates at an efficiency of 73 % and 76% on a Gross CV basis (78-83%
Net) and is very much more efficient than an open fire avoiding the wasteful draughts normally associated with
that type of appliance
Burning wood is the natural way to store the sun's energy to then be released in a carbon neutral process to
heat your house when the need is most. On a cold winters night there is nothing to beat the release of heat
and flame in a stove to raise the spirit.
The preparation and burning of wood as a fuel in stoves can be traced back many centuries, however it is a
forgotten or maybe never fully discovered activity in the United Kingdom, we have much to learn from our
1
Installation and Operating Instructions for Newbourne 35/40/50/60FS Multi Fuel Stoves
Ref: Pevex1022/AH/ver1:May2015

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the NEWBOURNE 35FS and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Summary of Contents for Pevex NEWBOURNE 35FS

  • Page 1 CE and EN13240 Approved APPROVED FOR USE IN SMOKE CONTROL AREAS WHEN BURNING DRY WOOD LOGS OR AUTHORISED FUELS Manufactured and Distributed by Pevex Enterprises Ltd Unit MP7 Kirrawah Business Park, Waldringfield, Ipswich, IP12 4PR. Tel: 01473 736399 Fax: 01473 736406 Congratulations on the purchase of your new Newbourne stove.
  • Page 2: Warning Note

    It is possible to sweep through the Newbourne 35FS stove by removing the lower vermiculite baffle and upper steel baffle to gain access to the flue pipe. The method of removal is described later in the manual on page 8.
  • Page 3 FUEL CONSUMPTION AT NOMINAL HEAT OUTPUT Nominal Smokeless Fuel Wood kg/hr Output kW (Ancit) kg/hr Newbourne 35FS 0.59 0.73 Newbourne 40FS 1.67 0.91 Newbourne 50FS 1.84...
  • Page 4: Lighting The Stove

    Tested according to the requirements of EN13240 and is fully assessed and considered to meet UK smoke control requirements (see Appendix A). Note that different fuel consumption results may be achieved due to other factors which include the fuel, chimney draught and atmospheric conditions etc. The nominal output is the output to which the stove has been tested.
  • Page 5: Safety Precautions

    4. With the door slightly 5. After about 6. Place 2/3 logs on open fire will 40/50 minutes the ash bed ensuring quickly build warming and when the that the wood is not the stove and chimney. last flames go stacked too closely After about 5/10 minutes out a red hot...
  • Page 6: Operational Problems

    OPERATIONAL PROBLEMS In the event of smoke or malodorous fumes being produced, you must first check to see whether the chimney is blocked. The chimney must, of course, always provide the minimum draught necessary (12 Pa) to ensure that it is possible to regulate the fire. However, the chimney draught may also be affected by weather conditions.
  • Page 7: Dimensions And Clearances

    Asbestos This stove contains no asbestos. If there is a possibility of disturbing any asbestos in the course of the installation then please seek specialist guidance and use appropriate protective equipment. Metal Parts When installing or servicing this stove care should be taken to avoid the possibility of personal injury ASSESSING THE REQUIREMENTS FOR THE INSTALLATION OF A STOVE Your supplier or Hetas registered installer will be able to advise you on the individual requirements that are needed to install a stove safely.
  • Page 8 CLEARANCES FROM COMBUSTIBLES when installing in a freestanding situation: MINIMUM RECOMMENDED CLEARANCES FROM COMBUSTIBLE MATERIALS: SIDES REAR NEWBOURNE 400mm 400mm 275mm 185mm (with optional rear heatshield)  Recommended minimum clearance from front to combustible materials 800mm It is deemed safe to install a Newbourne stove on a combustible floor provided it is covered by a non- combustible hearth plate of at least 12mm thickness and extends at least 300mm in front and 150mm to either side.
  • Page 9 CHIMNEY IMPORTANT WARNING This stove must not be installed into a chimney that serves any other heating appliance. The chimney must be a minimum height of 4.5 metres overall height and be in accordance with Building Regulations Approved Document J and reference should be made to British Standard BS EN 15287-1:2007 design, installation and commissioning of chimneys.
  • Page 10 Your local authority is responsible for implementing the Clean Air Act 1993 including designation and supervision of smoke control areas and you can contact them for details of Clean Air Act requirements. APPENDIX B TECHNICAL SPECIFICATIONS NEWBOURNE SERIES Newbourne 40/50/60FS Newbourne 35FS NEWBOURNE & NEWBOURNE PANORAMA 35FS 40FS 50FS...
