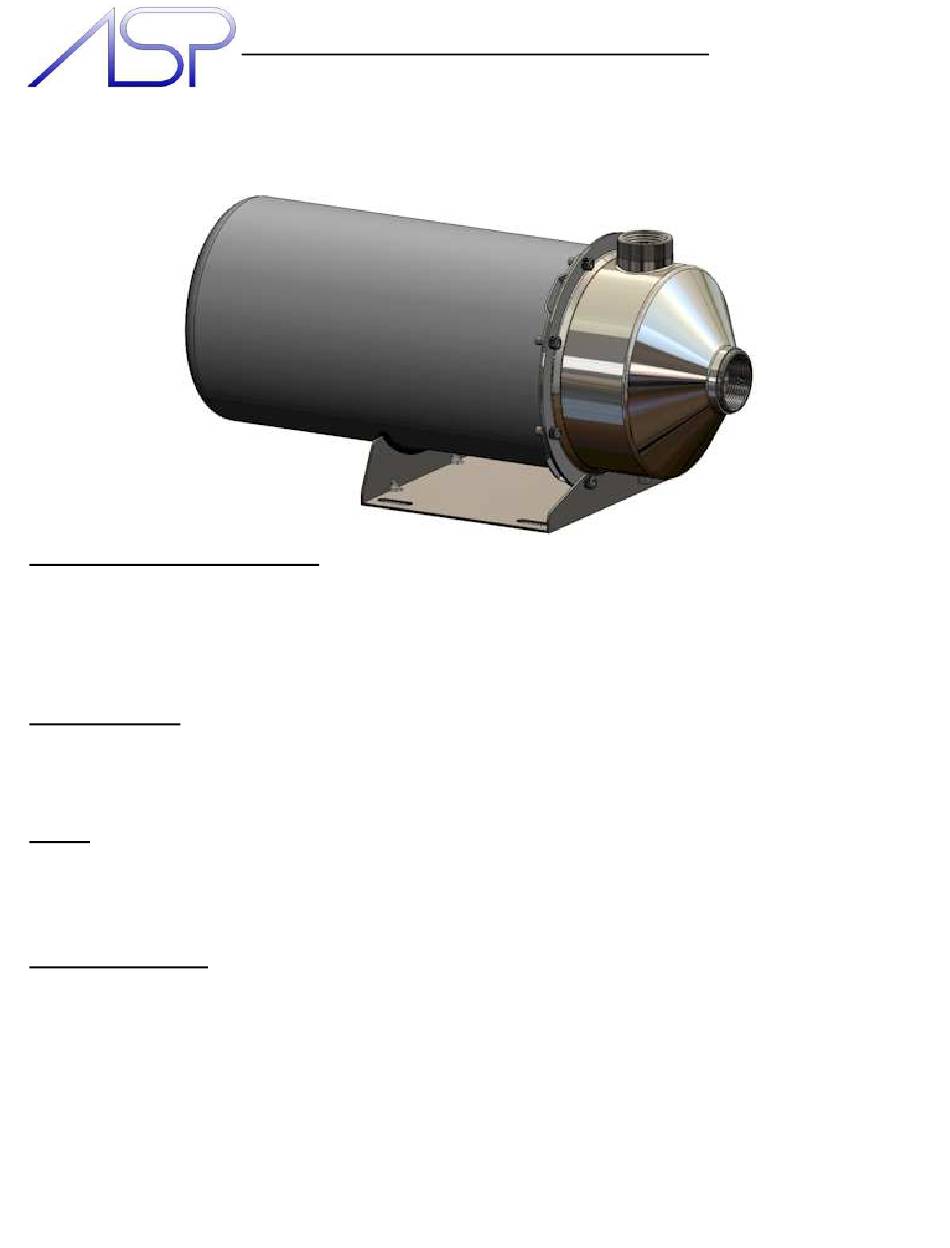

American Stainless Pumps
Stainless Steel Pumps for the Commercial Marketplace
Model SSP & SSPC
Installation Operation & Maintenance Instructions
Description and Specifications
The Model SSP is a close coupled, end suction, single stage, open-impeller, back-pullout centrifugal pump. The model
SSPC is the enclosed impeller version of the same pump. Connections are NPT threaded. All wetted metal pump parts
are 18-8, 304SS, or better. Most parts are formed from stainless steel sheet. O-rings and elastomeric seal parts are Buna
(Viton & EPR are optional). Motors are NEMA 56J frame, with a C-Face mounting flange and a threaded shaft. All pumps
use a mechanical seal to prevent leakage around the motor shaft. Standard mechanical seal faces are carbon and
ceramic, with silicon carbide also available.
Operating limits
The models SSP & SSPC are designed for a 125-psig operating pressure at 212 deg. F., with the standard Type-16,
Carbon vs. Ceramic faces with Buna-N elastomers mechanical seal. A maximum temperature limit of 250 deg. F is
possible with Viton elastomers. The motor is limited to 20 starts per hour, evenly distributed. Minimum flows are 5% of the
best efficiency operating point. These pumps are not designed for use with hazardous liquids or gasses.
Notice
Upon receipt of this equipment, inspect the carton and the equipment for any damages that
might have occurred during shipment and notify the carrier immediately.
Damage that occurs during
shipment is not the responsibility of American Stainless Pumps. Failure to notify the carrier will place responsibility on the
purchaser for any repairs or damages occurring during shipment.
Safety Instructions
To avoid serious or fatal injury and/or property damage, read and follow all instructions in this
manual. Review all instructions and warnings included in this manual before attempting any
work on this pump or pump/motor assembly. Do not remove or alter any decals.
The motor used to drive this pump is an electrical device connected to a potentially lethal
voltage power source. Take all precautions required when working with or on the motor and
its power source, including but not limited to the following:
14032 Avalon Blvd. Los Angeles CA 90061
Model SSP-C.docx
www.aspumps.com
8/22/2011
Phone (310) 630-8089 ~ Fax (310) 630-8095
Advertisement
Table of Contents
Related Manuals for ASP SSP
Summary of Contents for ASP SSP
- Page 1 Operating limits The models SSP & SSPC are designed for a 125-psig operating pressure at 212 deg. F., with the standard Type-16, Carbon vs. Ceramic faces with Buna-N elastomers mechanical seal. A maximum temperature limit of 250 deg. F is possible with Viton elastomers.
- Page 2 American Stainless Pumps, Inc. Safety Instructions (continued…) 1. Always disconnect and lockout the electrical power source before attempting any connection, maintenance or repairs. Failure to do so can cause electrical shocks, burns and death. 2. Install ground and wire motors in accordance with all local and national electrical codes. 3.
- Page 3 American Stainless Pumps, Inc. Rotation The models SSP & SSPC will operate properly only in one direction (clockwise when looking from the motor end, and counterclockwise when viewed from the pump end). Three phase motors can rotate in either direction. Single phase Operating the pump in reverse rotation may cause the motors normally only rotate in the proper direction.
- Page 4 8. Model SSP Only: There should be several spacing washers behind the impeller. These spacers locate the open impeller vanes close to the case for efficient operation. Measure the thickness of this stack of spacers for future reference.
- Page 5 7. Model SSP Only: Place the necessary number and thickness of impeller spacer/washers onto the threaded portion of the shaft. If you are not changing the impeller or the motor, use the same batch of spacer/washers you removed when disassembling the pump.
- Page 6 See SSP Performance Notes for impeller shimming discussion www.aspumps.com/products/ssp/3500- rpm/ssp_perf_notes.htm Properly setting the impeller to case clearance is the most critical factor in determining the SSP’s performance. You will get maximum performance and efficiency (and maximum amp draw) with near to zero clearance. Factory standard clearance is 8 to 12 mil.
- Page 7 American Stainless Pumps, Inc. SSP & SSPC Cross-Sectional Drawings SSP (Open Impeller) on top, SSPC (Enclosed Impeller) on bottom. Item Part Materials Casing 304 SS Impeller (Open or Enclosed) 304 SS Mechanical Seal – Type 16 Car/Cer/Buna N/304SS Other materials: SilCar, Viton, EPR,...
- Page 8 All sales are FOB the ASP’s facility in Los Angeles CA. Acceptance of material by common carrier constitutes a shipment and ASP is not liable for any loss caused by the carrier. Customer is responsible for filing a claim against the carrier for equipment damaged or lost in transit.
