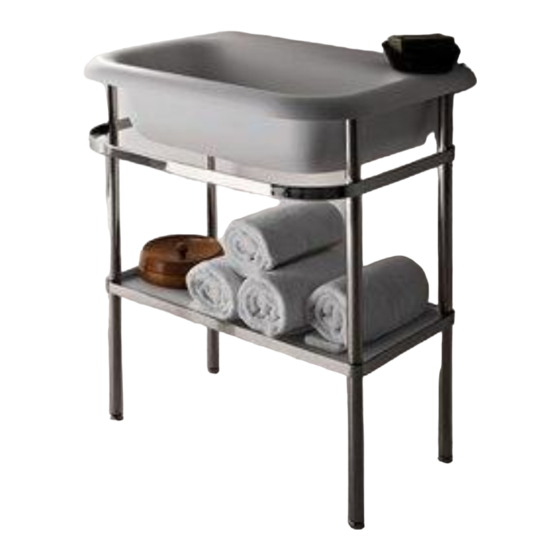

CER766A "OTTOCENTO"
DATI TECNICI / TECHNICAL DATA
100
100
(3"7/8)
(3"7/8)
ø 35 (1"3/8)
700 (27"1/2)
400 (15"2/3)
C
D
A
B
100
100
(3"7/8)
(3"7/8)
0.00
A
Adduzione acqua / Water mains
B
Scarico / Water discharge
C Fissaggi / Fixing kit
D Scarico per PLA456 / Water discharge for PLA456
Lavabo in Cristalplant
C
850 (33"1/2)
/ Washbasin in Cristalplant
®
ESPLOSO STRUTTURA / PRE-ASSEMBLED STRUCTURE
n. 12 viti M5x20/screws
STRUMENTI / TOOLS
17
®
n. 8 viti M6x12/screws
n. 2 fissaggi lavabo
fixing washbasin
n. 2 fissaggi struttura/
ø 2.5 (3/32")
fixing structure
ø 3 (1/8")
ø 12 (1/2")
ø 8 (3/8")
