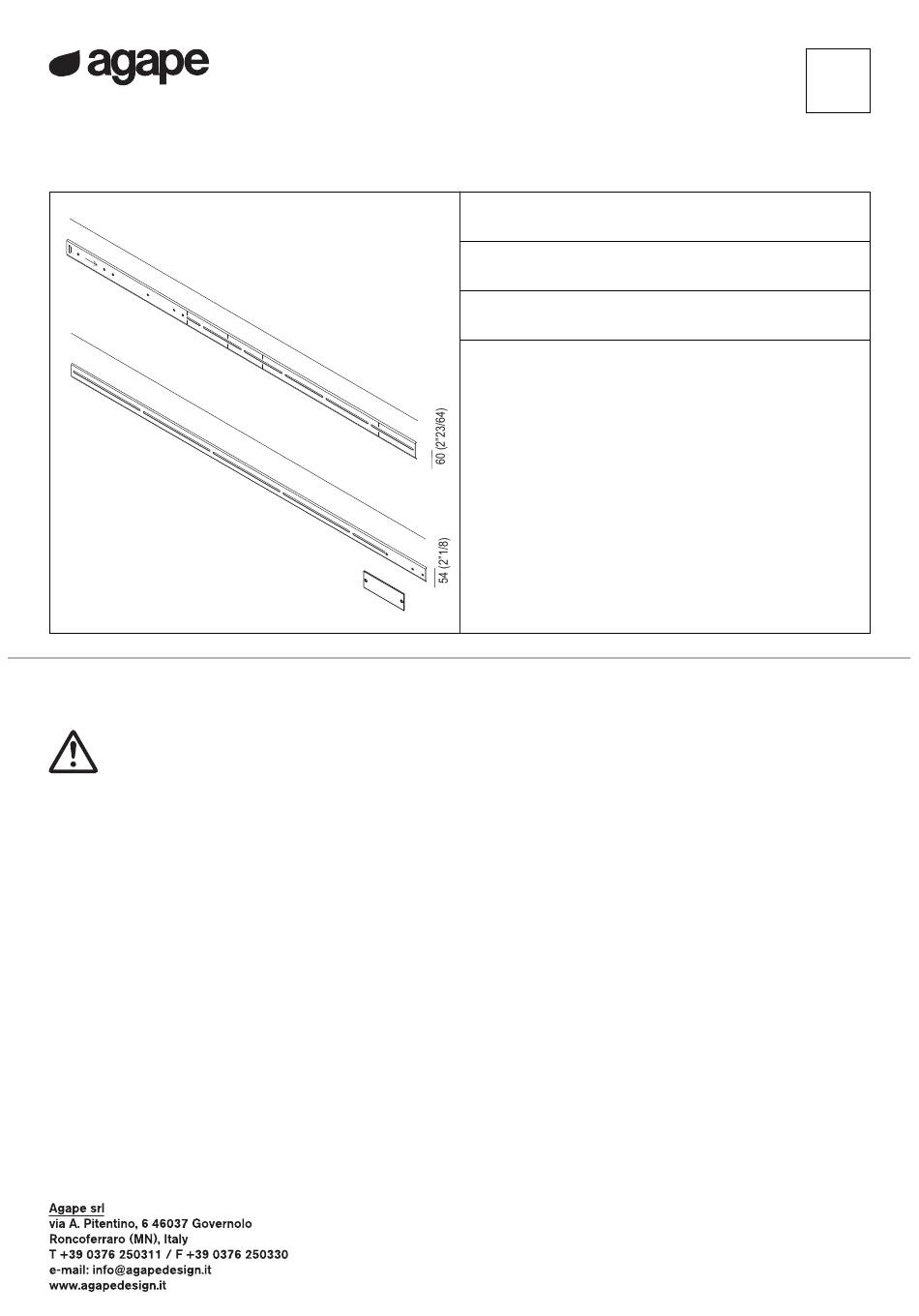

ISTRUZIONI DI MONTAGGIO ASSEMBLY INSTRUCTIONS Rubinetti / Taps 1202 (47”21/64) AKIT680B GRUPPI LAVABO E ACCESSORI WASBASIN / ACCESSORIES TAP SETS 1202 (47”21/64) Barre per l’allineamento di rubinetti con interasse maggiore di mm 1044 fino a mm 1920 Rails for the alignment of taps with axial distance more than 41”1/8 up to 75”5/8.
Page 2
ISTRUZIONI DI MONTAGGIO SEN - AKIT680B ASSEMBLY INSTRUCTIONS COD. VERS. 11233 20180208/3 - SV STRUMENTI/ TOOLS CONTENUTO DELLA CONFEZIONE PACKAGE CONTENTS FERRAMENTA/ FASTENERS Esempio di composizione / Example for composition SEN917 SEN923 SEN919 RUB 1 RUB 2 guida/rail .FER0680B .FER0680A X = 1628 Max 1920 75”5/8 800+400+280+140(70+70)+8 (4 spazi/spaces)= 1628...
Page 3
ISTRUZIONI DI MONTAGGIO SEN - AKIT680B ASSEMBLY INSTRUCTIONS Max 77 (3"1/32) ASEN912 -ASEN913 - ASEN958 Protezione Protection .FER0680A .FER0680B 17 (5/8”) 120 (4"3/4) 120 (4"3/4) 120 (4"3/4) 240 (9"1/2) Filo muro finito finished wall surface Pianta / Plan view 20 (25/32”) .FER0680A .FER0680B min.
Page 4
ISTRUZIONI DI MONTAGGIO SEN - AKIT680B ASSEMBLY INSTRUCTIONS Fissare gli incassi e unire le barre Fix the recesses and join the bars RUB 1 RUB 2 guida/rail Max 1920 75”5/8 + di 90° + di 90° filo p arete finit a finished wall surface...
Page 5
ISTRUZIONI DI MONTAGGIO SEN - AKIT680B ASSEMBLY INSTRUCTIONS G 1/2"...
