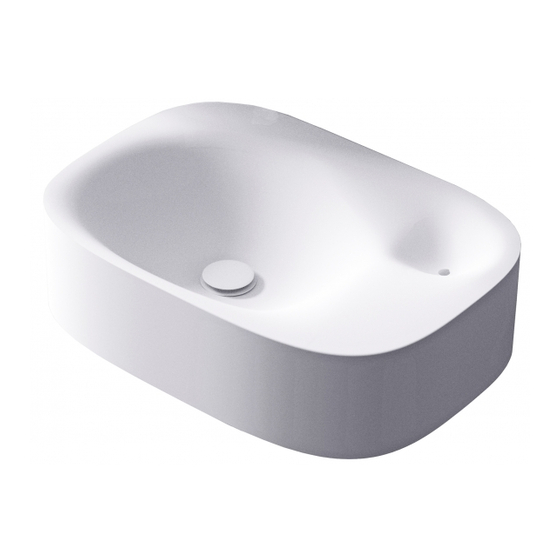

CER763FM "Nivis"
Lavabo a colonna in Cristalplant® con scarico a parete / Wall-mounted Cristalplant®
washbasin

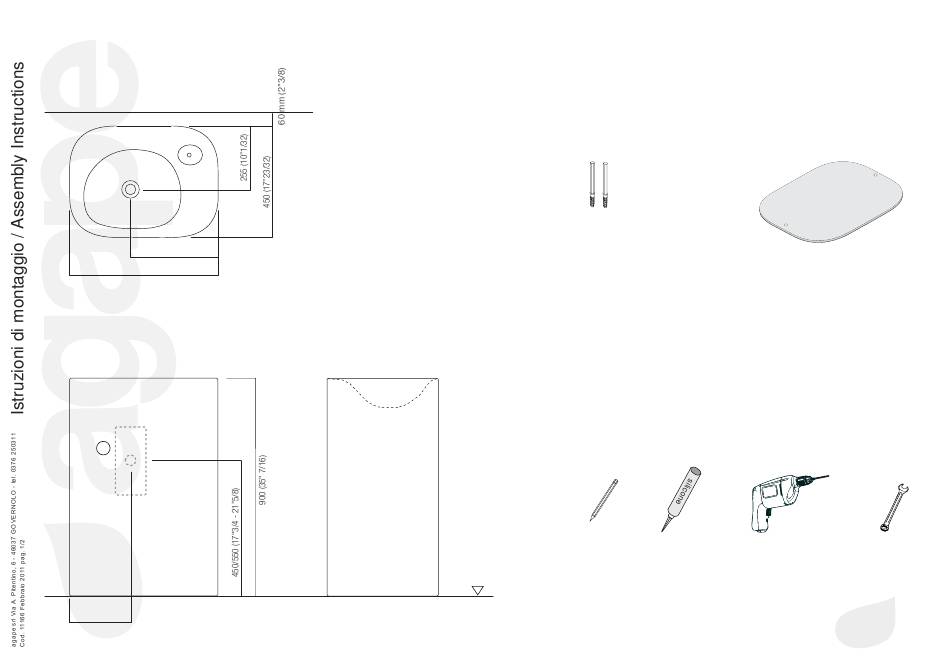

DATI TECNICI / TECHNICAL DATA
n. 2 fissaggi
fixing washbasin
337 (13"9/32)
Dima / Template
567 (22"5/16)
STRUMENTI / TOOLS
A
ø 9 (3/8")
0.00
1
230 (9"21/16)
A
Scarico / Water discharge
*h.consigliata / advised h.
Advertisement
Table of Contents
Related Manuals for agape Nivis CER763FM
Summary of Contents for agape Nivis CER763FM
- Page 1 CER763FM “Nivis” Lavabo a colonna in Cristalplant® con scarico a parete / Wall-mounted Cristalplant® washbasin DATI TECNICI / TECHNICAL DATA n. 2 fissaggi fixing washbasin 337 (13”9/32) Dima / Template 567 (22”5/16) STRUMENTI / TOOLS ø 9 (3/8”) 0.00 230 (9”21/16) Scarico / Water discharge *h.consigliata / advised h.
- Page 2 CER763FM “Nivis” Lavabo a colonna in Cristalplant® con scarico a parete / Wall-mounted Cristalplant® washbasin PRE INSTALLAZIONE / PREINSTALLATION: 1. Individuare il punto di scarico a parete mantenend il suo centro in asse con la bocca di erogazione, suc cessivamente posizionare la dima a terra. Locate the drain on the wall keeping its centre in axi with the spout;...
