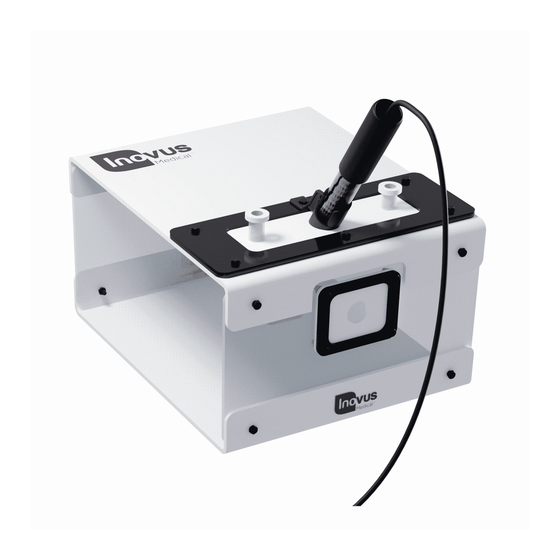

Inovus Medical pyxus HD Move Manual
  1. Manuals
  2. Brands
  3. Inovus Medical Manuals
  4. Medical Equipment
  5. pyxus HD Move
  6. Manual

Inovus Medical pyxus HD Move Manual

Hide thumbs
1
2
3
4
5
6
7
8
Table of Contents

Advertisement

Quick Links

Download this manual
a
c
c
e
s
s
i
b
l
e
a
f
f
o
r
d
a
b
l
e
f
u
n
c
t
i
o
n
a
l

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the pyxus HD Move and is the answer not in the manual?

Questions and answers

Related Manuals for Inovus Medical pyxus HD Move

Summary of Contents for Inovus Medical pyxus HD Move

  • Page 2 Begin the assembly by taking out parts UHDM and BTM01. Using 2 x M5B8 bolts and 2 x WN18 nuts, screw the UHDM panel into position as shown. You will now need the following parts: - SK02 - BKT02 Using the M5B4 bolts and 4 x WN18 nuts, secure the white skin and black bracket to the UHDM panel.
  • Page 3 Your simulator should now look like this, with both upright panels securely in position. You may now start the TPB02 sub-assembly. Taking TPB02, SK04 and BKT01, secure as shown using 5 x M5B6 bolts and 5 x WN18 nuts. For the moment, leave the rear centre hole free.
  • Page 4 Use the remaining M5B6 bolt and 1 x WN18 nut to position the camera bracket (IN0-HDMBKT). Having already completed the TPB02 sub-assembly, you may now position it over the pre-assembled base unit. Using 2 x M5B8 bolts & 2 x WN18 nuts, secure it to the upright panels.
  • Page 5 Your simulator should now look like this and be structurally sound. You may now position the scope to begin training. The scope must be placed backwards through the ports, as illustrated. Positioning the scope in this way reduces the risk of skin tearing. Please note you will need to thread the scope wire through the chosen port first.
  • Page 6 You may now rotate the camera bracket back into position to hold the scope in place. The bracket is designed for solo training and may be removed for the purpose of training camera operators. Insert the two trocars provided into the openings in the SK04 skin.
  • Page 7 Connect the USB cable provided to your laptop or PC. The setup should now look similar to this image. The lights on the scope should now be illuminated.
  • Page 8 You should now be ready to start training. Should you have any problems during setup or something isn’t quite working as you’d expected, please contact us at support@inovus.org or call 01744 752 952 to speak with an adviser. Opening times are Monday to Friday 9am - 5pm GMT. Windows 8/10: To start using your simulator immediately without the need to download software you will need to navigate to the start menu and type “camera”...
