PPM 8 8M
 The PPM™ Series mixers are comprised of three
compact powered mixers, designed for portable live
sound applications. Each powered mixer in the PPM
Series has two graphic equalizers, built-in stereo
digital effects with 16 presets, and two FR Series High-
Current power amplifiers.
 Like all Mackie mixers, the PPM Series mixers are
designed for rugged, day-in and day-out road use.
Their sturdy composite-molded case houses rugged,
double-sided SMT-plated fiberglass circuit boards.
Impact-resistant knobs are mounted so they "ride"
just above the steel front panel.
The 808M has six mono mic/line input channels

and two stereo mic/line input channels (summed to
the main bus), with XLR mic inputs and 1/4" TRS line
inputs. All mono channels have 1/4" TRS insert jacks
(tip = send, ring = return). Each channel strip has one
monitor and one internal/external effects send, plus
3-band EQ and input trim with individual level-set
LEDs. A rotary volume control provides output gain for
each channel.
The inputs include Mackie's high-headroom, low-

noise mic preamps. Trim controls provide 40 dB of
microphone gain, 20 dB of line-level gain, and a full
20 dB of attenuation to "pad" hot signals. Each chan-
nel also includes a level-set LED for easy level setting.
 Channel EQs are as follows: 12 kHz shelving high-fre-
quency EQ (±15 dB), 2.5 kHz peaking mid-frequency EQ
(±12 dB), and 80 Hz shelving low-frequency EQ (±15 dB).
A global phantom power switch applies +15 Vdc

to pins 2 and 3 of the XLR inputs, and a break switch
mutes channels 1-6 while break music is playing. Left
and right RCA tape inputs are provided with an adja-
cent input level control for connecting a tape deck or
CD player.
Both the Monitor Master and Main Master rotary

controls have corresponding EFX controls to mix the
effects signal with the monitor and main outputs.
Eight LEDs indicate the output signal level for each
main and monitor output. Outputs include a 1/4" TRS
mixer line output, a 1/4" TRS monitor line output, and
left and right RCA tape line outputs.
(continued on page 6)
Related Products
PPM 406M and PPM 808S

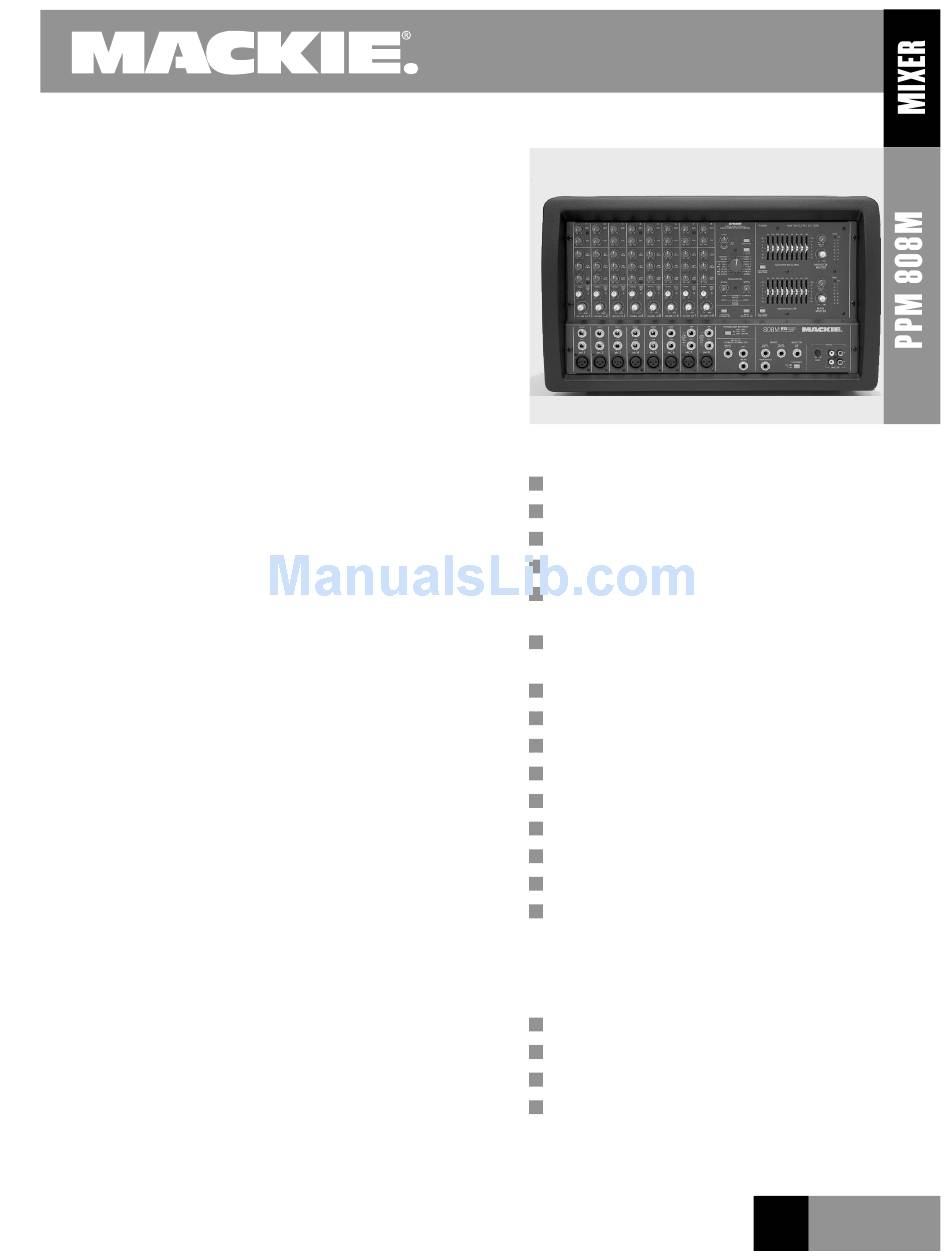

PPM 808M
Eight Channel Monaural Powered Mixer

Features

Eight microphone/line inputs
Two stereo line inputs (on channels 7 and 8)
600 W main output power amplifier
600 W monitor output power amplifier
9-band graphic EQ on Main and
Monitor outputs
EMAC custom 32-bit precision digital stereo
TM
effects processor
Two auxiliary sends (EFX and MON)
3-band EQ on each channel
1/4" and XLR connectors on each input
1/4" Insert jacks on channels 1-6
Two 1/4" Speaker outputs per side
RCA stereo Tape In and Tape Out
Compressors (switchable) on both outputs
15 V phantom power
Three-year warranty

Applications

Restaurants and Bars
Meeting Rooms
Churches/Sanctuaries
Outdoor Gatherings
