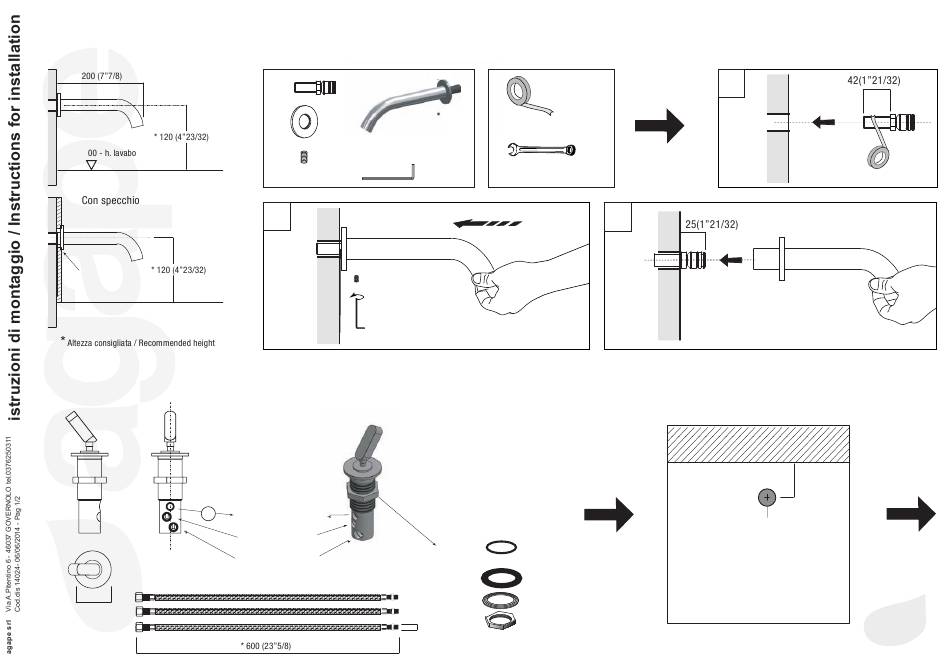

"Square" ARUB1081 bocca comando da piano / spout with top mounted control
DATI TECNICI / TECHNICAL DATA
Foro specchio
ø 40 (1"37/64)
ARUB1029
M
ø 50 (2")
COMPONENTI / COMPONENTS
A
B
ø 50
C
M 4x4 (5/32)
3
C
M10x1 - uscita miscelata
exit mixed water
M10x1 - entrata calda
entry hot water
M10x1 - entrata fredda
entry cold water
STRUMENTI / TOOLS
B
teflon
A
C
ch. 19
ch. 2
AKIT0320
a
b
M10x1
1
3/8"
Gas
2
Posizione comando /control position
ø 35 (1/"3/8)
Piano/top
* Misura minima/Min. measure
teflon
*70 (2"3/4)
1
Advertisement
Table of Contents
Related Manuals for agape ARUB1081
Summary of Contents for agape ARUB1081
- Page 1 “Square” ARUB1081 bocca comando da piano / spout with top mounted control DATI TECNICI / TECHNICAL DATA COMPONENTI / COMPONENTS STRUMENTI / TOOLS teflon 3/8” ø 50 ch. 19 teflon ch. 2 M 4x4 (5/32) Foro specchio ø 40 (1”37/64)
- Page 2 “Square”ARUB1081 comando da piano / top mounted control Collegare i 3 flessibili/Connect the 3 flexible hoses Avvitare il dado senza stringere/Screw the nut without tightening Posizionare la leva verso il fruitore/Position the lever oriented towards the user calda fredda Collegare il flessibile M alla bocca e gli altri due alla rete idrica.Connect the flexible...
