agape CARTESIO W AVAS0994 Assembly Instructions Manual

Cristalplant and wood bathtub

Advertisement

Quick Links

AVAS0994 "CARTESIO W"

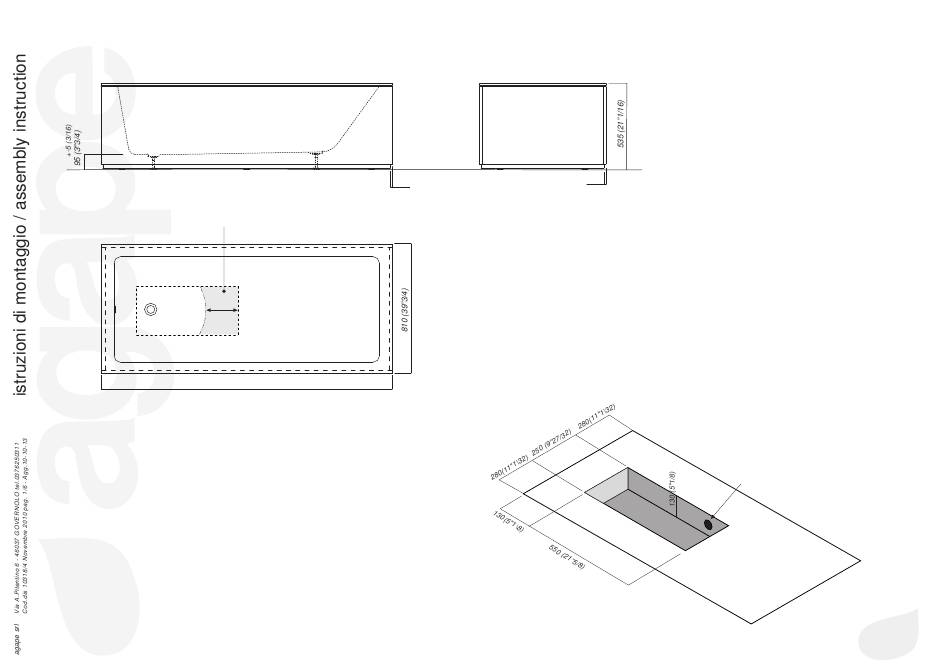

DATI TECNICI / TECHNICAL DATA
area posizionamento scarico
area for position of waste pipe
*
La vasca "Cartesio" deve essere installata su un pavimento perfettamente piano.
E' necessario predisporre a pavimento un pozzetto
N.B. Evitare di realizzare impianti di riscaldamento nell'area sottostante la vasca.
The "Cartesio" bath tub must be positioned on a flat floor surface.
It is necessary to prepare a recess in floor.
Note: Avoid the installation of floor heating plants in the area under the bathtub.
Vasca in Cristalplant® e legno / Cristalplant® and wood Bathtub
150 (9"27/32)
1820 (71"21/32)
10 (3/8)
10 (3/8)
Se si prevede l'utilizzo del pozzetto
*
AKITPZVAS attenersi alle istruzioni
allegate.
When using the recess AKITPZVAS
please follow the intructions attached.
PREINSTALLAZIONE / PREINSTALLATION
tubo di scarico Ø40 mm con OR
di tenuta
mm 40 Ø (1"5/8) drain pipe with
a OR gasket
*
base d'appoggio
supporting base
1

Advertisement

loading
Need help?

Need help?

Do you have a question about the CARTESIO W AVAS0994 and is the answer not in the manual?

Questions and answers

Summary of Contents for agape CARTESIO W AVAS0994

  • Page 1 AVAS0994 "CARTESIO W" Vasca in Cristalplant® e legno / Cristalplant® and wood Bathtub DATI TECNICI / TECHNICAL DATA 10 (3/8) 10 (3/8) area posizionamento scarico area for position of waste pipe Se si prevede l'utilizzo del pozzetto AKITPZVAS attenersi alle istruzioni allegate.
  • Page 2 AVAS0994 “CARTESIO W” Posizionamento rubinetteria Agape / Positioning Agape taps PIANTANE DA TERRA / FREESTANDING SPOUT FEZ: RUB140, RUB145, RUB170N 175 (6"7/8) 175 (6"7/8) MEMORY: RUB1078, RUB1072, RUB1033 80 (3"1/8) 80 (3"1/8) 250 (9”13/16) 550 (21”5/8) 250 (9"27/32) 580 (23"7/32) 480 (18"7/8)
  • Page 3 AVAS0994 "CARTESIO W" Vasca in Cristalplant® e legno / Cristalplant® and wood Bathtub ESPLOSO STRUTTURA / PRE-ASSEMBLED STRUCTURE n. 12 viti TSTC n° 12 n° 1 n. 12viti TBTC 4x16/screws Biadesivo M6x30/screws Chiave a brugola double side Exagonal key STRUMENTI / TOOLS...
  • Page 4 AVAS0994 "CARTESIO W" Vasca in Cristalplant® e legno / Cristalplant® and wood Bathtub INSTALLAZIONE / INSTALLATION PARTICOLARE PILETTA / DRAIN DETAIL Guarnizione (si consiglia di siliconare la Piletta guarnizione al pozzetto sifonato ed alla vasca) Waste trap Gasket (it is advisable to apply silicone to the gasket and to glue it to the drain trap) Collegamento alla rete di scarico Connection to the main drain...
  • Page 5 AVAS0994 "CARTESIO W" Vasca in Cristalplant® e legno / Cristalplant® and wood Bathtub...
  • Page 6 AVAS0994 "CARTESIO W" Vasca in Cristalplant® e legno / Cristalplant® and wood Bathtub Effettuare alcune prove di tenuta dell’impianto realizzato. Test different times the seal of the realised plant. Collegare lo scarico e l'adduzione. Connect the fexible pipe and and .
