Mounting Information

DIN Rail Mounting
First, the upper part of the device is mounted on the DIN rail. Then, with the help of the
springs behind the device, when a lightly force is applied to the lower part, the device

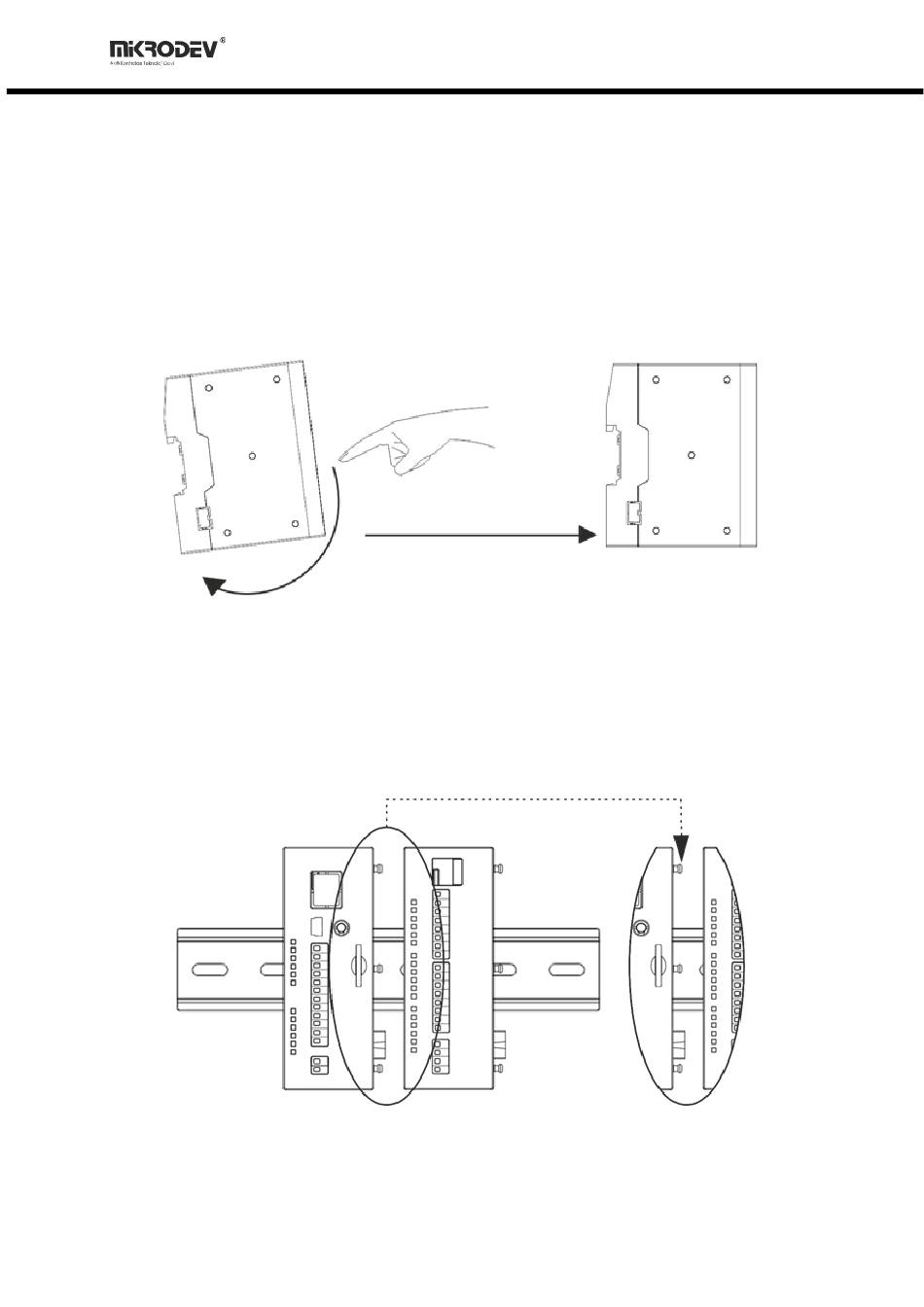

locates into the DIN rail easily and the montage is completed. (See Figure 1)
Figure 1 DIN Rail Mounting
Expansion Installation
Assembly between MP110 series PLC or RIO110 series remote I/O products and XIO110
series expansion modules is carried out by sliding the tabs over the rail so that the tabs
overlap each other.
Figure 2 Expansion Module Mounting
