- Page 1 TURTLE ® TOUGH MANUAL pH/ORP SENSOR Installation Calibration Cleaning Care & Maintenance turtletoughsensors.com...
-
Page 2: Table Of Contents
Contents Safety Precautions Qualification and training of personnel Safe operation Installation, maintenance and inspection Impermissible modes of operation Unauthorised modification Chemicals Introduction Specifications Body plastics Reference materials Dimensions Immersion ¾”x ¾” sensor Immersion ¾”x 1” sensor Twistlock 1” sensor Inline ¾” sensor Installaltion Site selection Unpacking... -
Page 3: Safety Precautions
Safety Precautions Before attempting to unpack, set up, or operate this instrument, please read this entire manual. • Make certain the unit is disconnected from the power source before attempting to service or remove any component. • Make certain the unit is disconnected from other sources of force or pressure (for example, pneumatic or hydraulic), before attempting to service or remove any component. -
Page 4: Qualification And Training Of Personnel
Personnel who do not have the required know-how must be trained and instructed. Also, the owner of the system must ensure that the relevant personnel are fully familiar with and have understood the contents of this manual. Should training be required please contact your Turtle Tough distributor Important safety instructions... -
Page 5: Installation, Maintenance And Inspection
Please unpack the equipment and ordered accessories carefully in order not to miss small parts. Appropiate PPE to be Immediately compare the scope of delivery to the delivery note. If there are any discrepancies, worn when contact your Turtle Tough Representative. in contact with the sensor Health and Safety Before making or breaking any electrical or signal connections, ensure that the instrument is isolated from the electrical supply. -
Page 6: Introduction
Your Turtle Tough sensor is built with our unique and proprietary glass formulations and sensing elements to provide extreme performance in harsh environments. Through our experience in the world’s toughest applications, we have developed systems that have been optimised for high hydrofluoric acid, saturated sodium, high sulphide, organic solvents, high temperature and slurry/viscous applications. -
Page 7: Specifications
Please ensure the composition of your chosen pH/ORP sensor is appropriate for your application. To ensure your sensor is fully optimized it is recommended a Turtle Tough Application Questionnaire be completed which can be found in the "Contact Us" menu at www.turtletoughsensors.com... -
Page 8: Dimensions
Dimensions Turtle Tough Sensors are available in the following body configurations: • Immersion with ¾” MNPT and ¾” MNPT back-end • Immersion with ¾” MNPT front-end and 1” MNPT back-end • Twist Lock with 1” MNPT back-end • Inline with ¾” MNPT back-end Immersion with ¾”... -

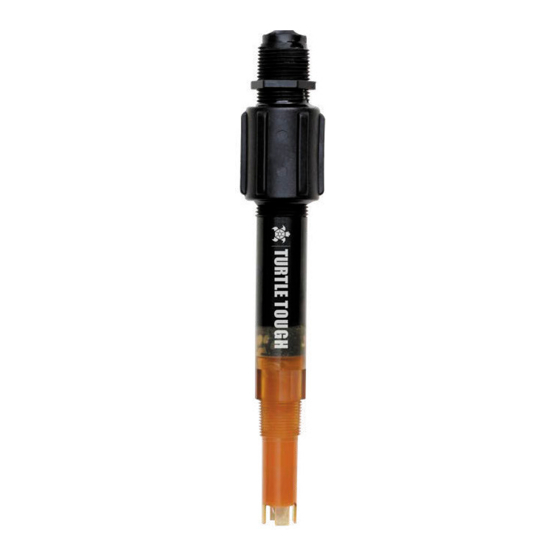

Page 9: Twistlock 1" Sensor
Twist Lock with 1” MNPT back-end (pH sensor shown without optional guard, waterproofing and cable) 203.20 [8.00"] 2 x Sealing O-Rings Placed 2.03 [.08"] Apart 42.93 [1.69"] Locking Pins for Twist Lock Quick-Disconnect Feature 1" NPT Pipe Threads 5.08 [.20"] 25.40 [1.00"] 20.57 [.81"] 118.62 [4.67"]... -
Page 10: Installaltion
Turtle Tough has a range of installation hardware available as optional accessories including but not limited to KYNAR/PEEK Twistlock fittings, Stainless Steel Immersion Rods, Stainless Steel Inline Sensor Holders and Extension Tubes and Valve Retractable Assemblies. -
Page 11: Installation Recommendations
Installation Recommendations Turtle Tough pH and ORP Sensors have been engineered for installation into industrial processes. It is the responsibility of the end-user to ensure that the process conditions are within the specifications of the sensor to obtain optimal sensor life. - Page 12 People see an ORP or Conductivity sensor upside…. They then install a pH or DO sensor upside down (which is not good). Should you require any more assistance regarding the installation of our sensors, please contact Turtle Tough. TURTLE ®...
-
Page 13: Choosing The Correct Waterproofing Option
Recommendations for Inline, Immersion and Submersible Installations Turtle Tough Inline Twist Lock sensors and immersion sensors are NOT intended to have rain or other continuous forms of water on the back of the cable. In this case, a shorting can result in a variety of anomalous failure modes. -
Page 14: Submersible Use
If you should have any doubt about whether the exact sensor model that you are using is appropriate for the installation style that you are planning to implement, please contact Turtle Tough for further assistance. TURTLE ®... - Page 15 REVISIONS ZONE DESCRIPTION DATE APPROVED Back-End Waterproof Sealing Options BACKEND WATERPROOFING SERIES Cable Protection 3/4" OR 1" MNPT Sensor Threads Hose Clamps (3/8") 3/8" Hose Barb 3/8" x 1/2" Vinyl Tubing Cable Sensor Body Sealing / Potting Waterproofing "IT" CPVC Fitting WATERPROOFING STANDARD SUBMERSIBLE SERIES Standard Waterproofing TURTLE...
-
Page 16: Wiring
Wiring Turtle Tough pH/ORP sensors are designed to provide optimal life when connected to a TT-MA Online Analyser. The connection to the TT-pHP is via BNC and banana plug connectors. Wiring of non-preamp, preamp and external preamp sensors to the TT-MA are as follows:... -
Page 17: Calibration
Calibration This section covers the calibration of Turtle Tough pH & ORP sensors when mated with a TT-MA Analyser Module. If you are using a different analyser please consult the manual supplied with the unit or the Turtle Tough website www.turtletoughsensors.com... -
Page 18: Troubleshooting
For troubleshooting, it is often useful to access the raw uncompensated mV potential of the pH sensor. When assisting you with a diagnosis, a Turtle Tough representative may ask you to place the analyser into the Raw mV Display mode. This can be accessed by pressing the Down key in the main pH/mV display mode. The display now changes from pH to mV units. -
Page 19: Ph Buffer During Calibration
pH Buffer During Calibration Since the TT-MA-pH/ORP transmitter does not automatically correct for the temperature effects on your particular pH buffer, you will need to manually enter the correct buffer pH value at your particular temperature to ensure optimum accuracy during the calibration process. Each pH buffer solution is always labelled with the pH value at various temperatures so that you can adjust the pH to the appropriate number. -
Page 20: Sensor Care And Maintenance
Storage The standard shelf life for all Turtle Tough pH and ORP sensors is one year from the date of shipment. Sensors stored longer than this period may still be functional but are no longer under warranty. Sensors should be stored in a cool, dry location with the sensor tip (where the pH/ORP element is located) oriented toward the ground. -
Page 21: Maintenance Free
Maintenance Free Turtle Tough pH and ORP sensors are a completely sealed assembly and are sealed for life. This provides extreme process resistance as well as a maintenance-free sensor which greatly increases sensor life and reduces labour costs. -
Page 22: Removing Silicate Contamination
Using the strong acidified ABF cleaning solution the deposited silicates will become soluble and much more easily removed from the sensor tip. The Turtle Tough ULTRA pH sensor with High HF resistant glass is one of the few in the world able to withstand this high HF cleaning regimen itself. The pH glass for this type of cleaning service will have a rather high impedance to ensure sufficient integrity and longevity. -
Page 23: How Do I Determine The Calibration Frequency
No sensor should be used beyond the indicated temperature and pressure limitations for that given sensor. Sensors should only be used for the application(s) that an authorised TurtleTough representative has recommended. If you are unsure that your sensor is recommended for a particular application, please contact Turtle Tough. Avoiding Thermal Shock For high-temperature applications where process liquid exceeds 70°C, you will prolong the life of the sensor by... -
Page 24: Accesories And Spares
Accesories and Spares Cleaning Kit (optional) Turtle Tough recommend the use of our cleaning kit to clean the sensor. This kit has been specially formulated to provide optimal care for the sensing element and reference components to enhance sensor life and performance. -
Page 25: Interfacing Hardware, Plugs And Lead Connectors
Interfacing Hardware, Plugs and Lead Connectors Turtle Tough’s quick connect plugs are a feature on all our ULTRA Series Sensors. This NEMA6P connector is fully submersible, is non-conductive plastic, low noise and small enough that it can easily fit through common conduit sizes. - Page 26 However please keep in mind that dropouts or connectivity issues cannot be supported if you are using your cables and you should always have at least one genuine Turtle Tough interface on hand for troubleshooting or testing. Please contact Turtle Tough for specifications.
-
Page 27: Installation Hardware Fittings
IMPORTANT: TURTLE TOUGH DIRECT SMART SENSORS (DSS) are fully supported by a range of factory hardware solutions including SMART Analysers, Handheld Field Communicators, PC Communication tools and field implementation devices such as junction boxes, extensions leads and power supplies. This ecosystem provides a complete solution of reliable connectivity and sensor management. TURTLE TOUGH sensors may also be directly interfaced with end user hardware via the MODBUS RTU protocol. - Page 28 3. Turtle Tough and their representatives are unable to provide support on 3rd party hardware or provide troubleshooting on equipment not supplied by us. We are unable to warrant the performance or compatibility of our product with 3rd party hardware...
-
Page 29: Warranty
• The complete product is returned to Turtle Tough or one of its authorised service agents, in person or freight pre-paid by you, and found, on examination, to be suffering from a manufacturing defect. -
Page 30: Damage To Cables And Connectors
IMPORTANT: Ground loops, poor earthing and faulty electrical installations are a common cause of sensor damage. If you are experiencing unusual or erratic readings, please refer to our support document on ground loops. Damage to Cables and Connectors Please note that integral sensor cables, connectors and plugs must NOT be cut, removed or modified in any way. Sensors contain sensitive internal electronics and our cables and connectors are designed to protect the integrity of these components. -
Page 31: Return Goods
Return Goods For all return goods the following information must be included in the letter accompanying the returned goods: • Model Code and Serial Number • Original Purchase Order and Date • Length of time in service and description of the process •... -
Page 32: Support
3rd party hardware includes any device or component not supplied by Turtle Tough and can include, but is not limited to, PLC’s, SCADA systems, DCS’s, data loggers, power supplies/isolators, or any other externally sourced interfacing device or component. We suggest...
