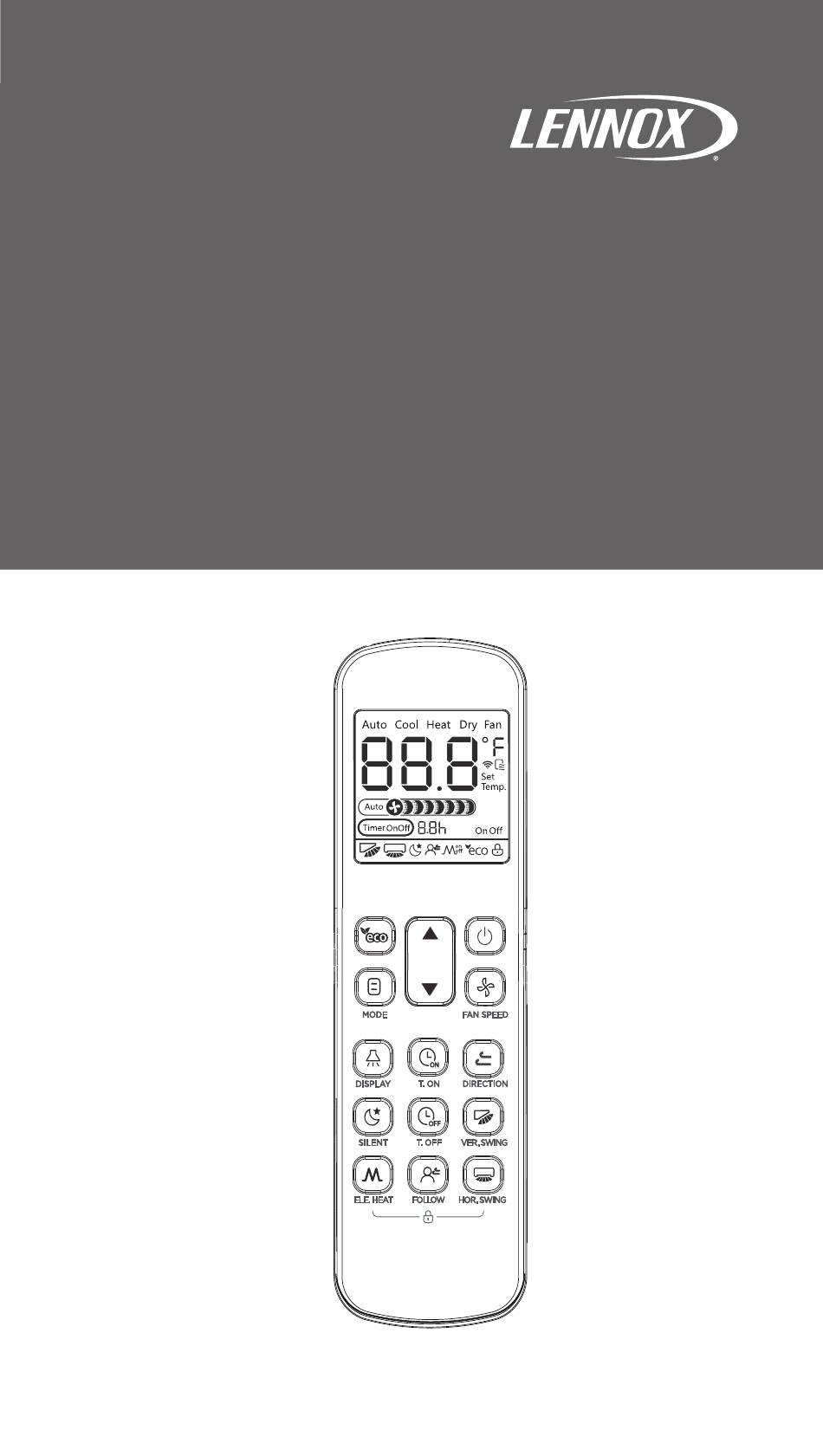

- Page 1 e-Lite LV-RC01 | REMOTE CONTROLLER Installation and Operation Manual High Later LV-RC01-IOM-20.04-E...
- Page 3 Thank you for purchasing this remote controller. Carefully read this OPERATION AND INSTALLATION MANUAL before using the controller. It will tell you how to use the controller properly and help you if any trouble occurs. After reading the manual, please keep it for future reference.
-
Page 5: Table Of Contents
Contents Installation ..............1 1. Installation Precautions ........1 2. Installation Accessories ........3 3. Dimensions of Remote Controller and Bracket 4. Installation and Fixing ........4 5. Replace the Batteries ........5 Operating the Remote Controller ......7 1. Using Precautions ..........7 2. -
Page 6: Installation
Installation 1. Installation Precautions Safety Considerations Please read this "Safety Considerations" carefully before installing Controller and be sure to install it correctly. After completing the installation, make sure the controller operates properly. Please instruct the customer how to operate the controller and how to perform maintenance. - Page 7 Installation WARNING Precautions in handling remote controller • Direct the transmitting part of the remote controller to the receiving part of the air conditioner. • If something blocks the transmitting and receiving path of the indoor unit and the remote controller as curtains, it will not operate. •...
-
Page 8: Installation Accessories
Installation 2. Installation Accessories • Please check that you have all the following parts. Schematic Name Remote controller bracket ① Screw lid ② Philips head screw (M2.0*4.5) ③ AAA battery ④ Remote controller manual ⑤ 3. Dimensions of Remote Controller and Bracket 25 mm 47 mm Figure 2.1 Dimensions of remote controller... -
Page 9: Installation And Fixing
Installation 25 mm 72 mm Figure 2.2 Dimensions of remote controller bracket 4. Installation and Fixing 1) Use the screws (accessories) to fix and secure the remote controller bracket in a stable position (see Figure 2.3); Make sure you refer to "1. Installation Precautions" to determine the location. -
Page 10: Replace The Batteries
Installation Figure 2.4 3) Slide the remote controller vertically down into the remote controller bracket (see Figure 2.5). Figure 2.5 5. Replace the Batteries 1) Slide to move the battery cover at the back of the remote controller in the direction indicated by the arrow (Figure 2.6);... - Page 11 Installation Figure 2.6 2) Lift up from the lower left end of the battery cover to open it (see Figure 2.7); Figure 2.7 3) Take out the old batteries. Install two new AAA batteries according to the positive and negative polarities indicated (see Figure 2.8). Close the battery cover.
-
Page 12: Operating The Remote Controller
Operating the Remote Controller 1. Using Precautions To gain full advantage of the controller's functions and to avoid malfunction due to mishandling, we recommend that you read this instruction manual carefully before use. The precautions described herein are classified as WARNING and CAUTION. -
Page 13: Model And Key Parameters
Operating the Remote Controller CAUTION • Do not operate the device with wet hands to prevent water from entering the remote controller and damage the circuit board. • Do not use the air conditioner for purposes other than those for which it is intended. -
Page 14: Button Names And Functions
Operating the Remote Controller 3. Button Names and Functions High Later Figure 3.1 External view of remote controller... - Page 15 Operating the Remote Controller Button Function Turn on/off the economic ① operation function Set operating mode: Auto → Mode ② Cool → Heat → Dry → Fan Adjust the temperature setting Adjust downwards or timer (programmed time) ③ downwards Turn on or off the display of the ④...
-
Page 16: Name And Function On Display Screen
Operating the Remote Controller Note: • The buttons are not available for first generation indoor units. 4. Name and Function on Display Screen High Later Figure 3.2 Display screen of remote controller Name Display Function Temperature Displays current temperature setting ①... -
Page 17: Operating Methods
Operating the Remote Controller ⑧ Power-on display Indicates a unit is turned on Fan speed Displays the current fan speed ⑨ Timer On/Off Displays times to turn on/off the unit ⑩ Shows that the remote controller Lock ⑪ button is locked Shows that ECO function is on ⑫... -
Page 18: Fan Speed Operations
Operating the Remote Controller 2) Press each time to change the operating mode according to the order shown in Figure 3.5; Auto Cool Heat Figure 3.5 3) In Auto, Cool, Dry or Heat mode, press ▲ and ▼ to adjust the temperature setting. -
Page 19: Fan Direction Operations
Operating the Remote Controller 5.4 Fan Direction Operations Press to adjust the direction of the vertical louver (see Figure 3.9). Figure 3.9 1) For second generation indoor units, there are 5 swing angles, and the vertical louver swings by a particular angle each time the button is pressed (see Figure 3.10);... -
Page 20: Idu Display Operations
Operating the Remote Controller ② When the vertical swing is on, press to turn off this function. Note: • When the unit is turned off, the button is invalid. • Each time the vertical swing signal is sent, the icon keeps lighting up for 15s and then disappears. -
Page 21: Silent Mode Operation
Operating the Remote Controller 2) When the display of the indoor unit lights up, press to turn off the light. 5.7 Silent Mode Operation The Silent function is used by the remote controller to send the "Silent" signal to the indoor unit. The indoor unit automatically optimizes the noise it generates when it is in the "Silent"... -
Page 22: Follow Me Operations
Operating the Remote Controller Note: • In cooling mode, when ECO is set up, the Fan Speed is forced to Auto and the temperature is 26°C; in heating mode, when ECO is set up, the Fan Speed is forced to Auto and the temperature does not change. - Page 23 Operating the Remote Controller Figure 3.17 ② Press or ▲, ▼ to adjust the timer settings; ③ Once the adjustment is done, the timer information is sent to the indoor unit. 2) Timer Off Operation: ① Press (see Figure 3.18), and the remote controller will display "Timer Off", and "0.0h Later Off"...
-
Page 24: Button Lock Operations
Operating the Remote Controller • When the Timer settings have been completed, there may be a ±15 minutes time difference when the buttons for adjustment, mode, fan speed and ECO are pressed again. • The Timer On and Timer Off settings can be set at the same time. 5.11 Button Lock Operations Once the buttons on the remote controllers are locked, all the other button operations except for Unlock and IDU Address Setting are... -
Page 25: Field Settings
Field Settings 1. Indoor Unit Address Query and Setting Long press the buttons for at the same time for 8 seconds (see Figure 4.1) to go to the page to set the address of the indoor unit. Long press the same buttons again for 8 seconds or press exit. - Page 26 Field Settings 2) Indoor Unit Address Setting: Once in the address setting page, press the button to enter the Send page. In Send page, press ▲ and ▼ to adjust the address up and down respectively. Press to send the address to the indoor unit.
-
Page 27: Parameter Configuration For Remote Controller
Field Settings 2. Parameter Configuration for Remote Controller 1) Configuration Method: ① Long press on the remote controller at the same time for 5 seconds to go to the parameter settings status (see Figure 4.4); Figure 4.4 ② Press ▲ and ▼ to adjust the parameter value; ③... - Page 28 Field Settings Figure 4.5 2) See Table 4.1 for details. Table 4.1 Parameters of remote controller Parameter Parameter Definition 7 fan speeds, temperature adjustment step of 0.5°C 3 fan speeds, temperature adjustment step of 1°C 7 fan speeds, temperature adjustment step of 1°C (default parameter) 3 fan speeds, temperature adjustment step of 0.5°C...
- Page 32 Thank you very much for purchasing our product. Before using your air conditioner, please read this manual carefully and keep it for future reference. Due to LENNOX EMEA ongoing commitment to quality, the specifications, ratings and dimensions are subject to change without notice and without incurring liability.
