Lennox VRF V0STAT52P-1 Manual

C O M M E R C I A L
P R O D U C T S P E C I F I C AT I O N S
Complete indoor unit remote control. Maximum operating
range is 36 ft.
FEATURES
• Backlight - Allows easy operation in a dark room
• The remote lights when any button is pressed and
remains lit during remote control access
• Built-In Timer - Timer offers the convenience of
automatically starting and stopping the system
according to a set time
• Address Setting - Manually set indoor unit addresses via
the remote control
• LCD Display - Displays temperature (°F or °C), time,
system ON/OFF, operating mode (AUTO, COOL, DRY,
HEAT, and FAN), wireless transmission, fan speed graph,
economic operation (if available) and lock
• Function Buttons - MODE, UP/DOWN ARROWS
(adjustment), POWER, FAN SPEED, SWING (Horizontal
and Vertical), AIR DIRECTION, CLOCK, TIMER ON, TIMER
OFF, OK (confirm), ECO (Economic Operation if available)
• Recessed RESET button
• Recessed LOCK and COOL/HEAT buttons to prevent
tampering
• Batteries - Operates on two AAA 1.5V batteries
(furnished)
• Dimensions (H x W x D) - 6 x 2.5 x 3/4 in.
V A R I A B L E R E F R I G E R A N T F L O W S Y S T E M S
VRF

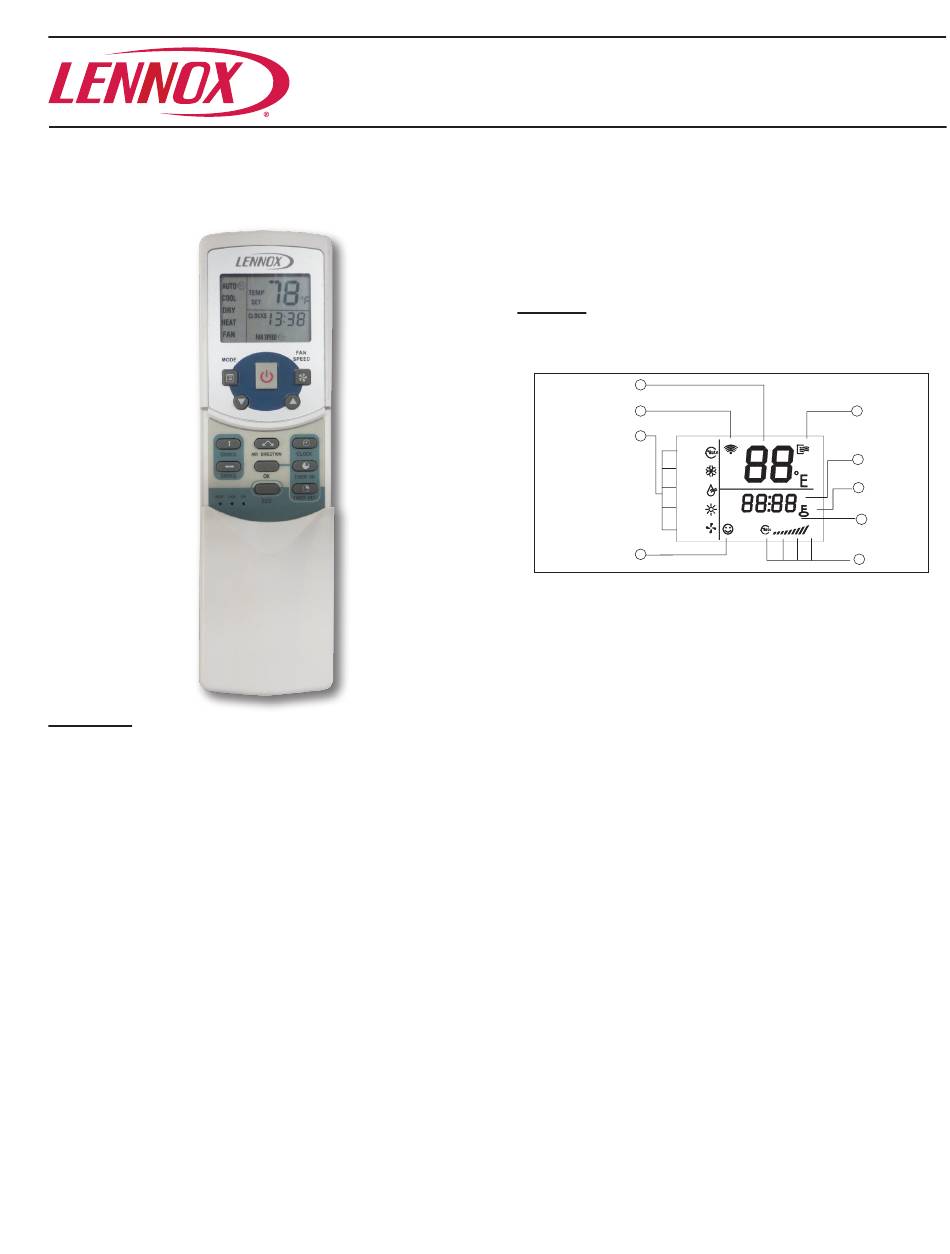

DISPLAY
1
Temperature
Transmitting 2
Operation Mode 4
AUTO
COOL
DRY
HEAT
FAN
Economic Operation 8
1. Temperature - Displays the set temperature.
Temperature is blank if system is operating in fan
mode.
2. Transmitting - The icon will flash when a signal is
sent by remote control to the indoor unit.
3. On/Off - Icon is displayed when the remote
controller is turned on.
4. Operation Mode - Displays system mode operation
(AUTO, COOL, DRY, HEAT and FAN)
5. Time - Displays the current set time.
6. Lock - Indicates if all buttons on remote (except
the LOCK button) are disabled to prevent
tampering.
7. Time On/Off - Displays if the timer settings are on
or off
8. Economy Mode Indicator - Indicates that the
system is operating in economy mode
9. Fan Speed - Sloped graph indicates indoor unit
fan speed (Auto, Low, Medium, High) in visual
increments
VRF
V0STAT52P-1
Wireless Remote Control
Bulletin No. 210702
July 2014
3
On/Off
5 Time
TEMP
SET
6
Lock
CLOCK
SET
7 Time On/Off
HOUR
ON OFF
FAN SPEED
9 Fan Speed
