- Page 1 A L P R I D E E 2 A I R B A G S Y S T E M U S E R M A N U A L w w w . a l p r i d e . c o m...
- Page 2 SUMMARY OF LED STATUSES USER MANUAL / ENGLISH...
- Page 3 CONTENTS 3 - 14 ENGLISH USER MANUAL / ENGLISH...

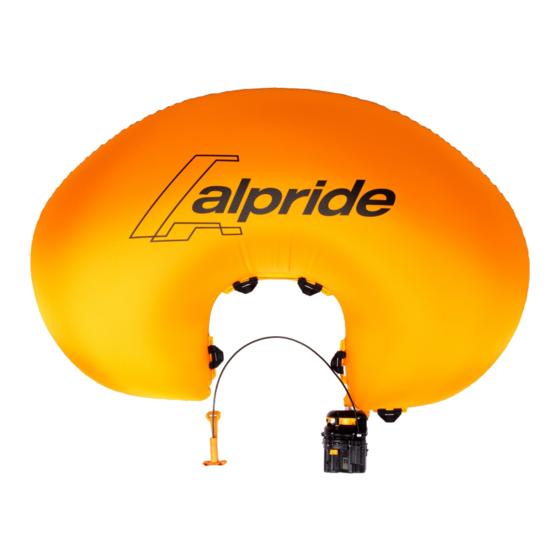

- Page 4 ALPRIDE E2 AIRBAG system LE GEN D Airbag Compartment Trigger LCD display (see section 6) Super capacitors 2x AA Battery compartment (batteries not included) USB-C Port (cable included) ON/OFF switch 3x LED (see section 5) Trigger cable Deflation knob Air inlet...
- Page 5 • the ALPRIDE E2 AIRBAG system has to stay clean all time. in case of a spoiled inflator system, the function of the airbag system is not granted. • do not use the alpride E2 with unauthorized carrying systems (backpack, vest, etc.).
- Page 6 • the ALPRIDE E2 AIRBAG system is on or off, it has no influence on avalanche beacons. when it is inflating it could interfere with beacons. avalanche beacons are very sensitive to electrical and magnetic influences. to mitigate any interference, carry the beacon on the front side of your body to increase the distance between the alpride E2 compressor and the beacon.
-
Page 7: Affichage Lcd
The SuperCapacitors can be recharged with the micro-USB-C cable even in the absence of the AA batteries. ON / OFF ET AUTO-TEST To turn on the E2 System, use the ON / OFF switch. This safety switch prevents undesired activation inside the bag. Pull the switch up, turn it clockwise and hold for 2 seconds. - Page 8 • 2 AA batteries allow for 1-2 recharging cycles of the SuperCapacitors (depending on the quality of the batteries used and the charging tempera- ture). WARNING: Do not leave the USB-C cable connected while using the E2 System in the terrain. After charging is complete, remove the USB-C cable. SUMMARY OF LED STATUSES...
- Page 9 In this case, check that snow or ice is not blocking the deflation button in the pressed position. Do not use the E2 if the deflation button is jammed (orange indicator visible). After each deflation, check that the orange indicator is not visible.
- Page 10 Bring the slider to the beginning of the zipper Assemble the two parts of the zipper Folding complete USER MANUAL / ENGLISH...
- Page 11 Put the backpack on and adjust shoulder straps to fit your body. Always fasten hipbelt, chest and leg loop and fit them according to your body. The ALPRIDE E2 AIRBAG system will only be of use to you if the backpack stays on your body during an emergency! Most of the weight of the pack should be resting on your hips rather than being carried by your shoulders.
-
Page 12: Regular Checks
MAINTENANCE POST-AVALANCHE CHECK Every use of the ALPRIDE E2 AIRBAG system can negatively affect the material. Often the damage is not visible with the naked eye. After a use in an avalanche, contact ALPRIDE. ALPRIDE E2 AIRBAG system for further inspection. - Page 13 through the opening between the shoulder strap and the airbag compartment. Remove the compressor through the side of the airbag compartment HOW TO INSTALL THE REMOVABLE AIRBAG SYSTEM Insert the compressor through the side of the airbag compartment Run the cable under the compression strap, Pass the trigger handle through the hole between the shoulder strap and the airbag pocket, attach the trigger handle.
-
Page 14: Troubleshooting
The ALPRIDE E2 AIRBAG system is designed to withstand 50 inflations. TRANSPORT & TRAVEL The ALPRIDE E2 AIRBAG system is using only 2 AA battery. The ALPRIDE E2 AIRBAG system has no Li-Ion / Li-Po battery, no gas cartridges under pressure and no pyrotechnic trigger. -
Page 15: Additional Information
Tested by TÜV Süd Product Service GmbH, Daimlerstr. 11, 85748 Garching bei München, Germany. Prüfstellennummer 0123. Certified according to: EN 16716: 2017 The Alpride avalanche backpacks comply with the provisions and safety requirements of the European Standard EN 16716: 2017 for Mountaineering equipment – Avalanche airbag systems – Safety requirements and test methods.
