Arlec DC650 Installation & Operating Instructions

Trouble Shooting & User Hints
Problem Possible Cause Suggested Remedy
Chime does 1. Units are out of range Operate the Chime unit
(max. range 50 metres). within the operation
not sound.
range (50 metres).
2. Push Button and Chime Re-set the code (see
units are not on same Code Selection or select
code. a different melody tone.)
3. Flat Push Button Change the battery.
battery.
4. Wrong polarity of Re-insert battery
battery in Push Button. with polarity to match
markings.
Chime sounds 1. A power interruption A. Unplug the Chime
without Push to the Door Chime
Button being unit plus a similar
pressed door chime product
operating nearby has
caused the chime unit
to reset to the incorrect
code
B. Re-set the code (see
2. A similar Wireless Re-set the code
Door Chime product is
(see Code Selection).
operating nearby on the
same code.
3. Interference from CBs, Re-set the code
Taxis or remote control
(see Code Selection).
toys operating on the
same code.
5
DC650 Instructions.indd 1-3
Arlec Warranty
Arlec guarantees this product against defects of materials and workmanship for a
period of 1 year from the date of purchase provided the product is used for its proper
purpose, in accordance with Arlec's recommendations and within such voltage and
current limits as are specified by Arlec in relation to the product. Arlec will at its own
option and cost make good, or replace this product with the same or similar product
and return it to you, or provide a credit for any product manufactured or supplied by it,
which proves to be defective within the limits set out above provided that no repairs,
alterations or modifications to the product have been undertaken or attempted by
anyone, other than Arlec or its authorized agents. Should you wish to make a claim
Unit for at least 30
under this guarantee, the product and proof of purchase must be returned pre-paid
seconds.
by you to the place of purchase.
Plug in the Chime Unit
This guarantee is in addition to and does not take away from any other rights and
again.
remedies you may have under any relevant law.
It should beep twice.
Our goods come with guarantees that cannot be excluded under the Australian
Press the Push Button
Consumer Law. You are entitled to a replacement or refund for a major failure and
to operate the chime. for compensation for any other reasonably foreseeable loss or damage. You are also
entitled to have the goods repaired or replaced if the goods fail to be of acceptable
This re-sets the code
quality and the failure does not amount to a major failure.
in the Chime Unit or;
Proof of Purchase
Please retain your proof of purchase for all warranty claims.
Code Selection).
For all Sales & Warranty enquiries
Arlec Australia Pty Ltd. (A.C.N. 009 322 105).
272-274 Maroondah Highway
Chirnside Park, Victoria 3116 Australia
PO Box 181 Lilydale Victoria 3140 Australia
Phone (03) 9727 8860 Fax 1300 360 650
custservice@arlec.com.au
Plug-In Wireless Door Chime
with Power Socket
Installation & Operating
Instructions
Introduction

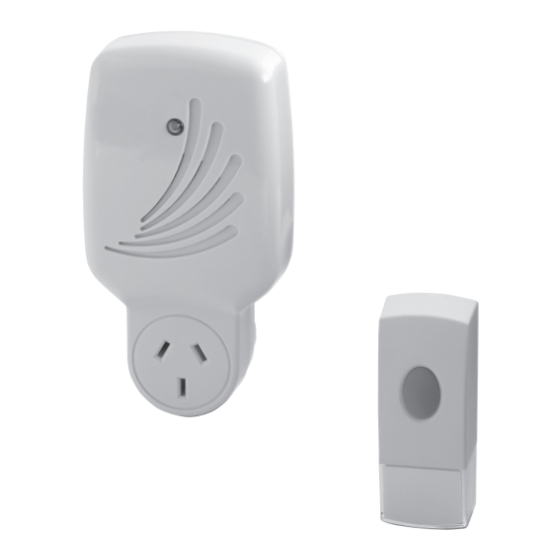

The Wireless Door Chime
(DC650) consists of two
separate units:-
1. Push Button Unit
2. Chime Unit
These units are completely
self-contained and no wiring
between them is necessary.
Range
Up to 50 metres.
NOTE: Range depends on
location, temperature, and
battery condition.
CPIN002107
6
(Transmitter)
(Receiver)
1
CPIN002107
DC650
