Arlec MAL553 Installation Instructions

Installation Instructions

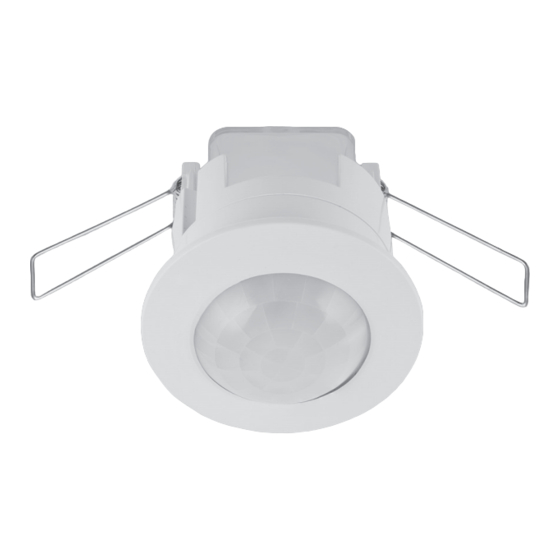

movement activated
recessed ceiling sensor
HARDWIRE
INSTALL BY QUALIFIED ELECTRICIAN
Important! please read these InstructIons carefully.
CPIN002459
mal553
Where to fit your
security sensor
To achieve best results the Arlec Security
Sensor should be mounted in a ceiling, or under
eaves of a building, generally used to control an
existing light fitting. The Security Sensor should
be mounted 2.2 - 4 metres above the area to be
scanned (Refer Figure.1).
Figure 1.Side View
Ceiling
2.2-4m
6m Max
To avoid nuisance triggering, the sensor
should not be installed near heat sources such
as barbecues, air conditioners, other outside
lighting, moving cars and flue vents.
Do not install near reflective surfaces such
as smooth white walls, swimming pools, etc.
The Arlec Security Sensor scanning
specifications (approximately 6 metres at 360°)
may vary slightly depending on the mounting
height and location.
The detection range of the unit may also alter
with temperature change. Before selecting a
place to install the Arlec Security Sensor, you
should note that movement across the scan
area is more effective than movement.
View from above
Figure 2A
Best sensitivity
directly toward or away from the sensor
(Refer Figure.2A). If movement is made walking
directly toward or away from the sensor and not
across it, the apparent detection range will be
substantially reduced (Refer Figure.2B).
installing your
security sensor
WarNiNg: Must be installed by a licenced
electrician or other person authorised by
legislation to work on fixed wiring of an electrical
installation.
1. Cut a circular hole into the ceiling, to
accommodate the sensor body (care should
be taken to avoid cutting into concealed
electrical wiring).
Note for electriciaN:
Figure 3A
The security Sensor should be wired to its own
switch. Before installation/maintenance, the
N
electrical supply should be isolated. Switching
off the wall switch is NOT sufficient isolation to
L'
L' Load
prevent electrical shock.
L
To new or
existing light
L N
240V mains supply via switch
lUX – light level adjUstmeNt coNtrol
2. Remove the clear plastic terminal cover by
Adjusts the light level at which the Security
displacing locating clips with a screwdriver
blade and unscrew the front screw Figure 4. Sensor operates. Adjust to
operate day and night. Adjust to , the unit
3. Run the mains wiring to the product
will operate only at night when movement is
terminating in accordance with Figure 3A & 3B.
detected.
4. Replace the clear plastic terminal cover
time – time "oN" adjustment
and secure wires with anchorage clamp.
Varies the length of time the light will stay ON
5. Fold metal fixing springs to vertical position
from about 10 seconds to 7 minutes. Turn clock-
and insert complete wired assembly upward
wise to increase ON-time – ideal setting is about
through hole. Fixing springs with then snap
10 o'clock position (approximately 2 minutes).
downward, retaining sensor in position
Whilst there is movement within range of the
Figure 5.
unit, the light will remain ON. When no further
movement is detected, the light will switch OFF
View from above
after the pre-set time has elapsed.
Figure 2B
Reduced sensitivity
2
Figure 4 Figure 3B
Figure 5
understanding
the controls
, the unit will
imPortaNt: Be careful of electrical shock.
Always remember that the light may not switch
ON during daylight or the light maybe in the
automatic OFF mode. Never touch live areas
unless fuse is removed or circuit breaker is in
OFF position at the switchboard main.
setting the controls
For best results and operation the following
steps should be taken:
1. Mount the sensor above the desired area
to be scanned.
2. Turn the light level control fully clockwise
and time control fully anti-clockwise.
3. Turn the wall switch ON, light will come ON
for 10 seconds and then go OFF, provided that
there is no movement in the detection area.
3
