Monitor Series

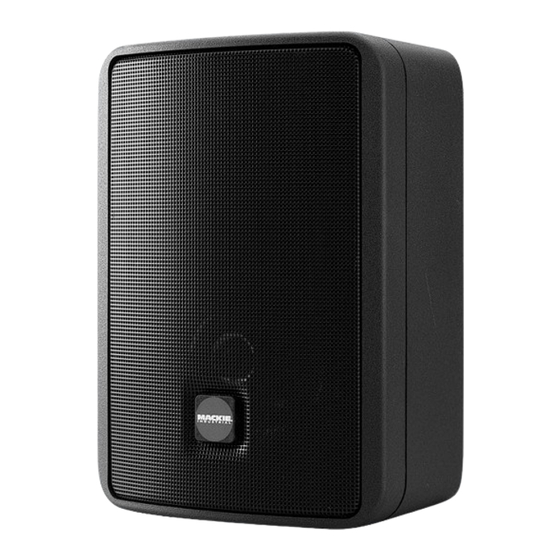

Coaxial design, small size and a wealth of mounting
options make the Mackie Industrial MR3STK (black)
and MR3SWTK (white) compact coaxial loudspeakers
ideal for use in business music systems.
The woofer is a high-excursion, carbon fiber design.
The dome tweeter uses an efficient Ferrofluid
coil. Together they provide natural, smooth sound
reproduction and high resistance to weather.
Installation of the MR3STK is fast and efficient using
the accompanying MA3-5 (MA3-5W, white) adjustable
mounting bracket. Two M6 and two 3/8" threaded
inserts add to the speaker's flexibility. Connections
are made to recessed color-coded, spring-loaded ter-
minals. Wattage taps, voltage adjustments and 4-ohm
operation are selectable by means of two detented
rotary switches. The enclosure is constructed of high
density, scratch resistant polystyrene and includes a
protective perforated steel grille and connection cover.
Available in black (MR3STK) or white (MR3SWTK).
The MR3STK is a part of Mackie Industrial's Monitor
Series, which includes two-way constant directivity,
compact speakers in easily installed enclosures.
This Mackie Industrial product is covered by an
exclusive, one-time, NO FAULT repair policy in addition
to a five year limited warranty.
MR3STK
Compact Coaxial Speaker
®
cooled
MR3SWTK
Features
4.75" high-efficiency carbon fiber woofer
Coaxial, Ferrofluid
dome tweeter
Built-in, multi-tap constant voltage transformer
Built-in, LICC low inductance passive crossover
Lightweight, UV/weather resistant, high density
polystyrene, trapezoidal shaped enclosure for multiple
applications and minimum visual intrusion
Articulated surface mount hardware
(MA3-5, black, or MA3-5W, white) included
Integrated mounting points for use with optional
mounting hardware
Exclusive Mackie Industrial - one-time, NO FAULT
repair policy
Five year limited warranty
Foreground/Background Music
Distributed Speech Reinforcement
AV Production/Playback
Near-field Monitoring
®
cooled, 0.5" titanium metalized
1
O F 6 P A G E S
o F 6 PA G E S
