Series WE35 3-Way NPT Brass Ball Valve
Specifications - Installation and Operating Instructions

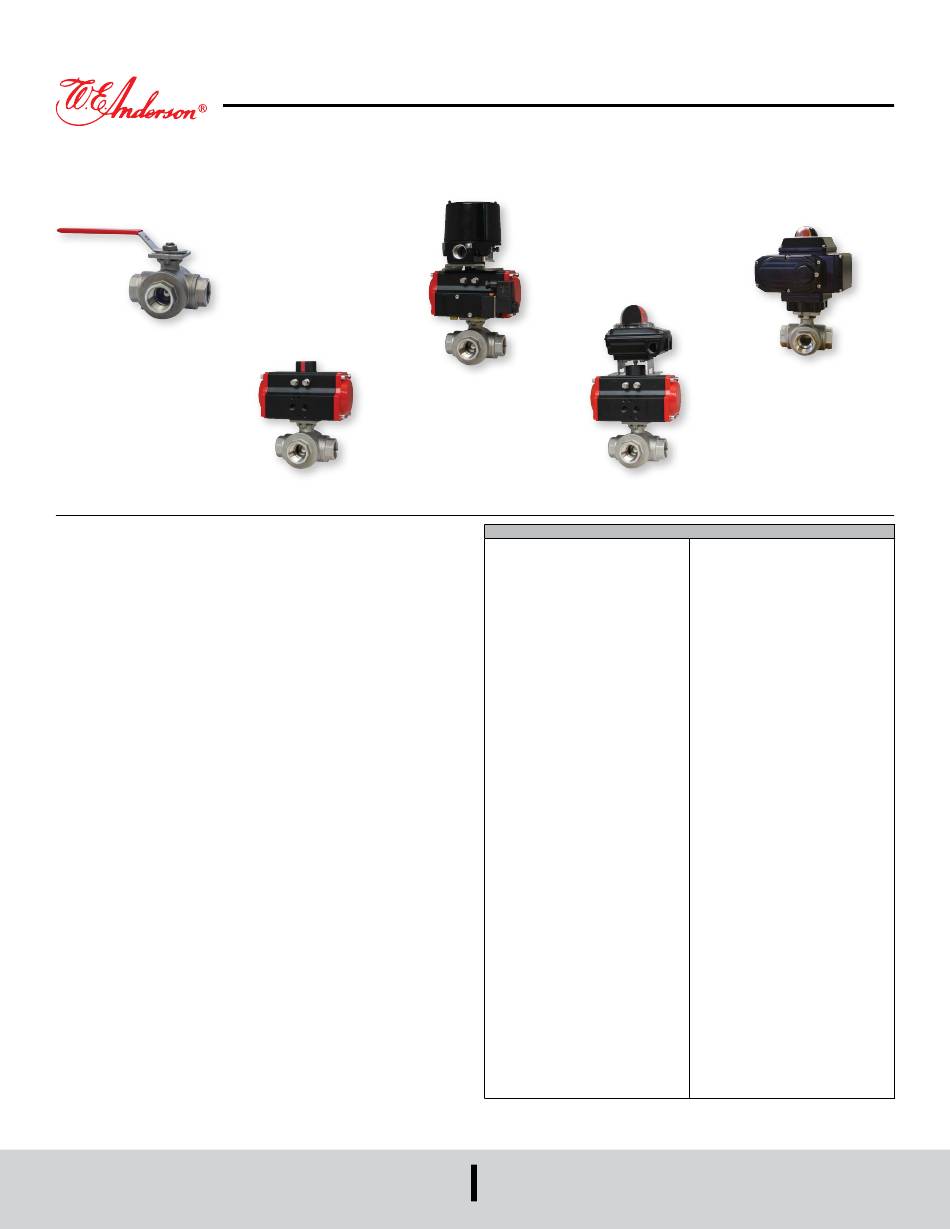

WE35-DHD00-T1
The Series WE35 3-Way NPT Brass Ball Valve incorporates a full port 3-way brass
ball valve for great flow rates with minimal pressure drop. The valve features a blowout
proof stem for added safety, reinforced PTFE seats and seals for longer life, and a
brass ball for better performance. Actuators are direct mounted creating a compact
assembly for tight spaces.
The Series WE35 can be configured with either an electric or pneumatic actuator.
Electric actuators are available in weatherproof or explosion-proof, a variety of supply
voltages, and two-position or modulating control. Two-position actuators use the
supply voltage to drive the valve open or closed, while the modulating actuator accepts
a 4-20 mA input for valve positioning. Actuators feature thermal overload protection
and permanently lubricated gear train.
The pneumatic double acting actuator uses an air supply to drive the valve open
and closed. The actuator has two supply ports, with one driving the valve open and
the other driving the valve closed. Spring return pneumatic actuators use the air
supply to open the valve and internally loaded springs return the valve to the closed
position. Also available is the SN solenoid valve to electrically switch the air supply
pressure between the air supply ports for opening and closing the valve. Actuators
are constructed of anodized and epoxy coated aluminum for years of corrosion free
service.
DWYER INSTRUMENTS, INC.
P.O. BOX 373 • MICHIGAN CITY, INDIANA 46360, U.S.A.
WE35-DDA02-T1-AA01
WE35-DDA02-L1 WE35-DDA02-T3-NN05
SPECIFICATIONS
VALVE
Service: Compatible liquids and gases.
Body: 3-way.
Line Sizes: 1/2 to 2˝.
End Connections: Female NPT.
Pressure Limits: 600 psi (41 bar) WOG.
Wetted Materials: Body, ball, and stem:
Brass; Seat, seal, and packing: PTFE.
Temperature Limits: -20 to 425°F (-30
to 220°C).
Other Materials: O-ring: NBR; Handle,
stem nut, ferrule: SS; Handle Sleeve:
Vinyl; Body and cap: Nickle plated.
ACTUATORS
Pneumatic "DA" and "SR" Series
Type: DA series is a double acting and
SR series is a spring return (rack and
pinion).
Normal Supply Pressure: DA: 40 to 115
psi (2.7 to 7.9 bar); SR: 80 psi (5.5 bar).
Maximum Supply Pressure: 120 psi
(8.6 bar).
Air Connections: DA02 to DA03: 1/4˝
female NPT; SR02 to SR04: 1/4" female
NPT.
Housing Material: Anodized aluminum
body and epoxy coated aluminum end
caps.
Temperature Limits: -40 to 176°F (-40
to 80°C).
Accessory Mounting: NAMUR
standard.
Phone: 219-879-8000
Fax: 219-872-9057
Bulletin V-WE35
WE35-DTD01-T3-A
Electric "TD" and "MD" Series
Power Requirements: 110 VAC, 220
VAC, 24 VAC, or 24 VDC (MD models
not available in 24 VDC).
Power Consumption: See instruction
manual.
Cycle Time (per 90°): TD01: 4 s; MD01:
10 s; TD02: 20 s).
Duty Rating: 85%.
Enclosure Rating: NEMA 4X (IP67).
Housing Material: Powder coated
aluminum.
Temperature Limits: -22 to 140°F (-30
to 60°C).
Electrical Connection: 1/2˝ female NPT.
Modulating Input: 4-20 mA.
Standard Features: Manual override,
position indicator, and TD models come
with two limit switches.
Electric "TI" and "MI" Series
Power Requirements: 110 VAC, 220
VAC, 24 VAC, 24 VDC.
Power Consumption: See instruction
manual.
Cycle Time (per 90°): See instruction
manual.
Duty Rating: See instruction manual.
Enclosure Rating: NEMA 7, designed
to meet hazardous locations: Class I,
Group C & D; Class II, Group E, F & G;
Division I & II.
Housing Material: Powder coated
aluminum.
Temperature Limits: -40 to 140°F (-40
to 60°C).
Electrical Connection: 1/2˝ female NPT.
Modulating Input: 4-20 mA.
Standard Features: Position indicator
and two limit switches.
www.dwyer-inst.com
e-mail: info@dwyermail.com
