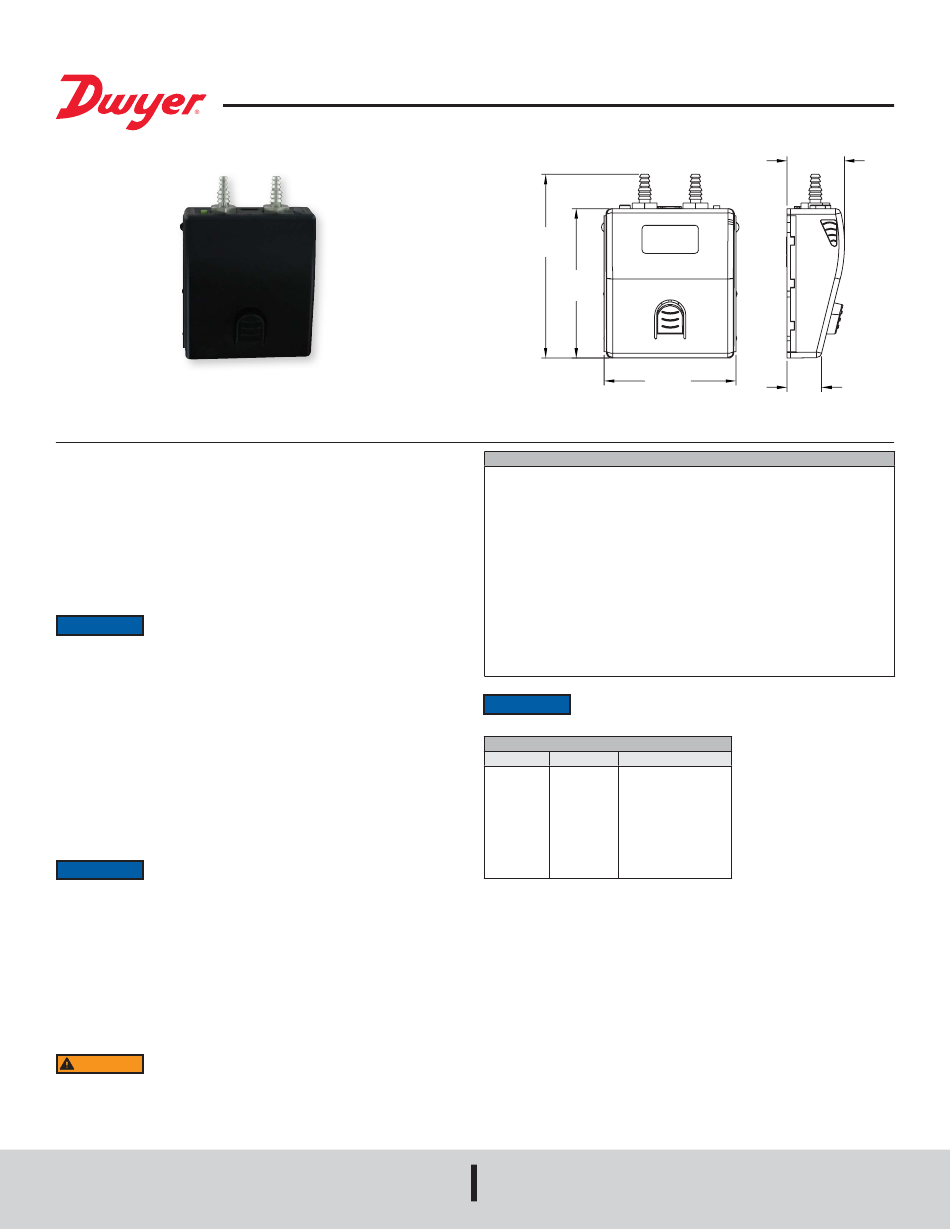

Dwyer Instruments WDPM Series Specifications-Installation And Operating Instructions

Series WDPM Wireless Differential Pressure Module for UHH/UHH2
Specifications - Installation and Operating Instructions
The Series WDPM Wireless Differential Pressure Module transmits measurements
to Models UHH and UHH2 or the Dwyer Mobile Meter
across filters, static pressure in ducts, and velocity pressures from pitot tubes or air flow
stations. When using it with a pitot tube or air flow measuring station, the measurement
can be calculated to read directly in air velocity or volumetric air flow. The module
mounts in the holder on the back of the handheld, or in an optional mounting bracket.
Wireless modules can take measurements from at least 50 feet away from the base
unit. An LED flashes on the top of the module to let the customer know when the
module communicates with the handheld, as well as when the module's battery is
low. The battery is rechargeable via the mini-USB connector on the top of the module.
This device complies with Industry Canada license-exempt RSS
NOTICE
standard(s). Operation is subject to the following two conditions:
(1) This device may not cause harmful interference. and (2) this device must accept
any interference received, including interference that may cause undesired operation.
Cet appareil est conforme à des règlements d'Industrie Canada exempts de licence
standard RSS (s). Son fonctionnement est soumis aux deux conditions suivantes:
(1) Ce dispositif ne doit pas causer d'interférences nuisibles, et (2) cet appareil doit
accepter toute interférence reçue, y compris les interférences pouvant entraîner un
fonctionnement indésirable.
This Class B digital apparatus complies with Canadian ICES-003.
Cet appareil numériqué de la classe B est conformé à la norme NMB-003 du
Canada.

CHARGING BATTERY

NOTICE It is required before the initial use of the module to fully charge the
battery for 12 hours.
When the charge of the battery is almost used up, the LED on the module of the
wireless probe will turn solid red. There is approximately 5 minutes of battery life left
at this point. If the module is not already paired to the base unit, it will not pair while in
low battery condition.
Step 1: Plug the mini-USB connector end of the cable into the top of the module.
Step 2: Plug the USB connector end of the cable into the port on the charger or PC
(LED on the charger and the module should both light up).
Step 3: The LED on the module will turn off when fully charged.
Step 4: Remove USB cable from the module and the charger or PC.
Lithium ion batteries are very volatile and can cause a fire if
WARNING
punctured or severely damaged. Only use a Dwyer Instruments,
Inc. approved charging device in a well ventilated area away from any flammable
materials or gases. Do not incinerate the battery. Only charge between 32 to 113°F
(0 to 45°C).
DWYER INSTRUMENTS, INC.
P.O. BOX 373 • MICHIGAN CITY, INDIANA 46360, U.S.A.

SPECIFICATIONS

app to view pressure drop
®
Service: Non-corrosive dry gases.
Wetted Materials: Consult factory.
Accuracy: ±0.5% FS span @ 25°C (includes non linearity, hysteresis, and non
repeatability).
Pressure Limits: See Table 1.
Temperature Limits: Compensated: 32 to 140°F (0 to 60°C); Process/Ambient: 14
to 140°F (-10 to 60°C).
Thermal Effects: ±0.01% FS/°F (±0.02% FS/°C).
Battery Charging Limits: 32 to 113°F (0 to 45°C).
Power Requirements: 3.7 V YT562447 lithium ion battery, installed functionally,
user replaceable.
Wireless Distance: At least 50´ (15 m).
Weight: 2.5 oz (70.87 g).
Connections: Two barbed connections for use with 1/8˝ (3.18 mm) or 3/16˝ (4.76
mm) ID tubing.

MAXIMUM PRESSURE

Model
WDPM-002
WDPM-005
WDPM-010
WDPM-020
WDPM-030
WDPM-100
WDPM-200
WDPM-400
3-17/64
[82.77]
2-21/32
[67.31]
2-21/64
[59.28]
If desired, it can be operated with USB powered cables less than 3
NOTICE
m in length when connected to the charger or PC.
Range Maximum Pressure
±2 in w.c. 10 psi
±5 in w.c. 10 psi
±10 in w.c. 10 psi
±20 in w.c. 20 psi
±30 in w.c. 20 psi
±100 in w.c. 15 psi
±200 in w.c. 45 psi
±400 in w.c. 45 psi
Table 1
Phone: 219/879-8000
Fax: 219/872-9057
Bulletin TE-WDPM
1-1/64
[25.80]
39/64
[15.59]
