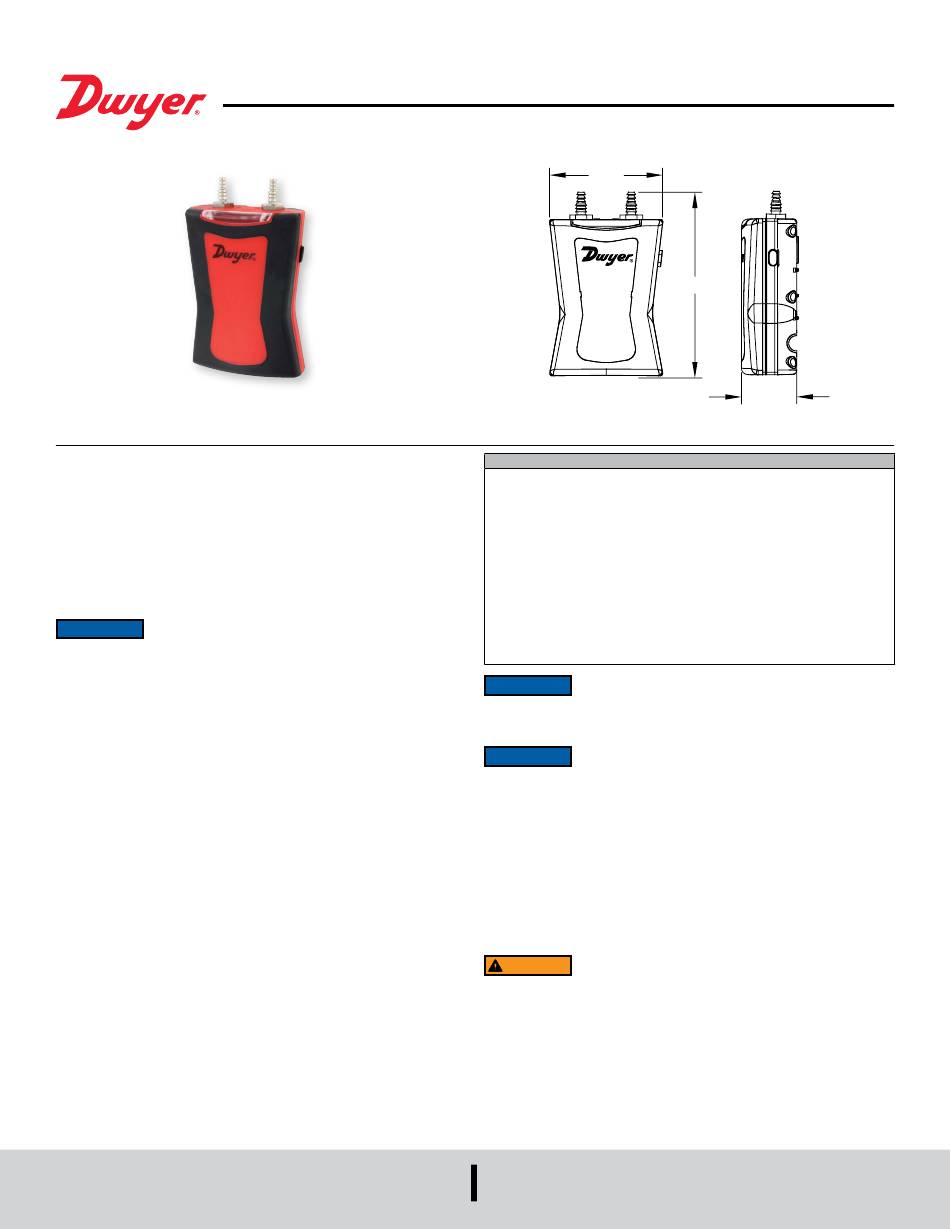

Series DP3 Wireless Differential Pressure Module
Specifications - Installation and Operating Instructions

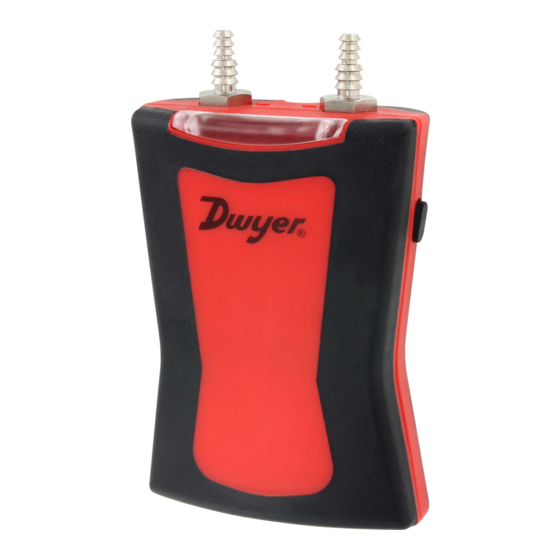

The Series DP3 Wireless Differential Pressure Module is a compact, highly
accurate, auto-ranging differential pressure module ideal for low flow applications. The
Series DP3 is used in conjunction with the Dwyer Mobile Meter
to view pressure drop across filters, static pressure in ducts, and velocity pressures
from pitot tubes or air flow stations.
The Series DP3 includes a differential pressure sensor with positive and negative
ports for differential and static pressure readings, a LED indicator, and a rechargeable
lithium-ion battery; which can be charged via Mini-USB. The Series DP3 Utilizes
Bluetooth Low Energy (BLE) to communicate wirelessly in real-time with the Dwyer
®
Mobile Meter application software.
®
This device complies with Industry Canada license-exempt RSS
NOTICE
standard(s). Operation is subject to the following two conditions:
(1) This device may not cause harmful interference. and (2) this
device must accept any interference received, including interference that may cause
undesired operation.
Cet appareil est conforme à des règlements d'Industrie Canada exempts de licence
standard RSS (s). Son fonctionnement est soumis aux deux conditions suivantes:
(1) Ce dispositif ne doit pas causer d'interférences nuisibles, et (2) cet appareil doit
accepter toute interférence reçue, y compris les interférences pouvant entraîner un
fonctionnement indésirable.
This Class B digital apparatus complies with Canadian ICES-003.
Cet appareil numériqué de la classe B est conformé à la norme NMB-003 du
Canada.
FEATURES/BENEFITS
• Auto-ranging technology maintains optimal performance down to 0.1˝ H
• LED indicator displays module status, connection, charging and logging to the user
• Over-the-air updates ensure the module has the latest firmware
• Unit can be mounted on both the pitot and velocity grid
• Rechargeable battery allows for a 10 hour battery life
• One button design allows for easy operation and simple logging
• Rugged case allows for a 10´ drop without compromising functionality
• Automatically corrects pressure reading depending on the inclination of the module
APPLICATIONS
• Non-corrosive dry gases
• Building commissioning
• Building HVAC test and balance
• Industrial process verification
• Instrumentation validation
DWYER INSTRUMENTS, INC.
P.O. BOX 373 • MICHIGAN CITY, INDIANA 46360, U.S.A.
SPECIFICATIONS
Service: Non-corrosive dry gases.
application software
®
Wetted Materials: Zinc plated brass; Silicon.
Accuracy: ±0.5% FS span @ 25°C (includes non linearity, hysteresis, and non
repeatability).
Pressure Limits: ±10 in w.c. (±2.5 kPa) .
Temperature Limits: Operating: -4 to 140°F (-20 to 60°C); Storage: -40 to 185°F
(-40 to 85°C).
Power Requirements: 3.7 V lithium ion battery, user rechargeable; Wireless
distance: 50´ (15 m).
Weight: 3.3 oz (93.55 g).
Electrical Connections: Female mini-USB.
Hose Connections: Two barbed connections for use with 1/8˝ (3.18 mm) or 3/16˝
(4.76 mm) ID tubing.
Approvals: CE, FCC.
NOTICE
CHARGING BATTERY
NOTICE
When the charge of the battery is almost used up, the LED on the module of the
wireless probe will turn solid red. There is approximately 5 minutes of battery life left
at this point. If the module is not already paired to the base unit, it will not pair while in
low battery condition.
0
2
Step 1: Plug the mini-USB connector end of the cable into the bottom of the module.
Step 2: Plug the USB connector end of the cable into the port on the charger or PC
(LED on the charger and the module should both light up).
Step 3: The LED on the module will turn off when fully charged.
Step 4: Remove USB cable from the module and the charger or PC.
WARNING
Inc. approved charging device in a well ventilated area away from any flammable
materials or gases. Do not incinerate the battery. Only charge between 32 to 113°F
(0 to 45°C).
Phone: 219-879-8000
Fax: 219-872-9057
2.534
4.166
If desired, the DP3 can be operated with USB powered cables less
than 3 m in length when connected to the charger or PC.
It is required before the initial use of the module to fully charge the
battery for 12 hours.
Lithium ion batteries are very volatile and can cause a fire if
punctured or severely damaged. Only use a Dwyer Instruments,
www.dwyer-inst.com
e-mail: info@dwyermail.com
Bulletin TE-DP3
1.238
