GALAXY SPAS Venus Manual page 21

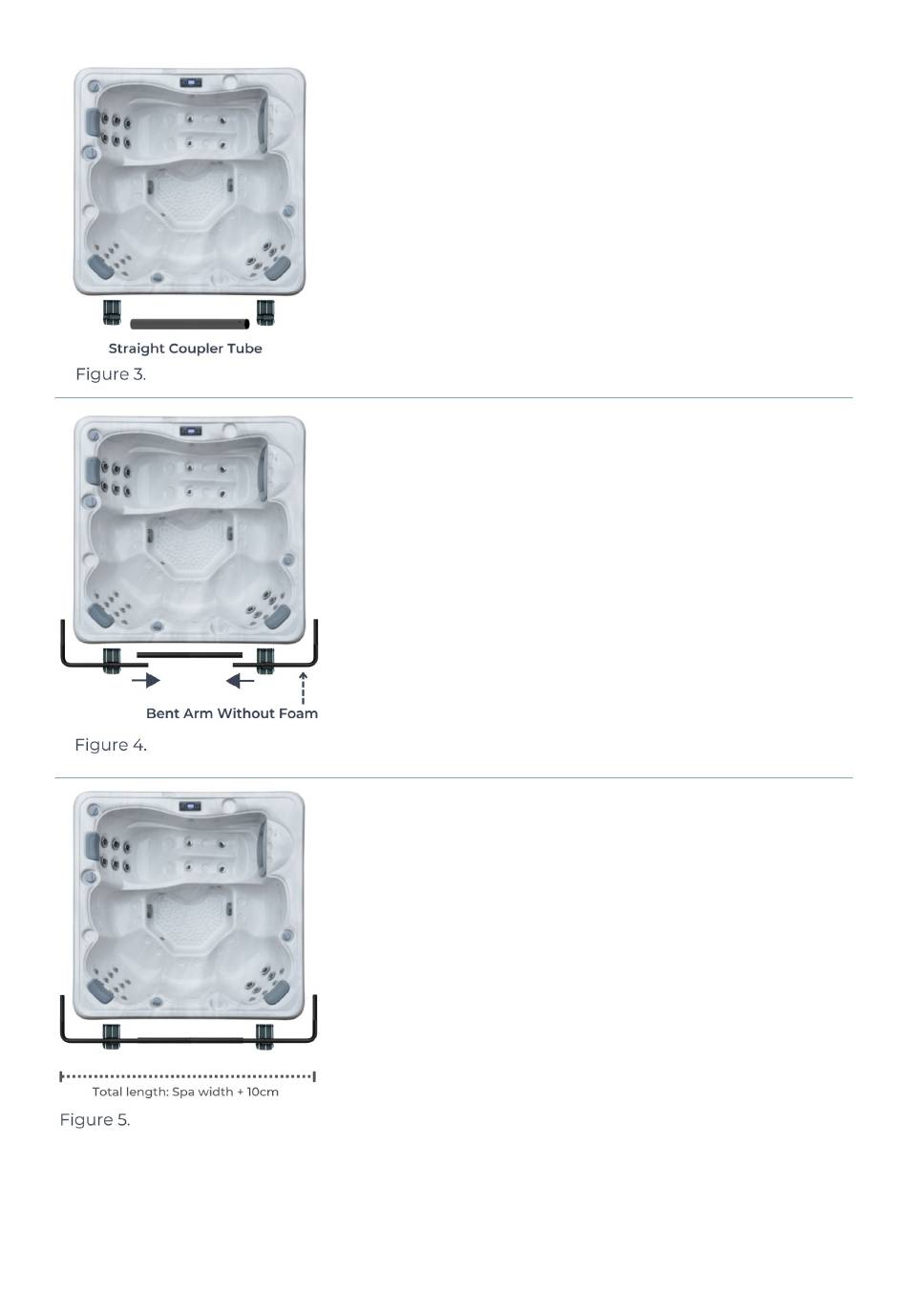

Step 3.
Place one straight coupler tube between the two
brackets.
Step 4.
It is optional to screw the base brackets to the base of
the spa from within the cabinetry, or onto decking (if
placing the spa on a deck). However, the weight of the
spa once filled with water will be sufficient to hold the
bracket securely. Use the metal screws if you plan to
permanently secure it.
Step 5.
Place the bent arm without foam through the tubular
hole (circular part on the bracket).
Important:
If the width is less than 2m, connect the short ends
+
to the straight coupler.
If the width is 2m or more, connect the long ends to
+
the straight coupler.
Step 6.
Once you have connected the bent arms without foam
to the straight coupler tube, ensure that the length
corresponds to your spa model (see the chart in step 1)
by sliding the tubes to the appropriate length.
The spa pictured is 2m x 2m, so the long ends are shown
to be connected to the straight coupler.
21
