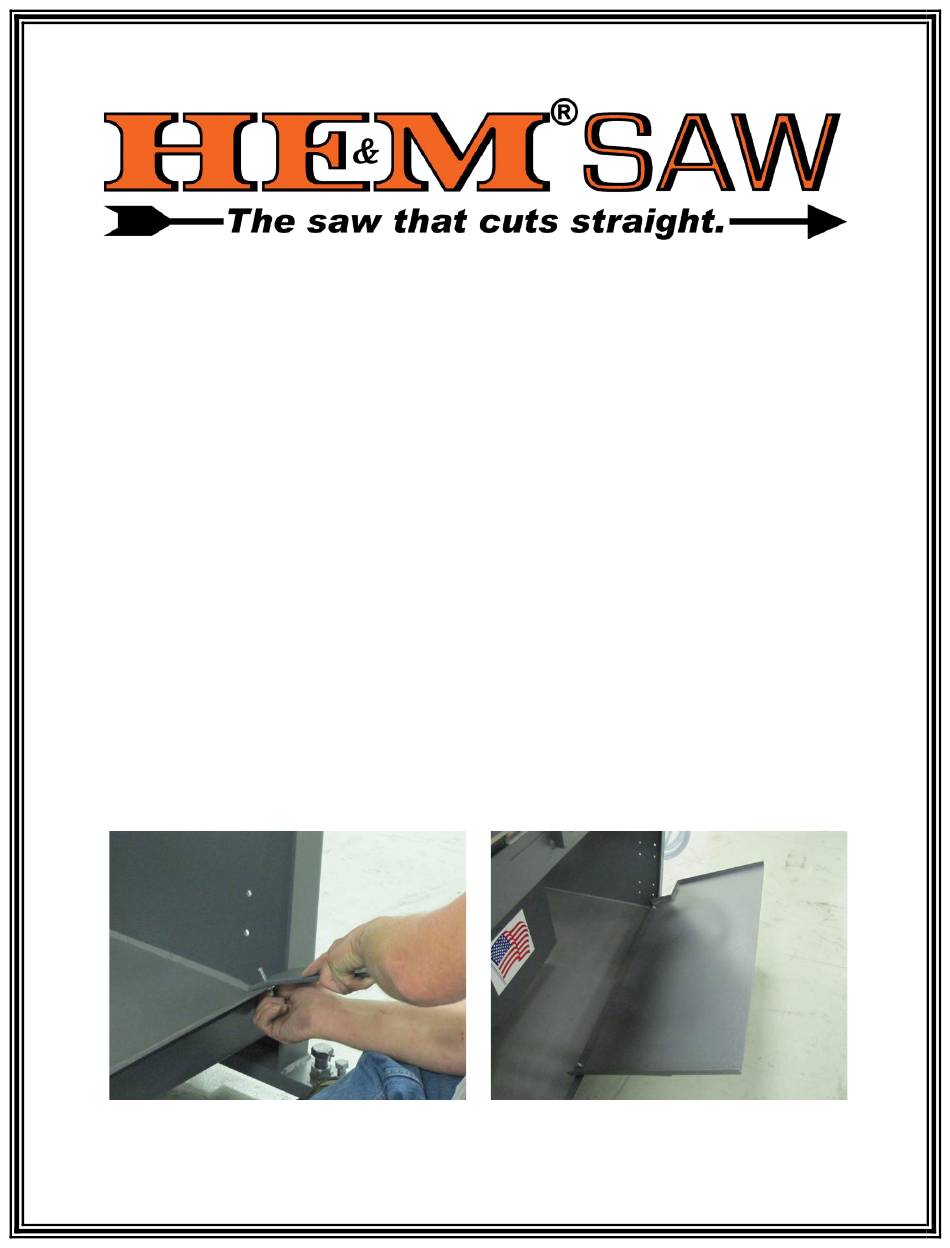

- Page 1 SIDE WING INSTALLATION VERTICAL SAWS...
- Page 2 VERTICAL SIDE WING INSTALLATION ON V/VT100 SAW MODELS Side wings are placed on the sides of the saw pan to return the coolant to the coolant pump, and to work as splashguards. Each side has two wings, or plates, and two braces that require installation.
- Page 3 After the braces are in place, the plate without the lip will be installed on the front end of the pan, over the braces with the bolts going through the predrilled holes on the plate. Place the nuts on the bolts, and then tightly fasten the plate to the braces and ledge of the saw. The other plate that has the lip will be hung on the back end of the saw over the ledge, with the lip on the side of the plate hung over the other plate.
