THANK YOU FOR PUCHASING THE PRINTDRY FILAMENT DRYER.
OPERATING, PLEASE MAKE SURE YOUR ELECTRICAL VOLTAGE MATCHES THE
DRYER MODEL.
INSTRUCTIONS. BE SURE TO SAVE THIS BOOKLET FOR FUTURE REFERENCE.
Filament Dryer
Instruction Manual
FD2003-100
FD2003-120
FD2003-220
PLEASE ALSO READ, UNDERSTAND AND FOLLOW THESE
Version: 2021-04
MODELS:
(100VAC, 50/60Hz, 300W)
(110-120VAC, 60Hz, 350W)
(220-240VAC, 50Hz, 300W)
- 1 -
PRO
BEFORE

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the FD2003-100 and is the answer not in the manual?

Questions and answers

Related Manuals for PrintDry FD2003-100

Summary of Contents for PrintDry FD2003-100

  • Page 1 (100VAC, 50/60Hz, 300W) FD2003-120 (110-120VAC, 60Hz, 350W) FD2003-220 (220-240VAC, 50Hz, 300W) THANK YOU FOR PUCHASING THE PRINTDRY FILAMENT DRYER. BEFORE OPERATING, PLEASE MAKE SURE YOUR ELECTRICAL VOLTAGE MATCHES THE DRYER MODEL. PLEASE ALSO READ, UNDERSTAND AND FOLLOW THESE INSTRUCTIONS. BE SURE TO SAVE THIS BOOKLET FOR FUTURE REFERENCE.

  • Page 2: Important Safeguards

    1. IMPORTANT SAFEGUARDS When using an electrical device, basic safety precautions should always be followed, including the following: Read all instructions before using the PrintDry filament dryer (hereinafter  referred as the "dryer"). DO NOT touch hot surfaces and always use a heat resistant surface.
  • Page 3 Failure to use and maintain the dryer in accordance with the instructions outlined in this manual will void the warranty and liability of dryer manufacturer. WARNING: MISUSE OF PRINTDRY PRODUCTS INVOLVES SERIOUS RISKS INCLUDING INJURY AND PROPERTY DAMAGE. 2. INTRODUCTION The model FD2003 offers an easy and quick way to remove moisture from filaments for better quality of 3D printing.
  • Page 4 Fig.1 Dryer Standard Package for 2 Spools (max OD 200mm or 8" each) Fig.2 Dryer Used for 1 Large Spool (max OD 305mm or 12") - 4 -...
  • Page 5 Fig.3 Dryer Used for 4 Spools (max OD 200mm or 8") - 5 -...

  • Page 6: Description Of Parts

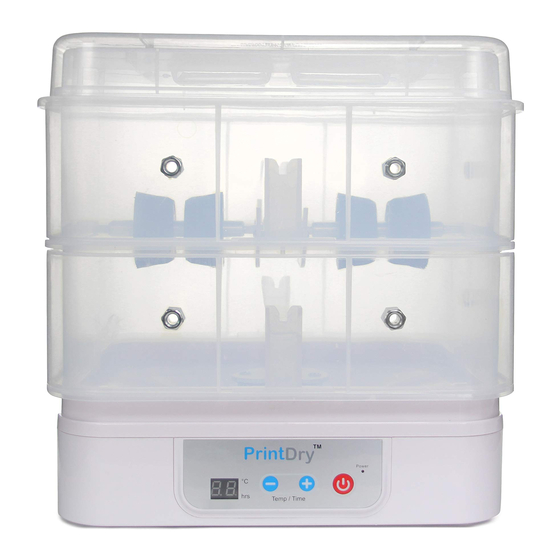

    DESCRIPTION OF PARTS 1 Top lid 2 Filament Spools 3 Central Support 4 Rectangular Tray (2x) 5 Dryer Base Unit Fig.4 PrintDry Filament Dryer - 6 -...
