Tiertime Filament Dryer
FD2003-120
FD2003-220
THANK YOU FOR PUCHASING THE TIERTIME FILAMENT DRYER.
OPERATING, PLEASE MAKE SURE YOUR ELECTRICAL VOLTAGE MATCHES THE
DRYER MODEL.
INSTRUCTIONS. BE SURE TO SAVE THIS BOOKLET FOR FUTURE REFERENCE.
Instruction Manual
MODELS:
(110-120VAC, 60Hz, 300W)
(220-240VAC, 50Hz, 300W)
PLEASE ALSO READ, UNDERSTAND AND FOLLOW THESE
Version: 2020-04
- 1 -
PRO
XS217
XS218
BEFORE

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the FD2003-120 and is the answer not in the manual?

Questions and answers

Related Manuals for PrintDry FD2003-120

Summary of Contents for PrintDry FD2003-120

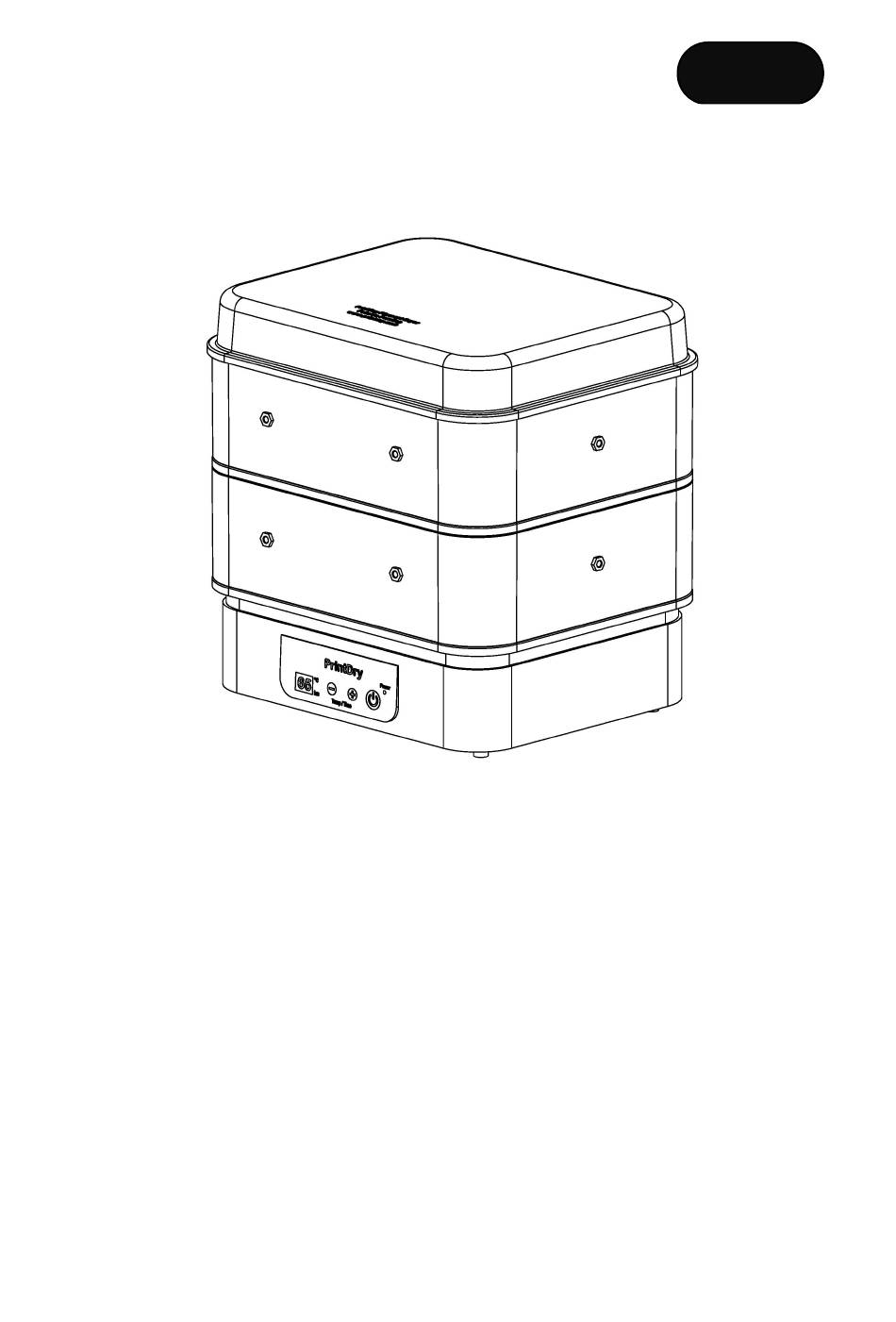

  • Page 1 Tiertime Filament Dryer Instruction Manual MODELS: XS217 FD2003-120 (110-120VAC, 60Hz, 300W) XS218 FD2003-220 (220-240VAC, 50Hz, 300W) THANK YOU FOR PUCHASING THE TIERTIME FILAMENT DRYER. BEFORE OPERATING, PLEASE MAKE SURE YOUR ELECTRICAL VOLTAGE MATCHES THE DRYER MODEL. PLEASE ALSO READ, UNDERSTAND AND FOLLOW THESE INSTRUCTIONS.

  • Page 2: Important Safeguards

    1. IMPORTANT SAFEGUARDS When using an electrical device, basic safety precautions should always be followed, including the following: Read all instructions before using the Tiertime filament dryer (hereinafter  referred as the "dryer"). Always use a heat resistant surface.  DO NOT touch hot surfaces.
  • Page 3 handling can break the internal circuit board & diminish product performance. Do not open the dryer base as this may cause damage or malfunction. There  is no user-serviceable part inside the dryer base. Following proper safety and operating instructions is the responsibility of the ...
  • Page 4 Fig.1 Dryer Standard Package for 2 Spools (max OD 200mm or 8" each) Fig.2 Dryer Used for 1 Large Spool (max OD 300mm or 12") - 4 -...
  • Page 5 Fig.3 Dryer Used for 4 Spools (max OD 200mm or 8") - 5 -...

  • Page 6: Description Of Parts

    DESCRIPTION OF PARTS 1 Top lid 2 Filament Spools 3 Central Support 4 Rectangular Tray (2x) 5 Dryer Base Unit Fig.4 Tiertime Filament Dryer - 6 -...

  • Page 7: How To Use

    BEFORE FISRT USE Unpack and remove all parts and packaging materials from the carton.  DO NOT plug in the power cord before reading the instructions.  Wipe the base with a slightly damp cloth. NEVER IMMERSE THE BASE IN ...
  • Page 8 Feed + Dry Function  Follow steps 1 and 2 in the previous section. Pass the filament through the holes in the plastic trays and feed it into your 3D printer, it is very important to adjust the dryer’s position for a smooth feeding.
  • Page 9 FILAMENT STORAGE In order to protect the filament from absorbing moisture, always store filament spools in vacuum sealed filament containers with some desiccant pouches inside, as shown below Fig.6 Filament Storage - 9 -...

  • Page 10: Helpful Hints

    HELPFUL HINTS For more efficient drying, it is recommended to use an optional D-spool, as  shown below. Fig.7 Optional D-spool An additional chamber kit (Fig. 8) can be added on top to hold 2 additional  filament spools, as shown in Fig. 9. Fig.8 Additional Chamber Kit - 10 -...
  • Page 11 Fig.9 Use of Additional Chamber Kit (ACK-PRO) - 11 -...
  • Page 12 A large spool kit is necessary in order to mount a large filament spool with the  max. OD of 300mm (12") into a standard dryer, as show below. Fig.10 Optional Large Spool Kit (LSK-PRO) - 12 -...
  • Page 13 Fig.11 Use of Large Spool Kit - 13 -...

  • Page 14: Care And Maintenance

     Any other servicing should be performed by an authorized service representative. 4. SPECIFICATIONS Models FD2003-120, FD2003-220 110-120VAC, 60Hz, 300W (Model 2003-120) Power Supply 220-240VAC, 50Hz, 300W (Model 2003-220) Dryer Temperature 35-75°C with 10°C increment ( 95-167°F) Weight 4.5 Kg...

  • Page 15: Warranty

    5. WARRANTY Teirtime filament dryer is warranted to be free from defect in material and workmanship for a period of ONE year under normal use after its original purchase date. This warranty extends only to the original retail purchaser. If the device should become defective within the warranty period, please contact us for repair or replacement.

  • Page 16: Customer Support

    The Tiertime filament dryers (Model 2003-120 and Model 2003-220) have been respectively certified by: For product updates and more information about Tiertime filament dryers, please contact us at: www.tiertime.com tiertime@tiertime.net Copyright PrintDry, 2020. All rights reserved. PrintDry is a registered trademark. Patents Pending. - 16 -...
