Summary of Contents for Dimplex DCEVP6WT

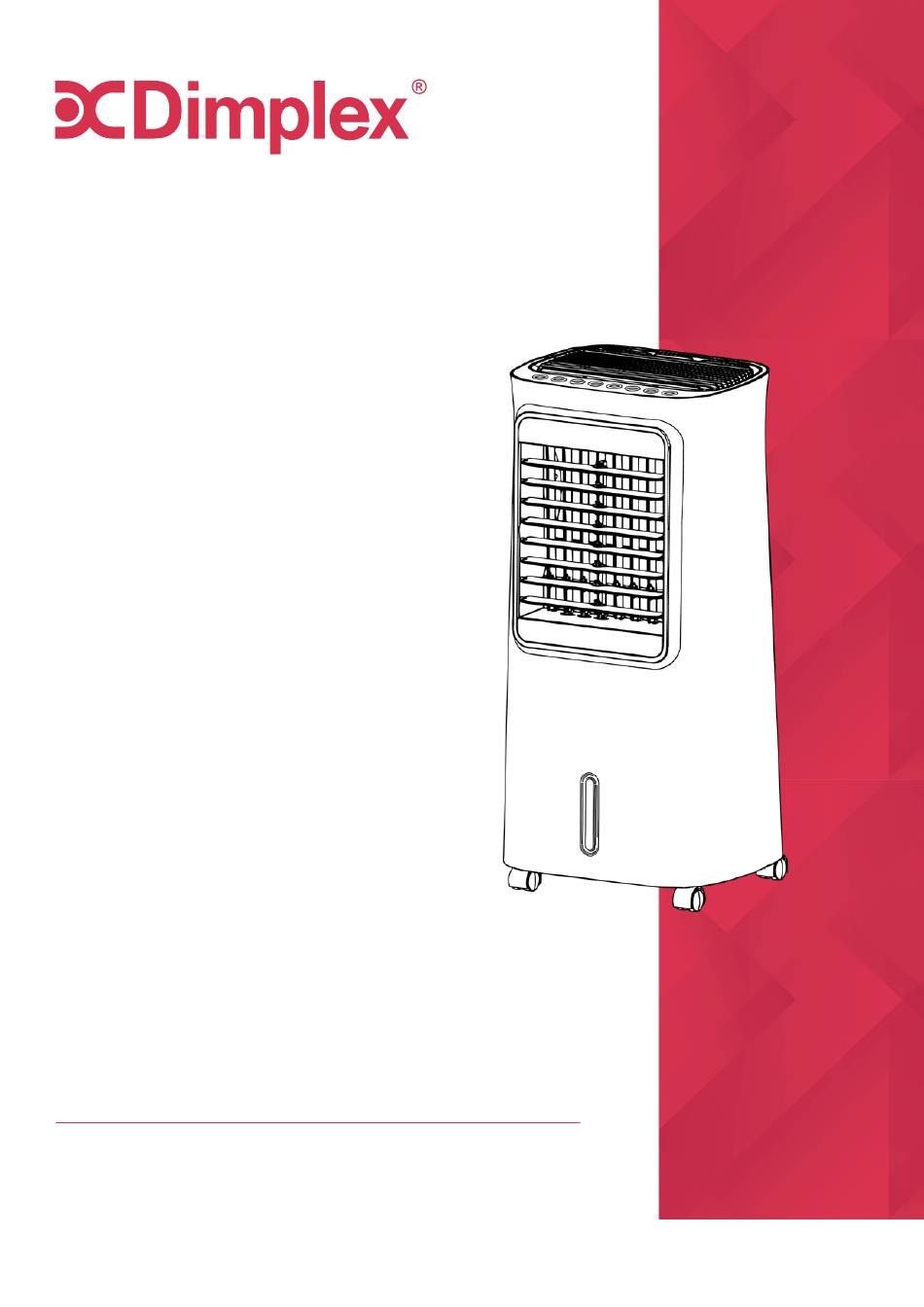

- Page 1 INSTRUCTION MANUAL 6L Evaporative Cooler w/Air Purifier Model: DCEVP6WT For domestic household use only.
- Page 2 IMPORTANT THESE INSTRUCTIONS SHOULD BE READ CAREFULLY AND RETAINED FOR FUTURE REFERENCE. Note also the information presented on the appliance CAUTION: FAILURE TO FOLLOW THESE INSTRUCTIONS MAY CAUSE INJURY AND/ OR DAMAGE AND MAY INVALIDATE YOUR WARRANTY Please read the operating instructions carefully before using your evaporative cooler for the first time and keep them in a safe place.
- Page 3 • This appliance is not intended for use by persons (including children) with reduced physical, sensory or mental capabilities, or lack of experience and knowledge, unless they have been given supervision or instruction concerning use of the appliance by a person responsible for their safety. •...
- Page 4 WARNING: KEEP BATTERIES OUT OF REACH OF CHILDREN • Swallowing may lead to serious injury in as little as 2 hours or death, due to chemical burns and potential perforation of the oesophagus. • If you suspect your child has swallowed or inserted a button battery immediately call the 24-hour Poisons Information Centre on 13 11 26 (in Australia) or 0800 764 766 (in New Zealand) for fast, expert advice.
- Page 5 Exposed to the Near water If the power cable weather outdoors wires are frayed or cut Where small children No extension Where the power may be left unattended leads or cable may be power boards damaged On a slope or Where there is risk Where it may be uneven surface...
-
Page 6: Specification
Specification Model no. DCEVP6WT Colour White Power supply 220-240V~50Hz Rated power Speed settings (3 for cooling, 3 for purify- ing) Modes 3 (natural, normal & sleep) Turbo air speed 250m/s Water tank capacity Remote control CADR Rate 140m3/h Timer 24 hours... - Page 7 Parts Air outlet Back shell Head sover (10) Remote control storage Control panel buttons (11) Rear cover Front shell (12) Power cord Display (13) Back Filter Horizontal louvre (14) Water tank bracket Fixed Horizontal louvre (15) Water tank Front castor (16) Back castor Remote...
-
Page 8: Remote Control
Display & Control Panels Control Panel On/Off Mode Cooling/Humidifier Purifier Swing Function Timer Fan Speed AI Purification Display Panel AI Purification Sleep Mode Fan Speed Swing Cooler/humidifer Filter Natural Purifier Timer Replacement Mode warning Remote Control Swing Function On/Off Mode Timer Function Wind Speed Cooling/Humidifier... - Page 9 Functions Note: The buzzer beeps twice when the power supply is first turned on. The unit is in ‘standby’ until the On/Off button is pressed. The horizontal louvres need to be opened manually by hand. ON/OFF Press the ON/OFF button to turn the unit ON. The default settings when first turned on are low fan speed, normal wind mode, and no timer.
- Page 10 Functions MODE The default mode after turning “On” is normal. Press this button to select modes in this sequence: normal > natural > sleep. The MODE indicator light will illuminate accordingly. There is no indicator for the normal wind mode. Normal: The fan runs at a fixed speed for the wind speed selected, without any change.
-
Page 11: Other Functions
Other Functions Water level protection function: When the cooling function is first turned on, the water pump works for 50 seconds. If low water is detected, the pump will stop working and a buzzer alarm beeps 10 times. It is also fitted with a fast water level detection function. Within 10 seconds after powering on, press and hold the COOLER button to start the fast water level detection program. -
Page 12: Operation & Set Up
Operation & Set Up 1. Remove the unit from its packaging 2. To begin using the COOLER/HUMIDIFIER function, rotate the Cord winding frame clips 90° and remove the water tank located at the back of the unit and fill to the MAX fill line. Replace the water tank and secure the clips. 3. - Page 13 Cleaning Your unit is designed to remove dirt and other atmospheric impurities by drawing air through the wet curtain. DO NOT block the air filter, as this will impair the efficiency of the unit. Water Tank The water tank should be cleaned regularly, especially in hard water areas. If not cleaned, deposits may build up affecting the efficiency of the unit.
-
Page 14: Maintenance
Warranty Please refer to the warranty card in the box for warranty information. For any troubleshooting advice, please contact the relative Customer Care Centre below. Glen Dimplex Australia Pty Ltd Glen Dimplex New Zealand Ltd 8 Lakeview Drive, 38 Harris Road, East Tamaki,... - Page 16 Supplied by Glen Dimplex Australia 8 Lakeview Drive, Scoresby, Victoria, 3179 © Glen Dimplex Australia. All rights reserved. Material contained in this publication may not be reproduced in whole or in part, without prior permission in writing of Glen Dimplex Australia.
