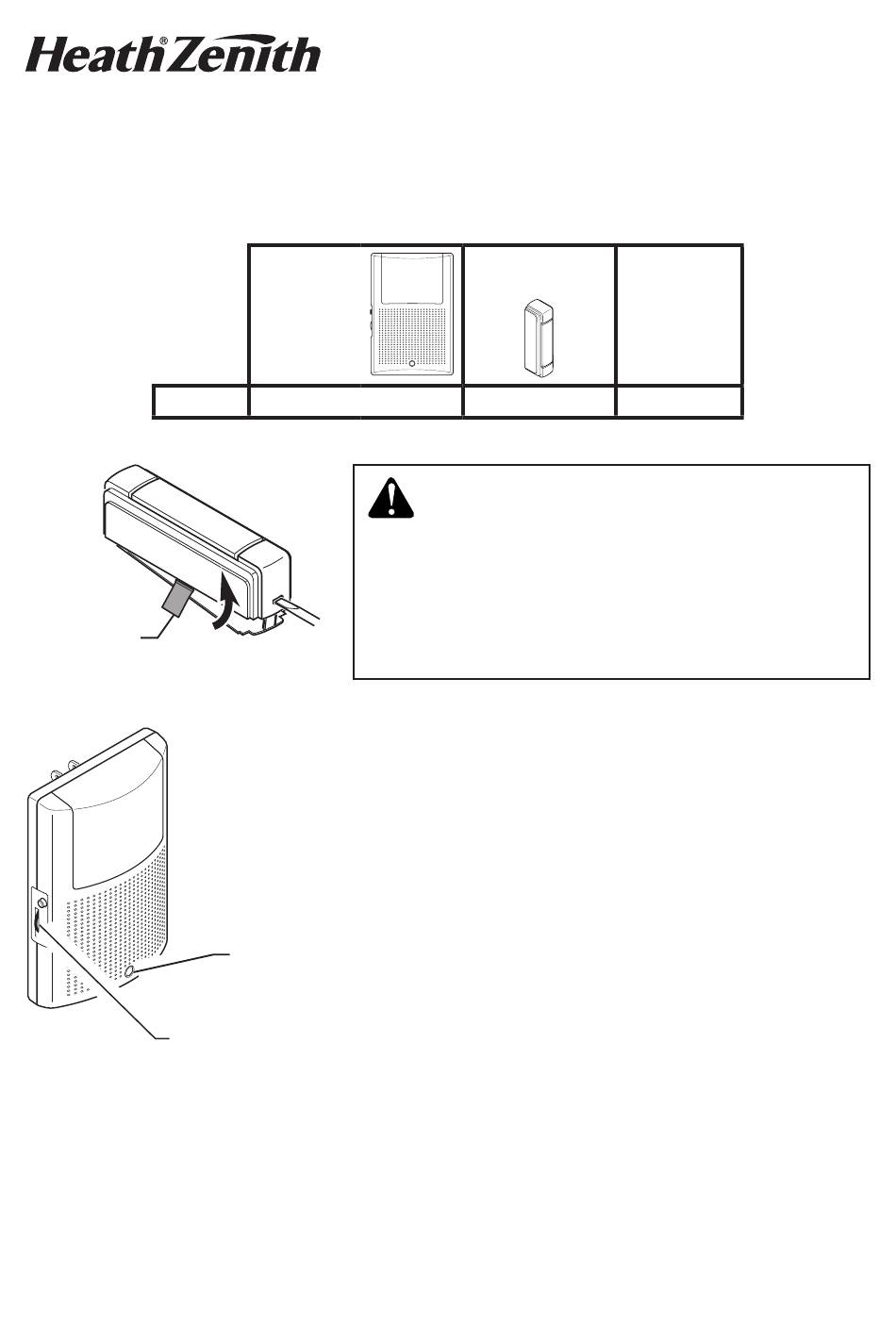

This package includes (Style of push button and chime may vary from illustration):
Model
7776
Orange Tab
Figure 1
Chime Volume
Control
Figure 2
N o t e : T h e n i g h t l i g h t
feature is controlled by
a photocell and turns on
and off automatically as
the surrounding light level
changes.
© 2015 HeathCo LLC
Wireless
strobe
chime
✔
SERIOUS INJURY or DEATH:
• NEVER allow small children near
batteries.
• If battery is swallowed, immediately
notify doctor.
1. Remove orange battery tab from push
button. Remove back of case by pushing in
tab on bottom with a small screwdriver (see
Figure 1). Remove orange battery tab.
2. Plug in wireless chime.
3. Test range. Temporarily position push button
where you want it mounted. Press push button
to verify chime and push button work properly.
If chime does not sound, see Troubleshooting.
Photocell
4. Adjust volume control to desired volume
(see Figure 2).
Wireless Plug-In
Night Light Chime
Wireless push
button
✔
WARNING: To prevent possible
Hardware
pack
✔
