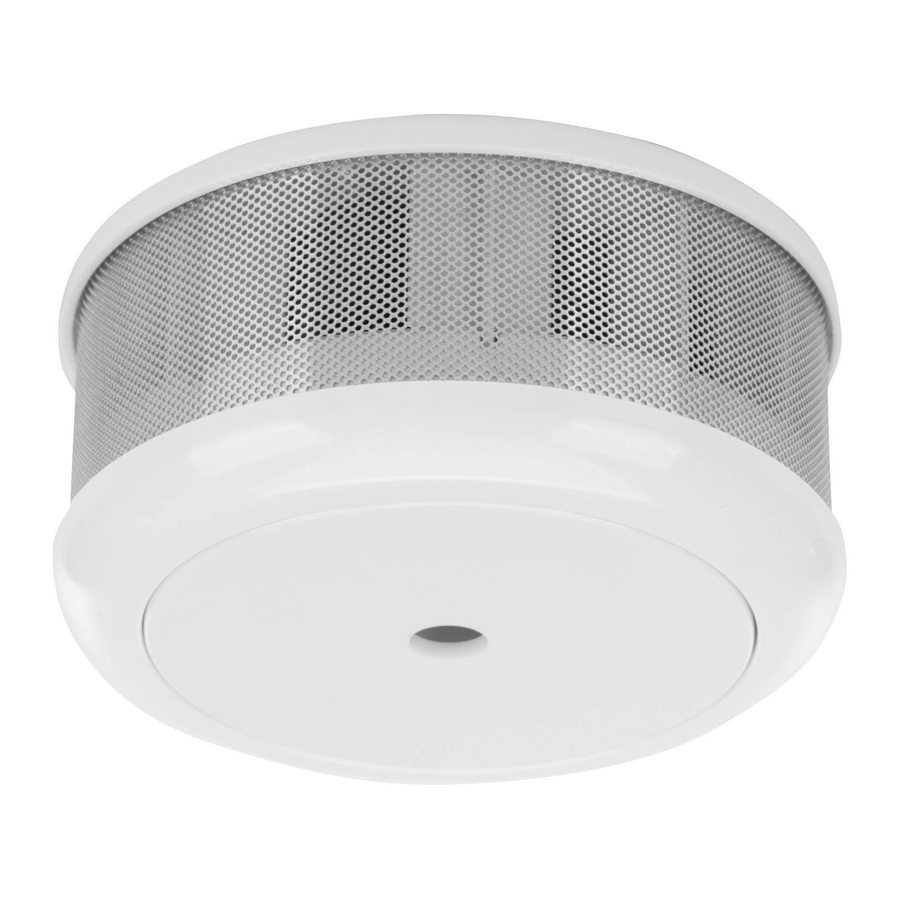

Smartwares RM620 - Smoke Alarm Device Manual

Intended use

Fire Safety / Essential characteristics: Passed

Nominal activation conditions/ Sensitivity, Response delay (response time) and Performance under fire condition
Operational reliability
Tolerance to supply voltage
Durability of operational reliability and response delay, temperature resistance
Durability of operational reliability, vibration resistance
Durability of operational reliability, humidity resistance
Durability of operational reliability, corrosion resistance
Durability of operational reliability, electrical stability

Intended use

IMPORTANT INFORMATION

General product information:
The smoke alarm device, if properly installed and maintained, sounds the alarm at an early stage of the fire. This can give you those extra valuable seconds to evacuate your home and call the fire department. The smoke alarm device works with an 3V lithium battery. Under normal conditions the service life of the battery is up to 10 years. When the battery is (almost) empty, the smoke detector indicates this by an audible "beep". This indicator sounds every 30-40 seconds during minimum 30 days. End of life, replace complete smoke alarm device!
Make/model number: Smartwares RM620
Power supply: 3V DC CR123A Lithium (not replaceable battery)
Scope of application: Smoke alarm device for buildings with residential function and leisure accommodation vehicles.
Function: Gives a warning when smoke caused by a fire is detected.
Description: Smoke alarm device based on the photocell principle, which means that the alarm monitors the air for smoke caused by fire. Smoke alarm device does not detect heat, gas or fire.
Advice: Keep these instructions in a safe, easily accessible place.
The alarm is designed in order to detect smoke; it cannot prevent a fire.
The smoke alarm device should not be painted. Protect the smoke alarm device from dust during renovation work.
The smoke alarm device should not be taped/covered (this causes loss of functionality).
Keep the smoke alarm device out of the reach of children.

ACTIVATION SWITCH

Detector will be activated when it is mounted to the base plate.

TESTING

Test the unit to ensure proper operation by pressing the test button, this will sound the alarm if the electronic circuitry, horn, and battery are working. If no alarm sounds, there is a defective battery or other failure.

NOTE: WEEKLY TESTING IS REQUIERED

DO NOT	Use an open flame to test your alarm, you could damage the alarm or ignite combustible materials and start a fire.
	Due to the loudness (85 decibels) of the alarm. Always stand an arms-length always from the unit when testing. Test the alarm weekly to ensure proper operation. Erratic or low sound coming from your alarm may indicate a defective alarm.

INSTALATION

What is the best place to mount a smoke alarm device

In the middle of the ceiling but at least 50cm from every edge.
At least one on each floor.
In every bedroom.
In the hallway and stairwell.
On the landing.
In the living room.
In the storage room or rooms with electrical appliances.

The alarm should not be installed in

A space where the temperature can drop below 4 and above 40°C * In humid areas.
Right next to doors or windows and not near a fan or radiator.

warning DO NOT INSTALL SMOKE ALARM DEVICE ON THE WALL!
Do not install the alarm in a place with difficult access, which could make it difficult to operate the test button and maintenance. The alarm can be installed quickly and easily. Install the base plate on the selected location using the provided screws.

Mounting

Screw the mounting plate with 2 screws on the celling (2).
Fix the smoke alarm device on the mounting plate by turning, till you hear a "click". The smoke detector is activated (1).
Test the smoke alarm device by pushing the test button (3).

Do not cover the smoke alarm device with tape! When SMOKE is detected, you will hear a loud intermittent sound (85dB).

Recommendation

Increase the detection area by installing several smoke alarm devices

ALARM SILENCE (hush mode)

During the smoke alarm is alarming, you push the test button, it will be paused the smoke alarm alarming for approx. 10 minutes. The red LED will flash every 8 seconds, it indicates the smoke alarm device is running into the hush mode. Smoke alarm devices are designed to minimize nuisance alarms. Combustion particles from cooking may set off the alarm if the alarm is located close to the cooking area. Large quantities of combustible particles are generated from spills or when grilling/frying. Using the fan on a range hood that vents to outside (non-recirculating type) will also help remove these combustible particles from the kitchen. The alarm silence (test button) is extremely useful in a kitchen area or other areas prone to nuisance. The hush feature is to be used only when a known alarm condition, such as smoke from cooking activates the alarm. The smoke alarm device is desensitized by push the alarm silence (hush mode) on the smoke alarm device cover, if the smoke is not too dense, the alarm will silence to indicate that the alarm is in a temporarily desensitized condition. The smoke alarm device will automatically reset after approximately 10minutes, if after this period, particles of combustion are still present, the alarm will sound again. The alarm silencer (hush mode) can be repeatedly until the air has been cleared of the condition causing the alarm.

NOTE	Dense smoke will override the alarm silencer and sound a continuous alarm, the smoke alarm goes back to normal work status from hush mode
	Before using the alarm silence (hush), identify the source of the smoke and be certain a safe condition exists.

PREVENTIVE MAINTENANCE

Testing
The smoke alarm device is provided with a test button. Push it in until the alarm sounds. The signal stops when the button is released. Test the alarm at least once a week.

Cleaning
For the best performance, the smoke alarm device must be dusted once a month and vacuumed every 6 months. Remove the detector from the ceiling plate and carefully vacuum the detector. Do not touch the inside with the nozzle of the vacuum cleaner. Then test the alarm.

	The smoke detector loses its effectiveness if it is covered.
	The smoke alarm device should not be painted / taped. Do not test the smoke alarm device with candles, flames, cigarettes, etc.

IMPORTANT INSTRUCTIONS IN CASE OF FIRE ALARM

A smoke alarm device is part of your fire protection together with fire extinguishers, escape ladders, ropes as well as your choice of building materials during renovations. Also make sure that there is an escape route; discuss this with your children, make sure any room can be evacuated without opening the door, for example through a window. If the smoke alarm device is not working properly, consult the instructions of the supplier. Keep the manual within reach. The local fire department can provide more information about fire prevention. Keep the smoke detector away from children.

If there is any doubt about the cause of the alarm, assume that there really is a fire and carry out your emergency plan. Please do not assume that it is a false alarm. Dust can cause excessive sensitivity. Vacuum as indicated above. Do not paint the smoke alarm device.

False alarm
Unusual atmospheric conditions may be the cause that the very sensitive smoke detector gives a false alarm. If there is no fire, ventilate the room and / or blow clean air in the smoke alarm device, for example, by waving a newspaper under the smoke alarm device until the alarm stops. Once it is clean, there is an automatic reset.

Recommendation
We recommend that you do not use smoke alarm devices that are older than 10 years in order to limit the risk of defects. The smoke alarm device is not a substitute for insurance for furniture, home, life, or other form of insurance.

Smartwares Europe
Can never be held liable for loss and / or damages of any kind, including incidental and or consequential damages arising out of the fact that the signal from the smoke alarm device is not triggered by smoke or fire.

TROUBLESHOOTING

The alarm does not sound when pressing the test button.
- Carefully vacuum the smoke alarm device (see Cleaning), test afterwards. Still no reaction; replace smoke detector
The smoke alarm device "chirp" with red LED flashes once every 40 sec.
- The battery is under low battery status, please replace the smoke alarm device; battery is not replaceable.
Smoke alarm device "chirp" occurs every 40 seconds
- Clean smoke alarm device. Please refer to maintenance section. When problem is not solved replace smoke alarm device.
Smoke alarm device sounds unwanted alarms intermittently or when resident are cooking or taking showers.
- Press test button to pause alarm.
- Clean smoke alarm device (maintenance section)
- Move smoke alarm device to other place and press test button

If these actions do not solve the problem, do not try to repair it yourself. If the problems occur within the warranty period and are under warranty conditions, return the smoke alarm device plus valid proof of purchase with a clear description of the complaints to: Smartwares Europe

SPECIFICATIONS

Power	3V DC CR123A Lithium (not replaceable battery)
Operating temperature	4 ~ 38°C
Operating humidity	25 ~ 85%
Smoke sensor	Optical
Alarm volume	> 85db(a) at 3 meters.
Pause time	approx. 10 minutes
	For indoor use only.
	Read the manual before use, and keep it in a safe place for future use and for product maintenance.

CONDITION	LED	HORN
Normal Operation	Flashes every 40 seconds	None
Test condition	Flashes rapidly	Short quick beeps
Alarm condition	Flashes rapidly	Short quick beeps
Hush mode	Flashes every 8 seconds	None
Low Battery	Flashes every 40 seconds	1 beep every 40 seconds
Malfunction	Flashes every 40 seconds	1 beep every 40 seconds

EN PRODUCT GUARANTEE

This product has factory warranty according to EU regulations. Guarantee lasts for the number of years shown on the packaging, starting from the date of purchase. Keep the receipt - proof of purchase is required in order to rely on guarantee. In the case of problems, please contact with the store where you purchased the product. For further product information call to our Hotline or visit our website: www.service.smartwares.eu

DISPOSAL

Correct Disposal of This Product (Waste Electrical & Electronic Equipment) (Applicable in the European Union and other European countries with separate collection systems)

This marking shown on the product or its literature, indicates that it should not be disposed with other household wastes at the end of its working life. To prevent possible harm to the environment or human health from uncontrolled waste disposal, please separate this from other types of wastes and recycle it responsibly to promote the sustainable reuse of material resources. Household users should contact either the retailer where they purchased this product, or their local government office, for details of where and how they can take this item for environmentally safe recycling. Business users should contact their supplier and check the terms and conditions of the purchase contract. This product should not be mixed with other commercial wastes for disposal.

Always throw empty batteries to the battery recycling bin.
If the battery is built-in inside the product, open the product and remove the battery.

MAINTENANCE

warning The devices are maintenance-free, so never open them. The guarantee becomes void when you open the appliance. Only clean the outside of the devices with a soft, dry cloth or a brush. Prior to cleaning, remove the devices from all voltage sources. Do not use any carboxylic cleaning agents or petrol, alcohol or similar. These attack the surfaces of the devices. Besides, the vapors are hazardous to your health and explosive. Do not use any sharp edged tools, screw drivers, metal brushes or similar for cleaning.

Protect the battery against fire, too much heat and sunshine

SAFETY

Make sure that all electric connections and connection cables meet the pertaining regulations and are in conformity with the operating instructions.
Do not overload electrical outlets or extension cords, fire or electric shocks can be the result
Please contact an expert in case you have any doubts about the mode of operation, the safety or connecting the appliances.
Keep all parts away from young children's reach
Do not store this item on wet, very cold or warm places, this can damage the electronic circuit boards.
Avoid dropping or shocks, this can damage the electronic boards
Never replace damaged power cables yourself! In such a case, remove them from the net and take the devices to a workshop.
Repairs or opening of this item may only be performed by an authorised workshop.
Wireless systems are subject to interference from cordless phones, microwaves, and other wireless devices operating in the 2.4GHz range. Keep the system AT LEAST 10 ft away from the devices during installation and operation.
Keep batteries out of the reach of children. Batteries not swallow. If a cell or battery is swallowed, call a physician immediately.
