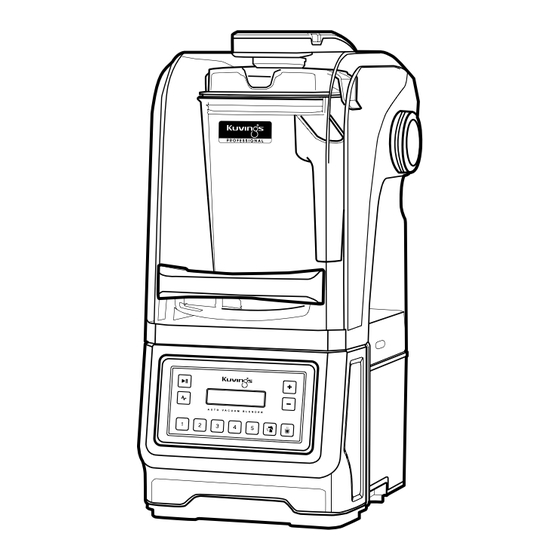

Kuvings CB-1000 User Manual

Kuvings CB-1000 User Manual

Commercial auto vacuum blender
Table of Contents

Advertisement

Available languages

Available languages

COMMERCIAL
AUTO VACUUM BLENDER
User Guide
• After you read this manual, keep in the place
you can reach easily.
• By scanning the QR code, you can see the
product related videos.
US
US
How to use

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the CB-1000 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Summary of Contents for Kuvings CB-1000

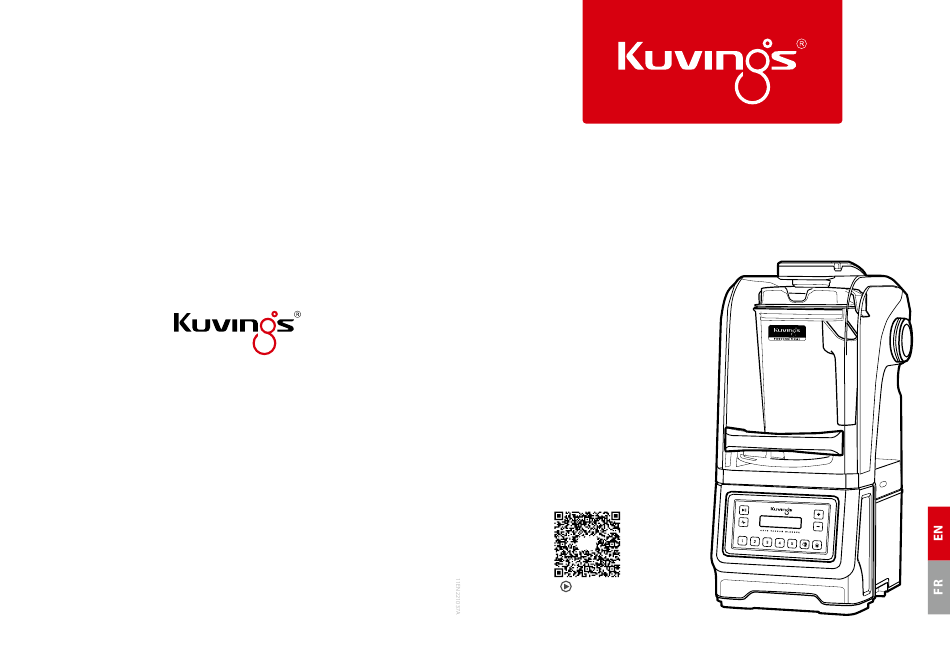

  • Page 1 COMMERCIAL AUTO VACUUM BLENDER User Guide • After you read this manual, keep in the place you can reach easily. • By scanning the QR code, you can see the product related videos. How to use...
  • Page 2: Table Of Contents

    ㆍ I f the appliance is given away as a gift, please include the manual with the product. To unplug, grasp the plug and pull from the outlet. Never pull from the ㆍThese instructions are also available on www.kuvings.com power cord. Permanently Installed - Make sure appliance is OFF when not in use, before putting on or taking off parts, and before cleaning.
  • Page 3: Safety Warning (Check Box)

    Safety Warning Safety Precaution (Check Box) (Check Box) The following precautions are provided to ensure the safety of the user. Please carefully read through the precautions when using the blender. For safe use of the product, please fill in the check box before using the product. Check Box Caution Warning : Failure to comply with the Guide may result in death or injury.
  • Page 4: Parts

    Capacity Guide Parts by Ingredients Vacuum Module Back of the body * Follow the loading guide : Liquid (milk, water, etc.) → Wet ingredients (pineapple, fruits, etc.) → Soft ingredients (leafy vegetables) → Hard ingredients (carrots, ice, etc.) * Add liquids (Water, Milk, Juice, etc) because the blades may be going around or the blending particles may Vacuum Cover Vacuum Valve...
  • Page 5 How to Assemble & Separate Vacuum Module Assemble the Vacuum Module Separation of Vacuum Module ① ② ➊ Insert the vacuum pad into the vacuum cap. ➊ Remove the module by lifting it up while pressing the buttons on both sides of the vacuum module at the same time.
  • Page 6: How To Assemble & Separate

    How to Assemble & Separate Sound Body Enclosure Separation of Sound Enclosure Separation of the Cushion Pad Cushion Pad 2 Cushion Pad 1 ➊ Lifting the cushion pad 1 as shown in the picture. ➋ Grasp both sides of Cushion Pad 2 with both hands and lift it slightly twisting. ➊...
  • Page 7: How To Use

    * If the Sound Enclosure is not properly fastened, the ‘Automatic open/close’ and ‘vacuum’ functions may not work. WELCOME KUVINGS Put the ingredients into the container and close Container Set the container lid. - Cut the ingredients into 3cm or less and put it in less than the (1) General Cleaning &...
  • Page 8: Caution

    Caution Contents *Do not use the product other than its intended purpose. (Please recommend this blender only for making beverage.) Before Use Part 1 - Check that the product is properly assembled. (Refer to p.8 ~ p.11) - The Auto open/close function can be used only Important Safeguards when the Sound Enclosure is properly fastened.
  • Page 9: How To Use Each Function

    How to Use Each Function ① ④ ③ ② The button on the back of the body ⑧ ON/OFF Power Switch is used to turn the power on / off. ⑤ ⑥ ⑦ Used to activate or stop the Start/Stop ①...
  • Page 10: Operation Guide By Function

    COVER C KUVINGS PG VGR 35A 기능별 작동가이드 WELCOME PD VER 1000 KUVINGS PG VGR 35A Operation Guide by Function 능별 작동가이드 *In the 'Auto Vacuum' mode, the backflow prevention mode is activated and the vacuum-related Control functions cannot be used continuously.
  • Page 11: Auto Blending Recipe Program Settings

    'Start/Stop' button. If 'COMPLETED' appears on the COMPLE COMPLETED -----> BUTTON 04 Mode -----> BUTTON 04 screen, the selected program has been entered. KUVINGS VER 1.0 Quick Blending(Normal) - If you press the ‘Quick satrt button’ BUTTON-1 in the power standby state, the 0:18 quick blending function is activated.
  • Page 12: Recipe Program List

    Recipe Program List * Depending on the capacity and condition of the ingredients, select the recipe program and use it. Operating Operating Order Recipe Program Working Algorithm Order Recipe Program Working Algorithm Time Time Smoothie 1 Hold for 18 seconds at 70% Multiple Shake Increase step by step to 100% 18"...
  • Page 13: Setting Mode

    KUVINGS MOTOR USE TIME VER 1.0 00000:13:04 Setting Mode MOTOR USE TIME MOTOR TEMP Order Details Display KUVINGS MOTOR USE TIME MOTOR TEMP 00000:13:04 NORM VER 1.0 00000:13:04 NORM AUTO VACUUM 46% BUTTON-1 <LED Brightness Control> 0:00 0:10 * You can check the motor usage time and temperature, and you can set the LED control adjustment LED LIGHT SET UP The LED brightness can be controlled.
  • Page 14: Diy Recipe Program Settings

    DIY RECIPE SET BUTTON 1 TO DIY RECIPE SET DIY Recipe Program Settings Vacuum Pressure Setting Cover Open Cover Open CYCLE COUNT 진공압 설정 Working Stop 00000004 * The higher the vacuum pressure, the perfect vacuum inside the juice is to minimize loss of nutrients and prevent oxidation/browning/layer separation.
  • Page 15: Before Requesting Service

    Before Requesting Service Before Requesting Service If the product emits a strange sound, smell or smoke, unplug the power plug immediately from the outlet and contact the distributor. When an Error Occurs During Use If hearing abnormal noise █ - Check the container rotation state (bearing). There is smoke or burning smell when using the blender for the first time.
  • Page 16 Specifications Memo Product Name Blender IQB300(CB1000) Model Name AC120V, 60Hz Rating Voltage 1,700W Power Consumption Product Size 8.6 X 9.6 X 18.7(in) Rating Time Less than 3 minutes (Per 1 time) Weight 24.7lb - Maximum Capacity of blend: 48oz - Maximum Capacity for general ingredients Container Capacity (Fruits, vegetables, liquid, Ice, etc.) : 48oz - Maximum Capacity for dairy ingredients...
  • Page 17 BLENDER SOUS VIDE COMMERCIAL AUTOMATIQUE Manuel d'utilisation • Après avoir lu ce manuel, conservez-le dans un endroit. • En scannant le code QR, vous pouvez consulter les vidéos relatives au produit.
  • Page 18 ㆍ Si l'appareil est offert en cadeau, veuillez inclure le manuel avec le produit. nettoyer. ㆍCes instructions sont également disponibles sur www.kuvings.com. Le voyant clignote pour indiquer que l'appareil est prêt à fonctionner. Évitez tout contact avec les lames ou les pièces détachées.
  • Page 19: Avertissement De Sécurité (Case À Cocher)

    Avertissement de sécurité (case à cocher) Précaution de sécurité (case à cocher) Les précautions suivantes sont fournies pour assurer la sécurité de l'utilisateur. Veuillez lire attentivement ces précautions avant d'utiliser le blender. Pour une utilisation sûre du produit, veuillez renseigner les cases à cocher avant d'utiliser le produit. Avertissement : Le non-respect de ce guide peut entraîner la mort ou des blessures.
  • Page 20: Pièces Détachées

    Guide pratique des Pièces détachées capacités par ingrédients Module de mise Arrière du * Suivez le guide de remplissage : sous vide bloc moteur Liquide (lait, eau, etc.) → Ingrédients humides (ananas, fruits, etc.) → Ingrédients mous (légumes à feuilles) →...
  • Page 21 Comment monter et démonter Module de mise sous vide Assembler le module de mise sous vide Séparation du module de mise sous vide Astuce ① ② ➊ Insérez le bloc de mise sous vide dans le bouchon de mise sous vide. ➊...
  • Page 22: Comment Assembler Et Démonter

    Comment assembler et démonter Capot Bloc moteur antibruit Séparation du capot antibruit Séparation du support de protection Support de protection 2 Support de protection 1 ➊ Soulevez le support 1 comme indiqué sur la photo. ➋ Saisissez les deux côtés du support 2 avec les deux mains et soulevez-le ➊...
  • Page 23: Mode D'emploi

    WELCOME KUVINGS Mettez les ingrédients dans la jarre et fermez le couvercle. Ensemble de jarre - Coupez les ingrédients en 3 cm ou moins et placez-les dans la jarre ne (1) Nettoyage général et entretien...
  • Page 24: Mise En Garde

    Mise en garde Sommaire * N'utilisez pas le produit à d'autres fins que celles pour lesquelles il a été conçu. (Veuillez recommander ce blender uniquement pour la préparation de boissons). Avant de l'utiliser - Vérifiez que le produit est correctement assemblé. Partie 1 (Voir p.40 ~ p.43).
  • Page 25: Comment Utiliser Chaque Fonction

    Comment utiliser chaque fonction ① ④ ③ ② Le bouton situé à l'arrière de l'appareil Interrupteur ⑧ permet d'allumer et d'éteindre marche/arrêt l'appareil. ⑤ ⑥ ⑦ Permet d'activer ou d'arrêter la ① Start/Stop fonction sélectionnée. ② Pulse Permet d'activer la fonction Pulse. Indique l'état du mixage en temps Écran ③...
  • Page 26: Guide D'utilisation Par Fonction

    기능별 작동가이드 COVER C KUVINGS PG VGR 35A WELCOME PD VER 1000 KUVINGS PG VGR 35A Guide d'utilisation par fonction 능별 작동가이드 * En mode " Auto Vacuum ", le mode de prévention du reflux est activé et les fonctions liées à la mise sous...
  • Page 27: Paramètres Du Programme De Recette

    RECIPE 05 bouton "Start/Stop". Si 'COMPLETED' apparaît à l'écran, le COMPLETED -----> BUTTON 04 programme sélectionné a été saisi. Mixage rapide(Normal) KUVINGS - Si vous appuyez sur le bouton VER 1.0 BUTTON-1 "Quick start" en mode veille, la 0:18 fonction de mixage rapide est...
  • Page 28: Liste Des Programmes De Recettes

    Liste des programmes de recettes * En fonction de la quantité et de la qualité des ingrédients, sélectionnez le programme de recettes et utilisez-le. Programme des Programme des Programme de mixage Durée Programme de mixage Durée Consigne Consigne recettes recettes Smoothie 1 Maintien pendant 18 secondes à...
  • Page 29: Mode De Configuration

    KUVINGS MOTOR USE TIME VER 1.0 00000:13:04 Mode de configuration Détails Écran Consigne KUVINGS MOTOR USE TIME MOTOR TEMP MOTOR USE TIME MOTOR TEMP VER 1.0 00000:13:04 NORM 00000:13:04 NORM <Réglage de la luminosité des LED> AUTO VACUUM 46% BUTTON-1 La luminosité...
  • Page 30: Réglages Du Programme De Recettes Diy

    BUTTON 1 TO DIY RECIPE SET BUTTON 1 TO DIY RECIPE SET Réglages du programme de recettes DIY Réglage de la pression de la mise sous vide 진공압 설정 Cover Open Cover Open CYCLE COUNT Working Stop 00000004 * Plus la pression de la mise sous vide est élevée, plus le vide à l'intérieur du jus est parfait pour minimiser la perte de nutriments et empêcher l'oxydation/le brunissement/la séparation des fibres.
  • Page 31: Avant De Solliciter Le Service Après Vente

    Avant de solliciter le service après vente Avant de solliciter le service après vente Si le produit émet un son étrange, une odeur ou de la fumée, débranchez immédiatement la fiche d'alimentation de la prise et contactez le distributeur. Si une erreur se produit pendant l'utilisation █...
  • Page 32: Caractéristiques Techniques

    Caractéristiques techniques Mémo Nom du produit Blender IQB300(CB1000) Nom du modèle AC120V, 60Hz Tension nominale 1,700W Consommation d'énergie Taille du produit 8.6 X 9.6 X 18.7(in) Temps d'utilisation Moins de 3 minutes (par 1 fois) Poids 24.7lb - Capacité maximale du mélange : 48oz - Capacité...
