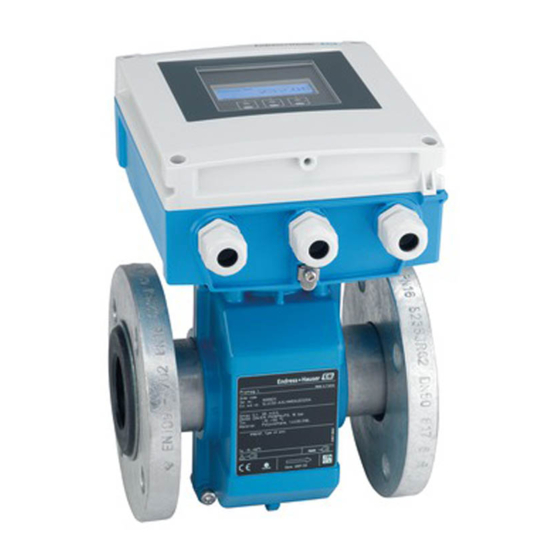

Endress+Hauser Proline Promag L 400 HART Operating Instructions Manual

Electromagnetic flow measuring system
Hide thumbs
Table of Contents

Advertisement

Quick Links

Download this manual

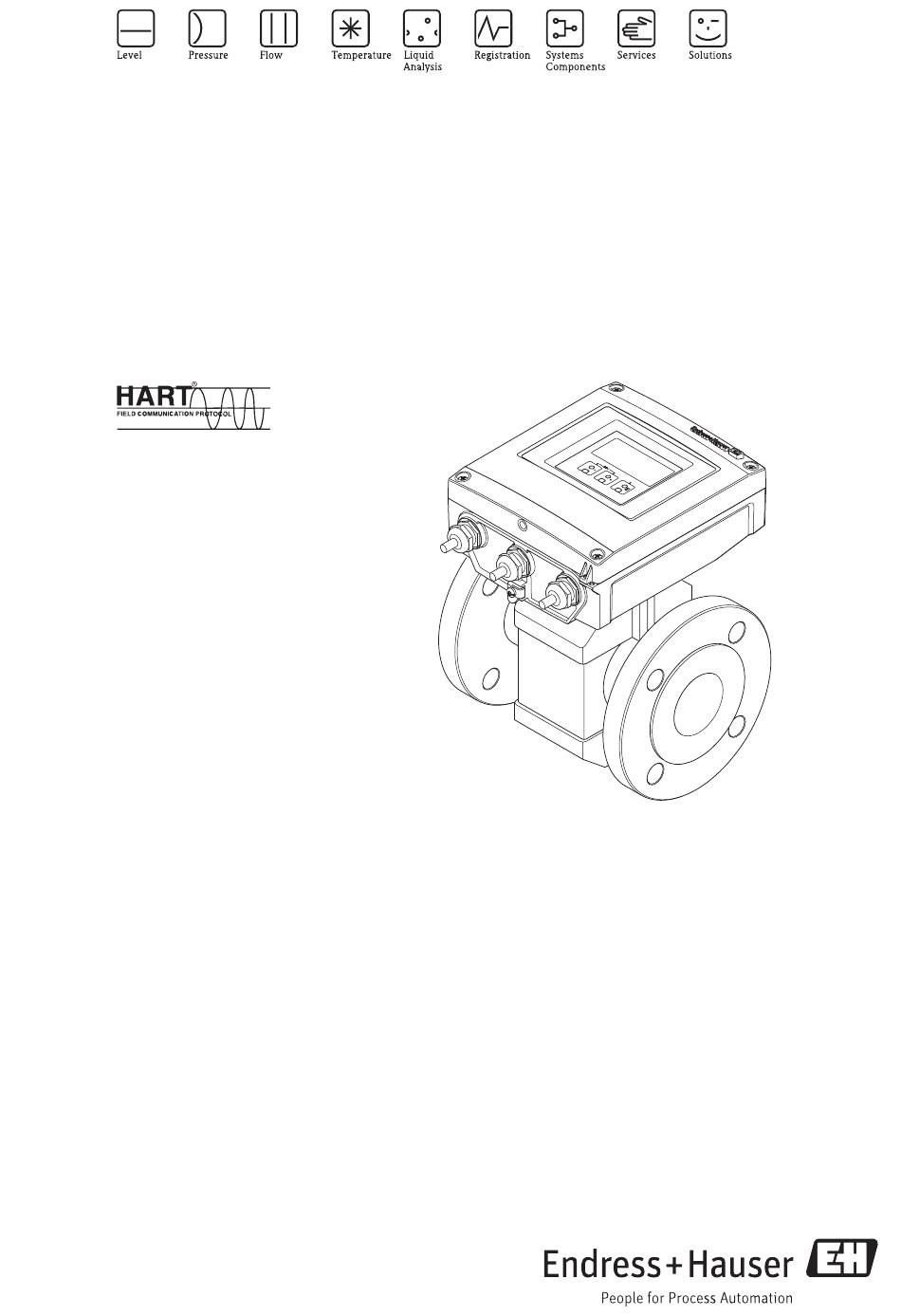

Operating Instructions
Proline Promag L 400
HART
Electromagnetic flow measuring system
BA01062D/06/EN/01.12
71183770
Valid as of version
01.00.zz (Device firmware)

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the Proline Promag L 400 HART and is the answer not in the manual?

Questions and answers

Related Manuals for Endress+Hauser Proline Promag L 400 HART

Summary of Contents for Endress+Hauser Proline Promag L 400 HART

  • Page 1 Operating Instructions Proline Promag L 400 HART Electromagnetic flow measuring system BA01062D/06/EN/01.12 71183770 Valid as of version 01.00.zz (Device firmware)
  • Page 2 Proline Promag L 400 HART • Make sure the document is stored in a safe place such that it is always available when working on or with the device. • To avoid danger to individuals or the facility, read the "Basic safety instructions" section carefully, as well as all other safety instructions in the document that are specific to working procedures.

  • Page 3: Table Of Contents

    Proline Promag L 400 HART Table of contents Table of contents 6.2.5 Turning the transmitter housing ..28 Document information ....5 Post-installation check .
  • Page 4 10.5 Advanced settings ..... . . 85 13.3 Endress+Hauser services ....119 10.5.1 Defining the tag name .

  • Page 5: Document Information

    Proline Promag L 400 HART Document information Document information Document function These Operating Instructions contain all the information that is required in various phases of the life cycle of the device: from product identification, incoming acceptance and storage, to mounting, connection, operation and commissioning through to troubleshooting, maintenance and disposal.

  • Page 6: Symbols For Certain Types Of Information

    The following document types are available: • On the CD-ROM supplied with the device • In the Download Area of the Endress+Hauser Internet site: www.endress.com ® Download For a detailed list of the individual documents along with the documentation code...

  • Page 7: Standard Documentation

    Proline Promag L 400 HART Document information 1.3.1 Standard documentation Document type Purpose and content of the document Technical Information Planning aid for your device The document contains all the technical data on the device and provides an overview of the accessories and other products that can be ordered for the device.

  • Page 8: Basic Safety Instructions

    Observe the specified maximum process pressure. ► Verification for borderline cases: For special fluids and fluids for cleaning, Endress+Hauser is glad to provide assistance in verifying ► the corrosion resistance of fluid-wetted materials, but does not accept any warranty or liability as minute changes in the temperature, concentration or level of contamination in the process can alter the corrosion resistance properties.

  • Page 9: Workplace Safety

    It meets general safety standards and legal requirements. It also complies with the EC directives listed in the device-specific EC Declaration of Conformity. Endress+Hauser confirms this by affixing the CE mark to the device. Endress+Hauser...

  • Page 10: Product Description

    Product description Proline Promag L 400 HART Product description Product design A0017218 å 1 Important components of the compact version Display module Electronics cover HistoROM DAT (plug-in memory) Main electronics module Terminals (screw terminals, some available as plug-in terminals) Transmitter housing, compact version...

  • Page 11: Registered Trademarks

    Registered trademark of the HART Communication Foundation, Austin, USA Ò Microsoft Registered trademark of the Microsoft Corporation, Redmond, Washington, USA Ò Ò Ò Applicator , FieldCare , Field Xpert , HistoROM Registered or registration-pending trademarks of the Endress+Hauser Group Endress+Hauser...

  • Page 12: Incoming Acceptance And Product

    A0015502 A0013699 Do the nameplate data match the ordering information on the delivery note? A0015502 A0013697 Is the CD-ROM with the Technical Documentation and documents present? If one of the conditions is not satisfied, contact your Endress+Hauser Sales Center. Endress+Hauser...

  • Page 13: Product Identification

    Proline Promag L 400 HART Incoming acceptance and product identification Product identification The following options are available for identification of the measuring device: • Nameplate specifications • Order code with breakdown of the device features on the delivery note • Enter serial numbers from nameplates in W@M Device Viewer (www.endress.com/deviceviewer): All information about the measuring device is displayed.

  • Page 14: Sensor Nameplate

    Incoming acceptance and product identification Proline Promag L 400 HART 4.2.2 Sensor nameplate Order Code: Ser.No.: Ext. ord. cd.: Material: Patents Date: A0017186 å 4 Example of sensor nameplate Name of the sensor Manufacturing location Order code Serial number (Ser. no.) Extended order code (Ext.

  • Page 15: Symbols On Measuring Device

    Proline Promag L 400 HART Incoming acceptance and product identification 4.2.3 Symbols on measuring device Symbol Meaning WARNING! This symbol alerts you to a dangerous situation. Failure to avoid this situation can result in serious or fatal injury. Reference to documentation Refers to the corresponding device documentation.

  • Page 16: Storage And Transport

    Storage and transport Proline Promag L 400 HART Storage and transport Storage conditions Observe the following notes for storage: • Store in the original packaging to ensure protection from shock. • Do not remove protective covers or protective caps installed on process connections. They prevent mechanical damage to the sealing surfaces and contamination in the measuring tube.

  • Page 17: Packaging Disposal

    Proline Promag L 400 HART Storage and transport A0016257 Packaging disposal All packaging materials are environmentally friendly and 100% recyclable: • Measuring device secondary packaging: polymer stretch film that conforms to EC Directive 2002/95/EC (RoHS). • Packaging: – Wood crate, treated in accordance with ISPM 15 standard, which is confirmed by the affixed IPPC logo.

  • Page 18: Installation

    Installation Proline Promag L 400 HART Installation Installation conditions No special measures such as supports are necessary. External forces are absorbed by the construction of the device. 6.1.1 Mounting position Mounting location Preferably install the sensor in an ascending pipe, and ensure a sufficient distance to the next pipe elbow: h = ³...
  • Page 19 Proline Promag L 400 HART Installation Installation in partially filled pipes A partially filled pipe with a gradient necessitates a drain-type configuration. The empty pipe detection (EPD) function offers additional protection by detecting empty or partially filled pipes. • Do not install the sensor at the lowest point in the drain: risk of solids accumulating.
  • Page 20 Installation Proline Promag L 400 HART A0015591 Horizontal The measuring electrode plane must be horizontal. This prevents brief insulation of the two measuring electrodes by entrained air bubbles. With horizontal orientation, empty pipe detection only works if the transmitter housing is pointing upwards as otherwise there is no guarantee that the empty pipe detection function will actually respond to a partially filled or empty measuring tube.

  • Page 21: Requirements From Environment And Process

    Proline Promag L 400 HART Installation 6.1.2 Requirements from environment and process Ambient temperature range Transmitter –20 to +50 °C (–4 to +122 °F) Local display The readability of the display may be impaired at ambient temperatures below –20 °C (–4 °F).

  • Page 22: Special Mounting Instructions

    Installation Proline Promag L 400 HART Adapters Suitable adapters to DIN EN 545 (double-flange reducers) can be used to install the sensor in larger- diameter pipes. The resultant increase in the rate of flow improves measuring accuracy with very slow-moving fluids. The nomogram shown here can be used to calculate the pressure loss caused by reducers and expanders.

  • Page 23: Preparing The Measuring Device

    Proline Promag L 400 HART Installation For sensor For flanges and other process connections: • Screws, nuts, seals etc. are not included in the scope of supply and must be provided by the customer. • Appropriate mounting tools 6.2.2 Preparing the measuring device 1.
  • Page 24 Installation Proline Promag L 400 HART Screw tightening torques Please note the following: • The screw tightening torques listed below apply only to lubricated threads and to pipes not subjected to tensile stress. • Tighten the screws uniformly and in diagonally opposite sequence.
  • Page 25 Proline Promag L 400 HART Installation Nominal Pressure rating Threaded Max. screw tightening torque [Nm] diameter fasteners [mm] [bar] [mm] Hard rubber Polyurethane PTFE 1 800 PN 10 44 ´ M45 – – 2 000 PN 6 48 ´ M39 –...

  • Page 26: Mounting The Transmitter Of The Remote Version

    Installation Proline Promag L 400 HART Nominal diameter Threaded fasteners Max. screw tightening torque [Nm] ([lbf × ft]) [mm] [in] [in] Hard rubber Polyurethane PTFE 64 ´ 2 2 150 931 (687) – – 68 ´ 2 ¼ 2 300 1 048 (773) –...
  • Page 27 Proline Promag L 400 HART Installation CAUTION Excessive force can damage the housing! Avoid excessive mechanical stress. ► The transmitter of the remote version can be mounted in the following ways: • Wall mounting • Pipe mounting Wall mounting 18 (0.71) 14 (0.55)

  • Page 28: Turning The Transmitter Housing

    Installation Proline Promag L 400 HART ø 20…70 ø ( 0.79…2.75) PH 2 SW 8 mm (in) A0017135 6.2.5 Turning the transmitter housing To provide easier access to the display module in the compact device version, the transmitter housing can be turned: Tightening torques for plastic housing Housing cover fixing screw Max.1.3 Nm...
  • Page 29 Proline Promag L 400 HART Installation TX 20 A0017343 SW 7 A0017344 A0017345 1. Loosen the 4 fixing screws on the housing cover. 2. Open the housing cover. 3. Remove the display module. 4. Remove the terminals. 5. Loosen the fixing screws of the main electronics module.

  • Page 30: Post-Installation Check

    Installation Proline Promag L 400 HART Post-installation check Is the device undamaged (visual inspection)? Does the measuring device conform to the measuring point specifications? For example: • Process temperature • Process pressure (refer to the section on "Pressure-temperature ratings" in the "Technical Information"...

  • Page 31: Electrical Connection

    Proline Promag L 400 HART Electrical connection Electrical connection Connection conditions 7.1.1 Required tools • Torque wrench • For cable entries: Use corresponding tools • For housing cover: Phillips head screwdriver PH 2 • Wire stripper • When using stranded cables: Crimping tool for wire end ferrule 7.1.2...
  • Page 32 Electrical connection Proline Promag L 400 HART Coil current cable Standard cable 2 ´ 0.75 mm (18 AWG) with common, braided copper shield (Æ ~ 7 mm (0.28")) and individually shielded cores Conductor resistance £ 37 W/km (0.011 W/ft) Capacitance: core/core, £...

  • Page 33: Terminal Assignment

    Proline Promag L 400 HART Electrical connection 7.1.3 Terminal assignment Transmitter 0-20 mA/4-20 mA HART connection version with additional outputs and inputs 20 21 22 23 24 25 26 27 A0017112 Supply voltage Order code for Terminal numbers "Power supply"...

  • Page 34: Preparing The Measuring Device

    Electrical connection Proline Promag L 400 HART Remote version 6 5 7 8 4 37 36 42 41 n.c. n.c. n.c. 5 7 4 37 42 41 A0017275 å 9 Connecting the remote version Transmitter: main electronics module with terminals...

  • Page 35: Preparing The Connecting Cable For The Remote Version

    Proline Promag L 400 HART Electrical connection 7.1.5 Preparing the connecting cable for the remote version When terminating the connecting cable, pay attention to the following points: • In the case of electrode cables, make sure that the ferrules do not touch the core shields on the sensor side.

  • Page 36: Connecting The Measuring Device

    Electrical connection Proline Promag L 400 HART Connecting the measuring device WARNING Risk of electric shock! Components carry dangerous voltages! Have electrical connection work carried out by correspondingly trained specialists only. ► Observe applicable federal/national installation codes and regulations. ►...

  • Page 37: Connecting The Remote Version

    Proline Promag L 400 HART Electrical connection 7.2.2 Connecting the remote version PH 2 20 21 22 23 6 5 7 8 4 37 36 42 41 24 25 26 27 10 (0.4) mm (in) A0017445 å 10 Transmitter: main electronics module with terminals 1.

  • Page 38: Ensuring Potential Equalization

    Electrical connection Proline Promag L 400 HART 4. Connect the cable in accordance with the terminal assignment (® ä 34). 5. Tighten the cable strain relief as per the tightening torque specifications (® ä 36). 6. Firmly tighten the cable glands.
  • Page 39 Proline Promag L 400 HART Electrical connection 1. Connect both sensor flanges to the pipe flange via a ground cable and ground them. 2. If DN £ 300 (12"): Mount the ground cable directly on the conductive flange coating of the sensor with the flange screws.If DN ³...

  • Page 40: Ensuring The Degree Of Protection

    Electrical connection Proline Promag L 400 HART – A0016319 å 15 Potential equalization and cathodic protection Isolation transformer power supply Electrically isolated from the pipe Capacitor Ground cable Copper wire, at least 6 mm (0.0093 in 1. Connect the measuring device to the power supply such that it is floating in relation to the protective ground.

  • Page 41: Post-Connection Check

    Proline Promag L 400 HART Electrical connection Post-connection check Are cables or the device undamaged (visual inspection)? Do the cables comply with the requirements (® ä 31)? Do the cables have adequate strain relief? Are all the cable glands installed, firmly tightened and leak-tight? Cable run with "water trap" (® ä 40) ? Only for remote version: is the sensor connected to the right transmitter? Check the serial number on the nameplate of the sensor and transmitter.

  • Page 42: Operation Options

    Operation options Proline Promag L 400 HART Operation options Overview of operation options A0015607 Local operation via display module Computer with Web browser (e.g. Internet Explorer) or with operating tool (e.g. FieldCare, AMS Device Manager, SIMATIC PDM) Field Xpert SFX100 Field Communicator 475 Control system (e.g.

  • Page 43: Structure And Function Of The Operating Menu

    Proline Promag L 400 HART Operation options Structure and function of the operating menu 8.2.1 Structure of the operating menu For an overview of the operating menu with menus and parameters (® ä 143) Operating menu for operators and maintenances...

  • Page 44: Operating Philosophy

    Operation options Proline Promag L 400 HART 8.2.2 Operating philosophy The individual parts of the operating menu are assigned to certain user roles. Each user role corresponds to typical tasks within the device lifecycle. Menu User role and tasks Content/meaning...

  • Page 45: Access To The Operating Menu Via The Local Display

    Proline Promag L 400 HART Operation options Access to the operating menu via the local display 8.3.1 Operational display X X X X X X X 1120.50 A0016502 Operational display Device tag (® ä 86) Status area Display area for measured values (4-line) Operating elements (®...

  • Page 46: Navigation View

    Operation options Proline Promag L 400 HART Volume flow A0013711 Conductivity A0017269 Mass flow A0013710 Totalizer The measurement channel number indicates which of the three totalizers is displayed. A0013943 Output The measurement channel number indicates which of the outputs is displayed.
  • Page 47 Proline Promag L 400 HART Operation options Navigation path The navigation path - displayed at the top left in the navigation view - consists of the following elements: • In the submenu: Omission symbol for operating Name of current Display symbol for menu menu levels in between •...

  • Page 48: Editing View

    Operation options Proline Promag L 400 HART Wizard A0013968 Parameters within a wizard No display symbol exists for parameters in submenus. A0013972 Locking Symbol Meaning Parameter locked When displayed in front of a parameter name, indicates that the parameter is locked.
  • Page 49 Proline Promag L 400 HART Operation options Inserts minus sign at the input position. – A0016620 Confirms selection. A0013985 Moves the input position one position to the left. A0016621 Exits the input without applying the changes. A0013986 Clears all entered characters.

  • Page 50: Operating Elements

    Operation options Proline Promag L 400 HART 8.3.4 Operating elements Meaning Minus key In a menu, submenu Moves the selection bar upwards in a choose list. With a Wizard Confirms the parameter value and goes to the previous parameter. A0013969 With a text and numeric editor In the input mask, moves the selection bar to the left (backwards).
  • Page 51 Proline Promag L 400 HART Operation options • Setup • Simulation Calling up and closing the context menu The user is in the operational display. 1. Press F for 2 s. Ã The context menu opens. XXXXXXXXXX 20.50 Setup Simulation A0017421-EN 2.

  • Page 52: Navigating And Selecting From List

    Operation options Proline Promag L 400 HART 8.3.6 Navigating and selecting from list Different operating elements are used to navigate through the operating menu. The navigation path is displayed on the left in the header. Icons are displayed in front of the individual menus. These icons are also shown in the header during navigation.

  • Page 53: Calling Up Help Text

    Proline Promag L 400 HART Operation options The direct access code consists of a 4-digit number and the channel number, which identifies the channel of a process variable: e.g. 0914-1. In the navigation view, this appears on the right-hand side in the header of the selected parameter.

  • Page 54: Changing The Parameters

    Operation options Proline Promag L 400 HART 8.3.9 Changing the parameters For a description of the editing display - consisting of text editor and numeric editor - with symbols (® ä 48), for a description of the operating elements (® ä 50) Example: Changing the parameter "20 mA value"...

  • Page 55: User Roles And Related Access Authorization

    Proline Promag L 400 HART Operation options A message is displayed if the value entered is outside the permitted value range. Ent. access code Invalid or out of range input value Min:0 Max:9999 A0014049-EN 8.3.10 User roles and related access authorization The two user roles "Operator"...

  • Page 56: Access To The Operating Menu Via The Web Browser

    Operation options Proline Promag L 400 HART A0016215-EN After disabling the keypad lock: A0016216-EN If the user attempts to access the operating menu while the keylock is enabled, the message Keylock on also appears. Access to the operating menu via the Web browser 8.4.1...

  • Page 57: Establishing A Connection

    Proline Promag L 400 HART Operation options 8.4.3 Establishing a connection Configuring the Internet protocol of the computer IP address 192.168.1.XXX; for XXX all numerical values except: 0, 212 and 255 ® e.g. 192.168.1.213 Subnet mask 255.255.255.0 Default gateway 192.168.1.212 or 0.0.0.0 1.

  • Page 58: User Interface

    Operation options Proline Promag L 400 HART 8.4.5 User interface A0017757-EN Picture of device Function row with 6 functions Device tag Header Working area Navigation area Header The following information appears in the header: • Device tag (® ä 86) •...

  • Page 59: Disabling The Web Server

    Proline Promag L 400 HART Operation options 8.4.6 Disabling the Web server The Web server of the measuring device can be switched on and off as required using the Web server functionality parameter. Navigation path "Expert" menu ® Communication ® Web server ® Web server functionality...

  • Page 60: Access To The Operating Menu Via The Operating Tool

    Operation options Proline Promag L 400 HART Access to the operating menu via the operating tool The structure of the operating menu in the operating tools is the same as for operation via the local display. 8.5.1 Connecting the operating tool...

  • Page 61: Field Xpert Sfx100

    FieldCare Function scope FDT-based plant asset management tool from Endress+Hauser. It can configure all smart field devices in a system and helps you manage them. By using the status information, it is also a simple but effective way of checking their status and condition.

  • Page 62: Ams Device Manager

    Operation options Proline Promag L 400 HART User interface A0017401-EN Header Picture of device Device tag (® ä 86) Status area with status signal (® ä 109) Display area for current measured values (® ä 98) Event list with additional functions such as save/load, events list and document creation...

  • Page 63: Field Communicator 475

    Proline Promag L 400 HART Operation options 8.5.6 Field Communicator 475 Function scope Industrial handheld terminal from Emerson Process Management for remote configuration and measured value display via HART protocol. Source for device description files See data (® ä 64)

  • Page 64: System Integration

    System integration Proline Promag L 400 HART System integration Overview of device description files 9.1.1 Current version data for the device Firmware version 01.00.zz • On the title page of the Operating instructions • On transmitter nameplate(® ä 13) • Parameter firmware version Diagnostics ®...

  • Page 65: Other Settings

    Proline Promag L 400 HART System integration The assignment of the measured variables to the dynamic variables can be modified and assigned as desired via local operation and the operating tool using the following parameters: • Expert ® Communication ® HART output ® Output ® Assign PV •...

  • Page 66: Commissioning

    Commissioning Proline Promag L 400 HART Commissioning 10.1 Function check Before commissioning the device, make sure that the post-installation and post-connection checks have been performed. • "Post-mounting check" checklist (® ä 30) • "Post-connection check" checklist (® ä 41) 10.2 Switching on the measuring device After a successful function check, switch on the measuring device.

  • Page 67: Configuring The Measuring Device

    Proline Promag L 400 HART Commissioning 10.4 Configuring the measuring device The Setup menu with its guided wizards contains all parameters needed for standard operation. Navigation to the "Setup" menu X X X X X X X 20.50 Main menu...
  • Page 68 Commissioning Proline Promag L 400 HART Sequence of the wizard Assign stat.inp. Reset totaliz. Reset all tot. Flow override 1…3 Active level High Response time End of wizard A0017422-EN å 21 "Status input" wizard in the "Setup" menu Parameter overview with brief description...

  • Page 69: Configuring The Current Output

    Proline Promag L 400 HART Commissioning 10.4.2 Configuring the current output The Current output wizard guides you systematically through all parameters that have to be set for configuring the specific current output. Navigation path "Setup" menu ® Current output Sequence of the wizard Assign curr.

  • Page 70: Configuring The Pulse/Frequency/Switch

    Commissioning Proline Promag L 400 HART Volume flow unit Select volume flow unit. Unit choose list Depends on country and nominal diameter Result The selected unit applies for: – Outputs – Low flow cutoff – Simulation process variable Conductivity unit...
  • Page 71 Proline Promag L 400 HART Commissioning Sequence of the wizard for the pulse output Operating mode Pulse Assign pulse Volume flow Mass flow Volume unit Mass unit Density unit Fixed density Value per pulse Pulse width Failure mode Invert outp.sig.
  • Page 72 Commissioning Proline Promag L 400 HART Mass unit Select the unit for mass. Unit choose list Depends on country and nominal diameter Result The selected unit is taken from: Mass flow unit Density unit Select the unit for density. Unit choose list Country-dependent •...
  • Page 73 Proline Promag L 400 HART Commissioning Sequence of the wizard for the frequency output Operating mode Frequency Assign freq. Volume flow Conductivity Mass flow Volume unit Conductiv. unit Mass unit Density unit Fixed density Min. freq. value Max. freq. value Val.
  • Page 74 Commissioning Proline Promag L 400 HART Assign frequency output Select the process variable for • Off the frequency output. • Volume flow • Conductivity • Mass flow Volume flow unit Select the unit for volume Unit choose list Depends on country and flow.
  • Page 75 Proline Promag L 400 HART Commissioning Sequence of the wizard for the switch output Operating mode Switch Switch out funct Diag. behavior Assign diag. beh Alarm or Warning Alarm warning Invert outp.sig. End of wizard A0017439-EN å 25 "Pulse/frequency/switch output 1-2" wizard in the "Setup" menu: "Switch" operating mode (Part 1)
  • Page 76 Commissioning Proline Promag L 400 HART Operating mode Switch Switch out funct Fl. direct. Limit Status check Assign Assign Assign limit dir.check status Conduc- Empty Volume Mass Totalizer Volume Mass Low flow tivity pipe det. flow flow 1/2/3 flow flow...
  • Page 77 Proline Promag L 400 HART Commissioning Assign limit Select the process variable for • Volume flow Volume flow the limit function. • Conductivity • Mass flow • Totalizer 1 • Totalizer 2 • Totalizer 3 Assign flow direction check Select the process variable for •...

  • Page 78: Configuring The Local Display

    Commissioning Proline Promag L 400 HART 10.4.4 Configuring the local display The Display wizard guides you systematically through all parameters that can configured for configuring the local display. Navigation path "Setup" menu ® Display Sequence of the wizard Format display...

  • Page 79: Configuring The Output Conditioning

    Proline Promag L 400 HART Commissioning Value 1 display Select the measured value • Volume flow Volume flow that is shown on the local • Conductivity display. • Mass flow • Totalizer 1 • Totalizer 2 • Totalizer 3 • Current output 1...
  • Page 80 Commissioning Proline Promag L 400 HART Sequence of the wizard Display damping Damping out. 1 Damping out. 2 Damping out. 3 Assign curr. Volume flow Conductivity Mass flow Assign pulse Volume flow Mass flow Assign freq. Volume flow Conductivity Mass flow...

  • Page 81: Configuring The Low Flow Cut Off

    Proline Promag L 400 HART Commissioning Assign current output Select process variable for • Off Volume flow current output. • Volume flow • Conductivity • Mass flow Assign pulse output 1-2 Select the process variable for • Off the pulse output.
  • Page 82 Commissioning Proline Promag L 400 HART Switch-on value Enter the on value for low Positive floating-point flow cutoff. number 0 to 100 % 50 % Switch-off value Enter the off value for low flow cutoff. Pressure shock suppression Enter the time interval for...

  • Page 83: Configuring Empty Pipe Detection

    Proline Promag L 400 HART Commissioning 10.4.7 Configuring empty pipe detection The Empty pipe detection (EPD) wizard guides you systematically through all parameters that have to be set for configuring empty pipe detection. Navigation path "Setup" menu ® Empty pipe detection Sequence of the wizard Empty pipe det.
  • Page 84 Commissioning Proline Promag L 400 HART Response time empty pipe Enter the time interval until the 0 to 100 s detection diagnostic message S862 Partially Filled Pipe is displayed for an empty or partially filled pipe. Endress+Hauser...

  • Page 85: Advanced Settings

    Proline Promag L 400 HART Commissioning 10.5 Advanced settings The Advanced setup menu with its submenus contains all parameters needed for specific settings. Navigation path "Setup" menu ® Advanced setup Navigation to the "Advanced setup" submenu X X X X X X X 20.50...

  • Page 86: Defining The Tag Name

    Commissioning Proline Promag L 400 HART Totalizer 2 ® (® ä 89) ® Totalizer 3 (® ä 89) Display ® (® ä 91) 10.5.1 Defining the tag name To enable quick identification of the measuring point within the system, you can enter a unique designation using the Device tag parameter and thus change the factory setting.

  • Page 87: Carrying Out A Sensor Adjustment

    Proline Promag L 400 HART Commissioning Temperature unit Parameter overview with brief description Parameter Description Selection/ Factory setting Volume flow unit Select the unit for volume Unit choose list Country-dependent: flow. • m • gal/min Result The selected unit applies for: –...

  • Page 88: Performing Electrode Cleaning

    Commissioning Proline Promag L 400 HART Navigation path "Setup" menu ® Advanced setup ® Sensor adjustment Structure of the submenu Sensor adjustment ® Installation direction Parameter overview with brief description Parameter Description Selection/ Factory setting Installation direction Change the sign of the •...

  • Page 89: Configuring The Totalizer

    Proline Promag L 400 HART Commissioning ECC recovery time The following option is Specify the recovery 1 to 600 s selected in the time after electrode Electrode cleaning cleaning to prevent circuit parameter: fluctuations in the signal outputs. The last flow...
  • Page 90 Commissioning Proline Promag L 400 HART Totalizer operation One of the following options is Select totalizer • Net flow total Net flow total mode selected in the Assign process calculation mode. • Forward flow total variable parameter: • Reverse flow total •...

  • Page 91: Carrying Out Additional Display Configurations

    Proline Promag L 400 HART Commissioning 10.5.6 Carrying out additional display configurations In the Display submenu, you can set all parameters involved in the configuration of the local display. Navigation path "Setup" menu ® Advanced setup ® Display Structure of the submenu Display ®...

  • Page 92: Simulation

    Commissioning Proline Promag L 400 HART Decimal places 2 A measured value is specified in Select the number of • x x.xx the parameter Value 2 decimal places for • x.x the display value. • x.xx display. • x.xxx • x.xxxx...
  • Page 93 Proline Promag L 400 HART Commissioning Assign simulation process variable Value process variable Simulation status input Value status input Simulation current output Value current output Frequency simulation 1 Frequency value 1 Pulse simulation 1 Pulse value 1 Switch output simulation 1...

  • Page 94: Protecting Settings From Unauthorized Access

    Commissioning Proline Promag L 400 HART Value status input The On option is selected in the Select the input • High High Status input simulation signal level of the • Low status input for the parameter. simulation. Simulation current Switch simulation of •...

  • Page 95: Write Protection Via Access Code

    Proline Promag L 400 HART Commissioning 10.7.1 Write protection via access code The effects of the customer-specific access code are as follows: • Via local operation, the parameters for the measuring device configuration are write-protected and their values can no longer be changed.

  • Page 96: Write Protection Via Write Protection Switch

    Commissioning Proline Promag L 400 HART Reset all totalizers Defining the access code via the Web browser 1. Navigate to the Define access code parameter. 2. Define a max. 4-digit numeric code as an access code. 3. Enter the access code again to confirm the code.
  • Page 97 Proline Promag L 400 HART Commissioning X X X X X X X 4.00 A0015870 If hardware write protection is disabled, no option is displayed in the Locking status parameter (® ä 98). On the local display, the -symbol disappears from in front of the parameters in the header of the operational display and in the navigation view.

  • Page 98: Operation

    Operation Proline Promag L 400 HART Operation 11.1 Read device locking status The write protection types that are currently active can be determined using the Locking status parameter. Navigation path "Expert" menu ® Locking status Function scope of "Locking status" parameter...

  • Page 99: Totalizer

    Proline Promag L 400 HART Operation Parameter overview with brief description Parameter Description Display Volume flow Displays the calculated volume flow Floating-point number with sign Conductivity Displays the conductivity currently Floating-point number calculated Mass flow Displays the mass flow currently...

  • Page 100: Output Values

    Operation Proline Promag L 400 HART The submenu only appears if the device was ordered with a status input (® ä 33). Structure of the submenu Input values ® Value status input Parameter overview with brief description Parameter Prerequisite Description...

  • Page 101: Adapting The Measuring Device To The Process Conditions

    Proline Promag L 400 HART Operation Measured current Displays the current value • 0-20 mA: currently measured for 0 to 22.5 mA the current output. • 4-20 mA: 3.59 to 22.5 mA Pulse output 1-2 Displays the value Positive floating-point...

  • Page 102: Showing Data Logging

    Operation Proline Promag L 400 HART Preset value 2 Control totalizer 3 Preset value 3 Reset all totalizers Parameter overview with brief description Parameters Prerequisite Description Selection/ Factory setting User entry Control totalizer 1-3 Control totalizer • Totalize Totalize value.
  • Page 103 Proline Promag L 400 HART Operation Assign channel 1 Assign channel 2 Assign channel 3 Assign channel 4 Logging interval Clear logging data Display channel 1 Display channel 2 Display channel 3 Display channel 4 Parameter overview with brief description...

  • Page 104: Diagnostics And Troubleshooting

    Diagnostics and troubleshooting Proline Promag L 400 HART Diagnostics and troubleshooting 12.1 General troubleshooting For local display Problem Possible cause Remedy Local display dark and no output signals Supply voltage does not match that Apply the correct supply voltage specified on the nameplate.
  • Page 105 Proline Promag L 400 HART Diagnostics and troubleshooting No write access to parameters Current user role has limited access 1. Check user role (® ä 55). authorization 2. Enter correct customer-specific access code (® ä 55). No connection via HART protocol...

  • Page 106: Diagnostic Information On Local Display

    Diagnostics and troubleshooting Proline Promag L 400 HART 12.2 Diagnostic information on local display 12.2.1 Diagnostic message Faults detected by the self-monitoring system of the measuring device are displayed as a diagnostic message in alternation with the operational display. Operational display in alarm condition...
  • Page 107 Proline Promag L 400 HART Diagnostics and troubleshooting Diagnostic behavior Symbol Meaning Alarm • Measurement is interrupted. • Signal outputs and totalizers assume the defined alarm condition. • A diagnostic message is generated. A0013961 • The background lighting changes to red.

  • Page 108: Calling Up Remedy Information

    Diagnostics and troubleshooting Proline Promag L 400 HART 12.2.2 Calling up remedy information X X X X X X X X X X X X X X 20.50 S441 Curr. output 1 Curr. output 1 (ID:153) S441 2d11h05m55s 1. Check process 2.

  • Page 109: Diagnostic Information In The Web Browser

    Proline Promag L 400 HART Diagnostics and troubleshooting 12.3 Diagnostic information in the Web browser 12.3.1 Diagnostic options Any faults detected by the measuring device are displayed in the Web browser on the home page once the user has logged on.

  • Page 110: Diagnostic Information In Fieldcare

    Diagnostics and troubleshooting Proline Promag L 400 HART 12.4 Diagnostic information in FieldCare 12.4.1 Diagnostic options Any faults detected by the measuring device are displayed on the home page of the operating tool once the connection has been established. A0017399-EN Status area with status signal (®...

  • Page 111: Overview Of Diagnostic Information

    Proline Promag L 400 HART Diagnostics and troubleshooting A0014048-EN å 35 Illustrated using the example of the local display You can assign the following options to the diagnostic number as the diagnostic behavior: Options Description Alarm Measurement is interrupted. Signal outputs and totalizers assume the defined alarm condition. A diagnostic message is generated.
  • Page 112 Diagnostics and troubleshooting Proline Promag L 400 HART Electronic failure 1. Reset device. Alarm 2. Contact service. Electronic failure Maintenance required! Warning 1. Do not perform reset. 2. Contact service. Data storage 1. Insert DAT module. Alarm 2. Replace DAT module.

  • Page 113: Pending Diagnostic Events

    Proline Promag L 400 HART Diagnostics and troubleshooting Switch output simulation Switch off switch output simulation. Warning Simulation status input Switch off status input simulation. Warning Empty pipe detection Perform empty pipe detection Warning adjustment. Diagnostic behavior can be changed: "Adapting the diagnostic behavior" section (® ä 110)

  • Page 114: Diagnostic List

    Diagnostics and troubleshooting Proline Promag L 400 HART Previous diagnostics 2 diagnostic events have Displays the diagnostic event Symbol for diagnostic already occurred that occurred prior to the behavior, diagnostic code current diagnostic event and short message along with the diagnostic information.

  • Page 115: Filtering The Event Logbook

    Proline Promag L 400 HART Diagnostics and troubleshooting The event history includes entries for: • Diagnostic events (® ä 111) • Information events (® ä 115) In addition to the operation time of its occurrence, each event is also assigned a symbol that indicates whether the event has occurred or is ended: •...

  • Page 116: 12.10 Resetting The Measuring Device

    Diagnostics and troubleshooting Proline Promag L 400 HART I1335 Firmware changed I1351 Empty pipe detection adjustment failure I1353 Empty pipe detection adjustment Ok I1355 ECC switched on I1361 Incorrect Web server login 12.10 Resetting the measuring device Using the Device reset parameter it is possible to reset the entire device configuration or some of the configuration to a defined state.
  • Page 117 Proline Promag L 400 HART Diagnostics and troubleshooting ENP version Device revision Device ID Device type Manufacturer ID IP address Subnet mask Default gateway Parameter overview with brief description Parameter Prerequisite Description Display Serial number Displays the serial number of Max.

  • Page 118: 12.12 Disposal

    Diagnostics and troubleshooting Proline Promag L 400 HART Device ID Displays the device ID for 6-digit hexadecimal number identifying the device in a HART network. Device type Displays the device type with 0x47 which the measuring device is registered with the HART Communication Foundation.

  • Page 119: Repair

    • Spare parts are grouped into logical kits with the associated Installation Instructions. • Repairs are carried out by Endress+Hauser Service or by correspondingly trained customers. • Certified devices can be converted into other certified devices by Endress+Hauser Service or at the factory only.

  • Page 120: Maintenance

    No interior cleaning is planned for the device. 14.2 Measuring and test equipment Endress+Hauser offers a wide variety of measuring and test equipment, such as W@M or device tests. Your Endress+Hauser Sales Center can provide detailed information on the services.

  • Page 121: Return

    The measuring device must be returned if repairs or a factory calibration are required, or if the wrong measuring device has been ordered or delivered. According to legal regulations, Endress+Hauser, as an ISO-certified company, is required to follow certain procedures when handling returned products that are in contact with medium.

  • Page 122: Technical Data

    Technical data Proline Promag L 400 HART Technical data 16.1 Application The measuring device is only suitable for flow measurement of liquids with a minimum conductivity of 5 mS/cm. In the case of demineralized water, a minimum conductivity of 20 mS/cm is required.
  • Page 123 Proline Promag L 400 HART Technical data Nominal Recommended Factory settings diameter flow Full scale value current min./max. full scale value Pulse value Low flow cut off output (v ~ 0.3/10 m/s (v ~ 0.04 m/s) (~ 2 pulse/s) (v ~ 2.5 m/s)
  • Page 124 Technical data Proline Promag L 400 HART Nominal Recommended Factory settings diameter flow Full scale value current min./max. full scale value Pulse value Low flow cut off output (v ~ 0.3/10 m/s (v ~ 0.04 m/s) (~ 2 pulse/s) (v ~ 2.5 m/s)

  • Page 125: Output

    Proline Promag L 400 HART Technical data Status input Input signal Maximum input values • DC 30 V • 6 mA Response time Adjustable: 5 to 200 ms Input signal level • Low signal: DC –3 to +5 V • High signal: DC 12 to 30 V Assignable functions •...
  • Page 126 Technical data Proline Promag L 400 HART Assignable measured • Volume flow variables • Conductivity • Mass flow Switch output Switching behavior Binary, conductive or non-conductive Switching delay Adjustable: 0 to 100 s Number of switching cycles Unlimited Assignable functions •...

  • Page 127: Power Supply

    Proline Promag L 400 HART Technical data Switch output Failure mode Choose from: • Current status • Open • Closed Local display Plain text display With information on cause and remedial measures Backlight Red backlighting indicates a device error. Status signal as per NAMUR recommendation NE 107 Operating tool •...
  • Page 128 Technical data Proline Promag L 400 HART Power consumption Transmitter Order code for Maximum power consumption "Power supply" Option A: AC 100 to 230 V 30 VA Option B: AC/DC 24 V 30 VA/8 W Current consumption Transmitter Order code for...

  • Page 129: Performance Characteristics

    Proline Promag L 400 HART Technical data 16.6 Performance characteristics Reference operating To DIN EN 29104 conditions • Fluid temperature: +28 ± 2 °C (+82 ± 4 °F) • Ambient temperature range: +22 ± 2 °C (+72 ± 4 °F) •...

  • Page 130: Installation

    Technical data Proline Promag L 400 HART Influence of ambient o.r. = of reading; o.f.s. = of full scale value temperature Current output Temperature coefficient Typically ±50 ppm/°C o.r. or ±1 µA/°C Pulse/frequency output Temperature coefficient Max.±50 ppm/°C 16.7 Installation "Mounting requirements"...

  • Page 131: Process

    Proline Promag L 400 HART Technical data Details are provided in the Declaration of Conformity. 16.9 Process • 0 to +80 °C (+32 to +176 °F) for hard rubber, DN 350 to 2400 (14 to 90") Medium temperature range • –20 to +50 °C (–4 to +122 °F) for polyurethane, DN 50 to 1200 (2 to 48") •...

  • Page 132: 16.10 Mechanical Construction

    Technical data Proline Promag L 400 HART Pressure loss • No pressure loss occurs if the sensor is installed in a pipe with the same nominal diameter. • Pressure losses for configurations incorporating adapters according to DIN EN 545 (® ä 22) System pressure (®...
  • Page 133 Proline Promag L 400 HART Technical data Nominal EN (DIN) ASME, AWWA diameter [mm] [in] Pressure [kg] Pressure [kg] Pressure [kg] Pressure [kg] Pressure [kg] rating rating rating rating rating 1 200 PN 10 PN 6 Class D PN 16...
  • Page 134 Technical data Proline Promag L 400 HART Nominal diameter ASME, AWWA [mm] [in] Pressure rating [lbs] Class 150 Class 150 – Class 150 Class 150 Class 150 Class 150 Class D Class D Class D Class D 1 041 1 000...
  • Page 135 Proline Promag L 400 HART Technical data Nominal EN (DIN) ASME, AWWA diameter [mm] [in] Pressure [kg] Pressure [kg] Pressure [kg] Pressure [kg] Pressure [kg] rating rating rating rating rating PN 10 PN 6 – Class 150 PN 16 –...
  • Page 136 Technical data Proline Promag L 400 HART Weight in US units Lap joint flange; fixed flange DN ³ 350 (14") Nominal diameter ASME, AWWA [mm] [in] Pressure rating [lbs] Class 150 2 ½ Class 150 – Class 150 Class 150 Class 150 –...
  • Page 137 Proline Promag L 400 HART Technical data Nominal diameter Pressure rating Measuring tube internal diameter EN (DIN) ASME AS 2129 Hard rubber Polyurethane PTFE AWWA AS 4087 [mm] [in] [mm] [in] [mm] [in] [mm] [in] PN 10/16 Class 150 –...
  • Page 138 Technical data Proline Promag L 400 HART Nominal diameter Pressure rating Measuring tube internal diameter EN (DIN) ASME AS 2129 Hard rubber Polyurethane PTFE AWWA AS 4087 [mm] [in] [mm] [in] [mm] [in] [mm] [in] PN 10 – – 35.2 35.4...
  • Page 139 Proline Promag L 400 HART Technical data Transmitter cable entries Order code for "Housing", option M "Compact, polycarbonate"; option N "Remote, polycarbonate" The various cable entries are suitable for hazardous and non-hazardous areas. Electrical connection Material Cable gland M20 × 1.5 Plastic Thread G ½"...
  • Page 140 Technical data Proline Promag L 400 HART Process connections EN 1092-1 (DIN 2501) • DN £ 300 (12"): 1.0038 (S235JRG2), 1.4301/304, 1.4306/304L, 1.4307/304L • DN ³ 350 (14"): 1.0038 (S235JRG2), A105 ASME B16.5 • DN £ 300 (12"): A105, 316L •...

  • Page 141: 16.11 Operability

    The measuring system is in conformity with the statutory requirements of the applicable EC Directives. These are listed in the corresponding EC Declaration of Conformity along with the standards applied. Endress+Hauser confirms successful testing of the device by affixing to it the CE mark. Endress+Hauser...

  • Page 142: 16.13 Application Packages

    Technical data Proline Promag L 400 HART C-Tick symbol The measuring system meets the EMC requirements of the "Australian Communications and Media Authority (ACMA)". Ex approval The devices are certified for use in hazardous areas and the relevant safety instructions are provided in the separate "Control Drawing"...

  • Page 143: Appendix

    Proline Promag L 400 HART Appendix Appendix 17.1 Overview of the operating menu The following table provides an overview of the entire operating menu structure with menus and parameters. The direct access code to the parameter is given in brackets. The page reference indicates where a description of the parameter can be found in the manual.
  • Page 144 Appendix Proline Promag L 400 HART Mass flow unit (® ä 70) Density unit (® ä 70) Fixed density (® ä 70) Current span (® ä 70) 0/4 mA value (® ä 70) 20 mA value (® ä 70) Failure mode (®...
  • Page 145 Proline Promag L 400 HART Appendix Measuring value at (® ä 74) maximum frequency Failure mode (® ä 74) Failure frequency (® ä 74) Invert output signal (® ä 74) Switching output ® (® ä 75) Operating mode (® ä 76) Switch output function (®...
  • Page 146 Appendix Proline Promag L 400 HART ® Output conduct (® ä 79) Display damping (® ä 80) Output damping 1 to 3 (® ä 80) Assign current output (® ä 69) Assign pulse output (® ä 71) Assign frequency output (®...
  • Page 147 Proline Promag L 400 HART Appendix Mass unit (® ä 87) Density unit (® ä 87) Temperature unit (® ä 87) Sensor adjustment ® (® ä 87) Installation direction (® ä 88) Electrode cleaning ® (® ä 88) circuit* Electrode cleaning circuit* (®...
  • Page 148 Appendix Proline Promag L 400 HART Display damping (® ä 92) Header (® ä 92) Header text (® ä 92) Separator (® ä 92) Backlight (® ä 92) ® Diagnostics (® ä 104) Actual diagnostics (® ä 114) Timestamp Previous diagnostics (®...
  • Page 149 Proline Promag L 400 HART Appendix Subnet mask (® ä 118) Default gateway (® ä 118) Measured values ® (® ä 98) Process variables ® (® ä 98) Volume flow (® ä 99) Conductivity (® ä 99) Mass flow (® ä 99) Totalizer ®...
  • Page 150 Appendix Proline Promag L 400 HART Frequency (® ä 94) simulation 1 to 2 Frequency value 1 to 2 (® ä 94) Pulse simulation 1 to 2 (® ä 94) Pulse value 1 to 2 (® ä 94) Switch output (®...
  • Page 151 Proline Promag L 400 HART Appendix 100% bargraph value 3 (® ä 79) (0126) Decimal places 3 (0118) (® ä 92) Value 4 display (0109) (® ä 79) Decimal places 4 (0119) (® ä 92) Display interval (0096) (® ä 92) Display damping (0094) (®...
  • Page 152 Appendix Proline Promag L 400 HART Activate sensor emergency (® ä 111) mode (6611) ® Sensor Measured values ® (® ä 98) ® Process variables (® ä 98) Volume flow (1838) (® ä 99) Conductivity (1850) (® ä 99) Mass flow (1847) (®...
  • Page 153 Proline Promag L 400 HART Appendix Conductivity damping (® ä 67) (1803) ® Low flow cut off (® ä 81) Assign process variable (® ä 81) (1837) On value low flow cutoff (® ä 82) (1805) Off value low flow cutoff (®...
  • Page 154 Appendix Proline Promag L 400 HART Volume flow factor (1832) (® ä 87) Volume flow offset (1831) (® ä 87) Conductivity factor (1849) (® ä 87) Conductivity offset (1848) (® ä 87) Mass flow factor (1846) (® ä 87) Mass flow offset (1841) (®...
  • Page 155 Proline Promag L 400 HART Appendix Measured current 1 (0366) (® ä 101) PFS output 1 to 2 ® (® ä 70) ® Pulse output (® ä 71) Operating mode (0469) (® ä 71) Assign pulse output (0460) (® ä 71) Value per pulse (0455) (®...
  • Page 156 Appendix Proline Promag L 400 HART Assign diagnostic behavior (® ä 76) (0482) Assign limit (0483) (® ä 77) Switch-on value (0466) (® ä 77) Switch-off value (0464) (® ä 77) Assign flow direction check (® ä 77) (0484) Assign status (0485) (®...
  • Page 157 Proline Promag L 400 HART Appendix Assign PV (0234) (® ä 64) Primary variable (PV) (® ä 64) (0201) Assign SV (0235) (® ä 64) Secondary variable (SV) (® ä 64) (0226) Assign TV (0236) (® ä 64) Tertiary variable (TV) (®...
  • Page 158 Appendix Proline Promag L 400 HART Timestamp Operating time from restart – (0653) Operating time (0652) (® ä 115) Diagnostics list ® (® ä 114) Diagnostics 1 to 5 (® ä 114) (692 to 696) Timestamp ® Event logbook (® ä 114) Filter options (0705) (®...
  • Page 159 Proline Promag L 400 HART Appendix Maximum value (6545) Medium temperature ® Minimum value (6573) Maximum value (6572) Simulation ® (® ä 92) Assign simulation process (® ä 93) variable (1810) Value process variable (® ä 93) (1811) Simulation status input (®...

  • Page 160: Index

    Index Proline Promag L 400 HART Index Degree of protection ..... . . 40, 130 Design Access authorization to parameters Measuring device .
  • Page 161 Proline Promag L 400 HART Index SIMATIC PDM ......62 Electrical connection Commubox FXA195 ..... . . 60 Galvanic isolation .
  • Page 162 Index Proline Promag L 400 HART Maintenance tasks ......120 Menus, submenus ......43 Manufacturer ID .
  • Page 163 Proline Promag L 400 HART Index Status area For operational display ..... . . 45 Read access ....... . . 55 In the navigation view .
  • Page 164 Index Proline Promag L 400 HART Tool tip see Help text Transmitter Connecting the signal cables ....36 Turning the housing ......28 Transporting the measuring device .
