Master Class Fiber
Flatbed
USER MANUAL

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the Master Class Fiber Flatbed and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Full Spectrum Laser Master Class Fiber Flatbed

Summary of Contents for Full Spectrum Laser Master Class Fiber Flatbed

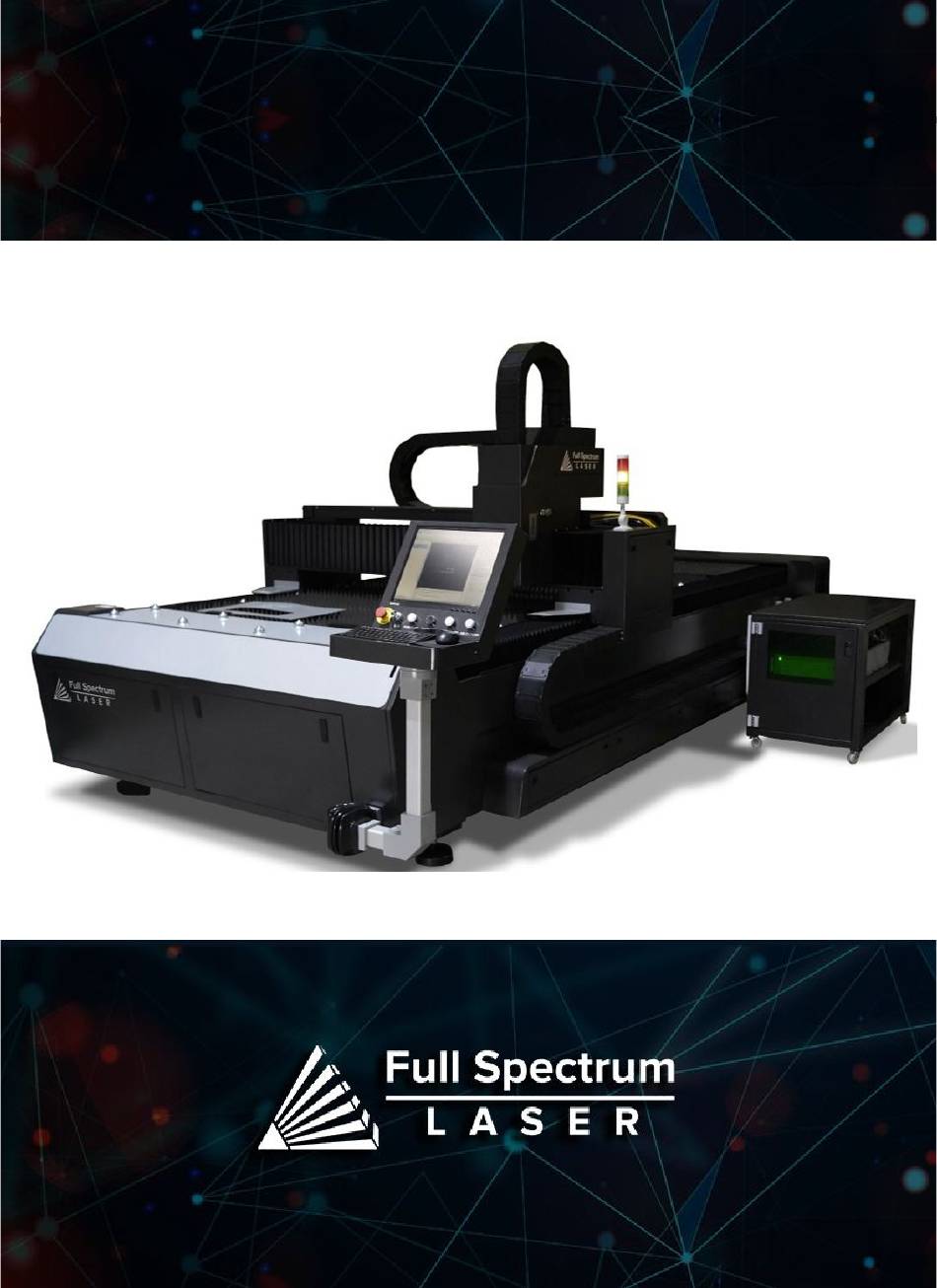

  • Page 1 Master Class Fiber Flatbed USER MANUAL...

  • Page 2: Table Of Contents

    Section III. Installation & Assembly Assembly Stage Laser Box Installation Laser Head Installation Machine Connections Operating Table Assembly Section IV. CypCut Cypcut Installation Cypcut Controls Section V. Maintenance & Adjustments General Maintenance Adjustments Warranty Customer Support Join The Full Spectrum Laser Community...

  • Page 3: Master Class Fiber Flatbed

    For more information and product selection, please visit www.fslaser.com Compliance Statement: The Full Spectrum Laser Master Class Series is a Class 4 laser product, as defined in International Standard IEC 608251. The Full Spectrum Muse Titan complies with 21 CFR 1040.10 and 1040.11, the Federal Performance Standards for Light Emitting Products, except for...

  • Page 4: Symbols And Definition

    Symbols and Definitions Danger: Indicate[s] a hazardous situation which, if not avoided, will result in death or serious injury. Warning: Indicate[s] a hazardous situation which, if not avoided, could result in death or serious injury. Caution: Indicate[s] a hazardous situation which, if not avoided, could result in minor or moderate injury.

  • Page 5: Section I. Safety

    Section I. Safety Setup Precautions Follow all safety protocols and procedures before operating any machinery. It is the responsibility of the operator to ensure all safety precautions are correctly followed, and the machine is properly assembled and in working order. ●...

  • Page 6: Safety During Operation

    Always keep a properly maintained and inspected 5lbs. or larger fire extinguisher on hand. Full Spectrum Laser recommends a Halogen or multipurpose dry chemical fire extinguisher. Halogen extinguisher are expensive but easy clean, while the dry chemical extinguisher discharges a sticky, corrosive powder that is very difficult to clean up.

  • Page 7: Electrical Safety

    In order to prevent access to bare wiring your laser shipped with silicone terminal covers. Please notify Full Spectrum Laser support and immediately cease operations if the covers ever slip and expose bare wire.

  • Page 8: Section Ii. Crate Removal

    Section II. Crate Removal WARNING!! The MC Fiber Flatbed models are over 6000lbs. A forklift is need to move this machine. DO NOT ATTEMPT TO LIFT!! Removing the Fiber Flatbed from Crate Follow these instructions for best results: Prepare Work Space: You will need an open, level work space to place your laser cutter. A well- ventilated open room with at least 173"...
  • Page 9 Remove the Limit Stopper on the Other Side. Ensure Machine is Level. Before completely lowering the machine, ensure that once the machine is lowered it is level. If out of level, adjust height of threaded posts as needed until machine is level. Lower machine onto feet. Open the Laser head Compartment.

  • Page 10: Section Iii. Installation & Assembly

    NOTICE ● The power inlet is equipped with a fuse to protect the machine from surges or short circuits in case of emergencies. If this fuse ever needs replacement, please contact Full Spectrum Laser technical support.

  • Page 11: Laser Box Installation

    Laser Box Installation Install The Z-Axis Cover. Once installed remove the top layer of the covering for cable access. Prepare Laser Box. Remove the side screws to open the side cover. Then remove the screws from the top and remove the top cover. Prepare Air Conditioner.

  • Page 12: Laser Head Installation

    Laser Head Installation Take out and set the laser generator onto the top shelf of the laser box. The laser generator should come with a yellow fiber cable. Note: The fiber cable if extremely delicate. It should not be bend or placed in areas that will case high pressure.
  • Page 13 4. The Fiber Cable and the laser head both have red dots on one side. Make sure to line up the dot before inserting the cable head onto the laser head. 5. Once inserted turn the knob counterclockwise to tighten. 6.
  • Page 14 11. Insert the second blue tube onto the adjacent port. 12. Insert the other end into the following port. (see below) 13. The third water tube will be placed onto the port on the left. Connect the other end to the port on the right below. 14.
  • Page 15 15.Locate the following items for the next step. High Temperature Cable Signal Amplifier Screws 16. Attach the signal amplifier onto the side of the laser head using the provided screws.(see below) 17. Insert the signal cable into the signal amplifier top port. Connect the high temperature cable to the amplifier’s bottom port.

  • Page 16: Machine Connections

    Machine Connections Laser Box to Machine Connection Insert the power cable into the laser generator and the machine. Connect the signal cables to the laser generator (see below). Make sure that the cables are in the correct position before plugging it into the machine. Connect the ethernet cable next.

  • Page 17: Operating Table Assembly

    Operations Table Assembly Take out the Operations Table and the connecting rods. Remove the front right cover plate. Pull out the Signal Cable and run it through the first connecting rod. Install the rod onto the mount (see below). Run the cable through the second rod and connect it to the first.
  • Page 18 6. Open the back cover of the Operation Table and run the cables through the back cover. 7. Now connect the Power and VGA cables to the monitor. 8. Connect the Signal cable to the similar cable on the table. 9.

  • Page 19: Section Iv. Cypcut

    Section IV. Cypcut Software Installation Instructions: The MC Series Fiber Flatbed uses the software called CypCut. The software can be downloaded at www.fscut.com. Before installing, make sure your system meets the following requirements to operate the software. CypCut System Minimum Requirement: OS:WIndows 7 Processor: Intel i3 Memory: 4 GB Ram...

  • Page 20: Cypcut Controls

    CypCut Controls: Control Panel: Jogging Controls -Moves the Laser Head Assembly along the work area. Laser Head Controls -Moves the Laser Head Up and Down Cutting Parameters - Parameters than can be adjusted before Running a project to obtain different results Simu - Also known as the Simulation Button.
  • Page 21 Top Bar: Tabs: File - Import, Export, Save, Load,and Create Files here. Home - Contains many scaling and design altering tools. Draws - Create a design using the different tools and shapes available. Nest - Save cutting designs here. You can also group and ungroup object. Remnant -Guides on how to use project remnants to get the most out of your material -CNC settings...
  • Page 22 Status Log: Shows a log of previous and ongoing actions. Draw: Log of object indeed and removed from the workspace. System: Log of system actions Alarm: Log of system errors Layer Tab: The Layer Tab also you to move objects to different layers for better grouping. It’s important to note that objects in the same layers will be cut out together.

  • Page 23: Section V. Maintenance & Adjustments

    Section V. Maintenance & Adjustments Before starting a job: Check your gantry rails for any debris. If any particles are present, wipe it clean with a rag. If you find that a piece of debris fell into your gantry rails, then we suggest removing the belt to remove the debris as it can interfere with your lasers output.

  • Page 24: Adjustments

    Machine Adjustments: Setting Machine and Laser Head Origin: The machine should be powered on and work space clear. Open CypCut. Find the “Go Origin” button in the top bar and Select it. The machine should move to the front left corner, the Z axis will be homed, and the fine focus lens will be re-zeroed.
  • Page 25 General Reference Cutting Parameters: Carbon steel: use O2, dual nozzles, low pressure for thick materials Stainless Steel and Aluminum: use N2, single nozzles, high pressure for all thicknesses Protective Window Replacement: If cut quality degrades, verify the cleanliness of the cut window. If the cut window has spots or is burned,then it should be replaced with a new window.

  • Page 26: Warranty

    Warranty Full Spectrum Laser will replace or repair any defective parts free of charge within the first 30 days. Ground shipping is free with overnight shipping available at extra charge. Full Spectrum Laser will replace or repair any defective part within the warranty period free of charge but shipping charges are the responsibility of the customer.

  • Page 27: Customer Support

    Customer Support If you have any questions about your machine don’t hesitate to contact us. We have a large number of resources available to make your first laser experience user-friendly.
