Summary of Contents for Wellue BP2
- Page 1 Automatic Upper Arm Blood Pressure Monitor User Manual Model BP2/BP2A...
-
Page 2: Table Of Contents
Table of Contents 1. The Basics..............1 1.1 Safety............. 1 2. Introduction...............5 2.1 Intended Use..........5 2.2 Contraindications........... 5 2.3 About the Product......... 6 2.4 Symbols............7 3. Using the Monitor............. 8 3.1 Charge the Battery......... 8 3.2 Blood Pressure Measurement....... 8 3.2.1 Before Taking a Measurement....8 3.2.2 Applying the Arm Cuff...... -
Page 3: The Basics
1. The Basics This manual contains the instructions necessary to operate the product safely and in accordance with its function and intended use. Observance of this manual is a prerequisite for proper product performance and correct operation and ensures patient and operator safety. - Page 4 or malfunctions or impede the operation of the device. This device is not intended for use by people (including children) with restricted physical, sensory or mental skills or a lack of experience and/or a lack of knowledge, unless they are supervised by a person who has responsibility for their safety or they receive instructions from this person on how to use the device.
- Page 5 and/or dosage of any existing medication without prior approval. This device is not a substitute for a medical examination or your heart or other organ function, or for medical electrocardiogram recordings, which require more complex measurements. It is not possible to use this device to diagnose illness or ...
- Page 6 function properly. People who have a severe circulatory deficit in the arm must consult a doctor before using the device, to avoid medical problems. Do not self-diagnose the measurement results and start treatment by yourself. Always consult your doctor for evaluation of the results and treatment.
-
Page 7: Introduction
2. Introduction 2.1 Intended Use The product is intended to be used for measuring, displaying, reviewing and storing of ECG and blood pressure variation in home or healthcare facilities environment. ECG and Blood pressure variation is intended for use with adult. The data and results provided by this device are for pre-check screening purpose only and cannot be directly used for diagnostic or treatment. -
Page 8: About The Product

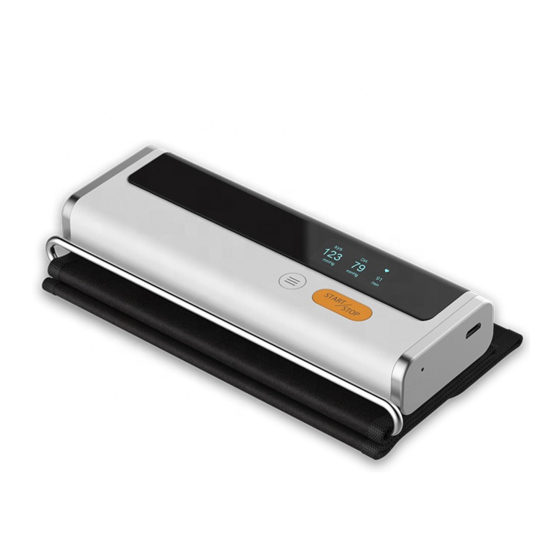

2.3 About the Product 1. Start/Stop button Power On/Off Press to Start/Stop blood pressure measurement. 2. Function button Press to Start ECG measurement. Press and hold 2 seconds to review historical data. 3. Display screen 4. LED indicator Blue light is on: the battery is charging. -
Page 9: Symbols
2.4 Symbols Symbol Description Application part type BF Manufacturer In conformity with Directive 93/42/EEC CE0197 European Representative Symbol for “ENVIRONMENT PROTECTION – Waste electrical products should not be disposed of with household waste. Please recycle where facilities exist. Check with your local authority or retailer for recycling advice”. -
Page 10: Using The Monitor
3. Using the Monitor 3.1 Charge the Battery Use the USB cable to charge the monitor. Connect the USB cable to a USB charger or to the PC. A fully charge will need 2 hours. When the battery charged fully the indicator will be blue. -
Page 11: How To Sit Correctly
may cause a faint pulse and result in a measurement error. Constriction of the upper arm, caused by rolling up shirtsleeve, may prevent accurate readings. Confirm that the artery position mark is line up with the artery. 3.2.3 How to Sit Correctly To take a measurement, you need to be relaxed and comfortably seated. -
Page 12: After Measurement
measurement takes about 30s. 4. The readings will be displayed when the measurement finished. You can press Start/Stop button again to stop the blood pressure measurement. Note: During measurement, you should keep still and do not squeeze the cuff. 3.2.5 After Measurement The monitor will automatically release the cuff gas after the measurement is over. -
Page 13: Recording Ecg Without Cable
the hand with which you are taking the measurement. Please note that there must be no skin contact between your right and left hand. Otherwise, the measurement cannot be taken correctly. Stay still during the measurement, do not speak and hold ... -
Page 14: Turn On/Off Heartbeat Sound
To start an ECG Recording: 1. Put your right palm on the right side electrodes of the Monitor. 2. Put the left side electrodes to the body position that you desired to measure. 3. Once the body parts are placed on the electrodes, press Function button to start the EKG recording. -
Page 15: Turning On/Off Bluetooth
3.5 Turning On/Off Bluetooth Monitor has built-in Bluetooth wireless connectivity, which enables exporting measured records to mobile phones and pads running iOS or Android platform. Press the function button and hold it for 3 seconds to start Bluetooth mode. Data can only be exported in Bluetooth mode. Pressing the Start/Stop button will exit Bluetooth mode. -
Page 16: Accessories
seriously. Error 3 The signal is poor Take blood Remove any during blood pressure on a clothing pressure bare arm. interfering with measurement. the cuff. Error x (x>4) The device has contact Contact malfunctioned. customer customer service. service. Check connect The ECG cable is Check the ECG off, or the body... -
Page 17: Maintenance
6. Maintenance 6.1 Maintenance To protect your monitor from damage, store the monitor and the components in a clean, safe location. Caution: DO NOT disassemble or attempt to repair this monitor or other components. This may cause an inaccurate blood pressure readings and/or EKG recordings. 6.2 Cleaning Do not use any abrasive or volatile cleaners. -
Page 18: Specifications
7. Specifications Classifications MDD, 93/42/EEC EC Directive RED, 2014/53/EU ROHS 2.0, 2011/65/EU Degree protection Type BF against electrical shock Environmental Item Operating Storage Temperature 5 to 40°C -25 to 70°C Relative humidity 10% to 95% 10% to 95% (non-condensing) Barometric 700 to 1060 hPa 700 to 1060 hPa Degree of dust &... - Page 19 Rechargeable lithium-polymer Battery type battery Battery run time 500 measurements Charge time 2 hours Blood Pressure Measurement Technology Oscillometric Method Pressure measurement 0 – 300mmHg range Pressure measurement ±3mmHg accuracy Pulse rate range 40 to 200 /min ±2 /min Pulse rate accuracy Clinical accuracy Meet IEC80601-2-30 ECG Recording...
-
Page 20: Electromagnetic Compatibility
8. Electromagnetic Compatibility The device meets the requirements of EN 60601-1-2. Warnings and Cautionary Advices Using accessories other than those specified in this manual may result in increased electromagnetic emission decreased electromagnetic immunity equipment. The device or its components should not be used ... - Page 21 to cause any interference in nearby electronic equipment. RF emissions Class B The device is suitable for use CISPR 11 in all establishments, including domestic Harmonic Class A establishments and those emissions directly connected to the IEC61000-3-2 public low-voltage power Voltage Complies supply network that supplies...
- Page 22 fast power quality should transient supply lines power be that of a /burst ± 1 kV for supply typical input/outp lines commercial or 61000-4- ut lines ± 1 kV hospital environment. input/o utput lines ± 1 kV ± 1 kV Surge line(s) to line(s)
- Page 23 power supply or for 25 a battery. cycles <5 % (>95 % dip in for 5 s Power 3 A/m 3 A/m Power frequency frequenc magnetic fields y (50/60 should be at levels magnetic characteristic of field IEC a typical location 61000-4- in a typical commercial or...
- Page 24 Vrms Vrms Portable Conduce 150 kHz 150 kHz to mobile d RF 80 MHz communications IEC61000 80 MHz outside equipment -4-6 outside ISM bands should be used no closer to any bands part system, including cables, than recommended separation distance calculated from equation appropriate for...
- Page 25 rating transmitter watts according to the transmitter manufacturer and d is the recommended separation distance meters (m). Field strengths from fixed RF transmitters, as determined electromagnetic site survey should be less than compliance level each frequency range Interference occur in the vicinity of equipment marked with the following...
- Page 26 absorption and reflection from structures, objects and people. a Field strengths from fixed transmitters, such as base stations for radio (cellular/cordless) telephones and land mobile radios, amateur radio, AM and FM radio broadcast and TV broadcast cannot be predicted theoretically with accuracy.
- Page 27 power 80 MHz 2.5 GHz transmitte r (W) 0.01 0.12 0.12 0.23 0.38 0.38 0.73 1.20 1.20 2.30 3.80 3.80 7.30 12.00 12.00 23.00 For transmitters rated at a maximum output power not listed above, the recommended separation distance d in metres (m) can be estimated using the equation applicable to the frequency of the transmitter, where P is the maximum output power...
- Page 28 PN：255-01761-00 Version: A April, 2019 Shenzhen Viatom Technology Co., Ltd. 4E, Building 3, Tingwei industrial Park, Honglang North 2 Road, Baoan, 518100 Shenzhen, P.R.China MedNet GmbH Borkstrasse 10 · 48163 Muenster · Germany...
