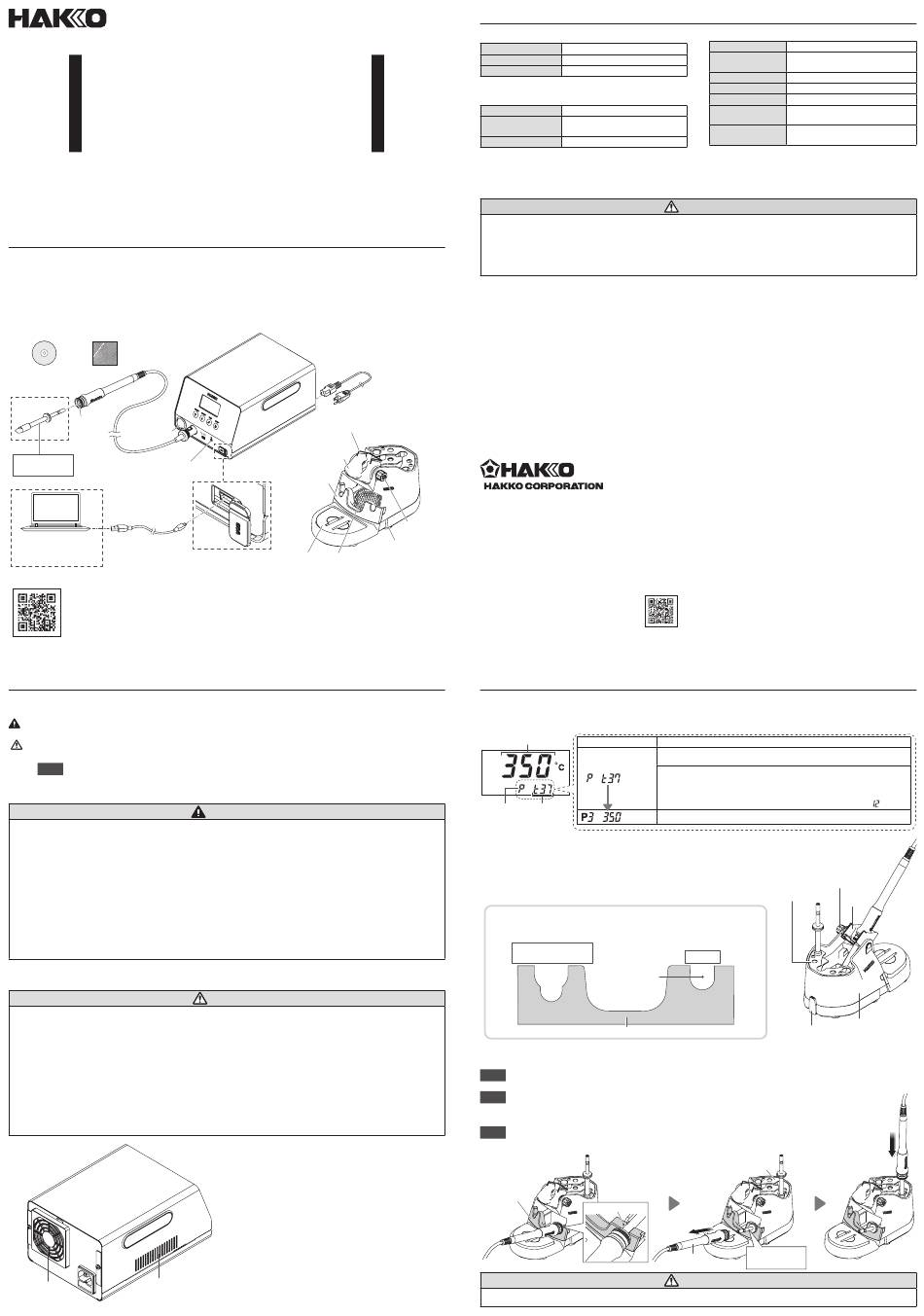

HAKO FX-805 Instruction Manual

SOLDERING STATION
Instruction Manual
Thank you for purchasing a HAKKO product.
This product is a soldering iron station.
Make sure to read this manual before using the product, and keep it in a safe place for future reference.

1. Set contents and assembly

Station FX-805 .................................................................... 1
* Handpiece FX-8004 ............................................................ 1
* Iron Holder FH-220
(With cleaning sponge/wire) ............................................... 1
Filter .................................................................................... 1
USB cable ........................................................................... 1
Software
(CD-ROM) Filter
Handpiece
Nipple
Power switch
Tip
IR receiver
(sold separately)
(See "4-3. Operation")
USB cable
Connect to a computer
(See the separate document
"Connecting to a Computer")
See the web page for the product information such as replacement parts/options.
https://www.hakko.com/doc_fx805

3. Warnings, Cautions, and Notes

Warnings, cautions, and notes are placed at critical points in this manual to direct your attention to significant
items. They are defined as follows:
WARNING: Failure to comply with a WARNING may result in serious injury or death.
Failure to comply with a CAUTION may result in injury to the operator, or damage to the items
CAUTION:
involved.
: This indicates procedures or information that are important in a process described in this
NOTE
document.
Be sure to observe the following precautions to ensure safety.
● This appliance can be used by children aged from 8 years and above and persons with reduced physical,
sensory or mental capabilities or lack of experience and knowledge if they have been given supervision
or instruction concerning use of the appliance in a safe way and understand the hazards involved.
● Children shall not play with the appliance.
● Cleaning and user maintenance shall not be made by children without supervision.
● When this product is not used, place the handpiece on the iron holder.
● The tip reaches high temperatures when the power source is turned on. You may risk getting burned or
causing a fire if mishandled.
● Do not touch the metal parts near the tip.
● Do not place anything that easily burns or ignites near the product.
● Make sure that people nearby are aware of the "high temperature danger."
● When the product is not in use, being repair, or being cleaned, turn off the power switch and disconnect
the plug from the power outlet.
Failure to observe the following precautions to ensure safety might result in electric shock, malfunction or other
trouble.
● Before using this product, fully read all descriptions in this document.
● Only use the product for soldering.
● Do not hit the handpiece against a workbench or subject it to strong shocks to remove solder residue.
● Soldering produces smoke, so make sure to work in a well-ventilated area.
● Do not block the station air inlet or outlet. (Figure 1)
● Use genuine HAKKO parts for included parts/replacement parts/options.
● Do not modify this product.
● Do not use damaged cords or plugs. Doing so can result in malfunction or injury.
● Do not use the product if it has been dropped or shows signs of damage.
● When inserting and removing the cord, hold the plug body and do not pull the cord.
● Do not allow this product to get wet. Also, do not handle it with wet hands.
● Do not perform any other actions that may be considered to be dangerous.
Figure 1
Air outlet
Air inlet
FX-805
Confirm the contents before use.
*This product may differ from the following:
Software (CD-ROM) ............................................................ 1
Power cord .......................................................................... 1
Instruction manual (this document) ..................................... 1
Instruction manual
(Quick Parameter Settings / Connecting to a Computer) .... 1

Station

Power cord
Retaining clip
Iron receptacle
Tip removing
attachment
Cleaning sponge Cleaning wire
WARNING
CAUTION
2. Specifications
Power consumption
Temperature range
Temperature stability
Station
Output
Dimensions
Weight
■ Handling precautions for ESD Safe products
This product contains electrostatic countermeasures, so please use the following precautions:
1. Not all plastic parts are insulators, they may be conductive. Be careful not to expose live electrical parts
or damage insulating materials when performing repairs or replacing parts.
2. Be sure the product is grounded before use.
Iron holder
HEAD OFFICE
4-5, Shiokusa 2-chome, Naniwa-ku, Osaka 556-0024 JAPAN
TEL: +81-6-6561-3225 FAX: +81-6-6561-8466
https: // www.hakko.com E-mail: sales@hakko.com
Knob
OVERSEAS AFFILIATES
U.S.A.: AMERICAN HAKKO PRODUCTS, INC.
Rubber foot
TEL: (661) 294-0090 FAX: (661) 294-0096
Toll Free (800) 88-HAKKO
4 2 5 5 6
https: //www.HakkoUSA.com E-mail: Support@HakkoUSA.com
HONG KONG: HAKKO DEVELOPMENT CO., LTD.
TEL: 2811-5588 FAX: 2590-0217
https: //www.hakko.com.cn
SINGAPORE: HAKKO PRODUCTS PTE., LTD.
TEL: 6748-2277 FAX: 6744-0033
https: //www.hakko.com.sg
Please access the code for overseas distributors.
https: // www.hakko.com/doc_network
© 2022 HAKKO Corporation. All Rights Reserved.
4. Operation
4-1. Station
With the tip installed into the handpiece and plugged into the station turn on the power switch. Below shows
the display indication types.
Tip sensor temperature
Output mode Tip type
[P]/[n]
4-2. Iron holder
The iron receptacle angle can be changed 45 ± 10 degrees with the knob.
●
●
Make sure to wet the cleaning sponge before using it.
●
The iron holder base can be removed by pressing the release button.
●
The tip can be stored in the tip insertion holder.
●
You can quickly and safely replace the tip using the iron holder.
Use the "left side top/bottom groove" or "right side groove" of the tip
removing attachment to replace the tip.
For N Soldering Iron
2
Nozzle Assembly
Top
Left
side
Bottom
(1) Insert the tip until the handpiece contacts the "right side groove." (Figure 1)
(2) Pull the handpiece straight out. (Figure 2)
NOTE Cool the tip in the tip removing attachment, and then rotate it to pull it out.
Note that using too much downward force can damage the tip or handpiece.
NOTE For safety purposes and to prevent damage to the product, make sure to press the iron holder
with your hand.
(3) Insert the tip that has been placed in the tip insertion holder into the handpiece. (Figure 3)
NOTE By using the tip insertion holder, tip can be inserted firmly to the end.
Figure 1
Tip removing
attachment
After replacement, the tip remains at a high temperature for a long period of time. Take care not to get burned.
Handpiece
Power consumption 390 W (30 V)
460 W
Tip to ground
50 to 500ºC (120 to 940ºF)
At idle temperature: ± 5ºC (9ºF)
resistance
Leak voltage
Heating element
Cord length
AC 30 V
Total length
143 (W) × 107 (H) × 218 (D) mm
(5.6 × 4.2 × 8.6 in)
Weight
3.9 kg (8.6 lb)
●
The total length and weight excludes the cord.
●
This product is applied with electrostatic countermeasures.
●
Please note that specifications and appearance are subject to
change without notice in the interest of product improvement.
CAUTION
E-mail: info@hakko.com.hk
E-mail: sales@hakko.com.sg
Display
Tip type
The inserted tip type is automatically recognized and displayed.
Output mode
（P T37）
Power [P] is set as a factory default.
Power [P] is useful for workpieces that require a large amount of heat.
Normal [n] is useful for temperature-sensitive workpieces.
(See the separate document "Quick Parameter Settings parameter No.
（P3 350） Preset No. and setting temperature (See "4-3. Operation")
Replacing the tip
For tip
Use here to remove
the tip.
(compatible to 2 types
of tip size)
Tip removing attachment
Figure 2
Tip insertion
Right side groove
Handpiece
The illustration is T37 tip.
CAUTION
< 2 Ω
< 2 mV
Composite heater
1.2 m (3.9 ft)
244 mm (9.6 in)
(with T37-D24 tip)
54 g (1.9 oz)
(with T37-D24 tip)
2022.06
80.0959-005
Details
")
Knob
Iron
Tip insertion holder
receptacle
Right
side
Iron holder base
Release button
Figure 3
holder
The tip remains
here.
