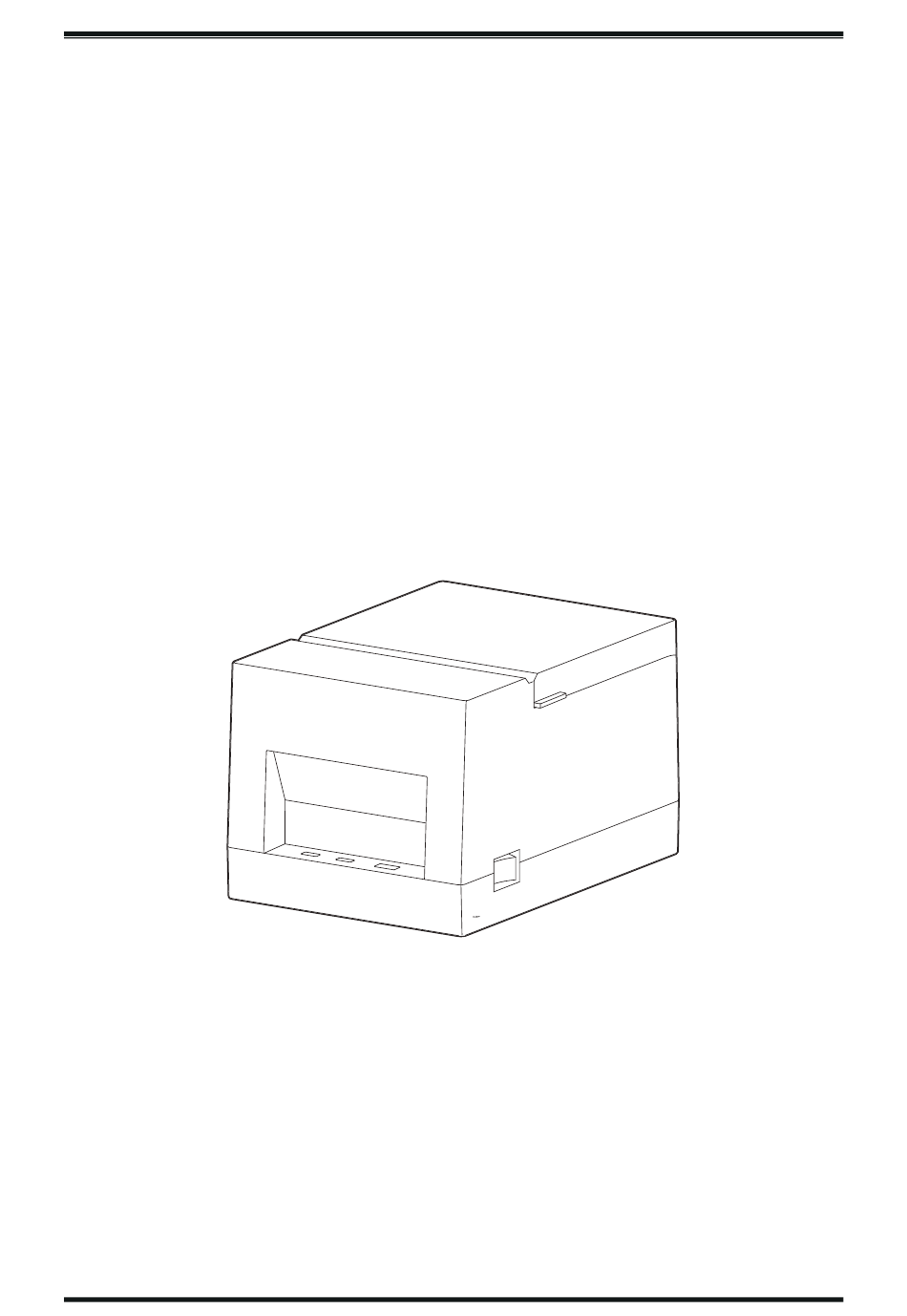

- Page 1 USER MANUAL THERMAL RECEIPT PRINTER MODEL: 581P...
-
Page 2: Table Of Contents
CONTENTS STATEMENT........................SAFETY PRECAUTIONS....................CHAPTER 1. PRODUCT INTRODUCTION..............1.1 Brief introduction....................... 1.2 Features........................1.3 Unpacking checklist....................1.4 Physical appearance and components..............1 .5 Product dimensions....................CHAPTER 2. PRODUCT SPECIFICATIONS..............2.1 Technical specications....................2.2 Technical specications of printer consumables............2.3 Printing / cutting position..................CHAPTER 3 INSTALLATION AND OPERATION............1 3.1 Loading the paper roll.................... -
Page 3: Statement
STATEMENT The content of this manual should not be changed without prior written permission. Deli Group Co., Ltd. reserves the right to make any change on the technology, parts, software and hardware of this product. If you need addi- tional information about this product, please feel free to contact Deli Group Co., Ltd. - Page 4 • Do not use the electrical outlet if it’s not compatible with the power cord plug. • You should only use standard multi-outlet power strips. 2) You should only use the adapter provided in this package. • It is not safe to use other adapters. 3) Do not unplug it by pulling on the power cord •...
- Page 5 6) Other matters to note. Leave enough space around the printer for operation and maintenance pur- pose Keep the printer away from water, direct sunlight, strong light and heat sources. Do not use or store the printer in places with high temperature, high humidi- ty or heavy pollution.
- Page 6 4.WEEE (Waste Electrical and Electronic Equipment) The symbol placed on the product indicates that the item should not be mixed with general household waste. If such waste is not properly managed, it may harm both environment and human health. To prevent possible harm to the environment or human health from uncontrolled waste disposal, please separate these items from other types of waste and recycle them responsibly to promote the sustainable reuse of ma-...
-
Page 7: Chapter 1. Product Introduction

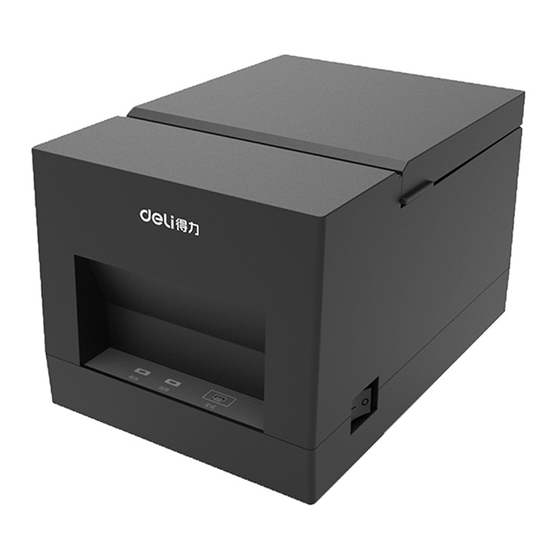

1 PRODUCT INTRODUCTION 1.1 Brief introduction DL-581P(NEW)/DL-581PW(NEW)/DL-581YW is a thermal receipt printer with an automatic cutter. The printer features high print quality, high speed and great stability and it is widely used to work with POS systems in catering industry and other occasions that require on-site real-time printing of receipts. -
Page 8: Unpacking Checklist
1.3 Unpacking checklist 1) Unpack the printer and save the packing materials in case you need to repack the printer for shipping or storage. 2) Please contact the dealer for any defect and/or missing of accessory. Printer USB cable power cord user manual paper roll E581P printer support Bluetooth function. -
Page 9: Physical Appearance And Components
1.4 Physical appearance and components cutter cover error indicator... -
Page 10: Product Dimensions
1.5 Product dimensions Unit: mm... -
Page 11: Technical Specications
2.Product Speci cations 2.1 Technical Speci cations Item Parameter Print method Direct thermal Print resolution 203 dpi 8 dots/ mm Printing Printing speed 70mm/s Print width 48mm Print density 1 -4 level (adjust able) Processor 32-bit RSIC Flash memory (optional) Detection Sensor Out of paper detection... -
Page 12: Technical Specications Of Printer Consumables
2.2 Technical specications of printer consumables 2.2.1 Continuous paper parameters 1) Paper type:Thermal receipt paper 2) Paper width:Supported printer paper 3) Paper thickness:0.050 ~ 0.090mm 4) Recommended paper TypeN0. 11721 , N0. 3142 manufacturerDELI GROUP CO., LTD. 2.2.2 Notes Note: 1) Please use recommended paper or equivalent quality paper. -
Page 13: Printing / Cutting Position
2.3 Printing / cutting position 2.3.1 Printing position 58 mm paper Paper width:57.5±0.5mm print area width:48mm 2.3.2 Cutting position Cutting position First line printing position Type Cutting position (L1) 13 mm DL-581P(NEW)/DL-581PW(NEW)/DL-581YW... -
Page 14: Loading The Paper Roll
3 INSTALLATION AND OPERATION 3.1 Loading the paper roll 1 . Face toward the front panel and open the paper roll cover by pushing it up in the direct ion of arrow (as shown below). 2. Please remove the paper roll if necessary. 3. - Page 15 4. Please pull out a small amount of paper in the front , and then close the printer top cover. 5. Tear o excess paper...
-
Page 16: Connecting The Power Cord
3.2 Connect ing the power cord 1 . Make sure the printer's power switch is o (O). 2. Connect the power adapter to the printer. 3. Plug the power cord into the other end of the power supply. Power cord Note 1)Please use our company's original power adapter to avoid damage to the product and the possible cause of injury. -
Page 17: Description Of Indicator
3.3 Connect to the cash regist er 1 Make sure the power switch of the printer is o ; 2 Insert the cash register connect ing cable into the cash register port on t he back of the printer. Warning: The cash register interface can only be connected to a cash register device with a voltage of 12V (it should not be connected to a telephone line, etc.). -
Page 18: Use Of Bluetooth
This is the self-test is process: 1 ) Ensure the power is connect ed, and the paper roll is properly installed. 2) Make sure that the printer is o and the top cover is properly shut. 3) Wait until the red light is o , release the paper feed button to print the printer self-check page. -
Page 19: Chapter 4 Interface Signal
4 Interface signal 581P(NEW)/581PW(NEW)/581YW printer supports cash drawer interface and multiple communication interfaces: USB interface, cash drawer interface. 4.1 USB Pin number Signal name VBUS 4.2 Cash drawer Pin number Signal name Drawer 1 DRSW Drawer 2 Electrical characteristics: Drive voltage: 12V DC Drive current: 1.0A max... -
Page 20: Chapter 5 Troubleshooting
5 TROUBLESHOOTING If you cannot solve a problem using the troubleshooting tips in this section, you may need to call technical support. Please contact your dealer or manu- facturer for assistance. 5.1 Printer stops functioning Problem Possible Cause Solution Printer has no power Connect the printer power Indicator light is not on, Pri n ter is not turned on... -
Page 21: Problems During Printing
5.3 Problems during printing Problem Possible Cause Solution Paper roll is loaded incorrectly Check if the paper roll is loaded correctly Printing paper is not qualied Replace with recommended thermal paper Print is light or spotty Print head or rubber Clean the print head or rubber roller roller is dirty The print density... -
Page 22: Chapter 6 Cleaning The Printer
6 CLEANING THE PRINTER Printing quality might be degraded by dust, foreign substance, adhesive substance, or other pollution materials stuck in the printer head or inside the printer.When dirty, clean the print head as follows ¸ Caution 1) Make sure to turn the printer power o prior to cleaning. 2) Turn the printer o and wait for 2 -3 minutes before cleaning the printhead because it gets very hot during the printing process.
