Control Operation - Service

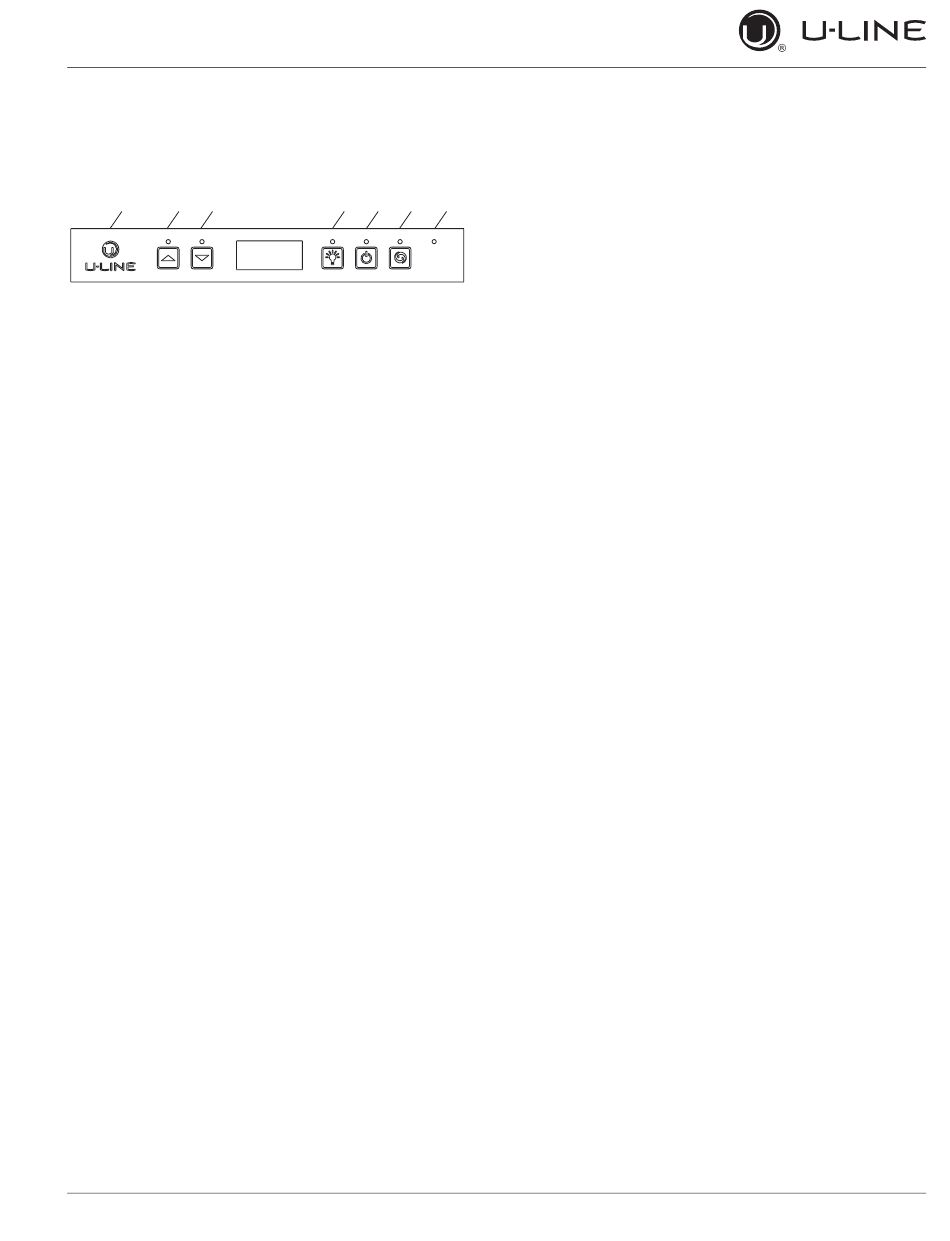

UI BUTTON LAYOUT
1 2 3
Hidden Button
1.
-Accesses Service Menu
-No LED directly above. All LEDs turn on with button
activation except #7.
Up Button
2.
-Increases temperature
-Navigates through service menu
-LED activated with button activation.
Down Button
3.
-Decreases temperature
-Navigates through service menu
-LED activated with button activation
Light Button
4.
-Activates light for 3 hours on select models
-Used to select items in service menu
-LED activated with button activation
Power Button
5.
-Turns unit off/on
-LED activated with button activation (only turning unit
off)
Clean Button
6.
-Activates Clean Cycle on CLR models
-LED activated with button activation
LED
7.
-No button
4 5 6 7
u-line.com
Control Operation - Service 1
