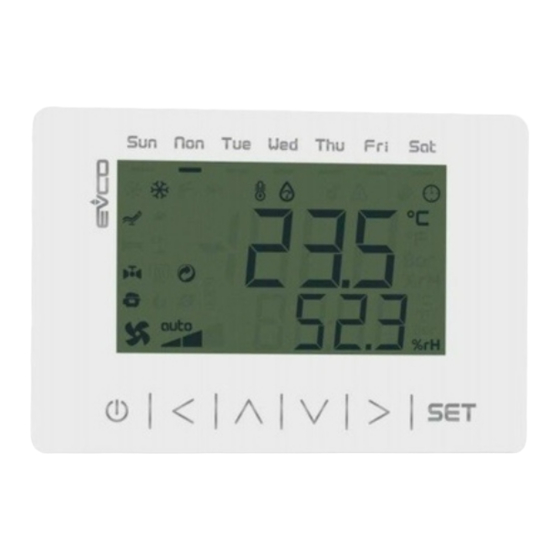

EVJ LCD
Remote User Interfaces
114VJLCDE204
Applications
Heat
pump
|
Static LCD display
|
6 capacitive touch keys
|
INTRABUS or RS-485 communication port
|
Built-in alarm buzzer
|
Built-in temperature and humidity sensor
|
Built-in Bluetooth Low Energy sensor
EVCO | 19.09.2022 | AZ
Air handling unit
| 1

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the EVJ LCD and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Evco EVJ LCD

Summary of Contents for Evco EVJ LCD

  • Page 1 Air handling unit pump EVJ LCD Static LCD display 6 capacitive touch keys Remote User Interfaces INTRABUS or RS-485 communication port Built-in alarm buzzer Built-in temperature and humidity sensor Built-in Bluetooth Low Energy sensor 114VJLCDE204 EVCO | 19.09.2022 | AZ...
  • Page 2 EVJ LCD - Remote user interfaces Device for indoor applications IMPORTANT Read this document thoroughly before installation and before use of the device and follow all recommendations; keep this document with the device for future consultation. Only use the device in the way described in this document; do not use the same as a safety device...
  • Page 3 EVJ LCD - Remote user interfaces Index | Introduction | Purchasing codes |12 VAC/DC models for panel or wall mounting | Purchasing codes description |12 VAC/DC models for panel or wall mounting | Purchasing codes |115... 230 VAC models for wall mounting | Purchasing codes description |115...
  • Page 4 EVJ LCD - Remote user interfaces | User interface |Key description |Switching ON/OFF the device |Accessing the procedure |Accessing the menù | Settings menu |Sensitive areas description and parameters settings |Keys |Parameters settings | Technical data 114VJLCDE204 EVCO | 19.09.2022 | AZ...
  • Page 5 EVJ LCD - Remote user interfaces Introduction The remote user interfaces EVJ LCD can be used as remote displays for a wide range of EVCO controllers for HVAC applications and many programmable controllers in the c-pro 3 range. Depending on the model, a number of different features are installed: –...
  • Page 6 EVJ LCD - Remote user interfaces Purchasing codes 12 VAC/DC models for panel or wall mounting The following table shows the available EVJ LCD models and the relative purchasing codes 12 VAC/DC models for panel or wall mounting Features EVJD900N2...
  • Page 7 EVJ LCD - Remote user interfaces Purchasing codes 115... 230 VAC models for wall mounting The following table shows the available EVJ LCD models and the relative purchasing codes 115... 230 VAC models for wall mounting Features EVJD902N9VP EVJD902N9VPIV EVJD922N9VP...
  • Page 8 EVJ LCD - Remote user interfaces Dimensions 12 VAC/DC models for panel mounting WARNINGS – The thickness of a metal panel must be between 0.8 and 1.5 mm ( ⁄ ⁄ in), while that for a plastic panel must be between 0.8 and 3.4 mm (...

  • Page 9: Installation

    EVJ LCD - Remote user interfaces Installation 12 VAC/DC models for panel mounting To be fitted to a panel with elastic holding flaps 1. Make a hole of 107.6 mm (3 ⁄ in) x 72.6 mm (2 ⁄ Example for plastic panel with rounded corners R 3 mm ( ⁄...
  • Page 10 EVJ LCD - Remote user interfaces 115... 230 VAC models for wall mounting Mounted onto in-wall electrical box with rear housing of back power module 1. Unhook the back shell from the front through a screwdriver and the proper seat.

  • Page 11: Electrical Connections

    Disconnect the power supply before doing any type of maintenance – Do not use the device as safety device – For repairs and for further informations, contact the EVCO sales network; possible returns without label data will not be accepted 114VJLCDE204 EVCO | 19.09.2022 | AZ...
  • Page 12 EVJ LCD - Remote user interfaces Electrical connection with independent power supply WARNINGS – Do not supply another device with the same transformer – The maximum permitted length for connection cables of the INTRABUS port is 30 m (98.4 ft)
  • Page 13 EVJ LCD - Remote user interfaces 12 VAC/DC models for wall mounting Connectors and parts Connector 1 Number Description EVJ LCD INTRABUS port reference (GND) or Micro-switch RS-485 signal B (-) (according to the model) INTRABUS port data (IB) or...
  • Page 14 The micro-switch is on the back of the device (remove the back shell from the front before) To terminate the RS-485 network: – Place micro-switch 2 in position ON – Let the micro-switch 1 in position OFF (EVCO reserved) 114VJLCDE204 EVCO | 19.09.2022 | AZ | 14...
  • Page 15 EVJ LCD - Remote user interfaces Electrical connection for models with RS-485 port EVJ LCD EVJ LCD – RS-485 AI4 analog/ digital input Mobile device Bluetooth sensor Temperature (AI3) RS-485 port and humidity (AI5) sensor Do not supply another 230 VAC / 12 VAC 10 VA...
  • Page 16 EVJ LCD - Remote user interfaces 115... 230 VAC models for wall mounting Connectors and parts Connector 1 Number Description EVJ LCD 6 7 8 9 10 Device power supply (115... 230 VAC) Connector 2 Device power supply (115... 230 VAC)
  • Page 17 EVJ LCD - Remote user interfaces Electrical connection with independent power supply Device with INTRABUS port INTRABUS EVJ LCD 6 7 8 9 10 Mobile device K2 K1 Bluetooth sensor Temperature 1 2 3 4 5 and humidity sensor Mains Power supply (115...

  • Page 18: User Interface

    EVJ LCD - Remote user interfaces User interface Key description Instructions ON/STAND-BY LEFT AND RIGHT UP AND DOWN Switching ON/OFF the device Progression Description Connect the power supply: it will be started an internal test that takes typically a few seconds Touch SET key for 7 seconds: the display will show “Mnu”...

  • Page 19: Settings Menu

    EVJ LCD - Remote user interfaces Settings menu Sensitive areas description and parameters settings WARNINGS Turn off the power after changing the configuration Keys Parameters settings “InF” menu “InF” menu Instructions N. Param. Def. “InF” menu Min/max Touch SET key for 7 seconds: Project number the display will show “Mnu”...
  • Page 20 EVJ LCD - Remote user interfaces “nEt > Itb” menu “nEt > Itb” menu Instructions N. Param. Def. “nEt > Itb” menu Min/max Touch SET key for 7 seconds: 13 nOd INTRABUS node 1... 127 the display will show “Mnu” and “Inf”...
  • Page 21 EVJ LCD - Remote user interfaces “dEb” menu “dEb” menu Instructions N. Param. Def. “dEb” menu Min/max Touch SET key for 7 seconds: 30 PSU Power supply voltage the display will show “Mnu” and “Inf” value Touch DOWN key for times:...

  • Page 22: Technical Data

    EVJ LCD - Remote user interfaces Technical data Type Description Purpose of the control device Function controller Construction of the control device Built-in electronic device Container White and black, self-extinguishing Category of heat and fire resistance Dimensions 12 VAC/DC models for panel mounting – 111.4 x 76.4 x 25.0 mm –...
  • Page 23 - EVJD920N2VWIV - EVJD902N9VPIV - EVJD922N9VPIV complies with directive 2014/53/EU and directive 2011/65/EU. The full text of the EU declaration of conformity is available at the following internet address: https:/ /www.evco.it/en/16283- evj-epj-lcd 114VJLCDE204 EVCO | 19.09.2022 | AZ | 23...
  • Page 24 EVCO. The customer (manufacturer, installer or end-user) assumes all responsibility for the configuration of the device. EVCO accepts no liability for any possible errors in this document and reserves the right to make any changes, at any time without prejudice to the essential functional and safety features of the equipment.
