Contents CAPTIS POWER+ TECHNICAL INFORMATION ..................... 3 BEFORE YOU BEGIN ................................ 4 INSTALLATION ................................... 5 Mount your Captis Power+ ............................5 Terminate the Sensor ..............................6 Test Sensor ..................................6 Test Connectivity ................................6 TROUBLESHOOTING ............................... 7 MAINTENANCE & SAFETY ............................8 Maintenance ..................................
BEFORE YOU BEGIN Before starting this installation, you will need the following items: • The contents of your Captis device box • A small flat blade screwdriver • An internet-connected device, such as a phone or tablet What’s in your Captis device box? •...

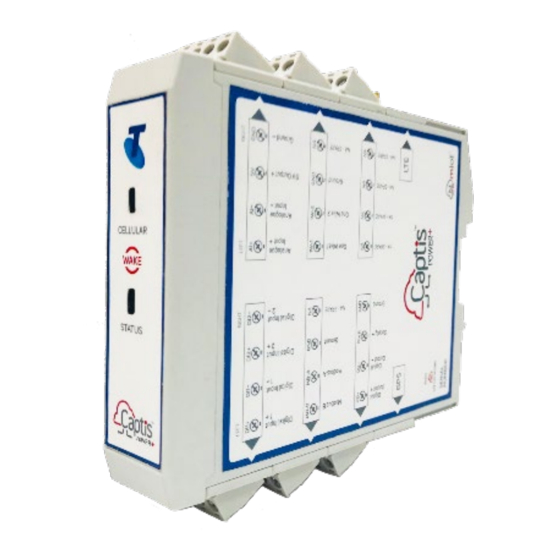

INSTALLATION To successfully install the Captis device you must perform the following steps: Mount your Captis Power+ to a DIN rail 2. Connect the Captis Power+ to DC power supply 3. Terminate the sensor 4. Test the sensor and test connectivity Mount your Captis Power+ Note: If the Captis Power+ is to be installed inside a metal cabinet, an external LTE antenna must be used and routed to an open area where cell signal is less obstructed.
Terminate the Sensor The Captis Power+ is provided with 24 terminals, 12 on each side of the device. These terminals can be connected to one or many different peripheral devices at one time. Use the diagram below to determine how to wire the connections between the Captis Power+ terminals and the sensor. Test Sensor Test the sensor by ensuring there is known data out of the sensor into the Captis device sensor input.
TROUBLESHOOTING SYMPTOM MEANING WHAT TO DO Device is working as it should, x20 Device is on/ awake. leave device to collect data. Device connected to LTE Device is working as it should, solid network. leave device to collect data. The device battery may be Use a different device and depleted, or a device fault may no LED status...
MAINTENANCE & SAFETY Note: Opening the Captis Power+ device will void warranty and may cause significant damage to the device. Maintenance Your Captis Power+ does not require any maintenance once installed. If you encounter any issues with the device during its standard operation, contact your support team. Electromagnetic Radiation –...
