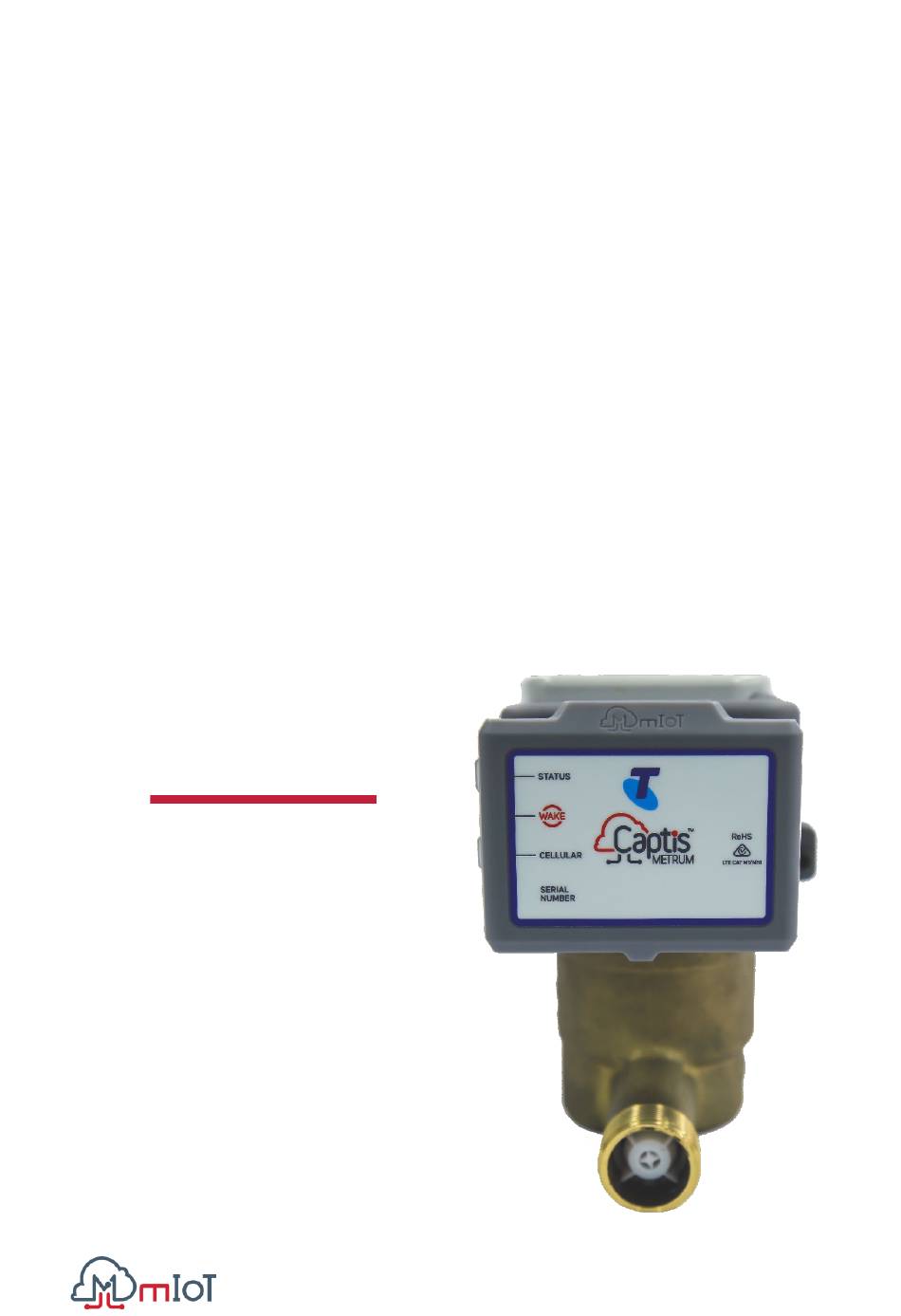

- Page 1 Captis Installation Guide March 2020 Installation Guide Captis Metrum & Itron TD8 Rev 5...
-
Page 2: Table Of Contents
Captis Installation Guide March 2020 Contents Introduction.............................. 3 Captis Technical Information........................3 Captis Metrum Dimension ........................3 Captis Metrum ............................. 3 Installation ............................... 4 Before you begin ..........................4 What is in the Captis Box? ........................4 Installing the Captis ..........................5 Terminating the device .......................... -
Page 3: Introduction
The Captis cellular data logger has been developed to fill measurement requirements across a broad range of applications and remote locations. The Captis Metrum has the following features: • The device measures 90 x 75 x 50 mm and weighs less than 500g. -
Page 4: Installation
Captis Installation Guide March 2020 INSTALLATION BEFORE YOU BEGIN Before starting this installation, you will need the following items: • The contents of the Captis box. • The water meter that will be connected to the Captis • A 3mm Allen key and small flat blade screwdriver •... -
Page 5: Installing The Captis
2. Test the wiring, sensor and cellular connection. 3. Complete the physical installation after testing. TERMINATING THE DEVICE The Itron TD8 Cyble Sensor comes prewired to the Captis Metrum Device. The Cyble Sensor is connected using the below Cable Colours. Colour Description Metrum Pulse –... -
Page 6: Mounting The Captis
Captis Installation Guide March 2020 MOUNTING THE CAPTIS The Captis Metrum is designed to seamlessly integrate with Itron’s TD8 water meter, and can be installed following these steps: Pass the supplied mounting band around the TD8 and secure with the supplied screw and a 3mm Allen Key. - Page 7 Captis Installation Guide March 2020 Place the supplied Cable cover over the pickup and Metrum cable entry and clip into the attachment band to secure Screw the Cyble Sensor to the Itron TD8 water meter using the white plastic screw enclosed, and cover with the accompanying blue cap.
-
Page 8: Checking Sensor & Cellular Connections
Captis Installation Guide March 2020 CHECKING SENSOR & CELLULAR CONNECTIONS Before leaving the installation site, you must check that the connection between the device and the sensor is functional and that there is adequate cellular signal for the Captis to work as required. -
Page 9: Troubleshooting
Captis Installation Guide March 2020 TROUBLESHOOTING Symptom Meaning What to do Device is working as it should, leave Status LED flashing 20 times Device is on/ awake device to collect data Device connected to Device is working as it should, leave... -
Page 10: Maintenance & Safety
Captis Installation Guide March 2020 MAINTENANCE & SAFETY MAINTENANCE The Captis device does not require any maintenance once installed. The Captis uses a non- rechargeable Lithium ION battery, and there are no user serviceable parts inside the device. If you encounter any issues with the device during its standard operation, contact your support team.
