Directed Electronics 1100X/F-GD Programming Instructions page 2

Transponder bypass gm/daewoo

Advertisement

Please refer to the Vehicle Wiring Cross Reference Chart to identify vehicle-specifi c pin locations & wire colors.
If the ignition wire (located behind
center console) is interupted by the
Directed module, there is no need
to override the vehicle factory alarm.
This installation method will ensure
your factory keyfob will at all times
function normally (including during
remote start).
Please refer to the Vehicle Wiring Cross Reference Chart to identify vehicle-specifi c pin locations & wire colors.
For a period of ONE YEAR from the date of purchase of a Directed Electronics remote start or security accessory product, Directed Electronics. (hereinafter "DIRECTED") promises to the original purchaser, to repair
or replace (at DIRECTED's election) with a comparable reconditioned piece, the security or remote start accessory piece (hereinafter the "Part"), which proves to be defective in workmanship or material under normal
use, provided the following conditions are met: the Part was purchased from an authorized DIRECTED dealer in the United States; and the Part is returned to DIRECTED, postage prepaid, along with a clear, legible
copy of the receipt or bill of sale bearing the following information: consumer's name, address, telephone number, the authorized licensed dealer's name, date of purchase and complete product and Part description.
This warranty is non-transferable and is automatically void if the Part has been modifi ed or used in a manner contrary to its intended purpose or if the Part has been damaged by accident, abuse, unreasonable use,
neglect, water, theft, improper service, installation or other causes not arising out of defect in materials or construction. This warranty is automatically void if any Part has had the serial number defaced, altered, or
removed. This warranty is automatically void if the Part has had Repair Service performed by anyone other than the Directed Repair Department. This warranty does not cover damage to any Part caused by installation
or removal of the Part or any system related thereto. This warranty does not cover labor costs for the removal or reinstallation of the Part.
TO THE MAXIMUM EXTENT ALLOWED BY LAW, ALL WARRANTIES, INCLUDING BUT NOT LIMITED TO EXPRESS WARRANTY, IMPLIED WARRANTY, WARRANTY OF MERCHANTABILITY, FITNESS FOR PARTICU-
LAR PURPOSE AND WARRANTY OF NON-INFRINGEMENT OF INTELLECTUAL PROPERTY, ARE EXPRESSLY EXCLUDED TO THE MAXIMUM EXTENT PERMITTED BY LAW; AND DIRECTED NEITHER ASSUMES
NOR AUTHORIZES ANY PERSON OR ENTITY TO ASSUME FOR IT ANY DUTY, OBLIGATION OR LIABILITY IN CONNECTION WITH ITS PRODUCTS. DIRECTED HEREBY DISCLAIMS AND HAS ABSOLUTELY NO LI-
ABILITY FOR ANY AND ALL ACTS OF THIRD PARTIES INCLUDING DEALERS OR INSTALLERS. IN THE EVENT OF A CLAIM OR A DISPUTE INVOLVING DIRECTED OR ITS SUBSIDIARY, THE PROPER VENUE SHALL
BE SAN DIEGO COUNTY IN THE STATE OF CALIFORNIA. CALIFORNIA STATE LAWS AND APPLICABLE FEDERAL LAWS SHALL APPLY AND GOVERN THE DISPUTE. THE MAXIMUM RECOVERY UNDER ANY
CLAIM AGAINST DIRECTED SHALL BE STRICTLY LIMITED TO THE AUTHORIZED DIRECTED DEALER'S PURCHASE PRICE OF THE PART. DIRECTED SHALL NOT BE RESPONSIBLE FOR ANY DAMAGES WHAT-
SOEVER, INCLUDING BUT NOT LIMITED TO, ANY CONSEQUENTIAL DAMAGES, INCIDENTAL DAMAGES, DAMAGES FOR THE LOSS OF TIME, LOSS OF EARNINGS, COMMERCIAL LOSS, LOSS OF ECONOMIC
OPPORTUNITY AND THE LIKE.
Some states do not allow limitations on how long an implied warranty will last or the exclusion or limitation of incidental or consequential damages. This warranty gives you specifi c legal rights and you may also have
other rights that vary from State to State. DIRECTED does not and has not authorized any person or entity to create for it any other obligation, promise, duty or obligation in connection with this Part.
© 2006 Directed Electronics, All rights reserved.

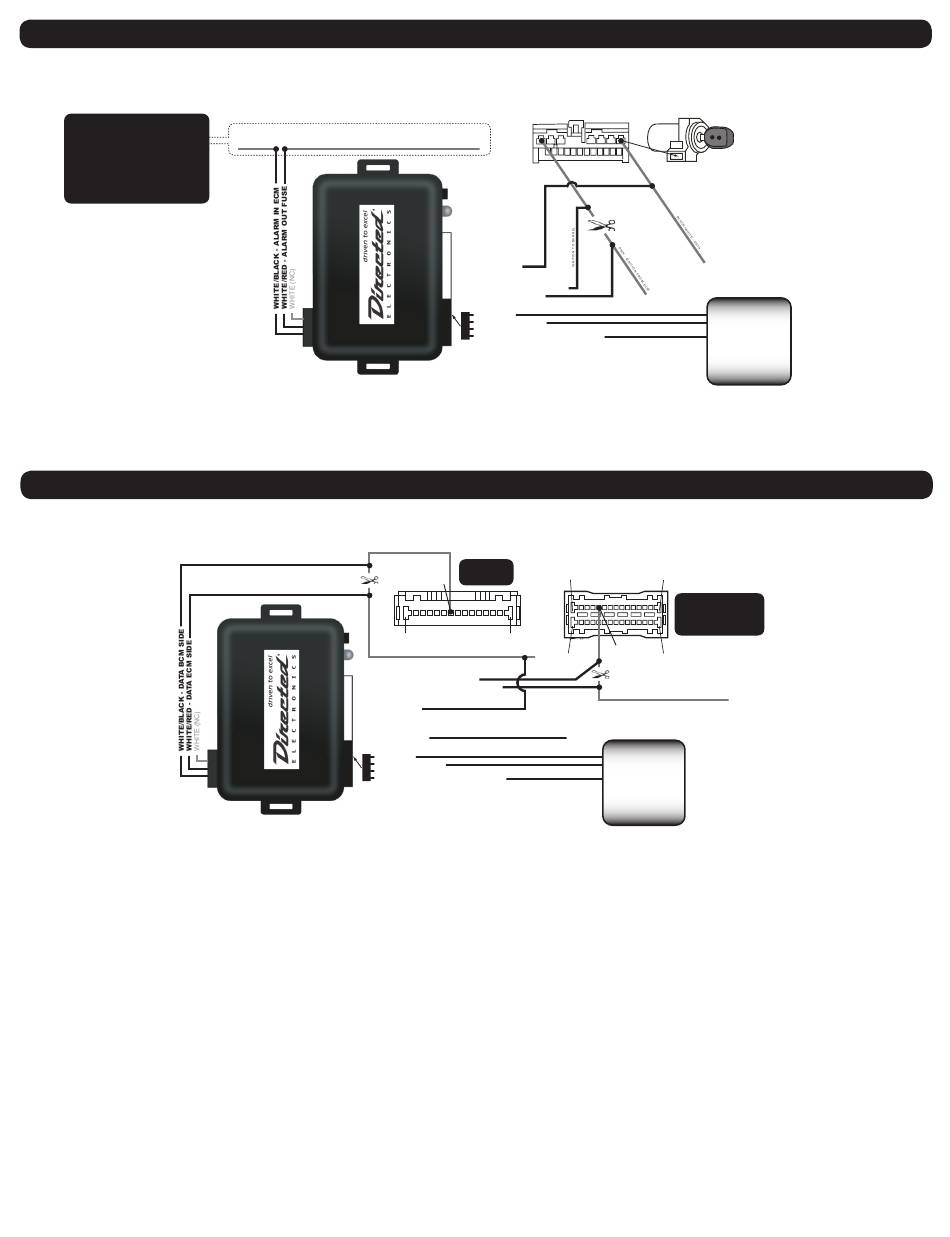

TYPE 1 WIRING DIAGRAM
OPTIONAL
USE TO ISOLATE OEM ALARM IGNITION PINK WIRE BEHIND CENTER CONSOLE
TYPE 2 WIRING DIAGRAM
GREEN/BLACK FROM BCM
E
1
BLUE/RED - SECURITY LIGHT IN
BLUE/YELLOW - SECURITY LIGHT OUT
GREEN/RED (NC)
GREEN/YELLOW (NC)
GRAY/RED - DATA
GRAY/YELLOW (NC)
ORANGE (NC)
PINK/BLACK (NC)
PINK - IGNITION IN
RED - 12V
BLACK - GROUND
NO WIRE (NC)
BLUE/WHITE - STATUS OUTPUT
LIMITED ONE-YEAR CONSUMER WARRANTY
BLUE/RED (NC)
BLUE/YELLOW (NC)
GREEN/RED (NC)
GREEN/YELLOW (NC)
GRAY/RED - DATA
GRAY/YELLOW (NC)
ORANGE (NC)
PINK/BLACK (NC)
PINK - IGNITION INPUT
RED - 12V
BLACK - GROUND
NO WIRE (NC)
Front view of connector
D
BLUE/RED (NC)
BLUE/YELLOW (NC)
GREEN/RED (NC)
GREEN/YELLOW (NC)
GRAY/RED - DATA
GRAY/YELLOW (NC)
ORANGE (NC)
PINK/BLACK - IGNITION OUT
PINK - IGNITION INPUT
RED - 12V
BLACK - GROUND
NO WIRE (NC)
BLUE/WHITE - STATUS OUTPUT
15-pin Connector
16
Located at BCM
Pin #7
F
15
Pin #20
GREEN/BLACK DATA TO ECM
1
2
REMOTE
STARTER
30
30-pin Connector located at BCM
CAUTION: THERE ARE TWO
YELLOW/BLACK WIRES. USE
THE ONE LOCATED AT PIN 20.
15
YELLOW/BLACK
REMOTE
STARTER
Front view of connector
1 2 3 4 5 6 7
N1100X/F-GD 10-06
