Page 1 USER USER ECX-3000 Manual Manual 12th Gen Intel ® Core™ i9/i7/i5/i3 Fanless Embedded System Workstation-grade, 2.5GigE LAN, 10GigE LAN, 9V to 50V DC-in 1.0.0 Edition 20221104...
Page 2 Record of Revision Version Date Page Description Remark 1.00 2022/11/04 Official Release ©Vecow ECX-3000 User Manual...
Page 4 ECX-3000- ECX-3000, 5 2.5G LAN w/4 PoE+, 1 GigE LAN, 4 COM, 2 SIM, 6 USB 3.2, 16 Isolated DIO ECX-3000, 3 2.5G LAN, 1 GigE LAN, 4 COM, 2 SIM, 6 USB 3.2, 16 ECX-3000-4R GPIO, 2 SSD Tray ECX-3000, 3 2.5G LAN, 1 GigE LAN, 4 COM, 2 SIM, 6 USB 3.2, 16...
Page 5 Terminal Board with One 20-pin Terminal Block Connector and TMB-TMBK-20P DIN-Rail Mounting M.2 Storage M.2 Key M/Key B PCIe Storage Module Module 5G Module 5G Module with Antenna 4G Module 4G/GPS Module with Antenna WiFi & Bluetooth WiFi & Bluetooth Module with Antenna ©Vecow ECX-3000 User Manual...
Page 6: Table Of Contents
CHAPTER 1 GENERAL INTRODUCTION 1.1 Overview 1.2 Features 1.3 Product Specification 1.3.1 Specifications of ECX-3025R 1.3.2 Specifications of ECX-3025 1.3.3 Specifications of ECX-3000-PoER 1.3.4 Specifications of ECX-3000-PoES 1.3.5 Specifications of ECX-3000-PoE 1.3.6 Specifications of ECX-3000-4R 1.3.7 Specifications of ECX-3000-4G 1.3.8 Specifications of ECX-3000-2R 1.3.9 Specifications of ECX-3000-2G...
Page 7 CHAPTER 2 GETTING TO KNOW YOUR ECX-3000 2.1 Packing List 2.2 Front Panel I/O Functions 2.3 Rear Panel I/O & Functions 2.4 Main Board Expansion Connectors 2.5 Main Board Jumper Settings 2.6 Ignition Control CHAPTER 3 SYSTEM SETUP 3.1 How to Open Your ECX-3000 3.2 Installing CPU...
Page 8 APPENDIX B : Software Functions APPENDIX C : RAID Functions APPENDIX D : Power Consumption APPENDIX E : Supported Memory & Storage List APPENDIX F : I219 LAN Driver setting APPENDIX G : UMX-100 Solution ©Vecow ECX-3000 User Manual viii...
Page 9: Chapter 1 General Introduction

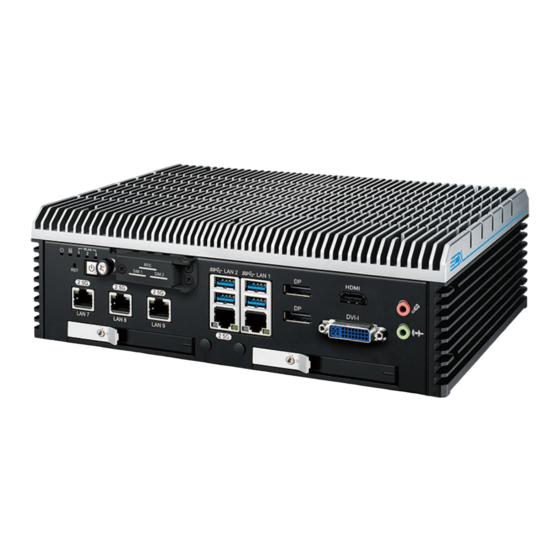

Vecow ECX-3000 series provides a host of module options to facilitate AIoT applications. To accelerate seamless connectivity and efficient communications, the ECX-3000 Series supports a variety of LAN ports, including 2.5G PoE+, 2.5G, 10G and 1G. In response to the increasing storage demands on advanced IoT applications, the ECX-3000 Series is equipped with up to 4 front-access M.2...
Page 10: Features
• DC 9V to 50V Power Input, Software Ignition Control ® • Supports Intel vPro, TPM 2.0 and Time-Sensitive Networking (TSN) • Optional VHub One-Stop AIoT Solution Service supports OpenVINO based AI accelerator and advanced Edge AI applications ©Vecow ECX-3000 User Manual GENERAL INTRODUCTION...
Page 11: Product Specification
® Audio Codec Realtek ALC888S-VD, 7.1 Channel HD Audio Audio Interface 1 Mic-in, 1 Line-out Ethernet LAN 1 Intel ® I219LM GigE LAN supports iAMT ® LAN 2 Intel I225 2.5GigE LAN supports TSN ©Vecow ECX-3000 User Manual GENERAL INTRODUCTION...
Page 12 Relative Humidity 95% at 70°C • IEC 60068-2-27 Shock • SSD : 50G @ wallmount, Half-sine, 11ms • IEC 60068-2-64 Vibration • SSD : 5Grms, 5Hz to 500Hz, 3 Axis CE, FCC, EN50155, EN50121-3-2 ©Vecow ECX-3000 User Manual GENERAL INTRODUCTION...
Page 13: Specifications Of Ecx-3025
® Audio Codec Realtek ALC888S-VD, 7.1 Channel HD Audio Audio Interface 1 Mic-in, 1 Line-out Ethernet ® LAN 1 Intel I219LM GigE LAN supports iAMT ® LAN 2 Intel I225 2.5GigE LAN supports TSN ©Vecow ECX-3000 User Manual GENERAL INTRODUCTION...
Page 14 Relative Humidity 95% at 70°C • IEC 60068-2-27 Shock • SSD : 50G @ wallmount, Half-sine, 11ms • IEC 60068-2-64 Vibration • SSD : 5Grms, 5Hz to 500Hz, 3 Axis CE, FCC, EN50155, EN50121-3-2 ©Vecow ECX-3000 User Manual GENERAL INTRODUCTION...
Page 15: Specifications Of Ecx-3000-Poer
1.3.3 Specifications of ECX-3000-PoER System ® Intel 12th Generation Core™ i9/i7/i5/i3 Processor (Alder Processor Lake-S) ® Chipset Intel R680E BIOS IT8786E • DDR4 3200MHz (ECC/Non-ECC) Memory • Up to 64GB • 2 260-pin SO-DIMM Socket I/O Interface Serial 4 COM RS-232/422/485 (ESD 8KV) 6 USB 3.2 (External)
Page 16 Relative Humidity 95% at 75°C • IEC 60068-2-27 Shock • SSD : 50G @ wallmount, Half-sine, 11ms • IEC 60068-2-64 Vibration • SSD : 5Grms, 5Hz to 500Hz, 3 Axis CE, FCC, EN50155, EN50121-3-2 ©Vecow ECX-3000 User Manual GENERAL INTRODUCTION...
Page 17: Specifications Of Ecx-3000-Poes
1.3.4 Specifications of ECX-3000-PoES System ® Intel 12th Generation Core™ i9/i7/i5/i3 Processor (Alder Processor Lake-S) ® Chipset Intel R680E BIOS IT8786E • DDR4 3200MHz (ECC/Non-ECC) Memory • Up to 64GB • 2 260-pin SO-DIMM Socket I/O Interface Serial 4 COM RS-232/422/485 (ESD 8KV) 6 USB 3.2 (External)
Page 18 Relative Humidity 95% at 75°C • IEC 60068-2-27 Shock • SSD : 50G @ wallmount, Half-sine, 11ms • IEC 60068-2-64 Vibration • SSD : 5Grms, 5Hz to 500Hz, 3 Axis CE, FCC, EN50155, EN50121-3-2 ©Vecow ECX-3000 User Manual GENERAL INTRODUCTION...
Page 19: Specifications Of Ecx-3000-Poe
1.3.5 Specifications of ECX-3000-PoE System ® Intel 12th Generation Core™ i9/i7/i5/i3 Processor (Alder Processor Lake-S) ® Chipset Intel R680E BIOS IT8786E • DDR4 3200MHz (ECC/Non-ECC) Memory • Up to 64GB • 2 260-pin SO-DIMM Socket I/O Interface Serial 4 COM RS-232/422/485 (ESD 8KV) 6 USB 3.2 (External)
Page 20 Relative Humidity 95% at 75°C • IEC 60068-2-27 Shock • SSD : 50G @ wallmount, Half-sine, 11ms • IEC 60068-2-64 Vibration • SSD : 5Grms, 5Hz to 500Hz, 3 Axis CE, FCC, EN50155, EN50121-3-2 ©Vecow ECX-3000 User Manual GENERAL INTRODUCTION...
Page 21: Specifications Of Ecx-3000-4R
1.3.6 Specifications of ECX-3000-4R System ® Intel 12th Generation Core™ i9/i7/i5/i3 Processor (Alder Processor Lake-S) ® Chipset Intel R680E BIOS IT8786E • DDR4 3200MHz (ECC/Non-ECC) Memory • Up to 64GB • 2 260-pin SO-DIMM Socket I/O Interface Serial 4 COM RS-232/422/485 (ESD 8KV) 6 USB 3.2 (External)
Page 22 Relative Humidity 95% at 75°C • IEC 60068-2-27 Shock • SSD : 50G @ wallmount, Half-sine, 11ms • IEC 60068-2-64 Vibration • SSD : 5Grms, 5Hz to 500Hz, 3 Axis CE, FCC, EN50155, EN50121-3-2 ©Vecow ECX-3000 User Manual GENERAL INTRODUCTION...
Page 23: Specifications Of Ecx-3000-4G
1.3.7 Specifications of ECX-3000-4G System ® Intel 12th Generation Core™ i9/i7/i5/i3 Processor (Alder Processor Lake-S) ® Chipset Intel R680E BIOS IT8786E • DDR4 3200MHz (ECC/Non-ECC) Memory • Up to 64GB • 2 260-pin SO-DIMM Socket I/O Interface Serial 4 COM RS-232/422/485 (ESD 8KV) 6 USB 3.2 (External)
Page 24 Relative Humidity 95% at 75°C • IEC 60068-2-27 Shock • SSD : 50G @ wallmount, Half-sine, 11ms • IEC 60068-2-64 Vibration • SSD : 5Grms, 5Hz to 500Hz, 3 Axis CE, FCC, EN50155, EN50121-3-2 ©Vecow ECX-3000 User Manual GENERAL INTRODUCTION...
Page 25: Specifications Of Ecx-3000-2R
1.3.8 Specifications of ECX-3000-2R System ® Intel 12th Generation Core™ i9/i7/i5/i3 Processor (Alder Processor Lake-S) ® Chipset Intel R680E BIOS IT8786E • DDR4 3200MHz (ECC/Non-ECC) Memory • Up to 64GB • 2 260-pin SO-DIMM Socket I/O Interface Serial 4 COM RS-232/422/485 (ESD 8KV) 6 USB 3.2 (External)
Page 26 Relative Humidity 95% at 75°C • IEC 60068-2-27 Shock • SSD : 50G @ wallmount, Half-sine, 11ms • IEC 60068-2-64 Vibration • SSD : 5Grms, 5Hz to 500Hz, 3 Axis CE, FCC, EN50155, EN50121-3-2 ©Vecow ECX-3000 User Manual GENERAL INTRODUCTION...
Page 27: Specifications Of Ecx-3000-2G
1.3.9 Specifications of ECX-3000-2G System ® Intel 12th Generation Core™ i9/i7/i5/i3 Processor (Alder Processor Lake-S) ® Chipset Intel R680E BIOS IT8786E • DDR4 3200MHz (ECC/Non-ECC) Memory • Up to 64GB • 2 260-pin SO-DIMM Socket I/O Interface Serial 4 COM RS-232/422/485 (ESD 8KV) 6 USB 3.2 (External)
Page 28 Relative Humidity 95% at 75°C • IEC 60068-2-27 Shock • SSD : 50G @ wallmount, Half-sine, 11ms • IEC 60068-2-64 Vibration • SSD : 5Grms, 5Hz to 500Hz, 3 Axis CE, FCC, EN50155, EN50121-3-2 ©Vecow ECX-3000 User Manual GENERAL INTRODUCTION...
Page 29: Specifications Of Ecx-3071Xr
® Audio Codec Realtek ALC888S-VD, 7.1 Channel HD Audio Audio Interface 1 Mic-in, 1 Line-out Ethernet LAN 1 Intel ® I219LM GigE LAN supports iAMT ® LAN 2 Intel I225 2.5GigE LAN supports TSN ©Vecow ECX-3000 User Manual GENERAL INTRODUCTION...
Page 30 Relative Humidity 95% at 50°C • IEC 60068-2-27 Shock • SSD : 50G @ wallmount, Half-sine, 11ms • IEC 60068-2-64 Vibration • SSD : 5Grms, 5Hz to 500Hz, 3 Axis CE, FCC, EN50155, EN50121-3-2 ©Vecow ECX-3000 User Manual GENERAL INTRODUCTION...
Page 31: Specifications Of Ecx-3071X
® Audio Codec Realtek ALC888S-VD, 7.1 Channel HD Audio Audio Interface 1 Mic-in, 1 Line-out Ethernet LAN 1 Intel ® I219LM GigE LAN supports iAMT ® LAN 2 Intel I225 2.5GigE LAN supports TSN ©Vecow ECX-3000 User Manual GENERAL INTRODUCTION...
Page 32 Relative Humidity 95% at 50°C • IEC 60068-2-27 Shock • SSD : 50G @ wallmount, Half-sine, 11ms • IEC 60068-2-64 Vibration • SSD : 5Grms, 5Hz to 500Hz, 3 Axis CE, FCC, EN50155, EN50121-3-2 ©Vecow ECX-3000 User Manual GENERAL INTRODUCTION...
Page 33: Supported Cpu List
Up to 4.7 GHz ® Intel Core™ i5-12500E Up to 4.5 GHz Intel ® Core™ i5-12500TE Up to 4.3 GHz ® Intel Core™ i3-12100E Up to 4.2 GHz ® Intel Core™ i3-12100TE Up to 4 GHz ©Vecow ECX-3000 User Manual GENERAL INTRODUCTION...
Page 34: Mechanical Dimension
1.5.1 Dimensions of ECX-3025R Unit : mm (inch) 297.0 (11.69) 282.0 (11.10) 260.0 (10.24) 5.0 (0.20) A Detail 1.5.2 Dimensions of ECX-3025 Unit : mm (inch) 297.0 (11.69) 282.0 (11.10) 260.0 (10.24) 5.0 (0.20) A Detail ©Vecow ECX-3000 User Manual GENERAL INTRODUCTION...
Page 35: Dimensions Of Ecx-3000-Poer
1.5.3 Dimensions of ECX-3000-PoER Unit : mm (inch) 297.0 (11.69) 282.0 (11.10) 260.0 (10.24) 5.0 (0.20) A Detail 1.5.4 Dimensions of ECX-3000-PoES Unit : mm (inch) 297.0 (11.69) 282.0 (11.10) 260.0 (10.24) 5.0 (0.20) A Detail ©Vecow ECX-3000 User Manual...
Page 36: Dimensions Of Ecx-3000-Poe
1.5.5 Dimensions of ECX-3000-PoE Unit : mm (inch) 297.0 (11.69) 282.0 (11.10) 260.0 (10.24) 5.0 (0.20) A Detail 1.5.6 Dimensions of ECX-3000-4R Unit : mm (inch) 297.0 (11.69) 282.0 (11.10) 260.0 (10.24) 5.0 (0.20) A Detail ©Vecow ECX-3000 User Manual...
Page 37: Dimensions Of Ecx-3000-4G
1.5.7 Dimensions of ECX-3000-4G Unit : mm (inch) 297.0 (11.69) 282.0 (11.10) 260.0 (10.24) 5.0 (0.20) A Detail 1.5.8 Dimensions of ECX-3000-2R Unit : mm (inch) 297.0 (11.69) 282.0 (11.10) 260.0 (10.24) 5.0 (0.20) A Detail ©Vecow ECX-3000 User Manual...
Page 38: Dimensions Of Ecx-3000-2G
1.5.9 Dimensions of ECX-3000-2G Unit : mm (inch) 297.0 (11.69) 282.0 (11.10) 260.0 (10.24) 5.0 (0.20) A Detail 1.5.10 Dimensions of ECX-3071XR Unit : mm (inch) 297.0 (11.69) 282.0 (11.10) 260.0 (10.24) 5.0 (0.20) A Detail ©Vecow ECX-3000 User Manual...
Page 39: Dimensions Of Ecx-3071X
1.5.11 Dimensions of ECX-3071X Unit : mm (inch) 297.0 (11.69) 282.0 (11.10) 260.0 (10.24) 5.0 (0.20) A Detail ©Vecow ECX-3000 User Manual GENERAL INTRODUCTION...
Page 40: Chapter 2 Getting To Know Your Ecx-3000
2.1 Packing List Item Description ECX-3000 Fanless Embedded System (According to the configuration of you order, the ECX-3000 series may contain SSD/HDD and DDR4 SO-DIMM. Please verify these items if necessary.) ECX-3000-PoE/PoES/4G/2G/3025/3071X accessory box, which contains • Vecow Drivers & Utilities DVD...
Page 41 Item Description ECX-3000 Fanless Embedded System (According to the configuration of you order, the ECX-3000 series may contain SSD/HDD and DDR4 SO-DIMM. Please verify these items if necessary.) ECX-3000-PoER/4R/2R/3025R/3071XR accessory box, which contains • Vecow Drivers & Utilities DVD • SSD/HDD Tray Key...
Page 42: Front Panel I/O Functions
2.2 Front Panel I/O Functions In Vecow ECX-3000 series family, all I/O connectors are located on front panel and rear panel. Most of the general connections to computer device, such as USB, LAN Jack, HDMI, DVI-I, Display Port and any additional storage, are placed on the front panel.
Page 43 If the battery needs to be changed, please contact the Vecow RMA service team. 2.2.4 PWR & HDD LED Indicator WLAN LAN 2 LAN 1 HDMI SIM 1 SIM 2 DVI-I COM 3 COM 4 2.5G ©Vecow ECX-3000 User Manual GETTING TO KNOW YOUR ECX-3000...
Page 44 COM 4 is RS-232, if you want to change to RS-422 or RS-485, you can find the setting in BIOS. BIOS Setting Function RS-232 COM 3 RS-422 (5-wire) RS-485 COM 4 RS-485 w/z auto-flow control ©Vecow ECX-3000 User Manual GETTING TO KNOW YOUR ECX-3000...
Page 45 • The VGA output mode supports up to 1920x1200 resolution. • If use VGA function will need a DVII to VGA module connecting to DVI-I device. • Below is the DVII to VGA module picture ©Vecow ECX-3000 User Manual GETTING TO KNOW YOUR ECX-3000...
Page 46 There are 4 USB 3.0 connections available supporting up to 10GB per second data rate in the front side of ECX-3000. It also compliant with the requirements of Super Speed (SS), high speed (HS), full speed (FS) and low speed (LS).
Page 47 Mini PCIe Slot/M.2 KEY B/M.2 KEY E/ Nano SIM Slot/ WLAN LED Mapping Table : Mini PCIe WLAN MPCIe1 SIM2 M.2 KEY B SIM1 SIM 1 SIM 2 M.2 KEY E COM 3 COM 4 M2E_CN1 MPCIe1 MPCIe1_SIM1 M2B_SIM1 ©Vecow ECX-3000 User Manual GETTING TO KNOW YOUR ECX-3000...
Page 48 M2B_CN1 MPCIE1_LED1 M2B_LED1 M2E_LED1 Note : The SIM card sockets do not support hot-plug. Please make sure to unplug the system power before inserting the SIM card(s). ©Vecow ECX-3000 User Manual GETTING TO KNOW YOUR ECX-3000...
Page 49 There are two 8-pin RJ-45 jacks supporting 10/100/1000/2500 Mbps Ethernet ® connections on the front side of ECX-3000. LAN 1 is powered by Intel I219LM Ethernet engine, and LAN 2 is powered by Intel I225 Ethernet engine. When LAN 1 works in normal status, iAMT 11.0 function is enabled.
Page 50 DVI-I COM 3 COM 4 2.5G There are 2 audio connectors, Mic-in and Line-out, in the front side of ECX-3000. Onboard Realtek ALC888 audio codec supports 7.1 channel HD audio and fully ® complies with Intel High Definition Audio (Azalia) specifications.
Page 51 DVI-I COM 3 COM 4 2.5G There are 2 front-access 2.5” SSD/HDD trays in the front side of ECX-3000. Just trigger to open the SSD/HDD tray, up to 4TB is available. 2.2.14 Expansion Ethernet 2.2.14.1 2.5G Ethernet Port (3025/3025R) There are 3 expansion 8-pin RJ-45 jacks supporting 100/ 1000/2500 Mbps Ethernet connections in the front side.
Page 52 • Up to 9728 bytes Jumbo Frame, Link Aggregation • Supports Wake-on-LAN (WoL) & PXE ® • Intel Ethernet Power Management ® • Intel Data Direct I/O Technology ® • Intel Virtualization Technology for Connectivity (VT-c) ©Vecow ECX-3000 User Manual GETTING TO KNOW YOUR ECX-3000...
Page 53: Rear Panel I/O & Functions
This system supports 9V to 50V DC power input by terminal block in the rear side. In normal power operation, power LED lightens in solid green. Definition 1 2 3 Chassis Ground 3 4 1 2 ©Vecow ECX-3000 User Manual GETTING TO KNOW YOUR ECX-3000...
Page 54 DIN EN 61010-1 • 3-KVRMS Isolation for 1 minute per UL 1577 • CSA Component Acceptance Notice 5A, IEC 60950-1 and IEC 61010-1 End Equipment Standards • GB4943.1-2011 CQC Certified ©Vecow ECX-3000 User Manual GETTING TO KNOW YOUR ECX-3000...
Page 55 DI reference circuit : Sink Mode (NPN) Power DIO Connector Supply DI_COM (Pin 9) 6-48V DC DI (Pin1-8) Source Mode (PNP) Power DIO Connector Supply DI_COM (Pin 9) 6-48V DC DI (Pin1-8) ©Vecow ECX-3000 User Manual GETTING TO KNOW YOUR ECX-3000...
Page 56 Mapping to SIO GPIO Mapping to SIO GPIO Pin No. Pin No. Function Function SIO_GPI80 SIO_GPO70 SIO_GPI81 SIO_GPO71 SIO_GPI82 SIO_GPO72 SIO_GPI83 SIO_GPO73 SIO_GPI84 SIO_GPO74 SIO_GPI85 SIO_GPO75 SIO_GPI86 SIO_GPO76 SIO_GPI87 SIO_GPO77 ----------- ----------- ----------- ----------- ©Vecow ECX-3000 User Manual GETTING TO KNOW YOUR ECX-3000...
Page 57 There are 2 USB 3.0 connections available supporting up to 10GB per second data rate in the rear side of ECX-3000. It also compliant with the requirements of Super Speed (SS), high speed (HS), full speed (FS) and low speed (LS).
Page 58 The pin assignments are listed in the following table : Serial RS-422 RS-485 Pin No. RS-232 Port (5-wire) (3-wire) TXD- DATA- TXD+ DATA+ RXD+ ----------- RXD- ----------- 1 to 2 ----------- ----------- ----------- ----------- ----------- ----------- ----------- ----------- ©Vecow ECX-3000 User Manual GETTING TO KNOW YOUR ECX-3000...
Page 59 LAN 6 On / Off There are 4 RJ45 connectors in the rear side of ECX-3000. It supports IEEE 802.3at (PoE+) Power over Ethernet (PoE) connection delivering up to 37W/54V per port and 1000BASE-T gigabit data signals over standard Ethernet Cat 5/Cat 6 cable.
Page 60 PIN 1 ~ 8 PIN 11 ~ 18 COM 1 COM 2 LAN 3 LAN 5 LAN 4 LAN 6 On / Off 4 Front-access M.2 Key M SSD Tray.(only Support PCIE) ©Vecow ECX-3000 User Manual GETTING TO KNOW YOUR ECX-3000...
Page 61: Main Board Expansion Connectors
2.4 Main Board Expansion Connectors 2.4.1 Top View (Component Side) of ECX-3000 Main Board With Connector Location JCOM1 JCOM2 HDD_PWR_1 HDD_PWR_2 SATA1 SATA2 SAS_PWR2 SAS_PWR3 SLIMSAS_12 SLIMSAS_34 SAS_PWR1 SAS_PWR4 MPCIE1 M2E_CN1 BIOS_CN1 JDEBUG1 JIGN_FW1 JCOM4 JCOM3 SYS_FAM ©Vecow ECX-3000 User Manual...
Page 62 2.4.2 BOTTOM View of ECX-3000 Main Board with Connector Location CPU_FAN PCH1 CPU1 BAT_CN1 PWR_LED HDD_LED M2E_LED1 M2B_LED1 MPCIE_LED1 2.4.3 J2: Miscellaneous Pin Header 2.0mm 2x4p header This pin header can be used as a backup for following functions, hard drive LED indicator, reset button, power LED indicator, and power-on/off button, which already can be accessed by front panel and top panel.
Page 63 SATA1 SATA2 There are 2 onboard high performance Serial ATA III (SATA III) on ECX-3000. It supports higher storage capacity with less cabling effort and smaller required space. The pin assignments of SATA1 and SATA2 are listed in the following table :...
Page 64 2.4.6 SLIMSAS_12, SLIMSAS_34 : M2D Board PCIE cable connector SLIMSAS_12 SLIMSAS_34 ECX-3000 support front access M.2 tray via cable to connect to ECX-3000 M2D Board. 2.4.7 SAS_PWR1, SAS_PWR2, SAS_PWR3, SAS_PWR4 : M2D Board Power cable Connector SAS_PWR1 SAS_PWR2 SAS_PWR3 SAS_PWR4...
Page 65 2.4.9 BIOS_CN1 : BIOS Socket BIOS_CN1 If the BIOS needs to be changed, please contact the Vecow RMA service team. 2.4.10 SUMITA1, SUMITB1 ©Vecow ECX-3000 User Manual GETTING TO KNOW YOUR ECX-3000...
Page 66 Reserved +3.3Vaux USB_D+ USB_D- PETp0 PETn0 SMB_DATA SMB_CLK +1.5V PERp0 PERn0 +3.3Vaux PERST# Reserved reserved Reserved Mechanical Key UIM_VPP REFCLK+ UIM_RESET REFCLK- UIM_CLK UIM_DATA CLKREQ# UIM_PWR Reserved 1.5V Reserved WAKE# 3.3Vaux ©Vecow ECX-3000 User Manual GETTING TO KNOW YOUR ECX-3000...
Page 67 CPU_FAN/SYS_FAN are listed in the following table. SYS_FAN CPU_FAN1 SYS_FAN2 Pin No. Definition Pin No. Definition +12V (2A max) +12V (2A max) Fan speed sensor Fan speed sensor Fan PWM Fan PWM ©Vecow ECX-3000 User Manual GETTING TO KNOW YOUR ECX-3000...
Page 68 2.4.13 JDEBUG1 : ESPI Port 80 Header The pin assignments of MPCIe 1 ted in the following table : Pin No. Description +V3.3S Port 80_ESPI_CS# Port 80_ESPI_IO0 Port 80_ESPI_IO1 Port 80_ESPI_IO2 Port 80_ESPI_IO3 Port 80_ESPI_CLK RST 80_ESPI_RST# ©Vecow ECX-3000 User Manual GETTING TO KNOW YOUR ECX-3000...
Page 69 2.4.14 JCOM1,JCOM2,JCOM3,JCOM4 : Serial Port cable Connector JCOM1 JCOM2 JCOM4 JCOM3 Location Description JCOM1 COM1 JCOM2 COM2 JCOM3 COM3 JCOM4 COM4 Pin No. Function ©Vecow ECX-3000 User Manual GETTING TO KNOW YOUR ECX-3000...
Page 70 MCU_RST# +V3.3_MCU MCU_PRG 2.4.16 M2E_CN1 : USB2.0/2x PCIex1 M2E_CN1 M.2 key E connector is suitable for applications that use wireless connectivity including Wi-Fi,Bluetooth, NFC of GNSS. Module card types include 2230. ©Vecow ECX-3000 User Manual GETTING TO KNOW YOUR ECX-3000...
Page 71 M.2 key M connector is suitable for applications that use Host I/Fs supported by either PCIe Module card types include 2280 (Only Support PCIE) 2.4.18 M.2 KEY B : USB3.0/USB2.0 Support(default) , SATA(BIOS option) M2B_CN1 Module card types include 3042,3052. ©Vecow ECX-3000 User Manual GETTING TO KNOW YOUR ECX-3000...
Page 72: Main Board Jumper Settings
You may configure your card to match the needs of your application by DIP switch. As below show the deep switch on and off. 1 : OFF 1 : ON 1 : ON 2 : OFF 2 : OFF 2 : ON ©Vecow ECX-3000 User Manual GETTING TO KNOW YOUR ECX-3000...
Page 73 COM 1 COM 2 LAN 3 LAN 5 LAN 4 LAN 6 On / Off Location Description Function Non Wake Up 2 - 3 support JSBPWR1 Supported Wake 1 - 2 Up(Default) ©Vecow ECX-3000 User Manual GETTING TO KNOW YOUR ECX-3000...
Page 74 +12V (0.5A max.) JRI_PWR2 COM2 2 - 3 RI(Default) 1 - 2 +12V (0.5A max.) JRI_PWR3 COM3 2 - 3 RI(Default) 1 - 2 +12V (0.5A max.) JRI_PWR4 COM4 2 - 3 RI(Default) ©Vecow ECX-3000 User Manual GETTING TO KNOW YOUR ECX-3000...
Page 75 JPOE_PWR1 Location Description Function PoE power on at 1 - 2 standby power ready JPOE_ PoE power on PWR1 2 - 3 after system power on(Default) No Jumper Disable PoE power ©Vecow ECX-3000 User Manual GETTING TO KNOW YOUR ECX-3000...
Page 76 Enable security 1 - 2 (Default) measures JCMOS1 1 - 2 defined in the 2 - 3 Clear CMOS Flash Descriptor. JHDA_ (Default) SDO1 Disable Flash Descriptor 2 - 3 Security (Flash ©Vecow ECX-3000 User Manual GETTING TO KNOW YOUR ECX-3000...
Page 77 2.5.6 JIGNMODE1 : IGNITION MODE JIGNMODE1 Location Description Function 1 - 2 H/W mode JIGNMODE1 2 - 3 S/W mode(default) ©Vecow ECX-3000 User Manual GETTING TO KNOW YOUR ECX-3000...
Page 78 1(ON) DCD / RXD Termination 120R enable COM1 DCD / RXD Termination 120R 1(OFF) Disable(default) COM34_120R_SW1 2(ON) DCD / RXD Termination 120R enable COM2 DCD / RXD Termination 120R 2(OFF) Disable(default) ©Vecow ECX-3000 User Manual GETTING TO KNOW YOUR ECX-3000...
Page 79: Ignition Control
2.6.1 Adjust Ignition Control Modes ECX-3000 series provides 16 modes of different power on/off delay periods adjustable via HWIGN_SW1 switch. The default rotary switch is set to 0 in ATX/ AT power mode.
Page 80 5 seconds 60 seconds 5 seconds 90 seconds 5 seconds 120 seconds 10 seconds 10 seconds 10 seconds 30 seconds 10 seconds 60 seconds 10 seconds 90 seconds 10 seconds 120 seconds ©Vecow ECX-3000 User Manual GETTING TO KNOW YOUR ECX-3000...
Page 81 Note : 1. DC power source and IGN share the same ground. 2. ECX-3000 supports 9V to 50V wide range DC power input in ATX/AT mode. In Ignition mode, the input voltage is fixed to 12V/24V for car battery scenario.
Page 82: Chapter 3 System Setup
SYSTEM SETUP 3.1 How to Open Your ECX-3000 3.1.1 ECX-3025R / ECX-3025 / ECX-3000-PoER / ECX-3000-PoES / ECX- 3000-PoE / ECX-3000-4R / ECX-3000-4G / ECX-3000-2R / ECX-3000-2G / ECX-3071XR / ECX-3071X Step 1 Remove four flat head M3x5L screws four pan head SFW M3x6L screws, and take out heat sink ©Vecow ECX-3000 User Manual...
Page 83: Installing Cpu
3.2 Installing CPU Step 1 Remove CPU mylar Step 2 Open CPU independent loading mechanism (ILM) ©Vecow ECX-3000 User Manual SYSTEM SETUP...
Page 84 Step 3 Install CPU. (Be careful CPU pin) Step 4 Close CPU independent loading Mechanism (ILM) and finish ©Vecow ECX-3000 User Manual SYSTEM SETUP...
Page 85: Installing Ddr4 So-Dimm Modules
3.3 Installing DDR4 SO-DIMM Modules Step 1 Remove six flat head M3x5L screws ©Vecow ECX-3000 User Manual SYSTEM SETUP...
Page 87 Step 3 Install DDR4 RAM module into SO-DIMM socket Step 4 Make sure RAM module is locked by the memory slot ©Vecow ECX-3000 User Manual SYSTEM SETUP...
Page 88: Installing Mini Pcie Card
3.4 Installing Mini PCIe Card Step 1 Remove six flat head M3x5L screws ©Vecow ECX-3000 User Manual SYSTEM SETUP...
Page 90 Step 3 Install mini PCIe card into slot Step 4 Fasten pan head SFW M2.5x6L screw ©Vecow ECX-3000 User Manual SYSTEM SETUP...
Page 91: Installing Nano Sim Card
DVI-I COM 3 COM 4 2.5G Step 2 Install SIM card in the marked red area. Step 3 Insert nano SIM card and push to lock WLAN HDMI DVI-I COM 3 COM 4 2.5G ©Vecow ECX-3000 User Manual SYSTEM SETUP...
Page 92: Installing Pci/Pcie Card
SIM 1 SIM 2 DVI-I COM 3 COM 4 2.5G Step 2 Install SIM card in the marked red area. Step 3 Insert removable RTC battery WLAN HDMI DVI-I COM 3 COM 4 2.5G ©Vecow ECX-3000 User Manual SYSTEM SETUP...
Page 93: Installing Ssd/Hhd
3.7 Installing SSD/HHD 3.7.1 ECS-3000-R series Step 1 Open SSD/HDD Door ©Vecow ECX-3000 User Manual SYSTEM SETUP...
Page 95 3.7.2 ECS-3000-R series Step 1 Remove six flat head M3x5L screws. Step 2 Open bottom cover ©Vecow ECX-3000 User Manual SYSTEM SETUP...
Page 96 Step 3 Remove eight hexagon M3 nuts Step 4 Install SSD/HDD & SATA 22P cable into SSD/HDD bracket ©Vecow ECX-3000 User Manual SYSTEM SETUP...
Page 97 Step 5 Use four flat head M3x5L screws and fasten SSD/HDD Step 6 Use eight Hexagon M3 Nuts and fasten bracket SSD/HDD ©Vecow ECX-3000 User Manual SYSTEM SETUP...
Page 98 3.7.3 ECS-3000-S series Step 1 Open front door of M.2 tray Step 2 Draw out M.2 tray ©Vecow ECX-3000 User Manual SYSTEM SETUP...
Page 99 Step 3 Open top cover of M.2 tray Press Step 4 If install 2230/2242/2260 M.2 module card, Press the latch of spacer support, and move to the position of 2230/2242/2260 Press 2260 2242 2230 2280 ©Vecow ECX-3000 User Manual SYSTEM SETUP...
Page 100 Step 5 Install M.2 module card Step 6 Install top cover of M.2 tray Press ©Vecow ECX-3000 User Manual SYSTEM SETUP...
Page 102: Installing
3.8 Installing M.2 3.8.1 M.2 Key E 2230 Step 1 Remove six flat head M3x5L screws ©Vecow ECX-3000 User Manual SYSTEM SETUP...
Page 104 Step 3 Install M.2 module card into slot and fasten I head M3x4L screw ©Vecow ECX-3000 User Manual SYSTEM SETUP...
Page 105 Key B 3042, Install M.2 Key B 3052 module card and fasten I head M2x2L screw M.2 Key M 2280 Install M.2 Key M 2280 module card into slot and fasten I head M3x4L screw ©Vecow ECX-3000 User Manual SYSTEM SETUP...
Page 106: Installing Antenna Cable
3.9 Installing Antenna Cable Step 1 Check antenna parts (cable and washers). Step 2 Remove six flat head M3x5L screws ©Vecow ECX-3000 User Manual SYSTEM SETUP...
Page 108 Step 3 Remove hole plug. Step 4 Install SMA cable and fasten washer and nut. ©Vecow ECX-3000 User Manual SYSTEM SETUP...
Page 109: Mount Your Ecx-3000
3.10 Mount Your ECX-3000 3.10.1 Wall Mount Fasten six flat head M3x5L screws. 3.10.2 VESA Mount Fasten six flat head M3x5L screws VESA 75 x 75/100 x 100 mm ©Vecow ECX-3000 User Manual SYSTEM SETUP...
Page 110 3.10.3 DIN Rail Mount Fasten fourteen flat head M3x5L screws. 3.10.4 2U Rack Mount ©Vecow ECX-3000 User Manual SYSTEM SETUP...
Page 111: Chapter 4 Bios Setup
Figure 4-1 : Entering Setup Screen BIOS provides an interface for users to check and change system configuration. The BIOS setup program is accessed by pressing the <Del> key when POST display output is shown. ©Vecow ECX-3000 User Manual BIOS SETUP...
Page 112: Main Menu
System Date Set the date. Use Tab to switch between date elements. System Time Set the time. Use Tab to switch between time elements. 4.3 Advanced Functions Figure 4-3 : BIOS Advanced Menu ©Vecow ECX-3000 User Manual BIOS SETUP...
Page 113 Technology). When disabled only one thread per core is enabled. Enable/disable CPU Advanced Encryption Standard instructions. Intel Trusted Execution Technology ® Enables utilization of additional hardware capabilities provided by Intel Trusted Execution Technology. Changes require a full power cycle to take effect. ©Vecow ECX-3000 User Manual BIOS SETUP...
Page 114 4.3.1.1 Efficient-core Information Figure 4-3-1-1 : Efficient-core Information Displays Efficient-core Information. 4.3.1.2 Performance-core Information Figure 4-3-1-2: Performance-core Information Displays Performance-core Information. ©Vecow ECX-3000 User Manual BIOS SETUP...
Page 115 Enable/disable C1E. When enabled, CPU will switch to minimum speed when all cores enter C-State. Dual Tau Boost Enable Dual Tau Boost feature. This is only applicable for Desktop 35W/65W/125W sku. When DPTF is enabled this feature is ignored. ©Vecow ECX-3000 User Manual BIOS SETUP...
Page 116 TPM Device Selection Selects TPM device: PTT or discrete TPM. Security Device Support Enables or Disables BIOS support for security device. O.S. will not show Security Device. SHA256 PCR Bank Enable or Disable SHA256 PCR Bank. ©Vecow ECX-3000 User Manual BIOS SETUP...
Page 117 Enables or Disables System ability to Hibernate (OS/S4 Sleep State). This option may not be effective with some operating systems. ACPI Sleep State Select the highest ACPI sleep state the system will enter when the SUSPEND button is pressed. ©Vecow ECX-3000 User Manual BIOS SETUP...
Page 118 Start Temperature Temperature Limit value of Fan Start (Degree C). (Range:10~80) PWM Start Value (%) Default PWM Value of Fan. (Range:15%~100%) Full Speed Temperature Temperature Limit value of Fan Full Speed (Degree C).. (Range:50~90) ©Vecow ECX-3000 User Manual BIOS SETUP...
Page 119 Options for Serial Port 1 to Serial Port 4. Entering the corresponding Port option then end user can change the settings such as I/O resource and UART mode. 4.3.7 Intel TXT Information Figure 4-3-7: Intel TXT Information Display Intel TXT information. ©Vecow ECX-3000 User Manual BIOS SETUP...
Page 120 Maximum time the device will take before it properly reports itself to the Host Controller. 'Auto' uses default value, for a root port it is 100 ms, for a hub port the delay is taken from the hub descriptor. Mass Storage Devices: Mass storage device emulation type. ©Vecow ECX-3000 User Manual BIOS SETUP...
Page 121 Figure 4-3-9: NVMe Settings Display NVMe controller and Drive information. 4.3.10 PCI Subsystem Setting Figure 4-3-10: PCI Subsystem Settings BME DMA Mitigation Re-enable Bus Master Attribute disabled during Pci enumeration for PCI Bridges after SMM Locked. ©Vecow ECX-3000 User Manual BIOS SETUP...
Page 122 Ipv6 HTTP Support Enable/Disable IPv6 HTTP boot support. PXE boot wait time Wait time to press ESC key to abort the PXE boot. Media detect count Number of times presence of media will be checked. ©Vecow ECX-3000 User Manual BIOS SETUP...
Page 123 4.3.12 Intel(R) Rapid Storage Technology Figure 4-3-12: Intel(R) Rapid Storage Technology Creating RAID Volume This page allows you to create a RAID volume. Display RAID controller and Drive information. ©Vecow ECX-3000 User Manual BIOS SETUP...
Page 124: Chipset Functions
SW Ignition Configuration, setting Delay Timer and value of Voltage limit. 4.4.1 System Agent (SA) Configuration Figure 4-4-1: System Agent Settings VT-d VT-d capability. Memory Configuration Memory Configuration Parameters. Graphics Configuration Graphics Configuration page. ©Vecow ECX-3000 User Manual BIOS SETUP...
Page 125 If Enable, it will not scan for External Gfx Card on PEG and PCH PCIE Ports. Primary Display Select which of IGFX/PEG/PCI Graphics device should be Primary Display Or select SG for Switchable Gfx. External Gfx Card Primary Display Configuration External Gfx Card Primary Display Configuration. ©Vecow ECX-3000 User Manual BIOS SETUP...
Page 126 Specify what state to go to when power is re-applied after a power failure (G3 state). S0 State: Always turn-on the system when power source plugged-in. S5 State: Always turn-off the system when power source plugged-in. ©Vecow ECX-3000 User Manual BIOS SETUP...
Page 127 4.4.2.1 SATA Configuration Figure 4-4-2-1: SATA Configuration Displays SATA device information. 4.4.3 SW Ignition Configuration Figure 4-4-3: SW Ignition Configuration System power on method Normal:System power on by power button. Ignition:System power on by ignition pin. ©Vecow ECX-3000 User Manual BIOS SETUP...
Page 128: Security Function
Restore Factory Keys Force System to User Mode. Reset To Setup Mode Delete all Secure Boot key databases from NVRAM. Key Management Enables expert users to modify Secure boot policy variables without full authentication ©Vecow ECX-3000 User Manual BIOS SETUP...
Page 129: Boot Function
Number of seconds to wait for setup activation key. 65535(0xFFFF) means indefinite waiting. Bootup NumLock State Select the keyboard NumLock state. Quiet Boot Enables or disables Quiet Boot option. Boot Option Sets the system boot order. ©Vecow ECX-3000 User Manual BIOS SETUP...
Page 130: Save & Exit
Discard Changes and Reset Reset system setup without saving any changes. Restore Defaults Restore/Load Default values for all the setup options. 4.8 MEBx Figure 4-8: BIOS Boot Menu The MEBx Login page , configuration AMT BIOS features. ©Vecow ECX-3000 User Manual BIOS SETUP...
Page 131: Appendix A : Isolated Dio Guide
APPENDIX A : Isolated DIO Guide A.1 Function Description The ECX-3000 offers a 16-bit DIO (Isolated) 20-pin terminal block connector, a watchdog timer, and a 4-port POE. Isolated DIO pins are fixed by Hardware design that cannot change in/out direction in runtime process.
Page 132 DIO Connector (NPN, Default) 6-48V DC DIO_VDC (Pin 20) DO (Pin 11-18) DIO_GND (Pin 10, 19) Source Mode Device DIO Connector (PNP) 6-48V DC DIO_VDC (Pin 20) DO (Pin 11-18) DIO_GND (Pin 10, 19) ©Vecow ECX-3000 User Manual Appendix A...
Page 133 Header folder include head file for software developer or System Integration. Manual folder include API description. Sample folder include sample program, driver library, and API library for Windows/ Linux Source folder include sample program source code that compile on Visual Studio 2008/ubuntu16.04. ©Vecow ECX-3000 User Manual Appendix A...
Page 134 A.4 Sample Execute demo tool. Windows Linux Sample, as shown below : Vecow_DIO Vecow_DIO_loopback Vecow_POE Vecow_WDT ©Vecow ECX-3000 User Manual Appendix A...
Page 135: Appendix B : Software Functions
Mask ([15:0]) : In/Out, pin setting by hexadecimal bitmask only for Non- Isolated DIO (GPIO). 1 : Output; 0 : Input Return : TRUE (1) : Success. FALSE (0) : Fail (Initial error, or call by pointer error, or hardware problem). ©Vecow ECX-3000 User Manual Appendix B...
Page 136 BOOL get_GPIO1(WORD *GPIO_data) Get GPIO. GPIO_data ([15:0]) : GPIO state, pin setting by hexadecimal bitmask. 1 : High; 0 : Low. Return : TRUE (1) : Success. FALSE (0) : Fail (Initial error or hardware problem). ©Vecow ECX-3000 User Manual Appendix B...
Page 137 FALSE (0) : Fail (Driver not exists, or version is too old, or out of range error). BOOL get_POE_configuration(BYTE ID, BYTE *Auto, BYTE *Mask) Get POE configuration (by variable). ID : POE ID. Range : 0~15. ©Vecow ECX-3000 User Manual Appendix B...
Page 138 B. POE ([3:0]) : POE state, pin setting by hexadecimal bitmask. 1 : On; 0 : Off. Return : TRUE (1) : Success. FALSE (0) : Fail (Initial error, or out of range error, or hardware problem). ©Vecow ECX-3000 User Manual Appendix B...
Page 139: Appendix C : Raid Functions
1. Please select SATA device to RAID mode on BIOS menu. Advanced → SATA Configuration → SATA Mode Selection → Intel RST Premium → Save Changes and Reset. 2. Into BIOS menu again, select Intel(R) Rapid Storage Technology on BIOS menu. ©Vecow ECX-3000 User Manual Appendix C...
Page 140 3. Select Create RAID Volume on BIOS menu. 4. Select disks to create RAID Volume then Save Changes and Reset to install OS with EFI mode. ©Vecow ECX-3000 User Manual Appendix C...
Page 141 The RAID environment has been done if you completed the steps above. C.5 To Insert SATA HDD for RAID 1 Please note, you can use two SATA ports for SATA HDD, except for mSATA slot. ©Vecow ECX-3000 User Manual Appendix C...
Page 142 Let's take RAID 1 as an example, select "RAID 1". C.7 Disk Management : Partition the Disk After RAID 1 volume is created, you can see the figure of SATA device allocation. You will find "Volume_0000" in SATA device at BIOS menu. ©Vecow ECX-3000 User Manual Appendix C...
Page 143 Then add "Logical Device" for Windows access. C.8 If One SATA HDD on RAID Volume is Out-of-use After RAID 1 volume is created, you can see the figure of SATA device allocation. HDD CAUTION Sign ©Vecow ECX-3000 User Manual Appendix C...
Page 144 A warning will pop-up to ask you if the disk is not a member of the original RAID volume. If you press "Rebuild", it will replace the broken SATA HDD to the last SATA HDD of RAID volume. ©Vecow ECX-3000 User Manual Appendix C...
Page 145: Appendix D : Power Consumption
USB Mouse ACER MOAMUOA USB-2 : USB Keyboard Logitech G-100 GameingKeyboard SATA : Apacer AS340X 120GB SSD Graphics output : Power plan : Balance(Windows10 Power plan) Power Source : Chroma 62006P-100-25 Test Program : BurnInTest ©Vecow ECX-3000 User Manual Appendix D...
Page 146 Core i7- 5.504A 49.54W 7.753A 69.78W 12700TE ® Intel Core i7- 4.168A 50.02W 5.482A 65.78W 12700TE ® Intel Core i7- 2.151A 51.62W 2.923A 70.15W 12700TE ® Intel Core i7- 1.101A 55.05W 1.464A 73.20W 12700TE ©Vecow ECX-3000 User Manual Appendix D...
Page 147 Current Consumption ® Intel Core 8.932A 80.39W 8.956A 80.60W i9-12900E ® Intel Core 6.831A 81.97W 7.201A 86.41W i9-12900E Intel ® Core 3.416A 81.98W 3.485A 83.64W i9-12900E ® Intel Core 1.680A 84.00W 1.723A 86.15W i9-12900E ©Vecow ECX-3000 User Manual Appendix D...
Page 148: Appendix E : Supported Memory & Storage List
APPENDIX E : Supported Memory & Storage List E.1 Test Item Testing Board : ECX-3000 Memory Test MemTest86 V10 Build 1000 OS internal Channel Memory Test Sleep Hibernate Reboot info (SODIMM_1+ PASS PASS PASS PASS PASS SODIMM_2) ©Vecow ECX-3000 User Manual Appendix E...
Page 149 SMART 16GB DDR4-3200 SODIMM ST2046SO410825-SE 25ºC SLLINK 32GB DDR4-3200 SODIMM J4BGSH2G8TMFC 25ºC E.3 Supported ECC Memory List Test Temp. Brand Info (Celsius) Innodisk 16GB DDR4-3200 SODIMM M4D0-AGS1Q5EM-H031 25ºC SLLINK 32GB DDR4-3200 SODIMM J4BGDH2G8TMKC 25ºC ©Vecow ECX-3000 User Manual Appendix E...
Page 150 FP28S-B5GTMS464C1 M.2 2280 SATA PM31 512GB WT MEMXPRO 512GB FP28S-E1GTMS464W1 M.2 SATA M.2 2280 SATA PT31 512GB WT MEMXPRO 512GB FP28S-E1GMTS594W1 innodisk 4TG2-P ** If more help is needed, please contact Vecow Technical Support.** ©Vecow ECX-3000 User Manual Appendix E...
Page 151: Appendix F : I219 Lan Driver Setting
APPENDIX F : I219 LAN Driver setting In order for the system to work stably, please follow the settings below 1. Right-click start. 2. Select Device Manage. ©Vecow ECX-3000 User Manual Appendix F...
Page 153 5. Select Advanced. 6. Select Ultra Low Power Mode. 7. Select Disabled 8. OK ©Vecow ECX-3000 User Manual Appendix F...
Page 154: Appendix G : Umx-100 Solution
APPENDIX G : UMX-100 Solution In order for the system to work stably, please follow the settings below 1. Right-click start. 2. Select Device Manage. ©Vecow ECX-3000 User Manual Appendix G...
Page 155 3. Right-click the device(Renesas USB3.0 eXtensible Host Controller - 1.0(Microsoft). 4. Select Properties. ©Vecow ECX-3000 User Manual Appendix G...
Page 156 5. Select Power Management. 6. Uncheck (Allow the computer to turn off this device to save power). 7. OK ©Vecow ECX-3000 User Manual Appendix G...
Page 157 For further support information, please visit www.vecow.com This document is released for reference purpose only. All product offerings and specifications are subject to change without prior notice. No part of this publication may be reproduced in any form or by any means, electric, photocopying, or recording, without prior authorization from the publisher.

Vecom ECX-3000 User Manual

Chapter 1 General Introduction

Chapter 2 Getting to Know Your Ecx-3000

Chapter 3 System Setup

Chapter 4 Bios Setup

APPENDIX A : Isolated DIO Guide

APPENDIX B : Software Functions

APPENDIX C : RAID Functions

APPENDIX D : Power Consumption

APPENDIX E : Supported Memory & Storage List

APPENDIX F : I219 LAN Driver Setting

APPENDIX G : UMX-100 Solution

Quick Links

Need help?

Questions and answers

Related Manuals for Vecom ECX-3000

Summary of Contents for Vecom ECX-3000

Table of Contents
