General Description of use.
Radio Receiver with 4 x 10A relay contacts. Switches contacts via radio signal from a wireless switch / remote. It has
been designed for switching on / off all types of light sources, as well as electric gates, water features, garage doors, as
well as many other applications.
1.

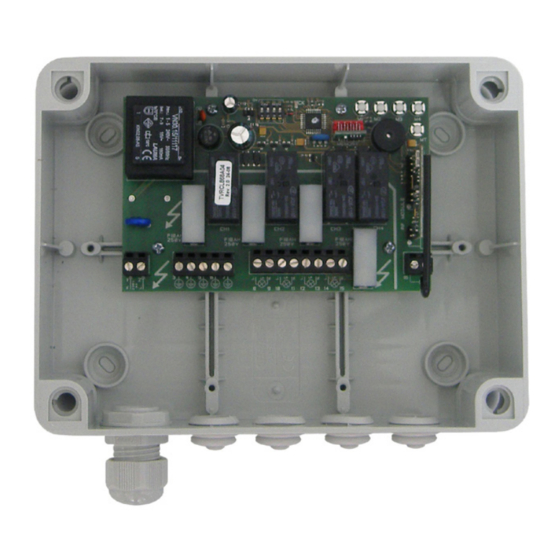

How to install the WiseBox.

a)
Connect a mains 240V supply into the WiseBox using terminals 1 (Neutral), 2 (Live) and 3 (Earth)
b)
Connect up to four circuits using terminals 4-7 (Earth) and 8 – 15 (Live and Neutral).
2.

How to program a WiseBox circuit to a single switch button.

a)
Make sure that the mains 240V supply into the WiseBox is ON.
b)
Press and hold 'M1' (Circuit 1)
(the buzzer will sound continuously.)
c)
With 'M1' held down, press one of the buttons on the wall or remote switch.
(The buzzer will sound intermittently to confirm the programming is successful.)
d)
You will now be able to control channel 1 using the selected switch button.
e)
To program circuits 2, 3 or 4, repeat steps A - D.

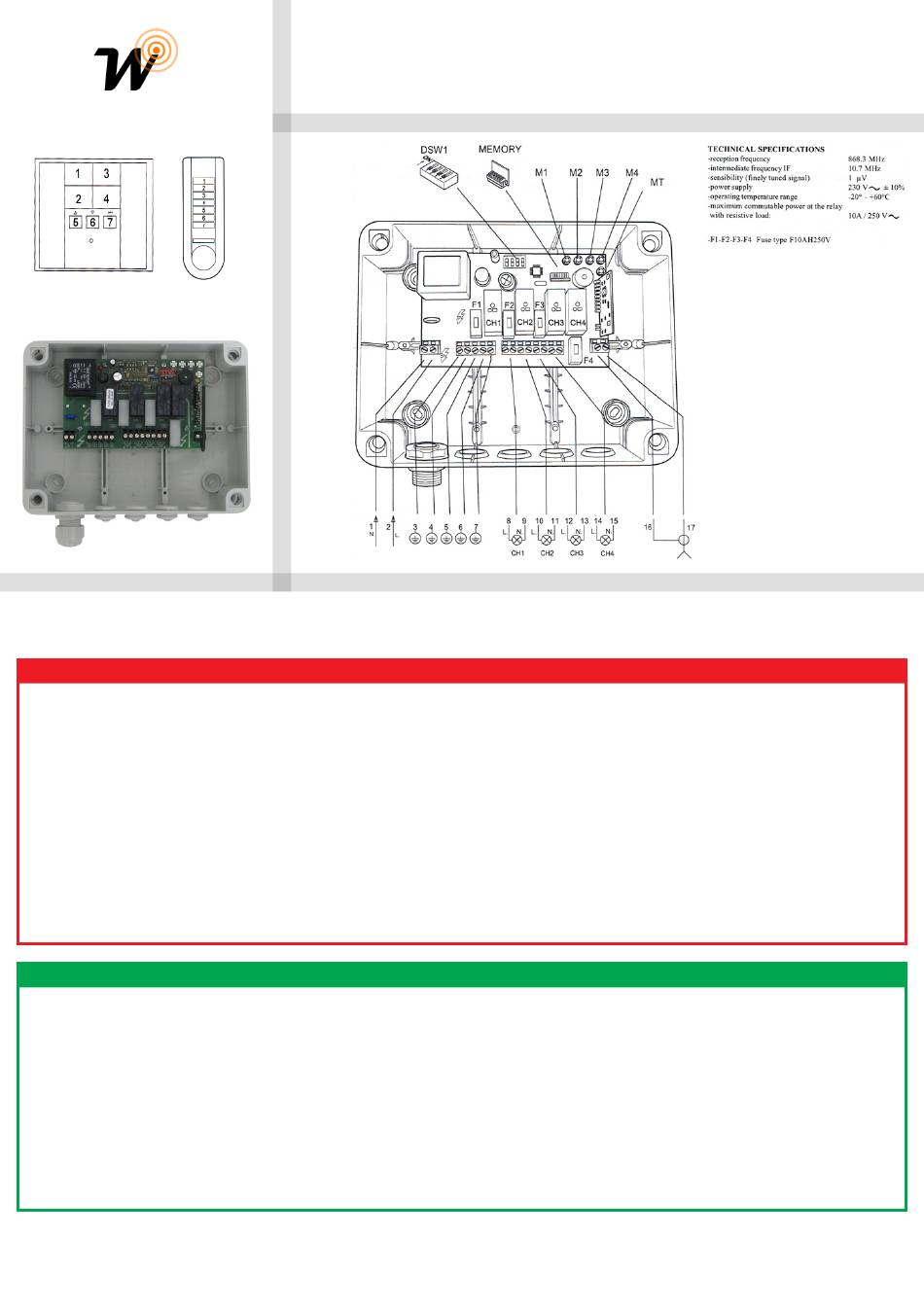

wisebox
Simple Instructions for the
INSTALLATION
PROGRAMMING
WiseBox 4 x 10Amp
