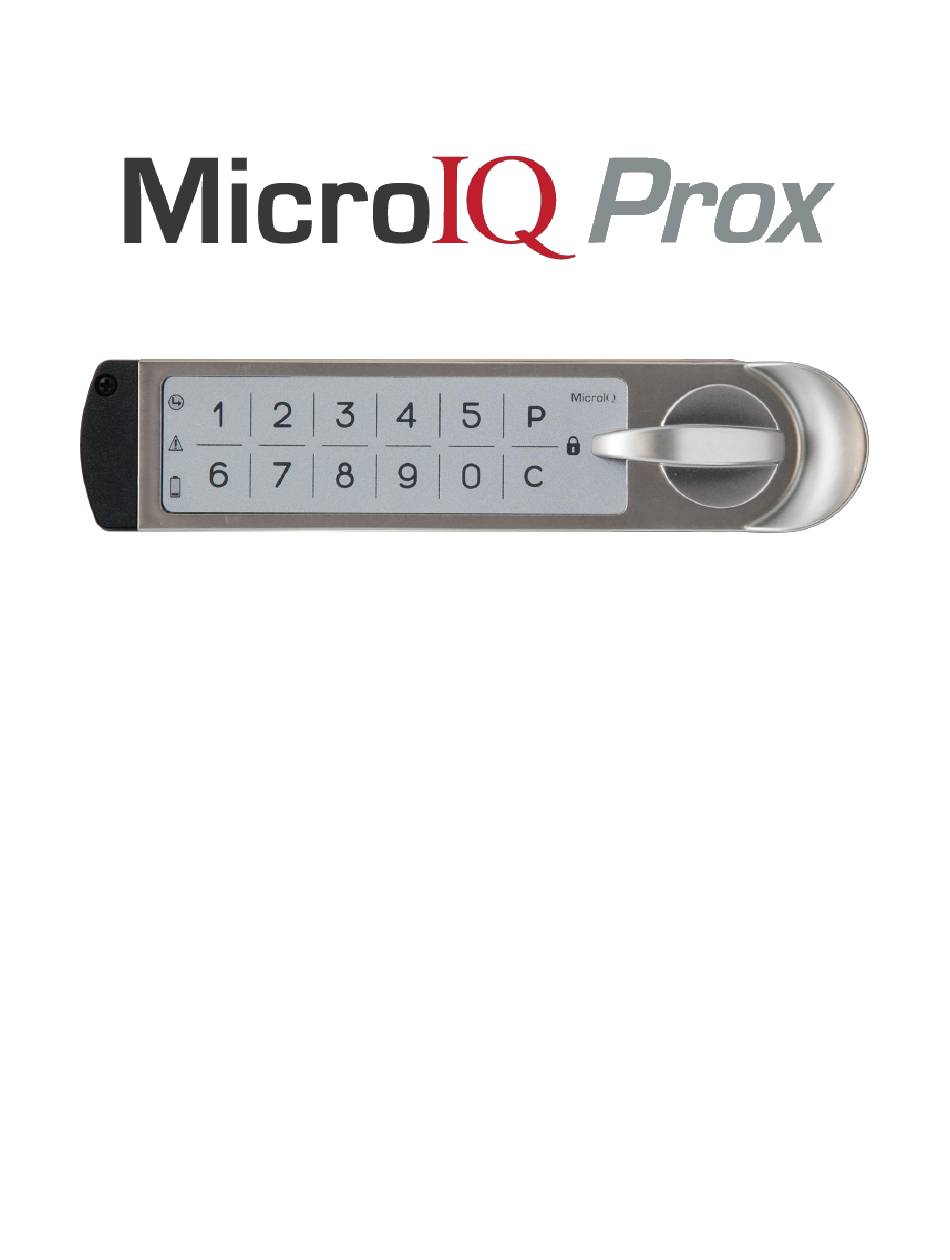

- Page 1 MODELS CWL, RWL, SWL, UWL MicroTraq App & Keypad (Local) Administration Instructions STATION MODE Page 1 of 14 3/31/2022...
-
Page 2: Table Of Contents
Contents Introduction ..............................3 Modes ............................... 3 Access ................................ 3 Administration ............................4 MicroTraq App Administration ........................4 Installation & App Set Up .......................... 4 Commission / Decommission Locks ......................7 Lock Identification and Set Up ........................8 Manage User Access ..........................8 Lock Functions and Commands ........................ -
Page 3: Introduction
Introduction This document details how to set up and use the MicroIQProx lock with either the MicroTraq app or the keypad on the lock. These instructions are specific to locks in station mode. Close proximity to the lock is required. Modes The MicroIQProx lock can operate in two modes: station mode or locker mode. -
Page 4: Administration
Administration MicroIQProx locks can be set up using the MicroTraq app or the keypad. The MicroTraq app has the following administration capabilities: commission & decommission locks manage lock access parameters enroll ProxCards and assign to users remove ProxCards access upload audit trails unlock command change keypad codes switch operating modes... - Page 5 Next download and install the MicroTraq app: Next set up the MicroTraq app: Open the MicroTraq app when you are nearby a MicroIQProx lock (that has the battery installed) When prompted, select ALLOW in the pop-up screen. This is an Android requirement and the app will not function if you deny this request.
- Page 6 At the log in screen, enter the credentials that were provided and select OK. If the username or password is not valid, an error message will be displayed. Enter the correct credentials and note it may take up to 30 seconds for the error message to clear.
-
Page 7: Commission / Decommission Locks
The Auto Connect Mode should be OFF. Commission / Decommission Locks Each lock must be ‘commissioned’ to use the MicroTraq app. Commissioning the lock will add the lock to the users account and will enable the communication between the lock and the MicroTraq app. -
Page 8: Lock Identification And Set Up
Lock Identification and Set Up In the MicroTraq app, turn ON the scanning for locks function. If the lock is not detected, push the P button on the MicroIQProx lock keypad to enable to connection. In the app, the lock name will change from yellow to green. -
Page 9: Lock Functions And Commands
Lock Functions and Commands Use the OPS tab to operate the lock. Functions include: Unlock Switch operating modes Add or remove ProxCards (user and master) Delete locks Auto Connect Feature The auto connect feature of the MicroTraq app is found in settings (gear icon). When ON, the app will automatically connect to nearby locks. - Page 10 Double click on the download file to install At the Window Defender Smart Screen, click on “More Info” and “Run Anyway” Accept the license agreement and finish the installation. Open the app and enter the credentials provided in your email. The log viewer will display the available activity history of all the locks commissioned on the account.
-
Page 11: Keypad Administration
Keypad Administration Set up and administration of the MicroIQProx can also be performed directly with the keypad. If the lock was commissioned with the MicroTraq app, it will have to be decommissioned in order to use the keypad for programming. Programming Chart Page 11 of 14 3/31/2022... -
Page 12: Examples
When finished press P for 5 seconds. Unlocking With a ProxCards: Present the valid ProxCard to the lock. The MicroIQ icon should illuminate. If not, press the P to wake the lock and present the ProxCards card again. The green LED will illuminate and the knob can be turned to the unlocked position. The lock will remain unlocked for 5 seconds. -
Page 13: Remove A User Proxcard
Present the user ProxCard to the lock. Three green flashes indicate the ProxCards is read. After the three green flashes additional cards can be presented one at a time to learn into the lock. Remove a User ProxCard Press and hold the P on the lock keypad for 5 seconds. The green LED will illuminate. Enter 35 followed by P on the lock keypad. - Page 14 To disable the “Day-unlock” mode, press and hold the P on the lock keypad for 5 seconds. The green LED will illuminate. Enter 45 followed by P on the lock keypad. Both the green LED and the yellow LED will be lit. Enter the Master code then press the P button to confirm.
